Hazelrigg Industries 4DI 4 Channel Vacuum Tube Direct Box

The latest entry in the Hazelrigg Industries Solution Series (which includes the VLC, VNE, VEC, and VDI), the 4DI combines four of Doug Fearn’s legendary VT-I/F Direct Injection Box circuits in a convenient 2-space rackmount enclosure that is perfect for House of Worship, FOH live situations, recording studios, and more. A reimagining of the classic D.W. Fearn VT-1/F, the 4DI features 4 Channels of this legendary all-triode Vacuum Tube Direct Box design. Unlike the original VT-I/F Dual Channel design, the VDI is a 4-Channel offering housed in a convenient 2 space rackmount enclosure. An ideal solution for both studio and stage, the 4DI is offered as part of the Hazelrigg Industries Solutions Series and will deliver incredible results with amplified acoustic instruments, electric bass and guitar, synthesizers, and more. The front panel conveniently features 4 locking ¼” Instrument Input sockets, locking Ground Lift switches for each channel as well as LED indicators for signal and Ground Lift. Moving to the rear panel, users will discover four sets of ¼” input and passthrough jacks (wired in parallel to the locking front panel connector) as well as 4 microphone level outputs available on XLR Connectors. Finally, the rear panel also features an IEC Mains Socket, Power Switch, and 115V-220V Mains Selector. Sharing the same high-headroom circuit design as the venerable VT-I/F, the 4DI will provide stunningly dynamic results on electric bass and guitar, add power and girth to vintage (or modern!) synths, and bring a depth and realism to piezo equipped acoustic instruments that simply must be heard.

Key Features:

• All-Tube DI Circuit Originally Designed By D.W. Fearn
• 4 Rear Panel Microphone Level Outputs, Each On XLR Connector
• 4 Front Panel Instrument Inputs On Locking 1/4” Jacks
• All Steel 2 Space Rackmount Design
• 4 Front Panel Ground Loop Switches On Locking Toggles
• Handcrafted In The USA
• 4 1/4” Rear Panel Instrument Input And Pass-Through Jacks
• 7 Year Warranty (90 Days For Vacuum Tubes)

• 4 Channels of all-triode Vacuum Tube Direct Box design

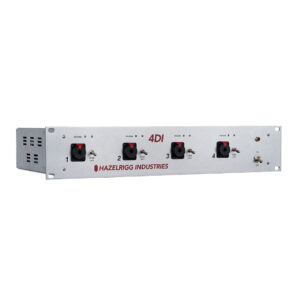

• Front Panel: 4 locking ¼” Instrument Input sockets, locking Ground Lift switches, LED indicators for signal and Ground Lift

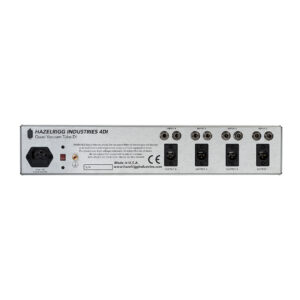

• Rear Panel: Four sets of ¼” input and passthrough jacks, 4 microphone level outputs on XLR Connectors
• IEC Mains Socket, Power Switch, 115V-220V Mains Selector
