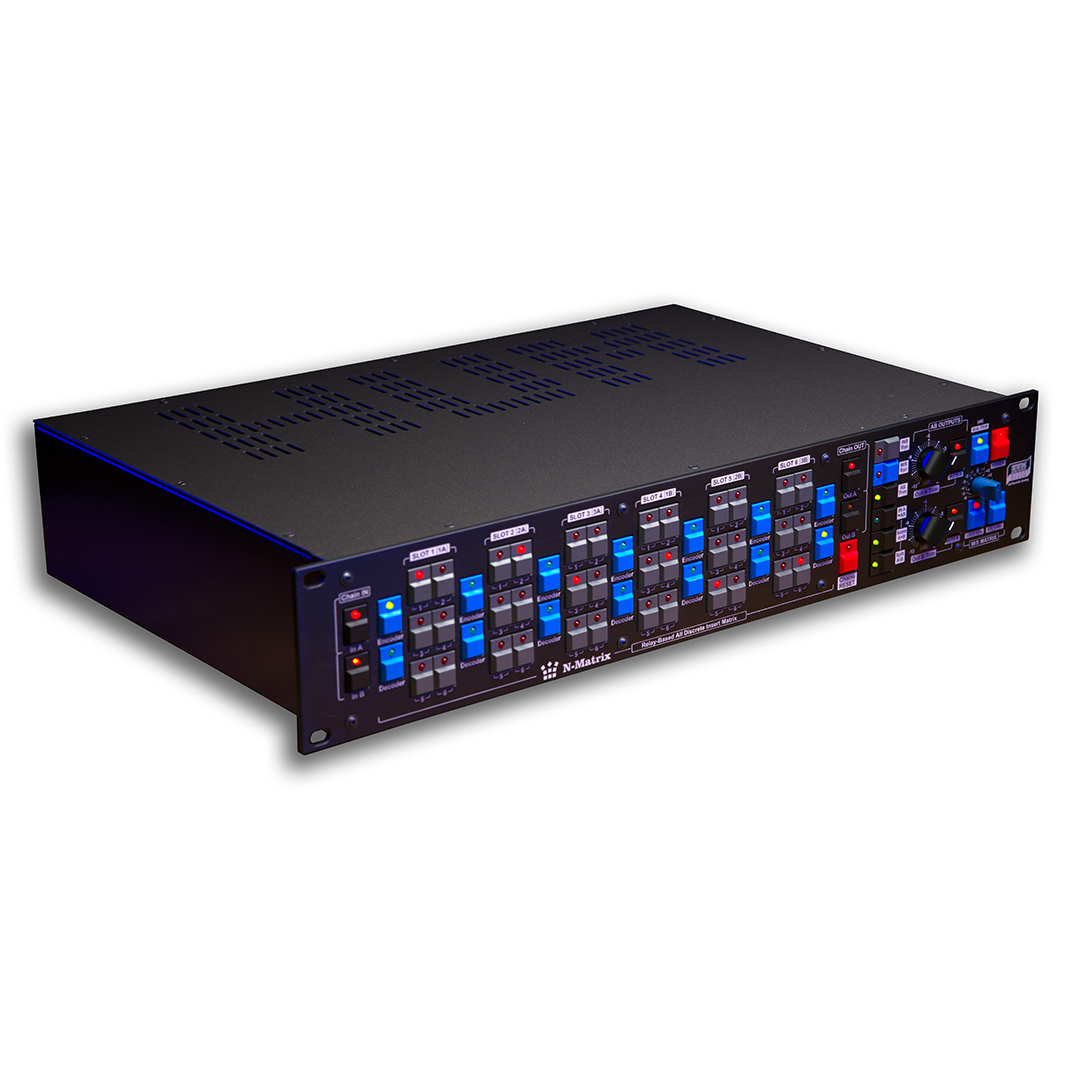

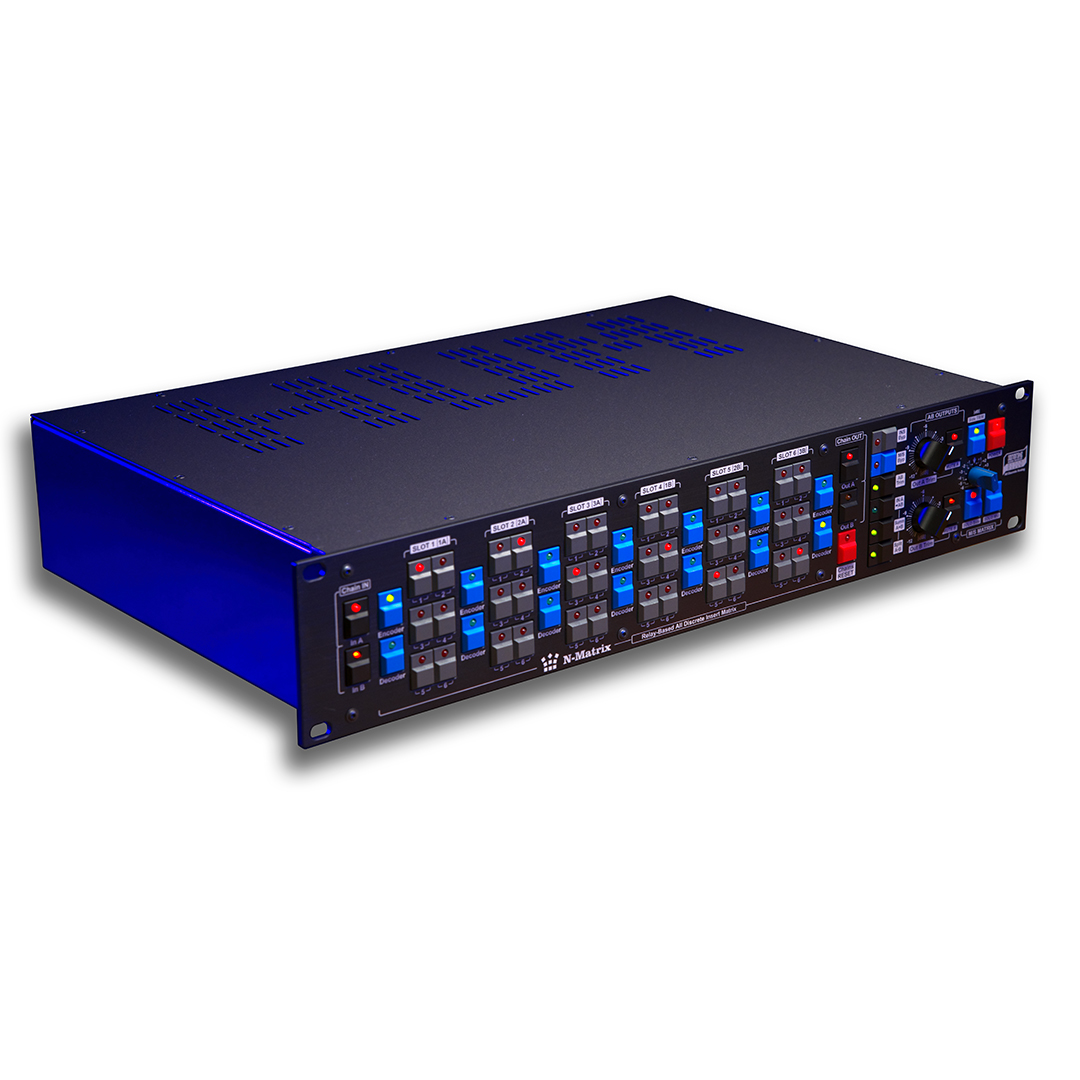

HUM Audio N-Matrix Relay-Based All Discrete Insert Matrix

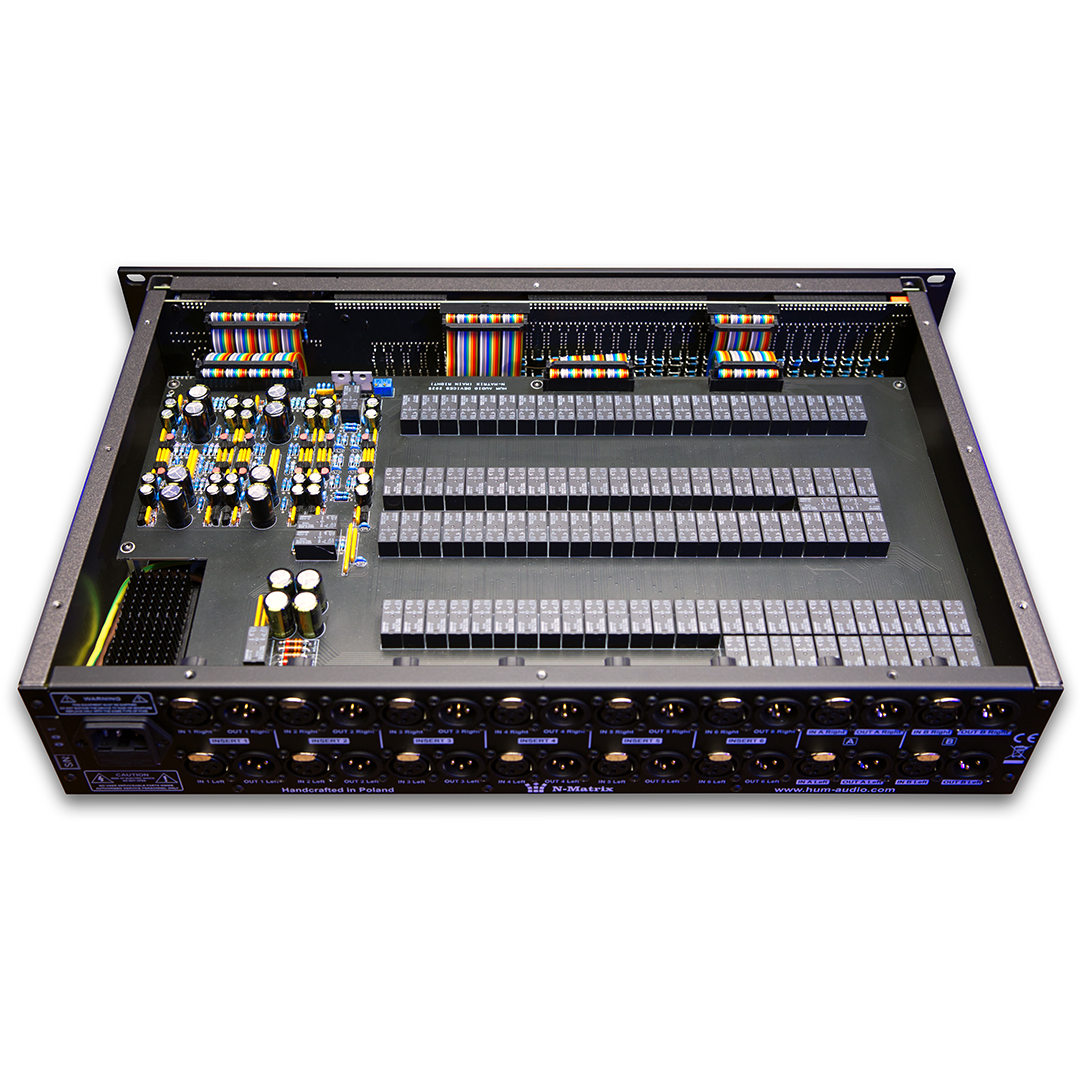

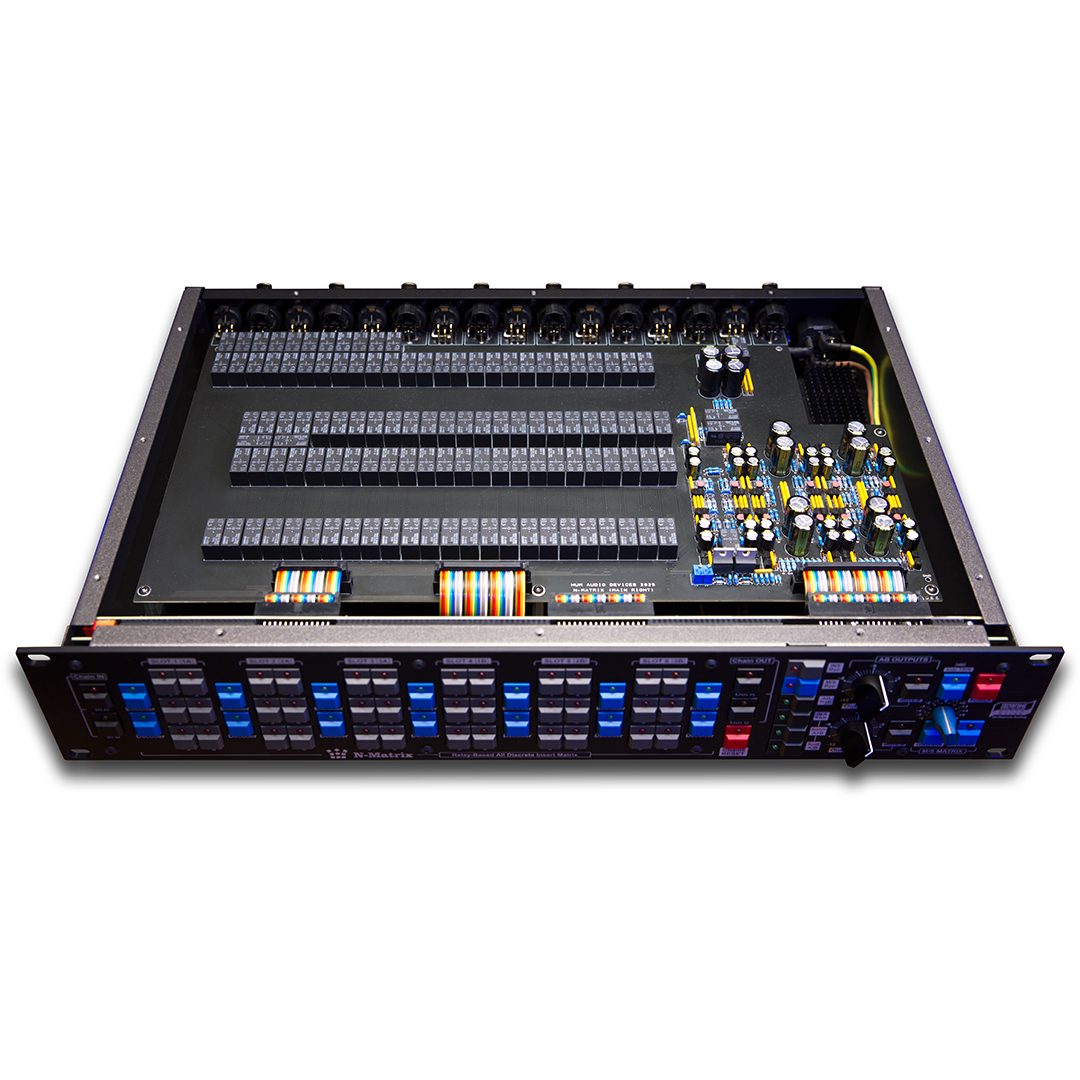

The HUM Audio N-Matrix is a fully analog, all-discrete relay-based insert matrix designed for mastering and mixing engineers who demand absolute transparency, flexibility, and simplicity. Built with nearly 300 gold-contact relays and a completely balanced signal path, the N-Matrix delivers lossless routing, M/S processing, stems summing, and level trimming with pristine sonic accuracy. Every function is designed to enhance creativity without ever coloring your signal.

Inspired by the insert section of HUM Audio’s acclaimed N-Trophy mastering console, the N-Matrix expands on that foundation to offer a standalone analog insert processor of unmatched quality. Each unit is hand-built in Poland with audiophile-grade components, discrete analog circuits, and an obsession for detail. The result is a mastering-grade tool that provides full control of your analog chain while maintaining total sonic purity.

Key Features

• Fully analog, all-discrete insert matrix with six stereo insert slots
• Passive, relay-based signal routing with gold-plated contacts
• Massive headroom and ultra-low noise for mastering-grade transparency
• Split main chain into two independent three-slot sub-chains (A and B)
• Parallel, serial, and cascaded processing modes with real-time switching
• Integrated M/S encoder and decoder that can be placed anywhere in the chain
• Dedicated Side signal trimming, soloing, and stereo width control
• Analog stereo stems summing with discrete M-op-amp architecture
• Output section with stepped rotary trim controls for precision level management

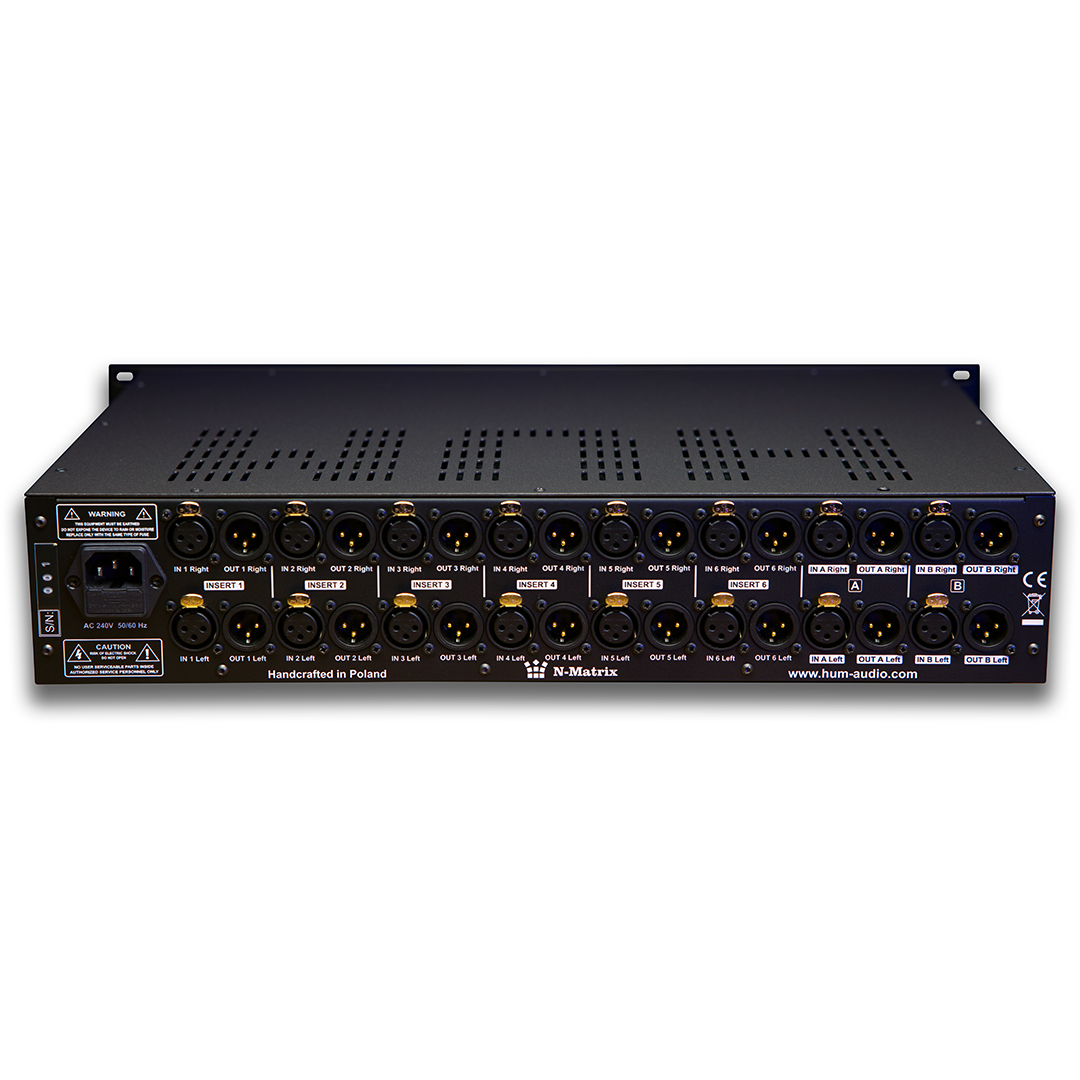

• Balanced XLR inputs and outputs throughout – no DB25 connectors
• Hand-built with top-grade components and long-life relays for maximum reliability

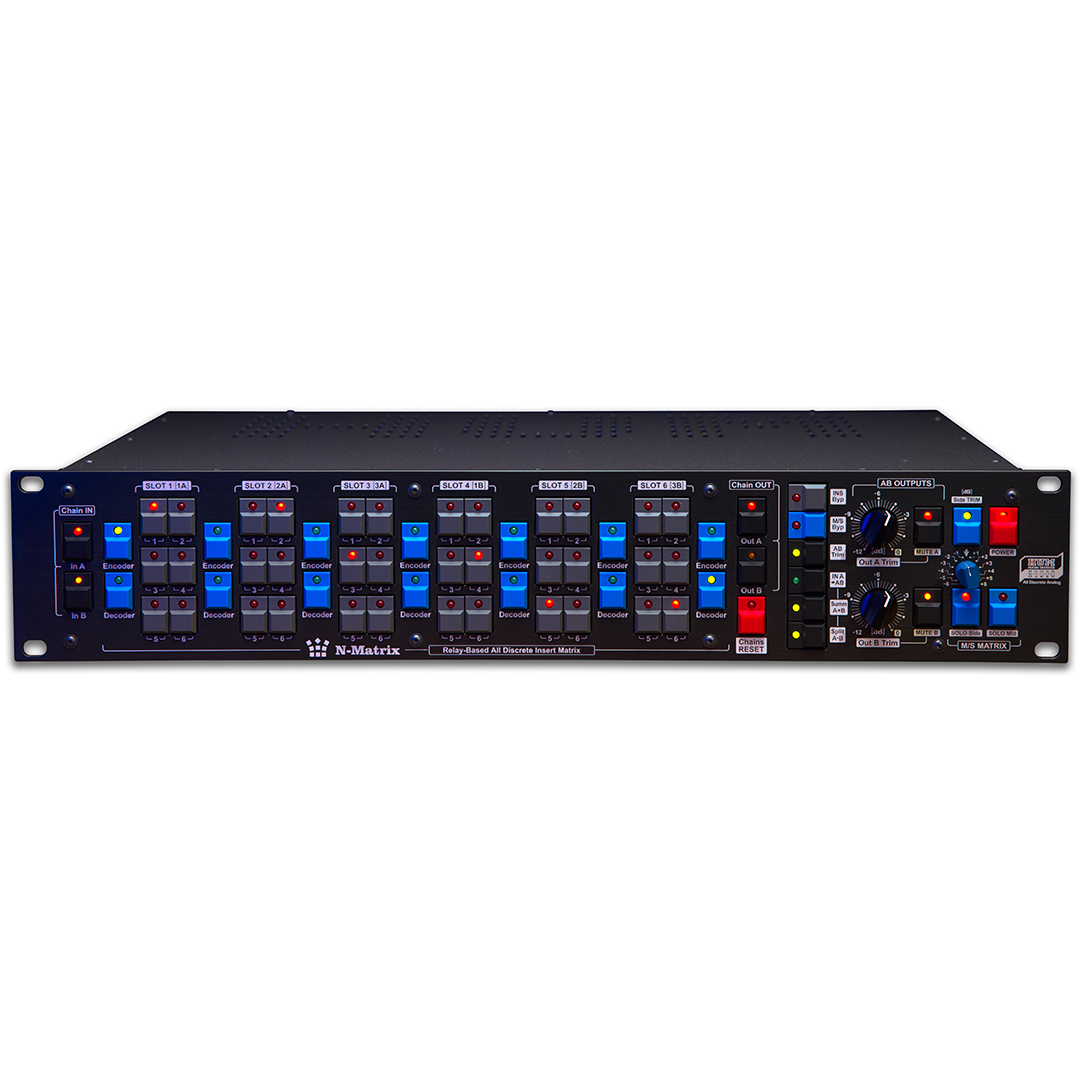

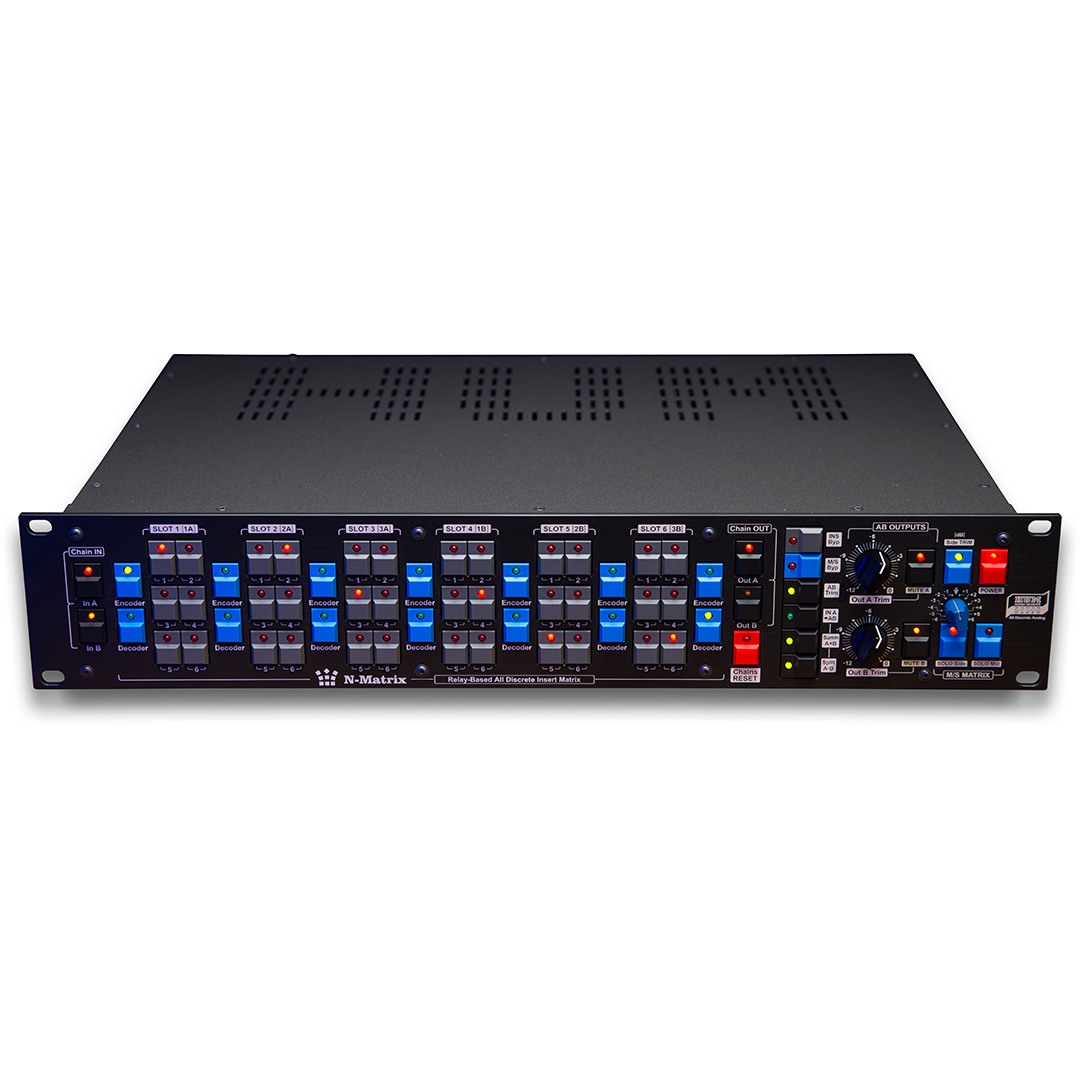

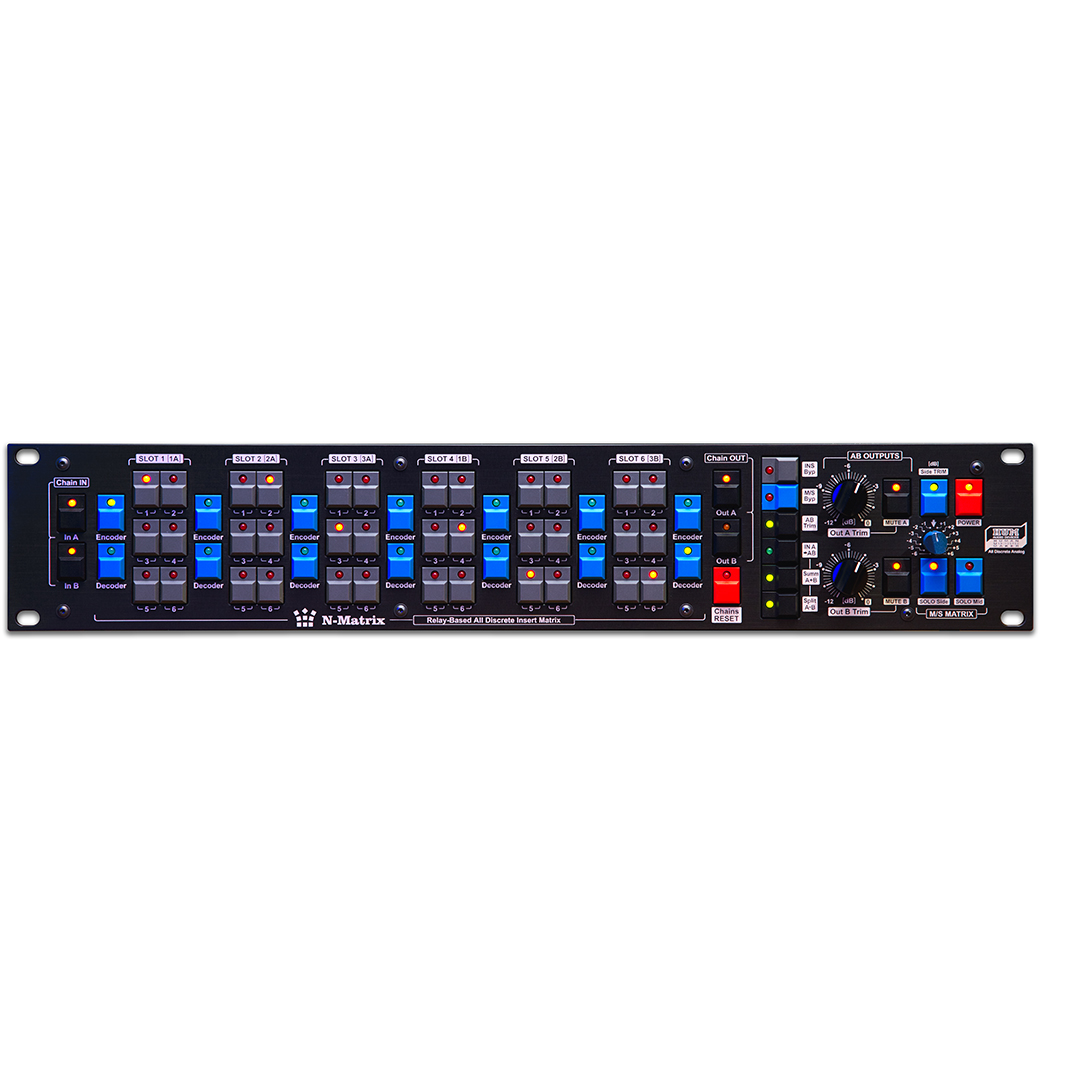

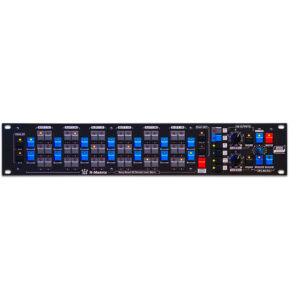

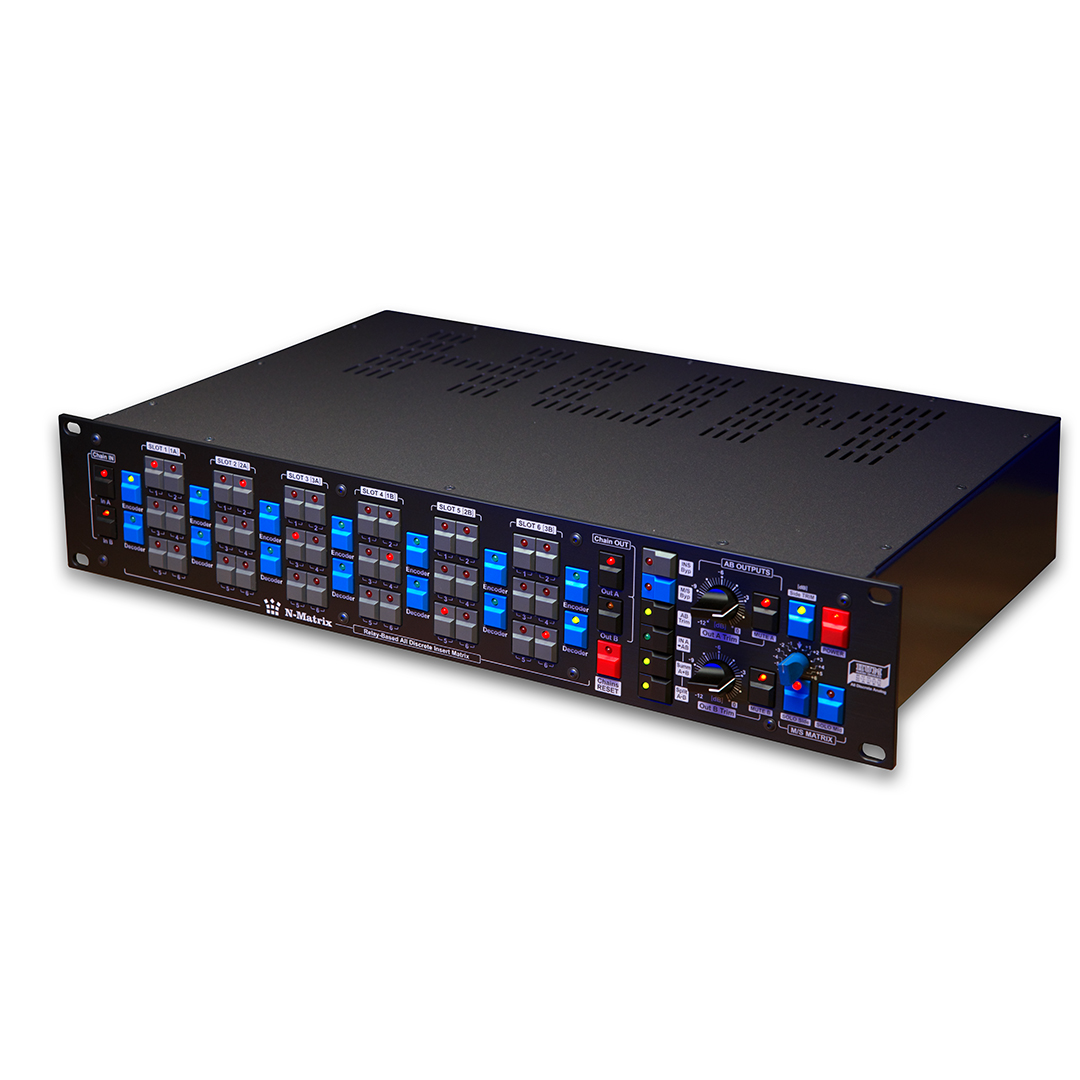

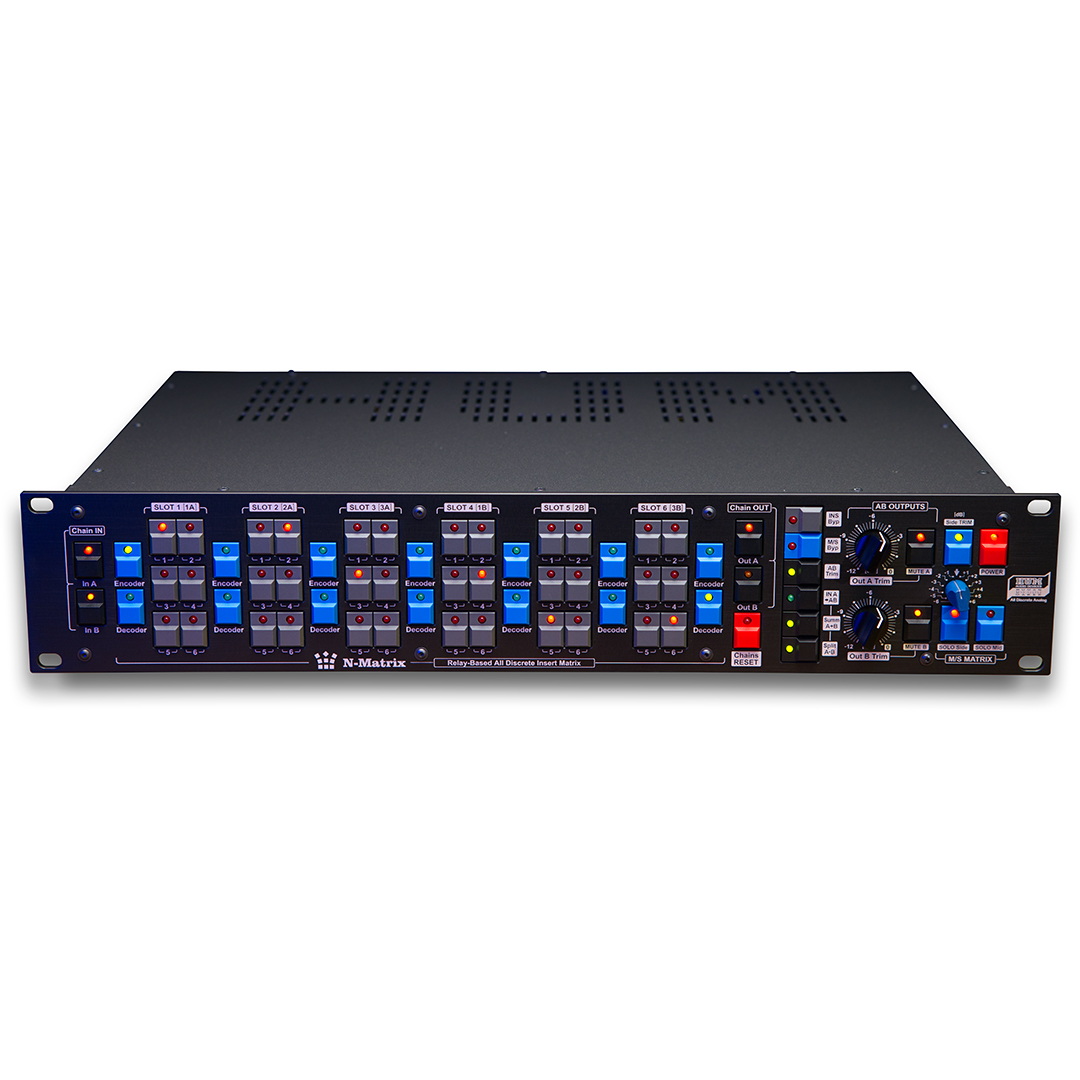

• Classic 2U chassis design with solid machined aluminum knobs and vintage-style illuminated buttons

Specifications

• Audio: Fully balanced, all-discrete analog circuitry
• Max Input Level: +25dBu
• Max Output Level: +25dBu
• Input Impedance: 30kΩ balanced
• Output Impedance: 300Ω balanced
• Frequency Response: 10Hz – 30kHz (±0.1dB)
• THD+N: 0.001% (1kHz / 1dBV)
• Noise Floor: -112 dBFS (A-weighted)
• Power: Auto-switching 100V–240V AC, 50/60Hz, 45W max
• Dimensions: 484mm W × 88.9mm H × 314mm D (2U rackmount)
• Weight: 7.1kg (8.8kg shipping)
• Included: Custom shielded AC power cord
