iConnectivity mioXL 8×12 USB/Networkable MIDI Interface

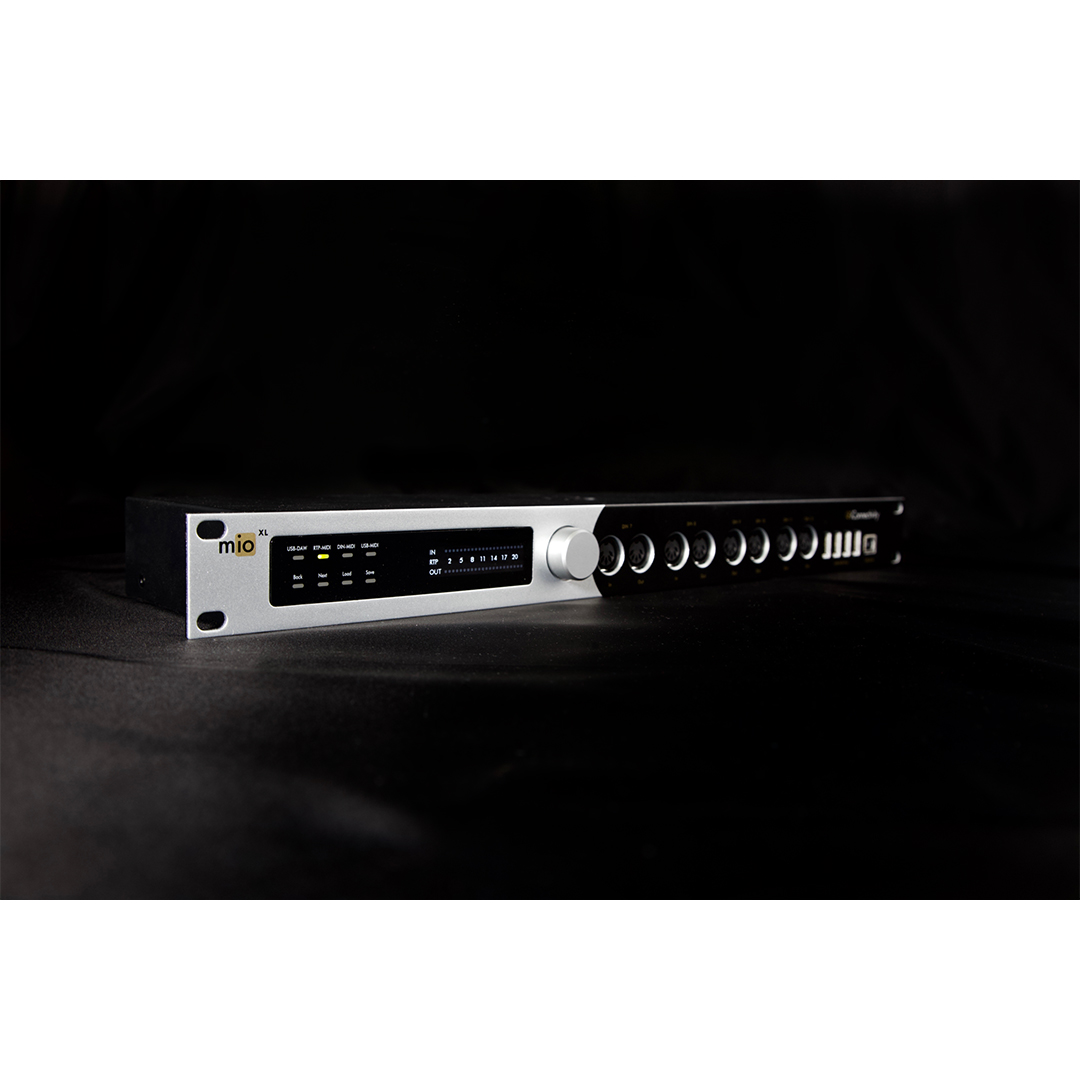

The iConnectivity mioXL is a professional-grade, 1U rackmount MIDI interface built for studios and stages that demand serious MIDI connectivity. With 8 DIN inputs, 12 DIN outputs, 10 USB-MIDI host ports, and a dedicated Ethernet RTP/Network-MIDI port exposing 22 virtual network sessions, the mioXL handles even the most complex hardware rigs with room to grow. Ethernet connectivity extends the interface’s reach up to 330 feet from any connected computer—far beyond the limits of standard USB—making it equally at home in large studio facilities and live venues. iConnectivity’s Auracle 2.0 software brings deep MIDI filtering, routing, remapping, and merging to an interface that also stores up to 32 presets onboard for instant recall without a computer.

Key Features

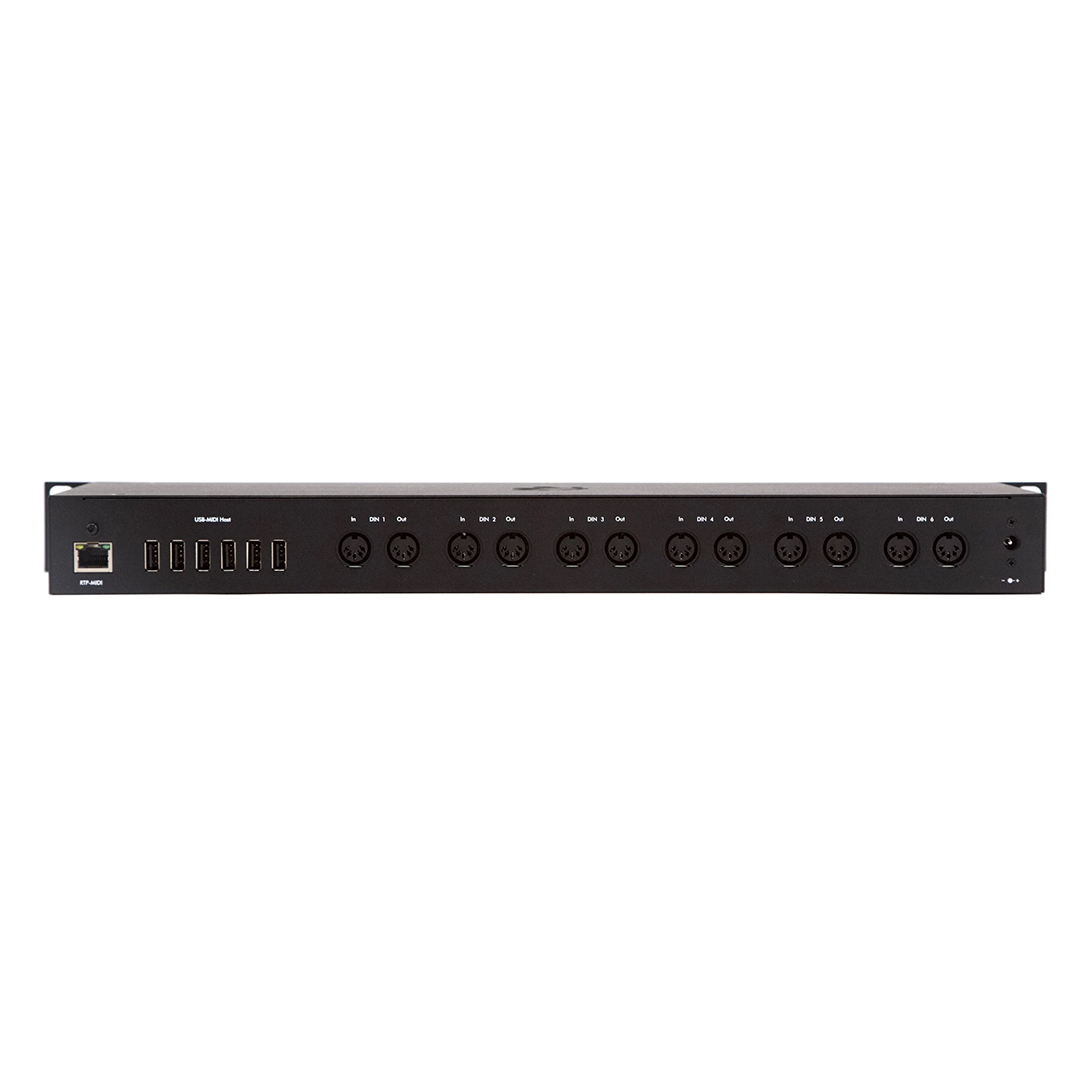

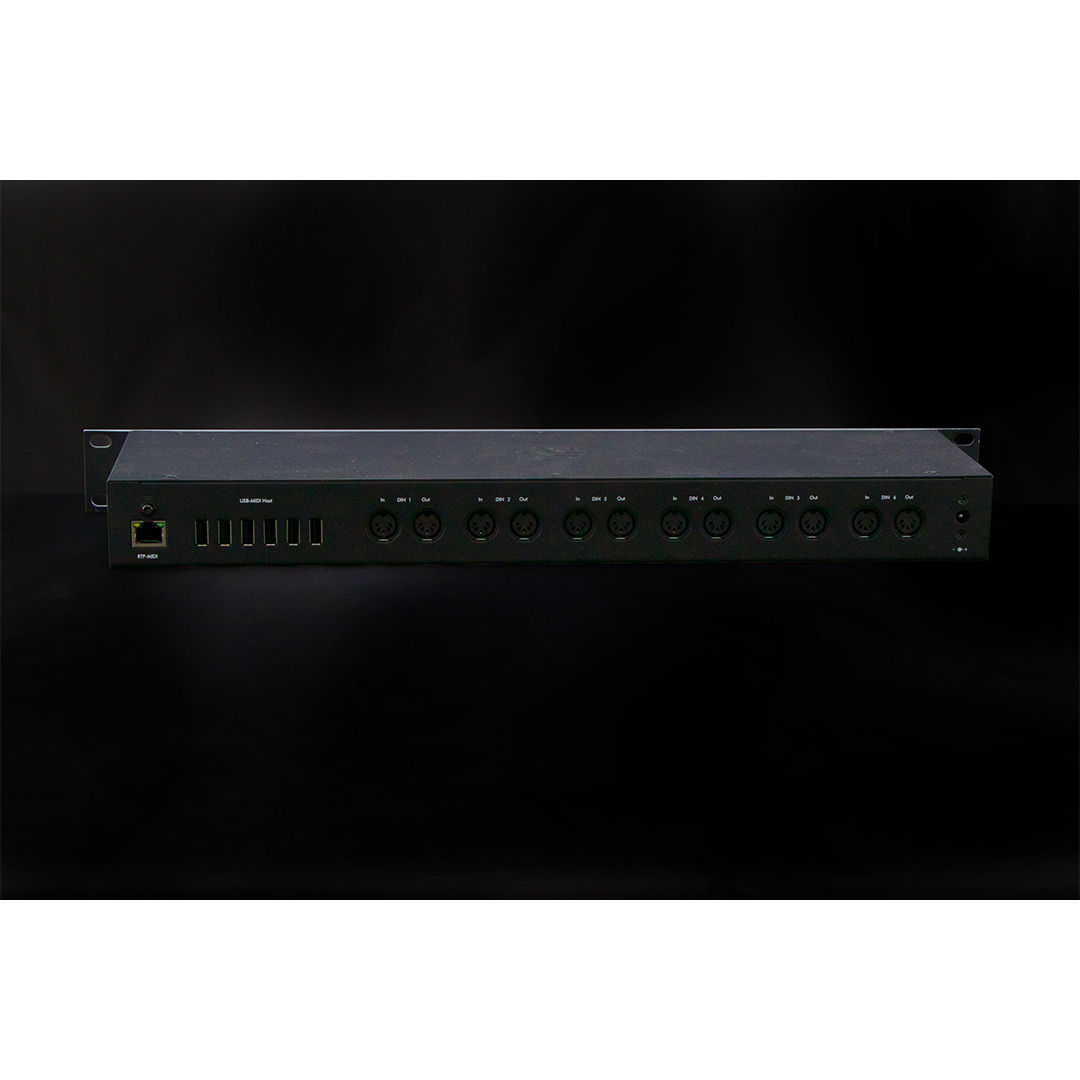

• 8 × 12 DIN-MIDI ports — 8 5-pin DIN inputs and 12 5-pin DIN outputs for extensive hardware connectivity
• 10 USB-MIDI host ports — connect multiple class-compliant USB-MIDI peripherals simultaneously

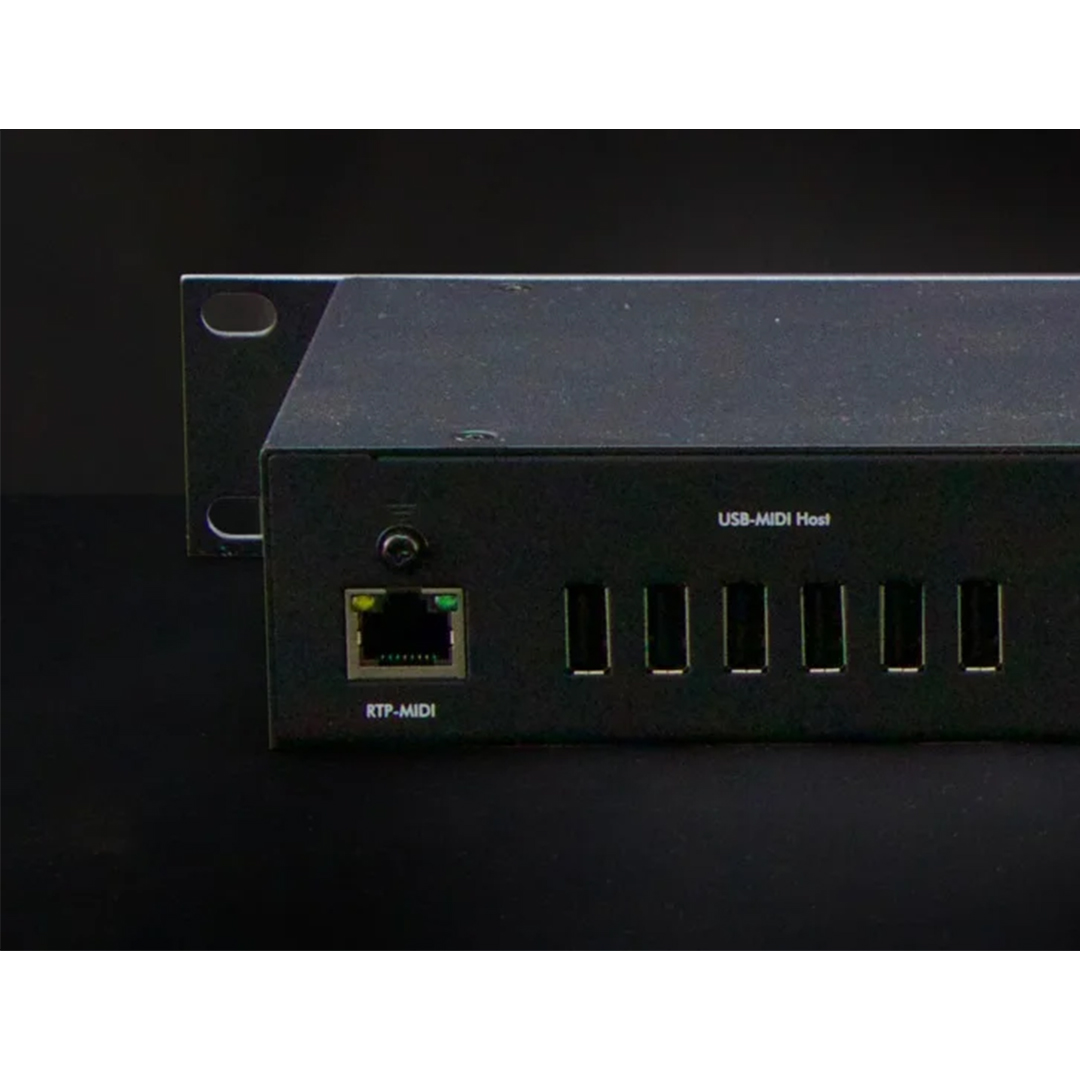

• Ethernet RTP/Network-MIDI — 22 assignable virtual network ports; connect to Mac, PC, iOS, and other devices over a single Ethernet cable up to 330 ft / 100 m
• USB computer port — class-compliant, plug-and-play connectivity for Mac, Windows, and iOS (via Camera Connection Kit)
• 32 onboard presets — store and recall unique MIDI routing, filtering, and merging configurations directly from the front panel—no computer required

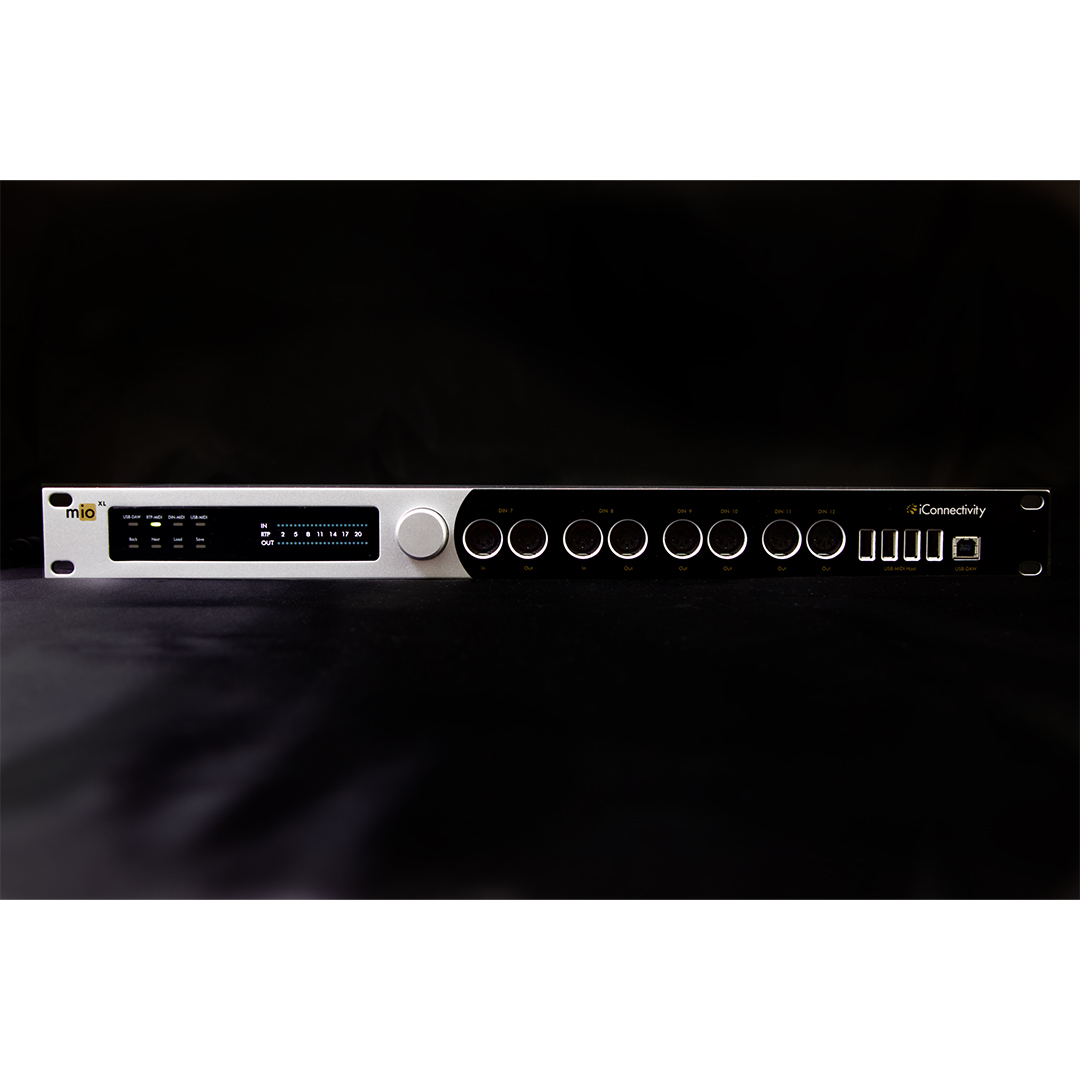

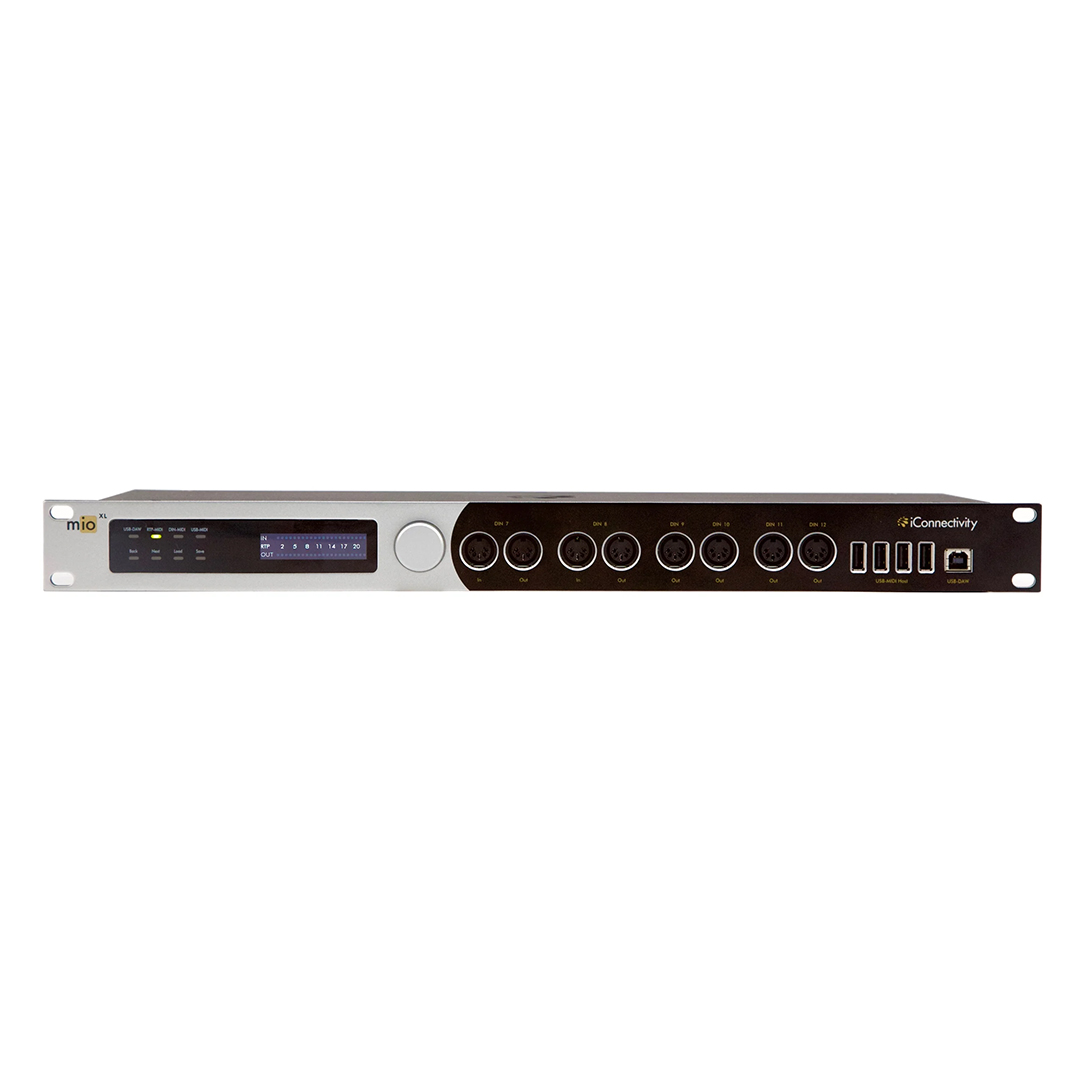

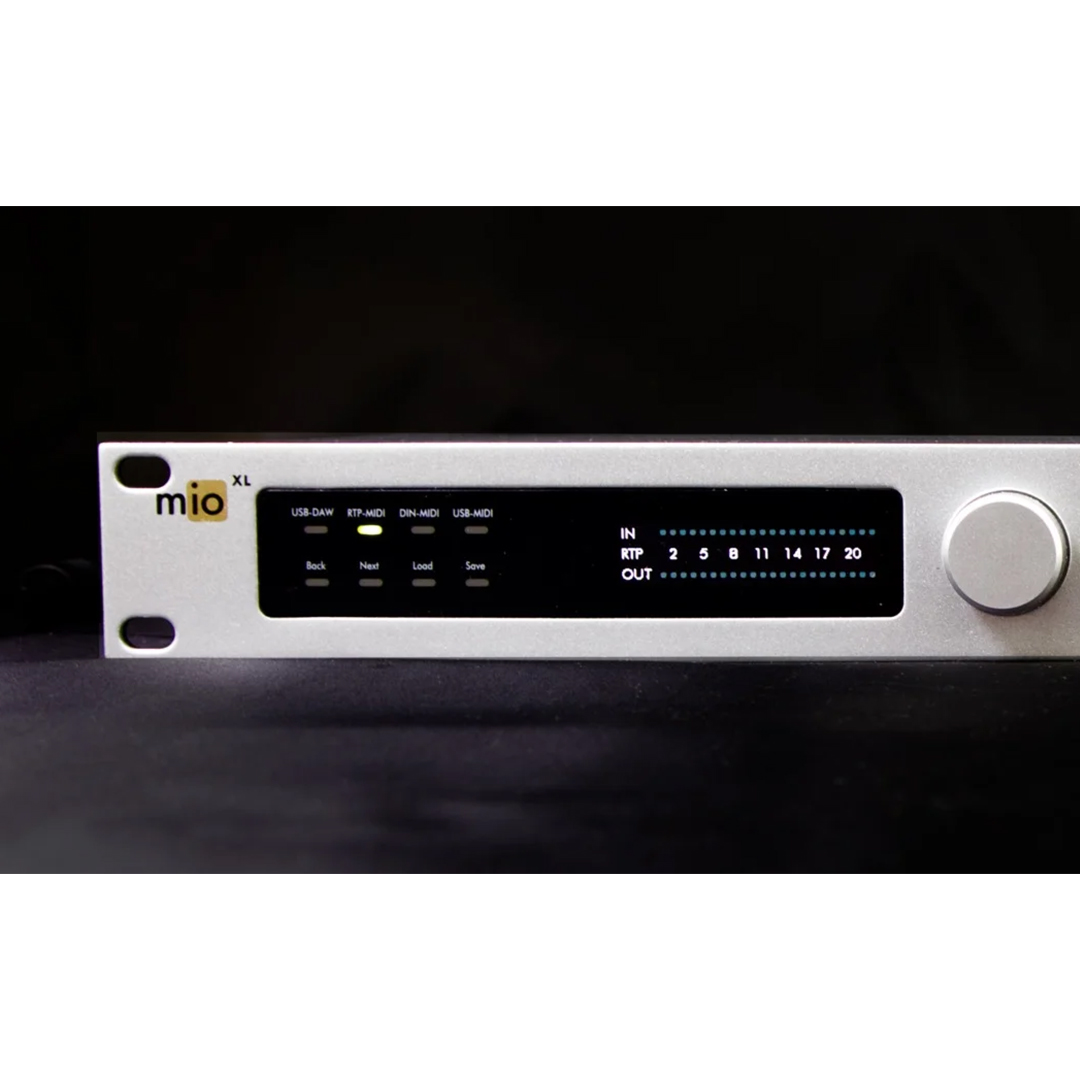

• OLED display with rotary encoder and capacitive touch controls — real-time MIDI traffic monitoring, preset navigation, and selection without a computer
• Auracle 2.0 software — downloadable for Mac and Windows; deep MIDI merging, filtering, remapping, and routing in a streamlined interface
• Scalable network architecture — stack multiple interfaces and computers on a network for expanded MIDI port counts beyond USB limitations
• Easy network port renaming — ports appear in your DAW exactly as you label them
• No drivers required — class-compliant operation on Mac, Windows, and iOS out of the box
• iOS support — connect via Camera Connection Kit (CCK), wired Ethernet, or Wi-Fi (via third-party Wi-Fi Ethernet hub)
• 1U rackmount chassis — road-ready, full-width 19-inch form factor with included 12V/36W universal power supply

Specifications

• DIN-MIDI Inputs: 8
• DIN-MIDI Outputs: 12
• USB-MIDI Host Ports: 10
• USB Computer Port: 1 (class-compliant; Mac, Windows, iOS)
• Network Port: 1 × Ethernet RTP/Network-MIDI (22 virtual sessions)
• Onboard Presets: 32
• Display: OLED with rotary encoder and capacitive touch
• Configuration Software: iConnectivity Auracle 2.0 (Mac & Windows)
• Width: 19 in (1U rackmount)
• Height: 1.75 in
• Power Supply: 12V 36W with interchangeable blades (NA, EU, UK, AU)
• Mac Compatibility: macOS 10.13 or later
• Windows Compatibility: Windows 10 or later
• iOS Compatibility: iOS 8 or later with CoreMIDI-compatible app
