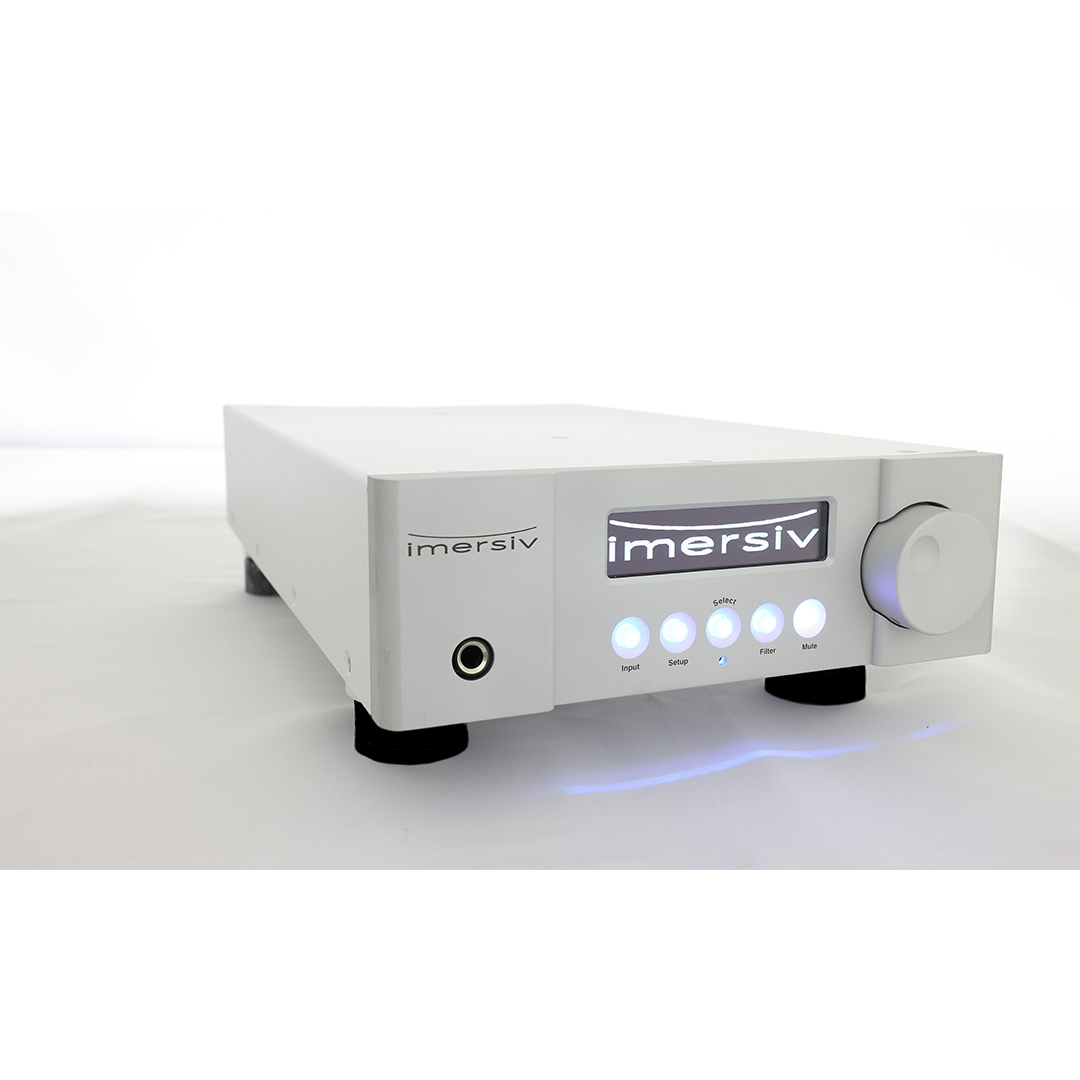

Imersiv D-1 DAC

The Imersiv D-1 DAC introduces a paradigm shift in digital audio, delivering an astonishing 168dB of dynamic range and clarity through groundbreaking HDR-A (High Dynamic Range Audio) multi-path processing. With ultra-low self-noise—100 times quieter than leading DACs—and unmatched linearity, the D-1 redefines fidelity from microphone to power amp. Ideal for mastering, film scoring, and high-resolution audio production, the D-1 is engineered for professionals who demand absolute transparency and detail. Built on over 35 years of pro audio innovation, this U.S.-made converter sets a new benchmark in digital-to-analog conversion.

Key Features

• HDR-A® multi-path processing delivers 168dB of true dynamic range and 28-bit linearity
• Unmatched 40nV self-noise—25dB below the threshold of today’s test equipment
• +22dBu ISO-free headroom with zero compromise to noise floor
• Supports PCM (32kHz–384kHz, 32-bit), DSD (1x, 2x, 4x), and Dante (optional)
• Six selectable digital filters, polarity flip, and relay mute
• Remote controllable via IR (27 functions)
• Ultra-high precision analog output with 0.01dB manual alignment

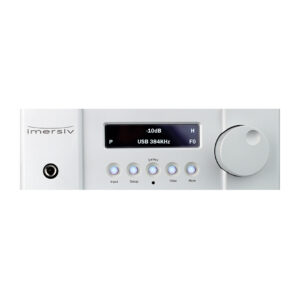

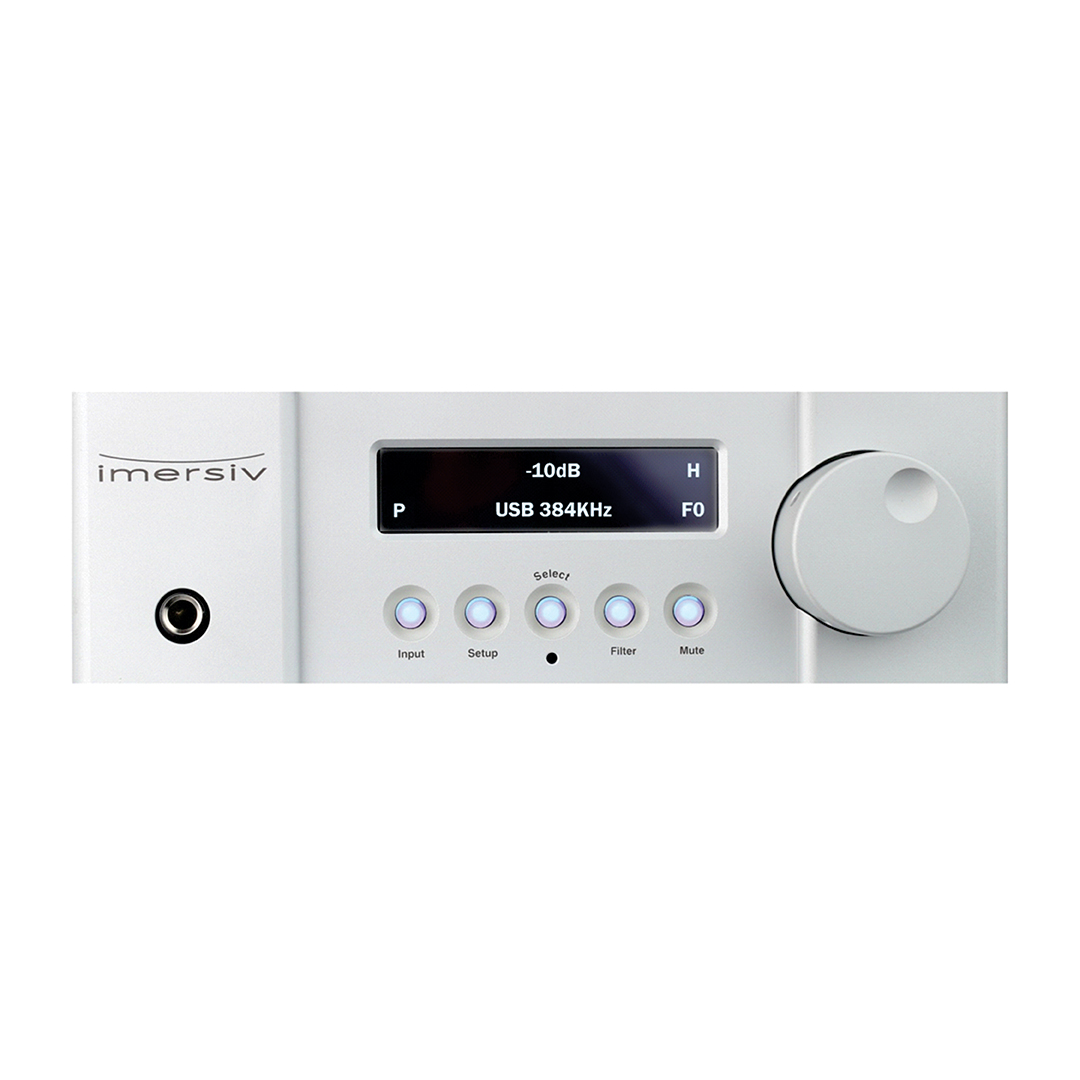

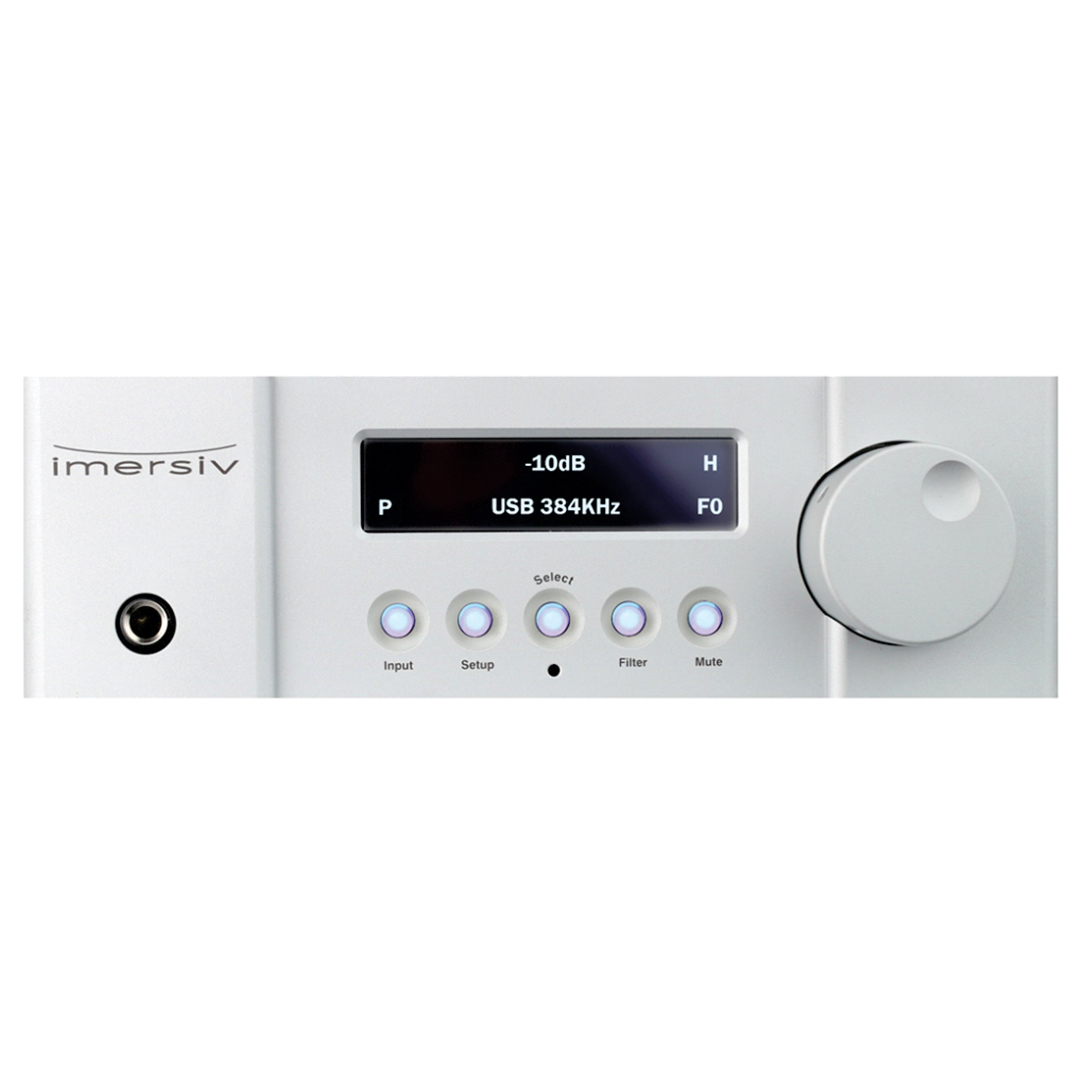

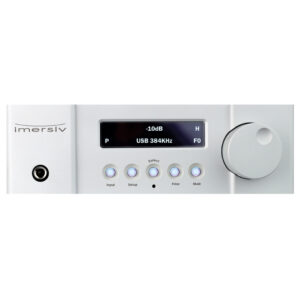

• OLED display and front-panel access to input, mute, and setup controls

Specifications

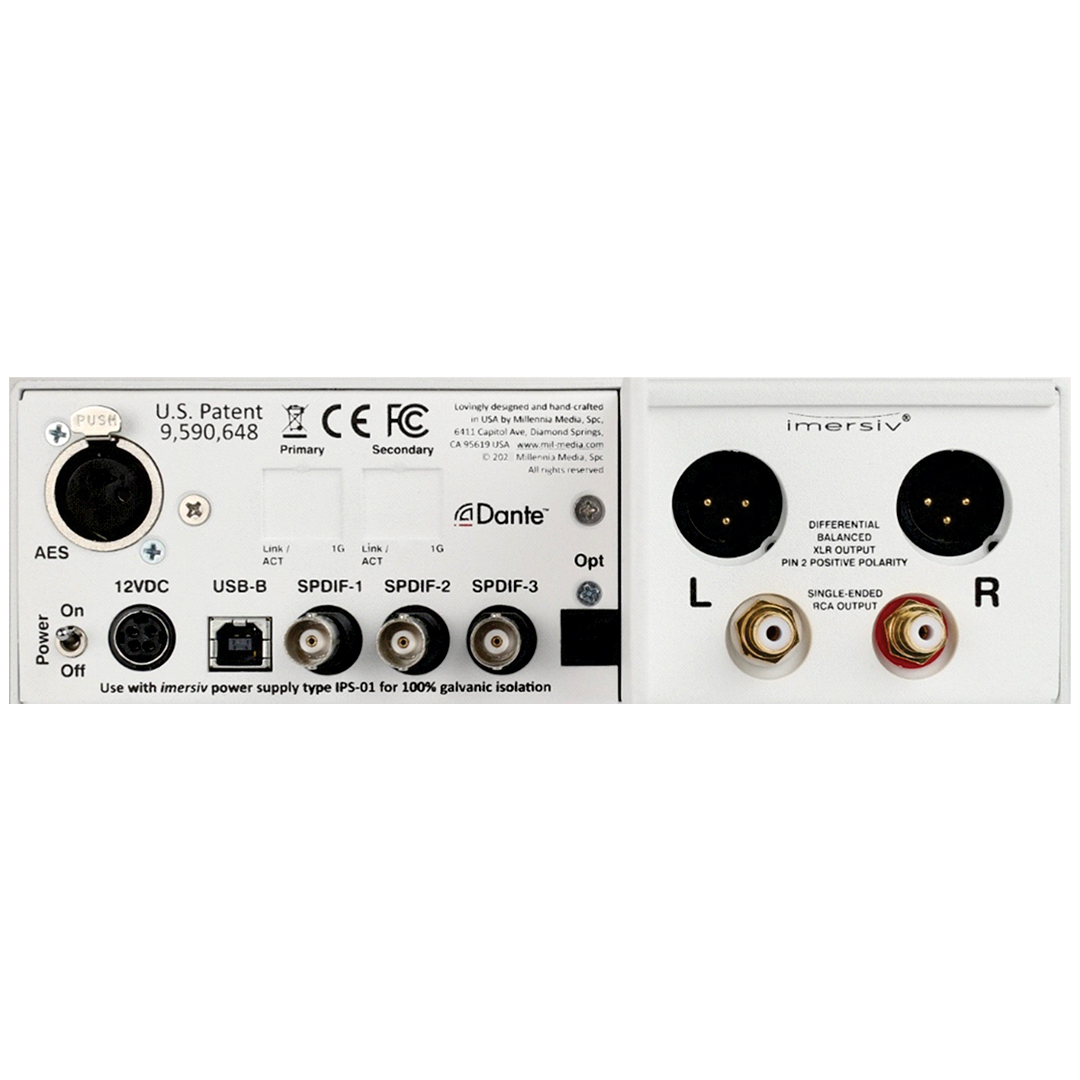

• Digital Inputs: USB (B), AES XLR, 3x SPDIF BNC, Toslink, Dante (optional)

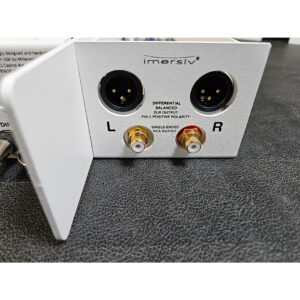

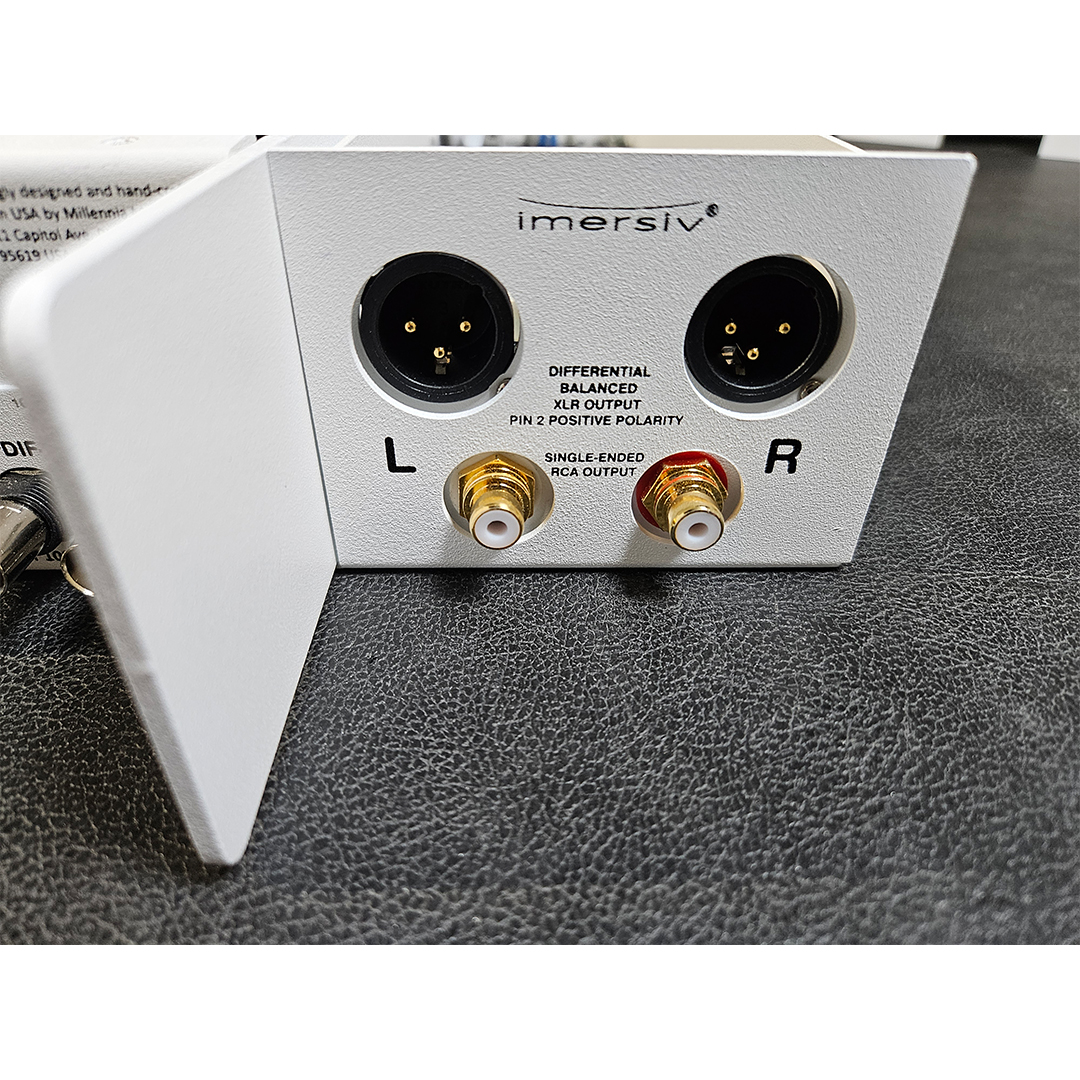

• Analog Outputs: Balanced XLR at +22dBu max
• Headphone Output: 2.8W max, supports 32–600 ohm loads
• Frequency Response: 20Hz–20kHz ±0.1dB
• THD+N @ 1kHz: 0.0002%
• THD+N @ 20kHz: 0.0005%
• Self-Noise: -146dBu unweighted (calculated)
• Signal-to-Noise Ratio: 168dB
• Crosstalk: Better than -120dB at 1kHz
• Power: 90–240V AC, 15W nominal
• Chassis Dimensions: 8.6″ W x 16.3″ D x 3.2″ H
• Weight: 7 lbs 7 oz (3.4 kg)

Included Accessories

• Power Adapter & IEC Power Cable
• Remote Control (with 2 AA Batteries)
• BNC to RCA Adapters (3)
• Quick Start Guide
