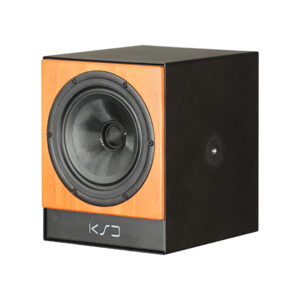

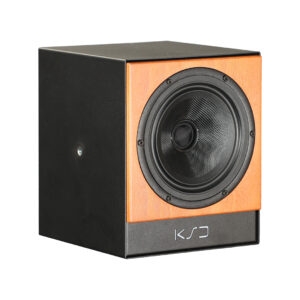

KSD C5 Reference Monitor

The recently developed steel housing of the KSD C5 Reference Monitor has been designed to maximize the internal volume of the device while maintaining compact external dimensions. This clever design ensures stability and steadiness, providing an optimal listening experience. The result is a sound image that is calm and well-balanced.

One of the standout features of this device is the unique shape of the rear-to-back bass reflex port. This innovative design effectively eliminates any audible air turbulence, further enhancing the overall sound quality. Enjoy your music without any unwanted disturbances or distortions.

The C5 Reference also boasts a new 6″ coaxial chassis, delivering exceptional sound performance. With maximum tonal neutrality and minimal distortion, immerse yourself in high-quality audio where every note and beat is reproduced with precision and accuracy.

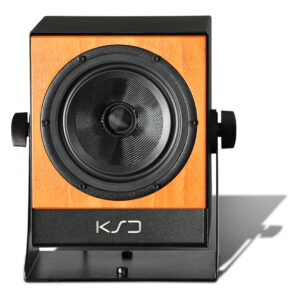

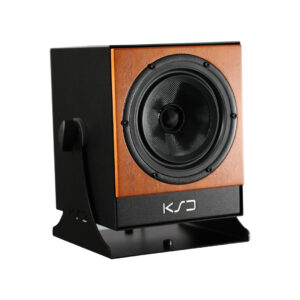

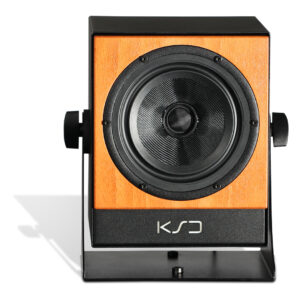

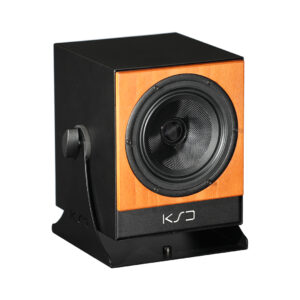

To further enhance the listening experience, the C5 Reference comes with an included table stand that serves a dual purpose. It provides a stable base for the device while also decoupling the C5 Reference from the installation surface. This decoupling allows for precise angle and alignment adjustments, ensuring customization to suit your specific workplace setup.

Overall, the C5 Reference offers a combination of innovative design elements and high-performance components. With its maximized internal volume, compact external dimensions, and exceptional sound quality, this device is sure to impress even the most discerning audiophiles.

Technical Data

• 2-way coaxial point sound source
• Signal Processing: in FPGA in 24 Bit ADC/DAC FIRTEC(™) patent: 19823110
• Features: FIR-Xover, Limiter, 6 User-EQ, High-& Lowshelving, Delay, Gain
• Tweeter: 1″ neodymium tweeter
• Woofer/Midrange Driver: 6″ Kevlar woofer/midrange driver
• Power Amplifiers: 80 W / 175 W
• SPL (Max): 108 dB peak/pair
• Frequency Response: 48 – 22000 Hz
• Weight: 8 kg (incl. packaging 10 kg)
• Dimensions: 200 x 245 x 220 mm
• Accessories: Table stand / wall mount included
• Optional Remote Control: KSD-RC controls 6 user EQs, volume, delay, etc.
