KSD Linemaster

The KSD Linemaster sets a new benchmark in loudspeaker design, combining extreme precision with powerful performance. Engineered for mastering and critical listening environments, the Linemaster delivers uncompromising neutrality, phase coherence, and unmatched sonic detail—even at the highest monitoring levels. Thanks to KSD’s proprietary FIRTEC™ DSP engine and the patented NExT™ cylindrical wave technology, the Linemaster offers holographic imaging and precise impulse response, giving engineers complete control over every element of a mix.

Its powerful, sensor-regulated low-frequency system features two 12″ drivers with latency-free cone control and dual 15″ vented sub-chassis for tight, distortion-free bass with added punch. This unique design ensures articulate lows and remarkable clarity across the entire spectrum, ideal for both nearfield and midfield applications. With over 2000W of amplification per side and full compatibility with the optional KSD-RC remote for EQ and room calibration, the Linemaster is a true reference for the modern studio.

Key Features

• Phase-linear FIRTEC™ DSP processing with FPGA-based engine (Patent: 19823110)
• Innovative NExT™ cylindrical wave radiator design for precise spatial imaging
• Over 2000W of system power for ultra-clean headroom and dynamics
• Dual 12” sensor-regulated woofers with DMC™ cone control
• Dual 15” long-throw subwoofers for extended low-frequency response
• 6x 5” composite-cone mid-woofers for detailed midrange articulation

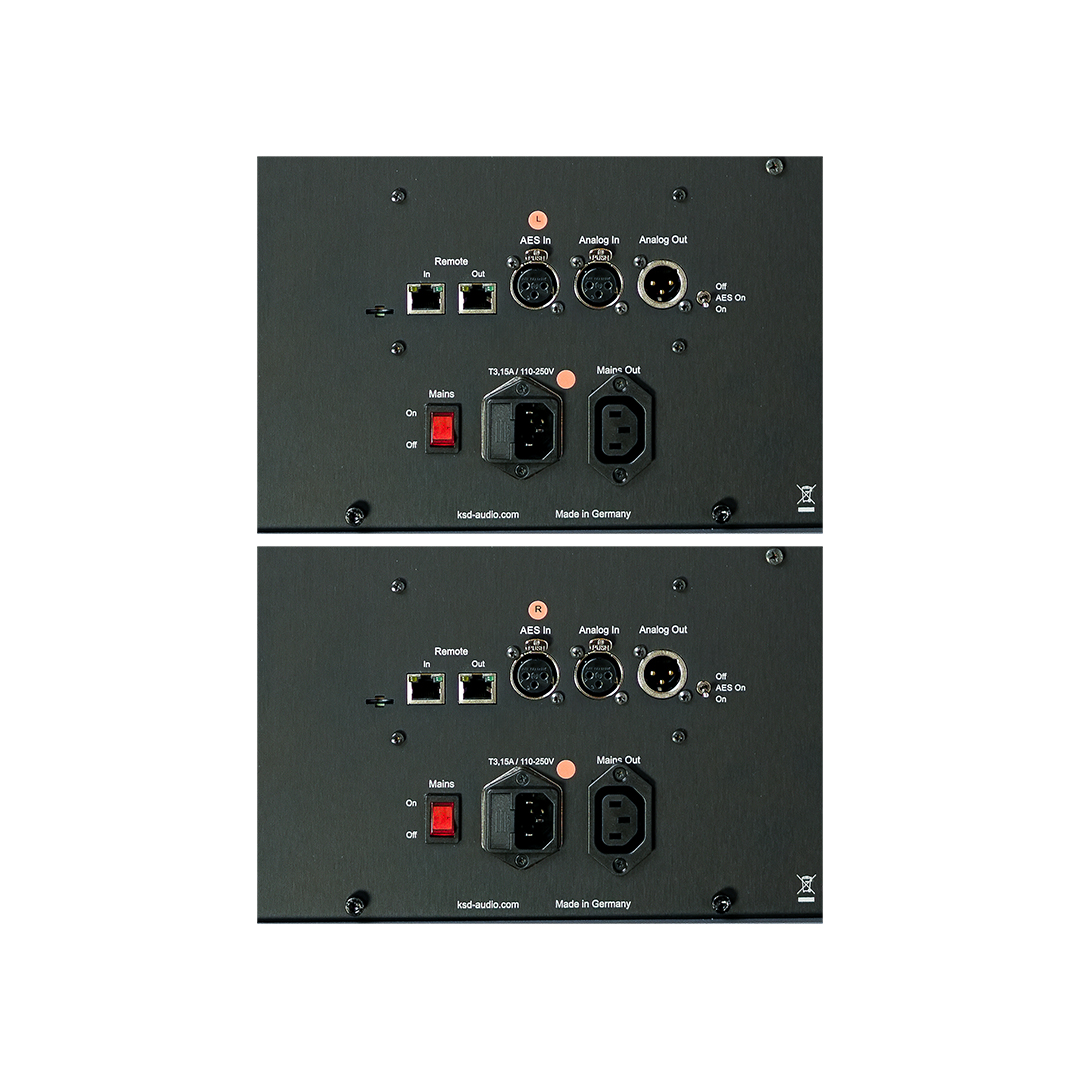

• Analog +4dBV input and AES3 digital input (32–192kHz) with 24-bit ADC/DAC
• Linear frequency response from 18Hz to 24kHz with <4ms latency
• Compatible with optional KSD-RC remote for EQ, delay, volume, M/S, and dim control
• Available in a striking Platinum finish; custom finishes available upon request

Specifications

• Signal Processing: FIRTEC™ DSP with subtraction crossover, limiter, user EQ, shelving, delay, and gain
• Inputs: Analog +4dBV / Digital AES3 32–192kHz
• Drivers: Dual 15” subs, dual 12” DMC™ woofers, 6x 5” composite mid-woofers, NExT cylindrical wave radiator
• Power Amplification: >2000W per side
• Frequency Response: 18Hz – 24kHz
• Latency: <4ms
• Weight: 44.6 kg (top); 47 kg (sub extension)
• Finish Options: Platinum standard; custom options available
