Lauten Audio Eden LT-386 Multi-Pattern Tube Condenser Microphone

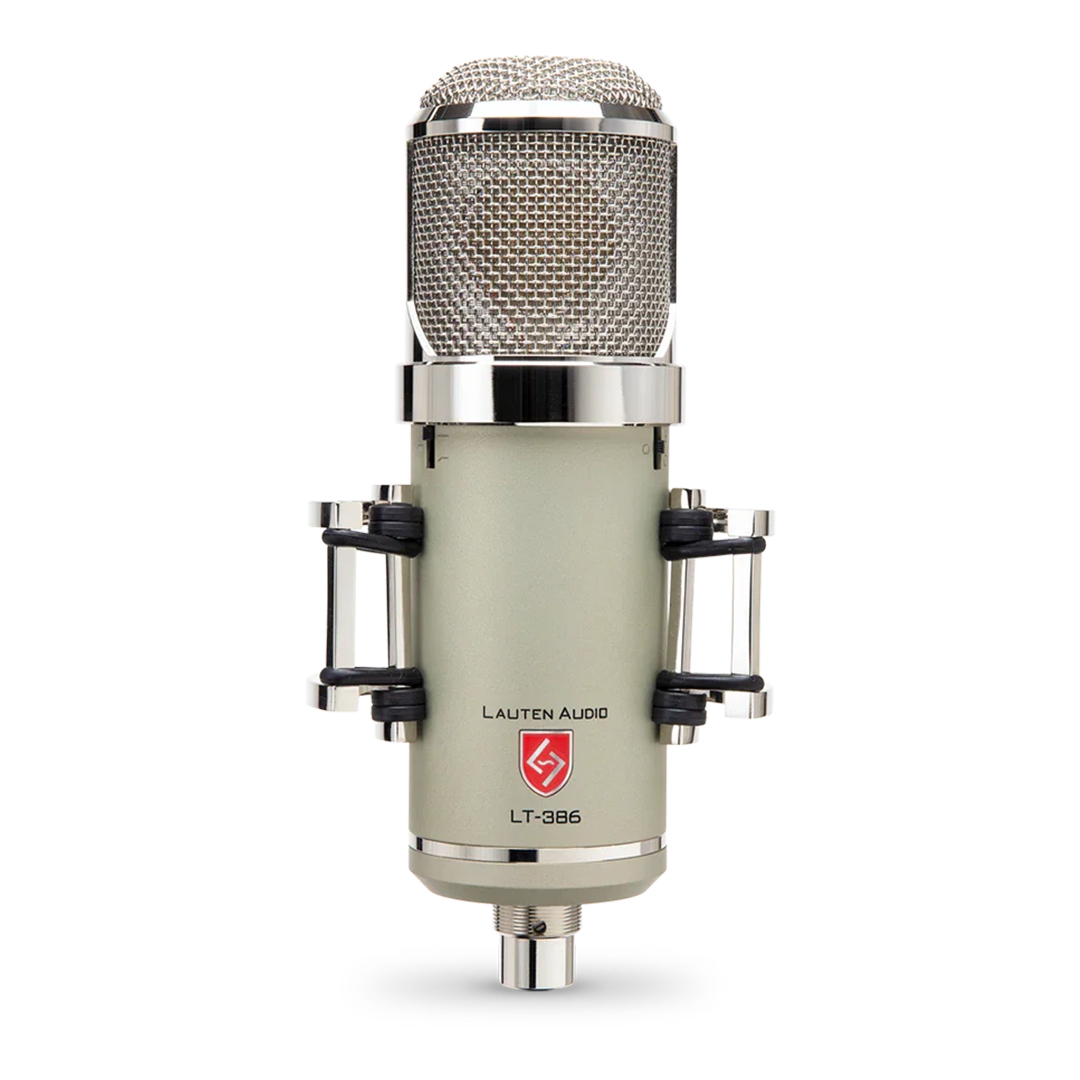

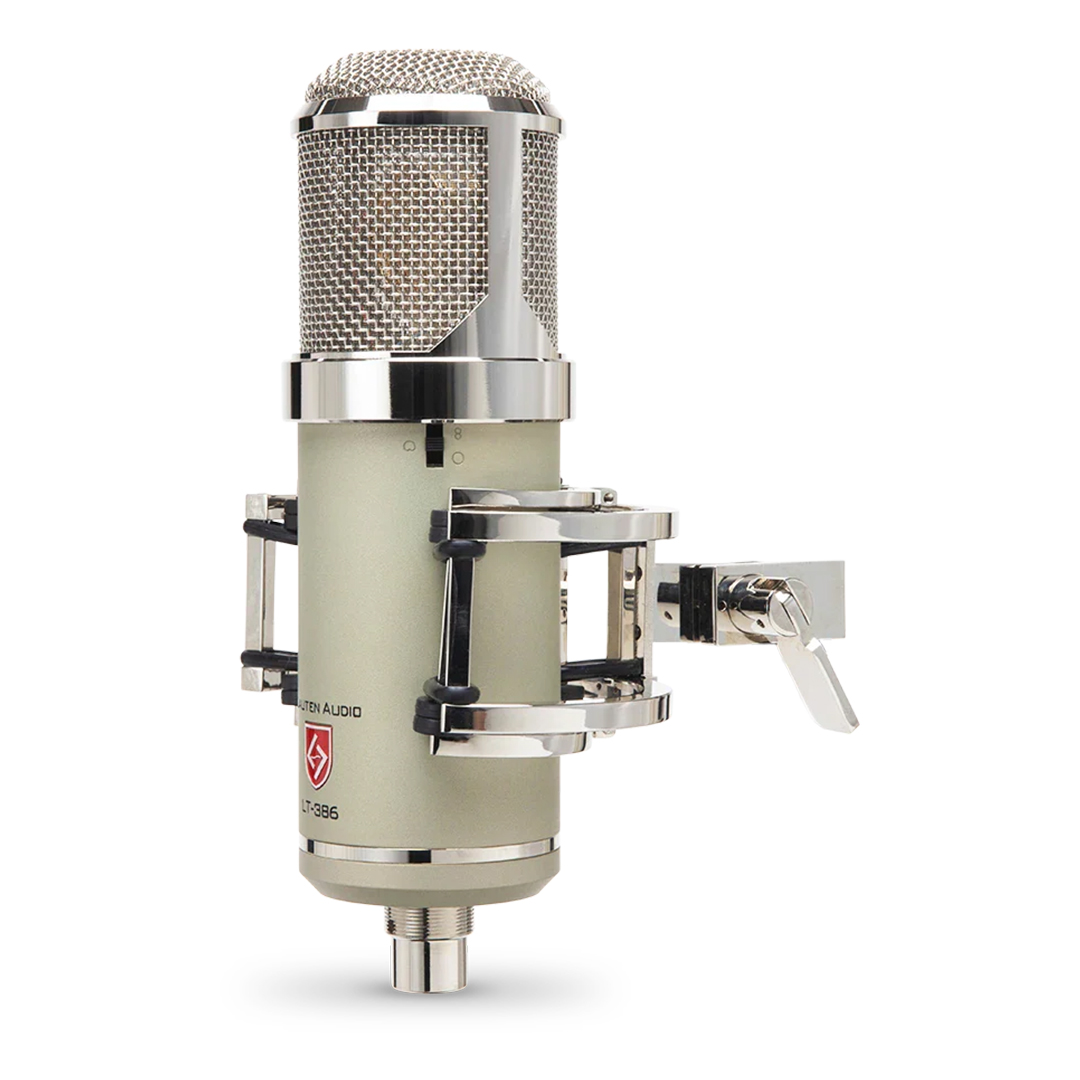

The Lauten Audio Eden LT-386 is a multi-pattern tube condenser microphone that pairs Lauten Audio’s 38mm dual-diaphragm capsule and Multi-Voicing circuit path selector with an EF806s tube and a custom-wound, U.S.-made output transformer. Where the Atlantis FC-387 uses a FET circuit, the Eden LT-386 routes the capsule signal through a tube stage, adding the warmth and harmonic color of valve amplification before the transformer-balanced output. Three selectable polar patterns—cardioid, omnidirectional, and figure-8—and the Multi-Voicing switch give the Eden LT-386 a wide operational range across vocal and instrument applications. It ships in a rugged flight case with a dedicated power supply, 5-pin cable, and suspension mount.

Key Features

• EF806s tube circuit — specialty tube stage in the signal path; adds the warmth and harmonic color characteristic of valve amplification; paired with a custom-wound, U.S.-made output transformer that processes the tube stage output before the balanced output

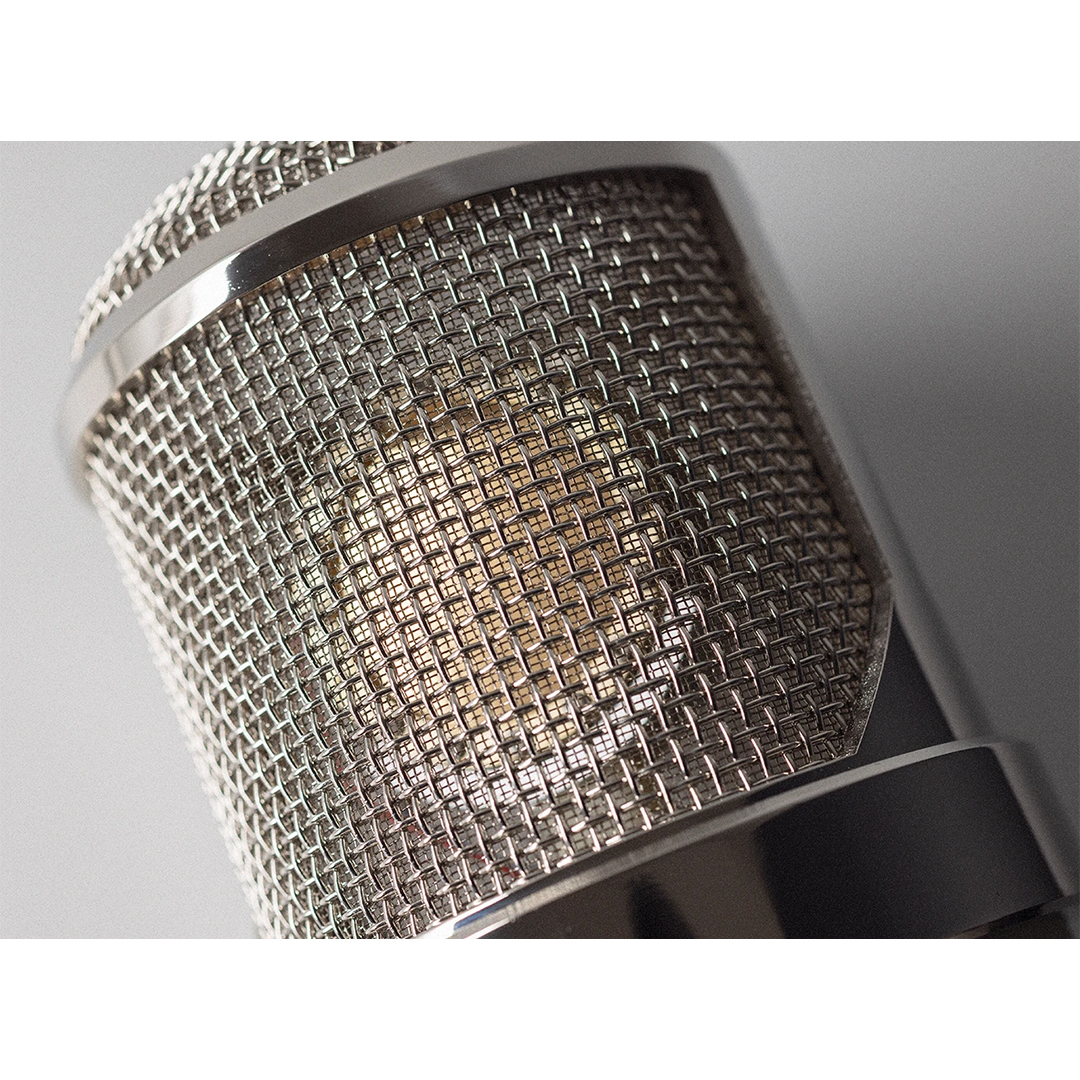

• 38mm dual-diaphragm capsule — same physics-based 38mm design as the Atlantis FC-387; dual-diaphragm construction enables three selectable polar patterns

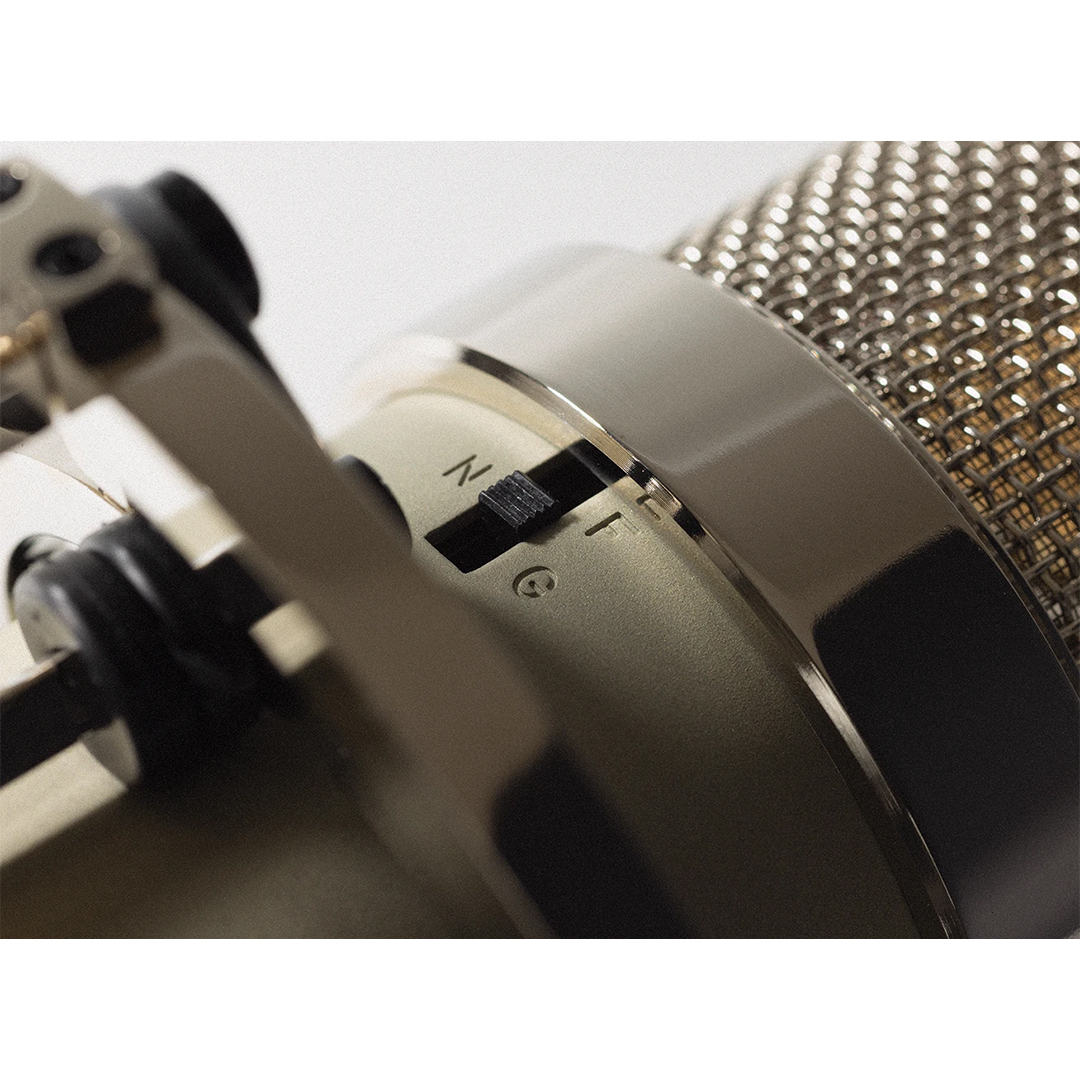

• Multi-Voicing switch — selects between discrete analog circuit paths at the flip of a switch; changes the tonal character of the microphone without additional outboard processing or mic changes
• Three selectable polar patterns — Cardioid, Omnidirectional, Figure-8
• Custom-wound U.S.-made output transformer — transformer-balanced output; <200Ω output impedance; copper windings
• Cerakote ceramic and nickel finish — durable ceramic polymer coating with nickel accents

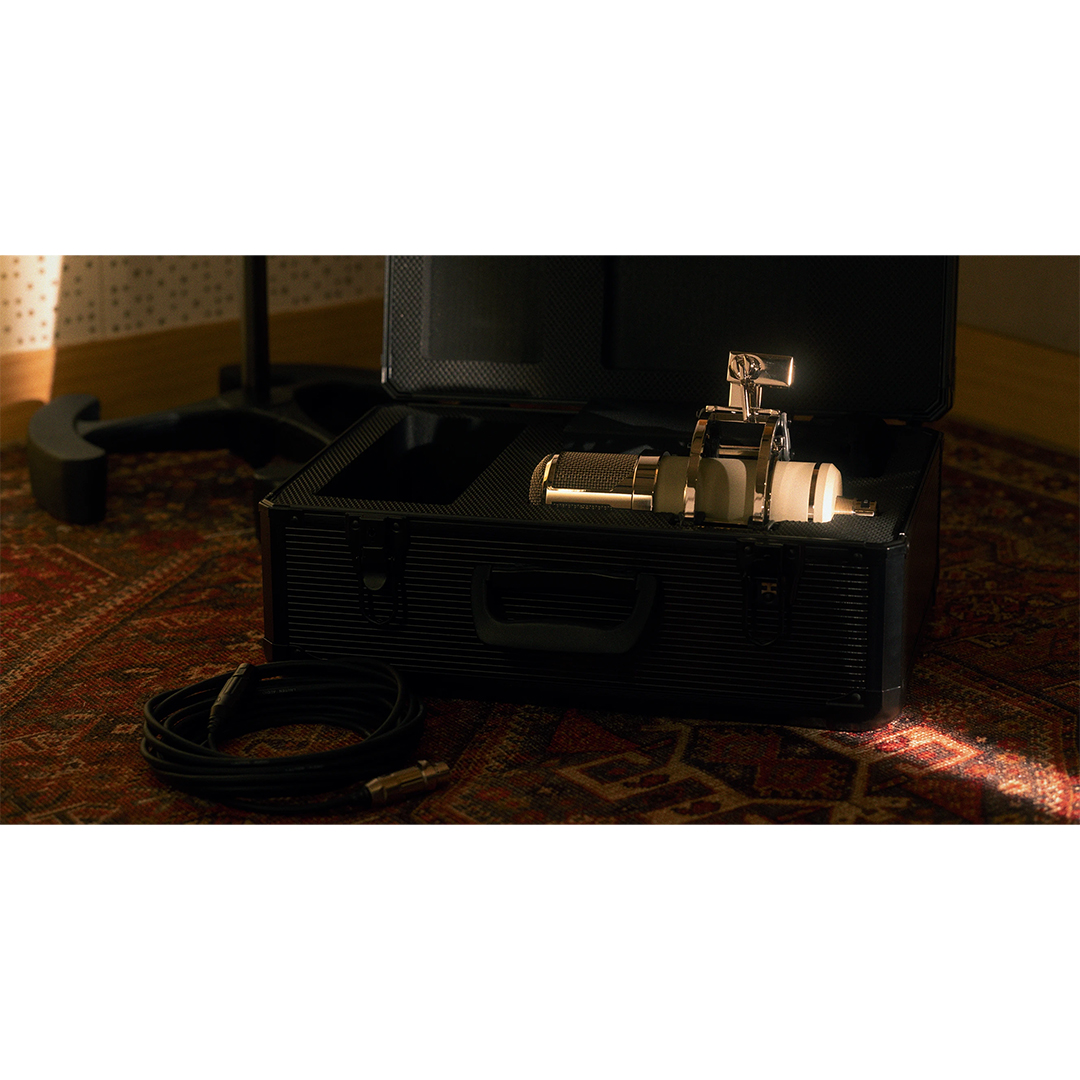

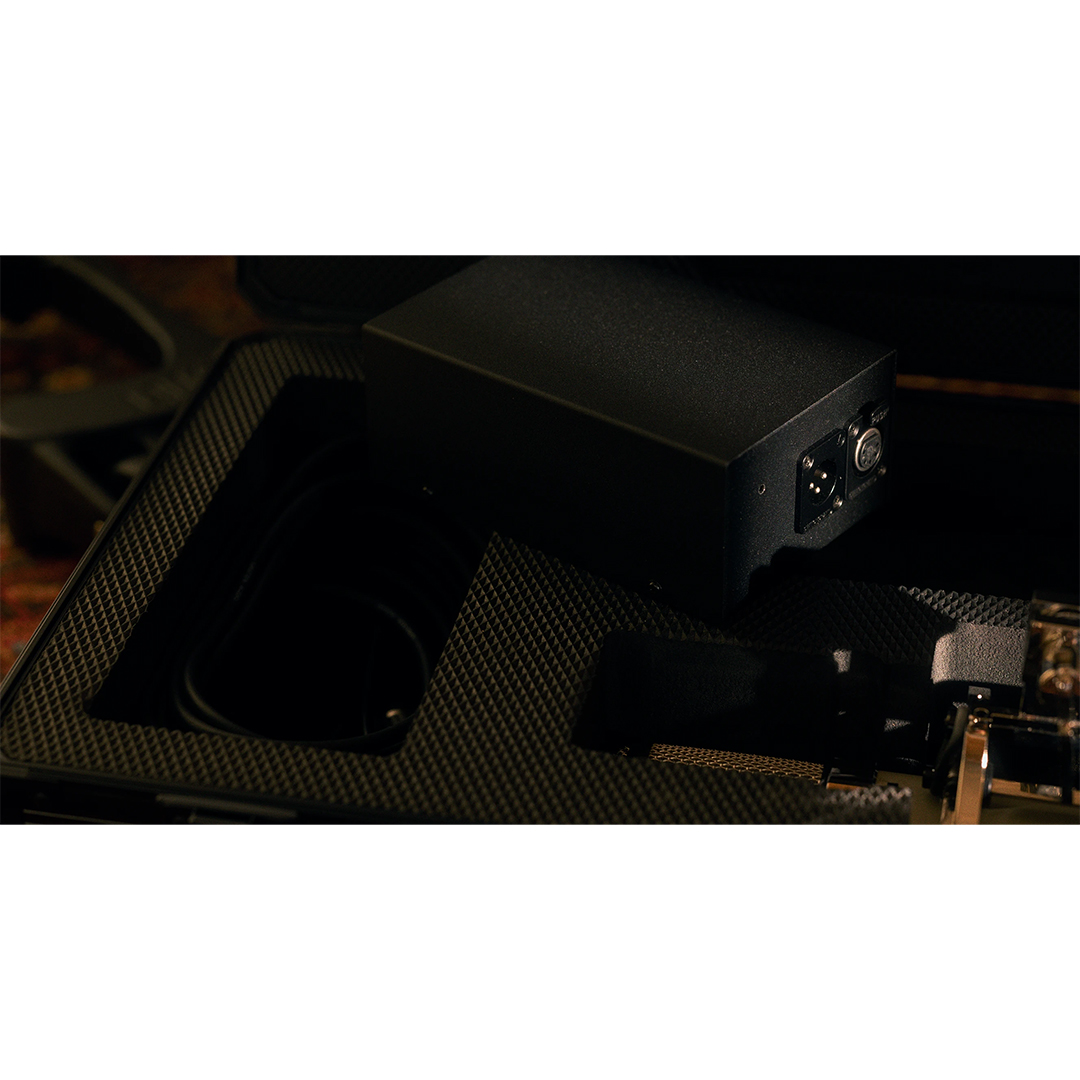

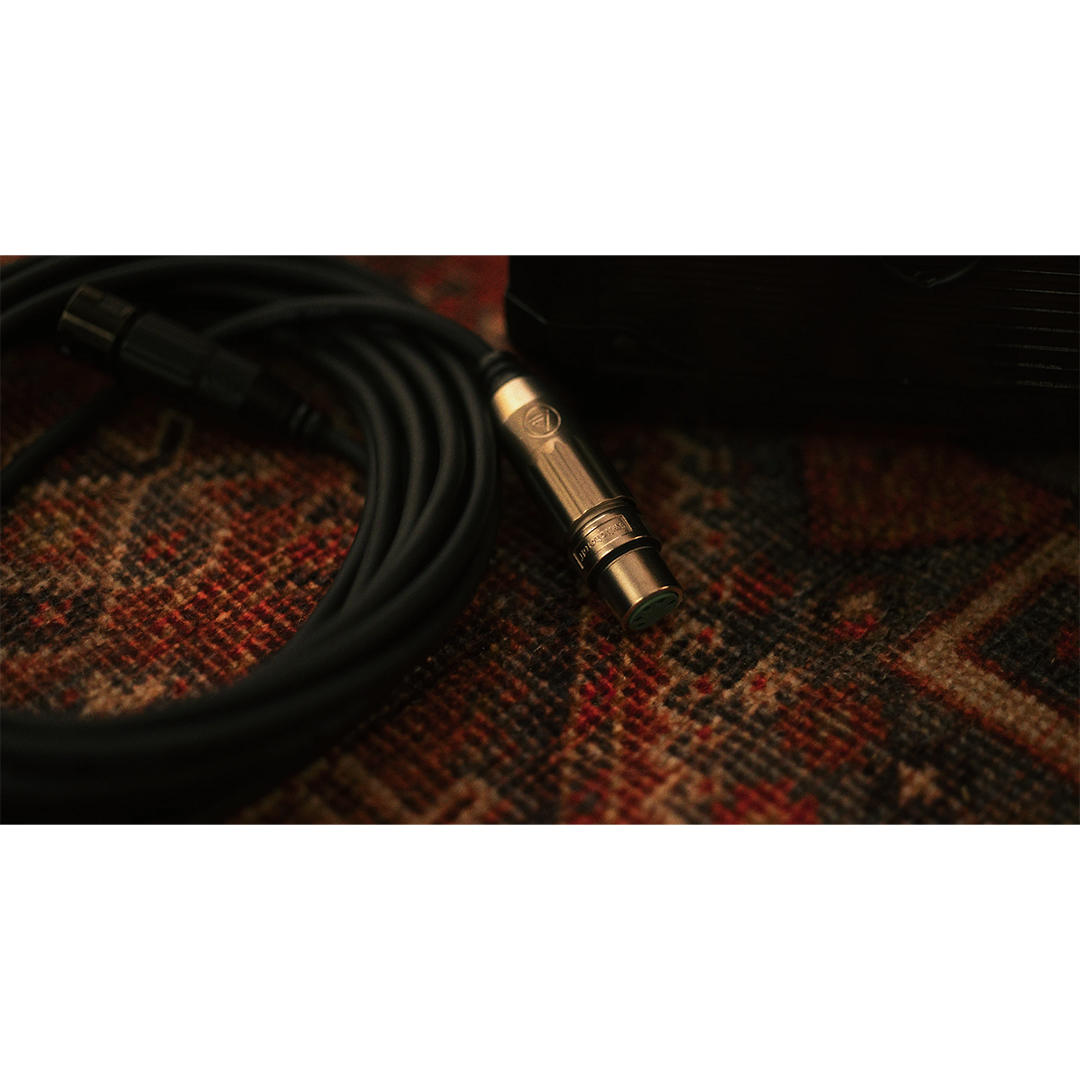

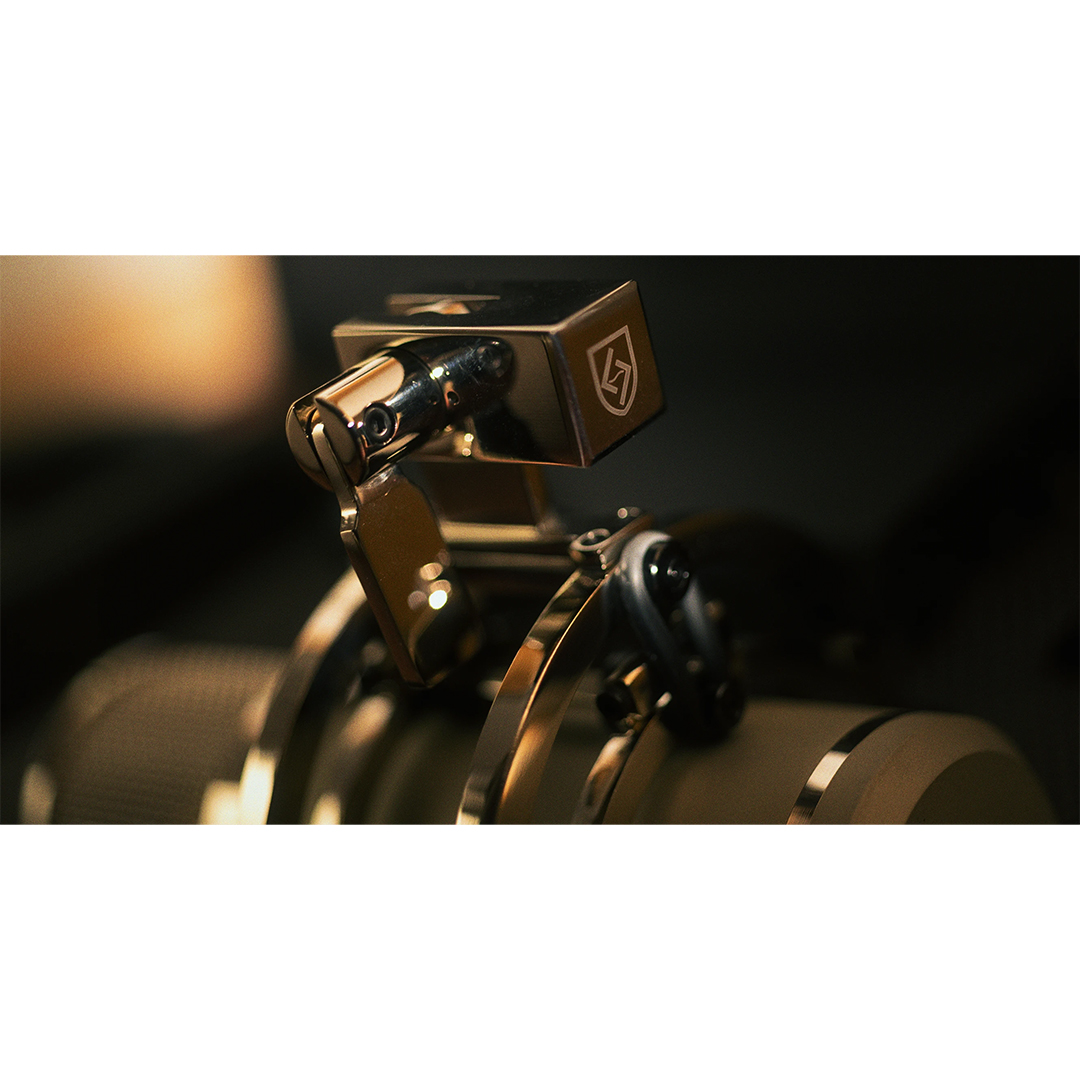

• Includes rugged flight case, PSU, 5-pin cable, and suspension mount — dedicated power supply is compatible from 100V to 240V; connects to the microphone via 5-pin XLR, with a separate 3-pin XLR from PSU to preamp

Specifications

• Type: Pressure gradient tube condenser
• Tube: EF806s
• Capsule: 38mm dual diaphragm
• Polar Patterns: Cardioid; Omnidirectional; Figure-8
• Frequency Response: 20Hz–20kHz
• Self-Noise: <12dB(A)
• Dynamic Range: 120dB minimum
• Max SPL: 130dB (0.5% THD @ 1kHz)
• Sensitivity: 16mV/Pa (–36 ±2dB; ref 0dB = 1V/Pa @ 1kHz)
• Output Impedance: <200Ω
• Connector: 5-pin XLR (PSU to mic); 3-pin XLR (PSU to preamp)
• Finish: Cerakote ceramic and nickel
• Power: Custom PSU (100–240V)
• Included: Rugged flight case; power supply; 5-pin cable; suspension mount
