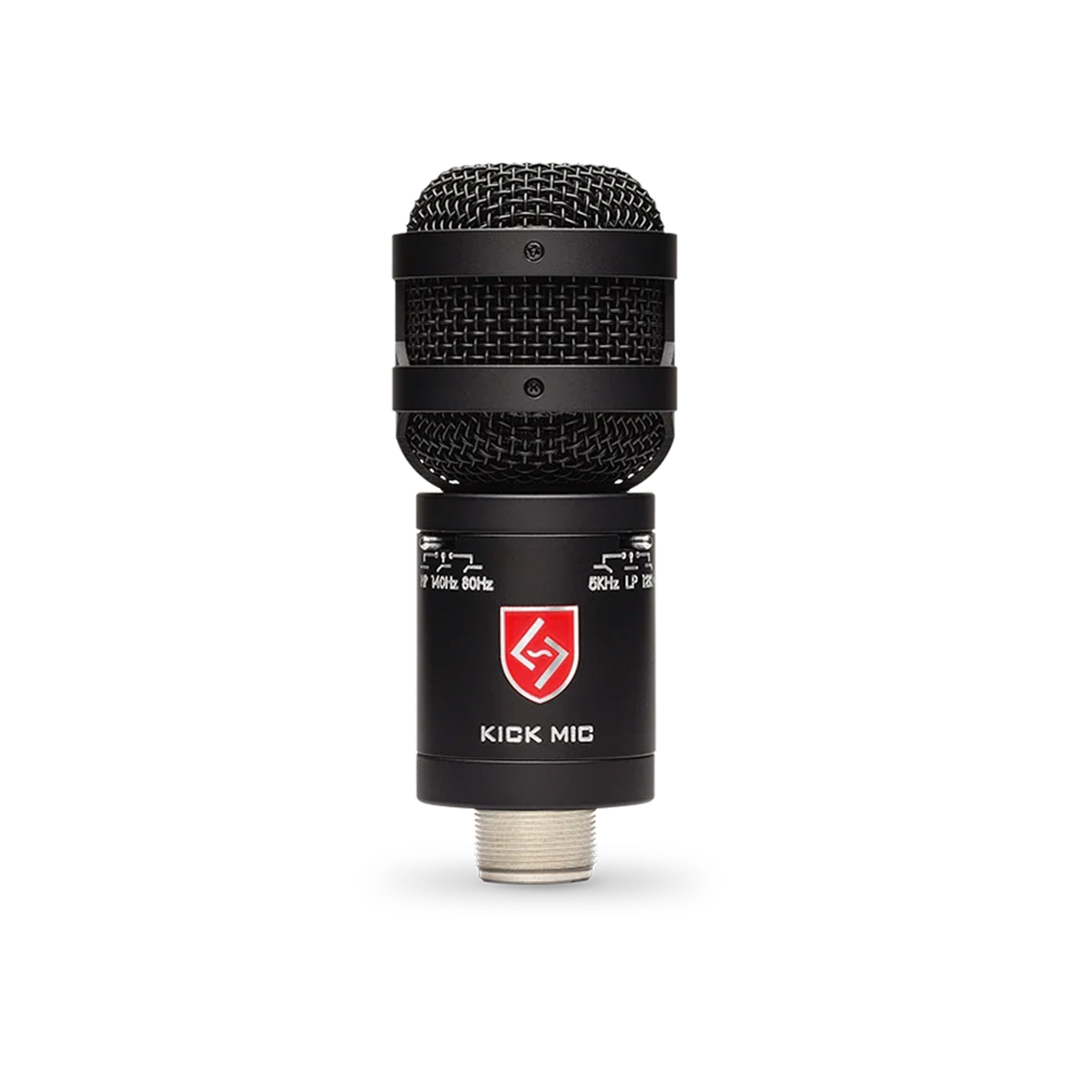

Lauten Audio Kick Mic End-Address FET Condenser Microphone

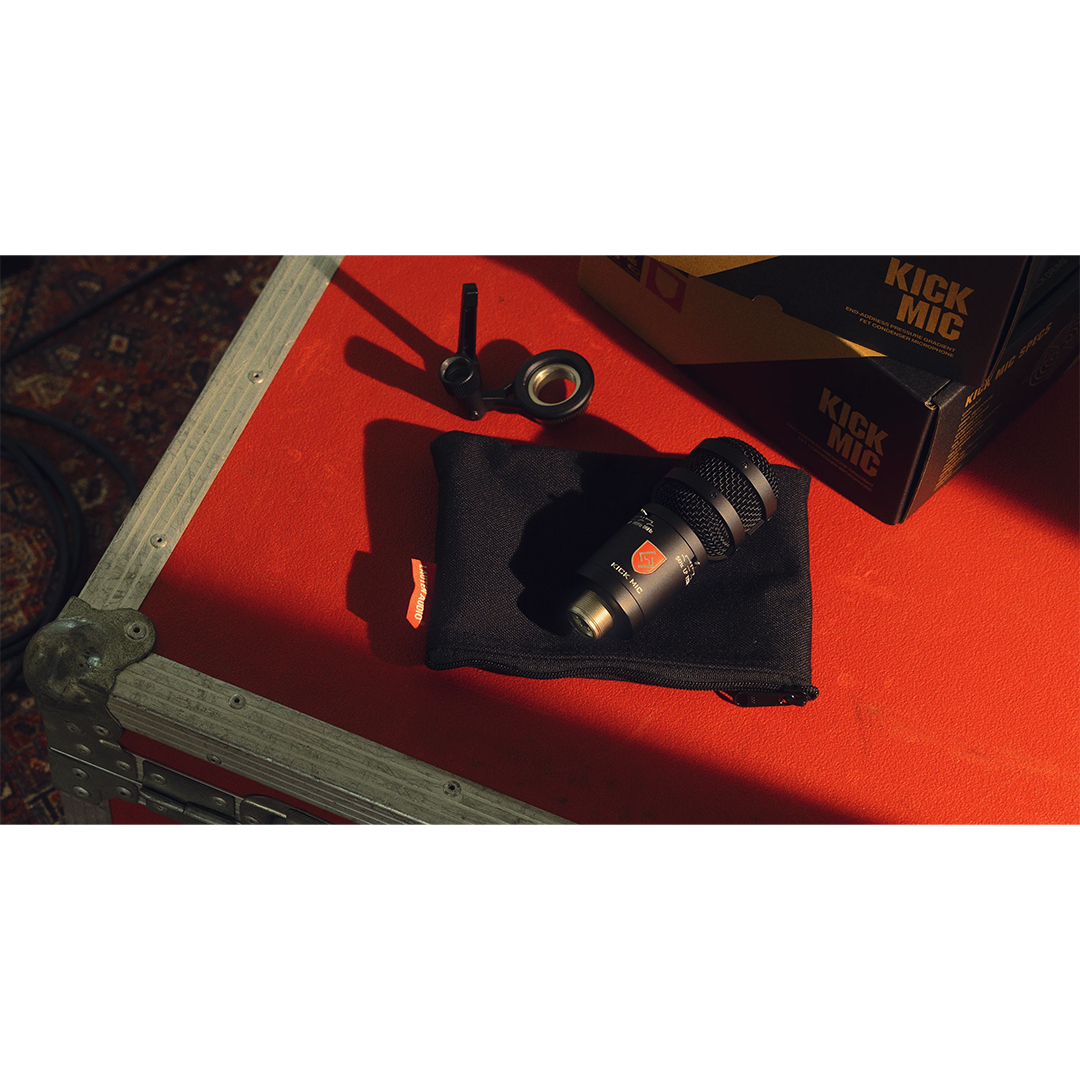

The Lauten Audio Kick Mic is an end-address FET condenser microphone engineered specifically for placement inside kick drums, addressing the low-frequency polar pattern instability that causes buildup, phase problems from shell reflections, and muddiness in conventional inside kick microphones. The KC608 kick capsule uses a 17mm diaphragm in an acoustic housing that achieves a 40mm effective capsule size, maintaining a defined cardioid-to-hypercardioid polar pattern down to 50Hz—the frequency range where a kick drum’s core energy is generated—where most cardioid condensers lose directional control. The result is a minimum dynamic range of 142dB with maximum SPL exceeding 142dB, delivering complete capture of the kick drum from ghost note detail to full transient impact without low-frequency buildup or phase artifacts. The Kick Mic ships with an articulating swivel mount and Cordura zipper bag.

Key Features

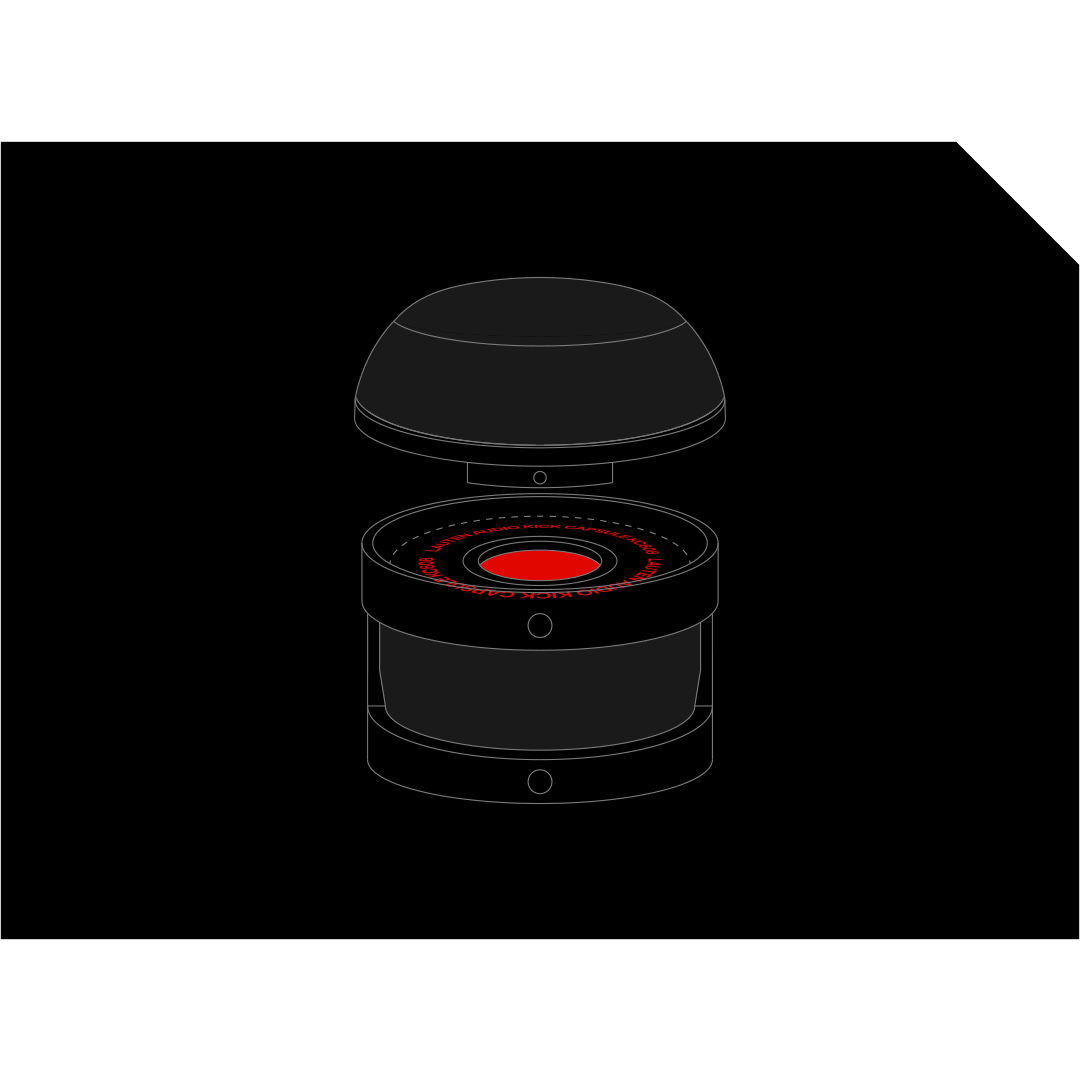

• KC608 kick capsule — 40mm effective acoustic design — 17mm physical diaphragm in an acoustic housing engineered through physics to achieve 40mm effective capsule behavior; single-diaphragm design captures transient response, timbral balance, and dynamic range from ghost notes to full hits

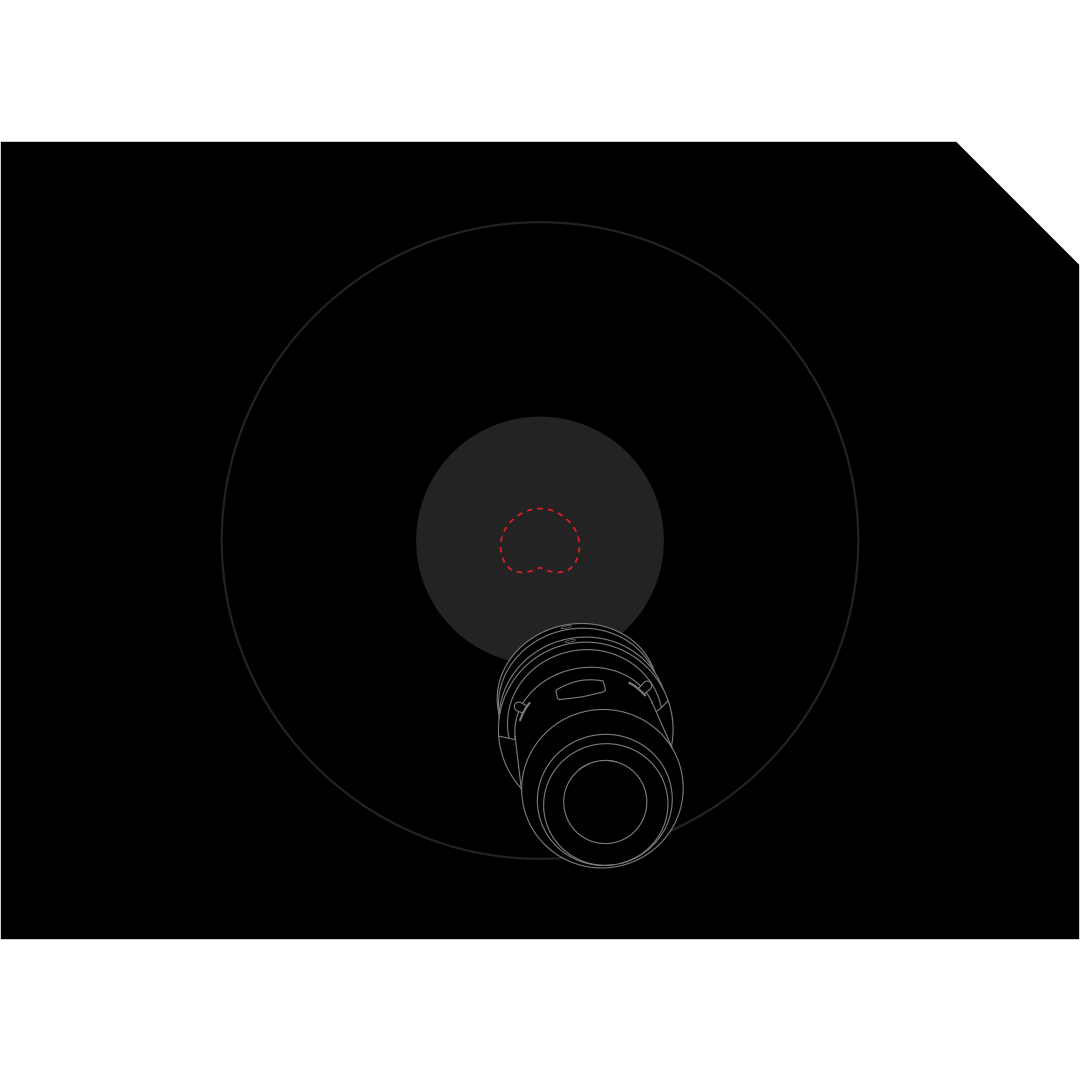

• Polar pattern stability down to 50Hz — maintains cardioid-to-hypercardioid polar pattern integrity down to 50Hz; most cardioid condensers lose directional control below 100–200Hz, becoming effectively omnidirectional and collecting shell reflections, low-frequency buildup, and phase artifacts; the Kick Mic maintains isolation at the frequencies that matter most for kick drum capture
• 142dB minimum dynamic range — >142dB maximum SPL — the highest dynamic range and SPL handling in the Lauten Audio drum microphone line; handles the full dynamic range of a kick drum without compression artifacts or transient clipping

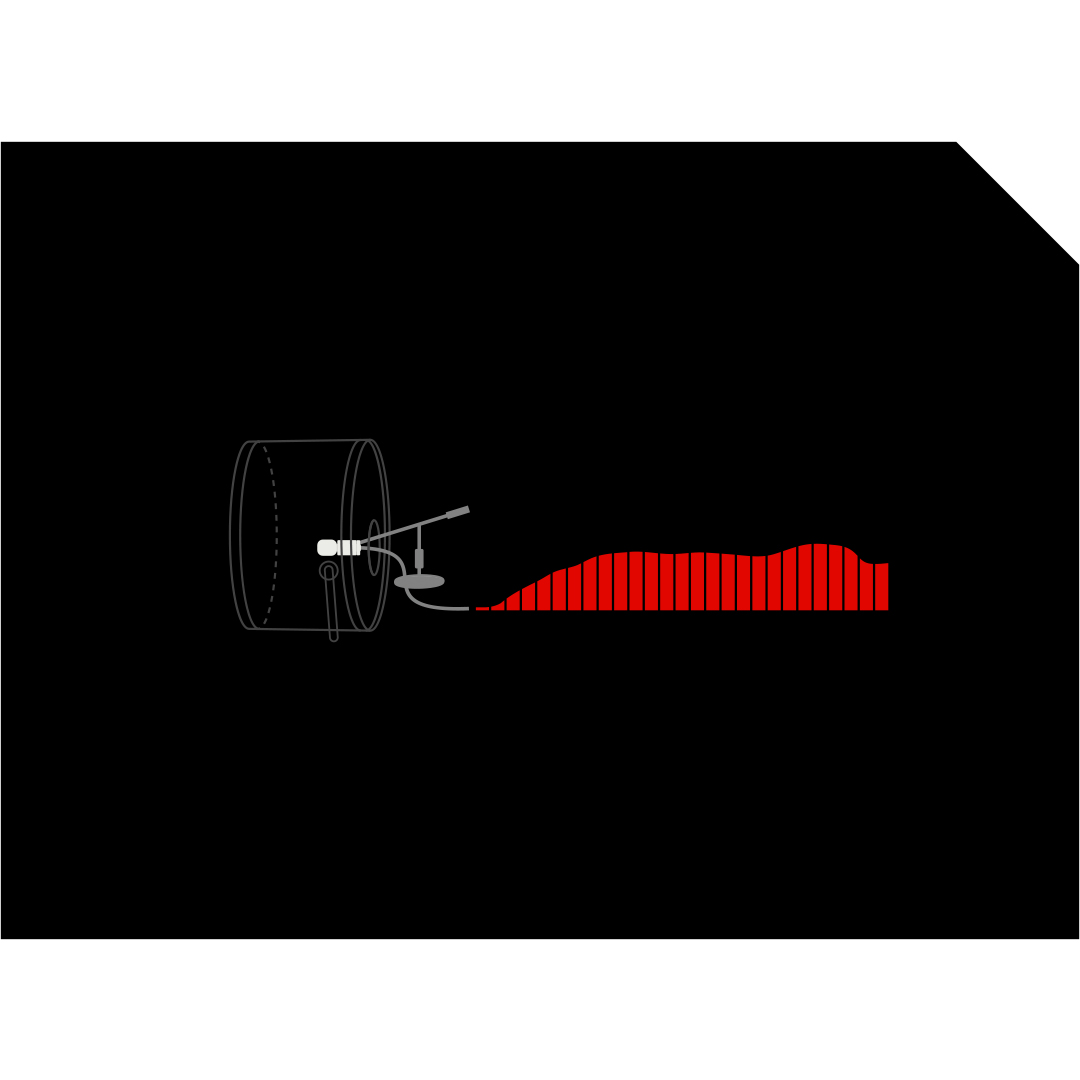

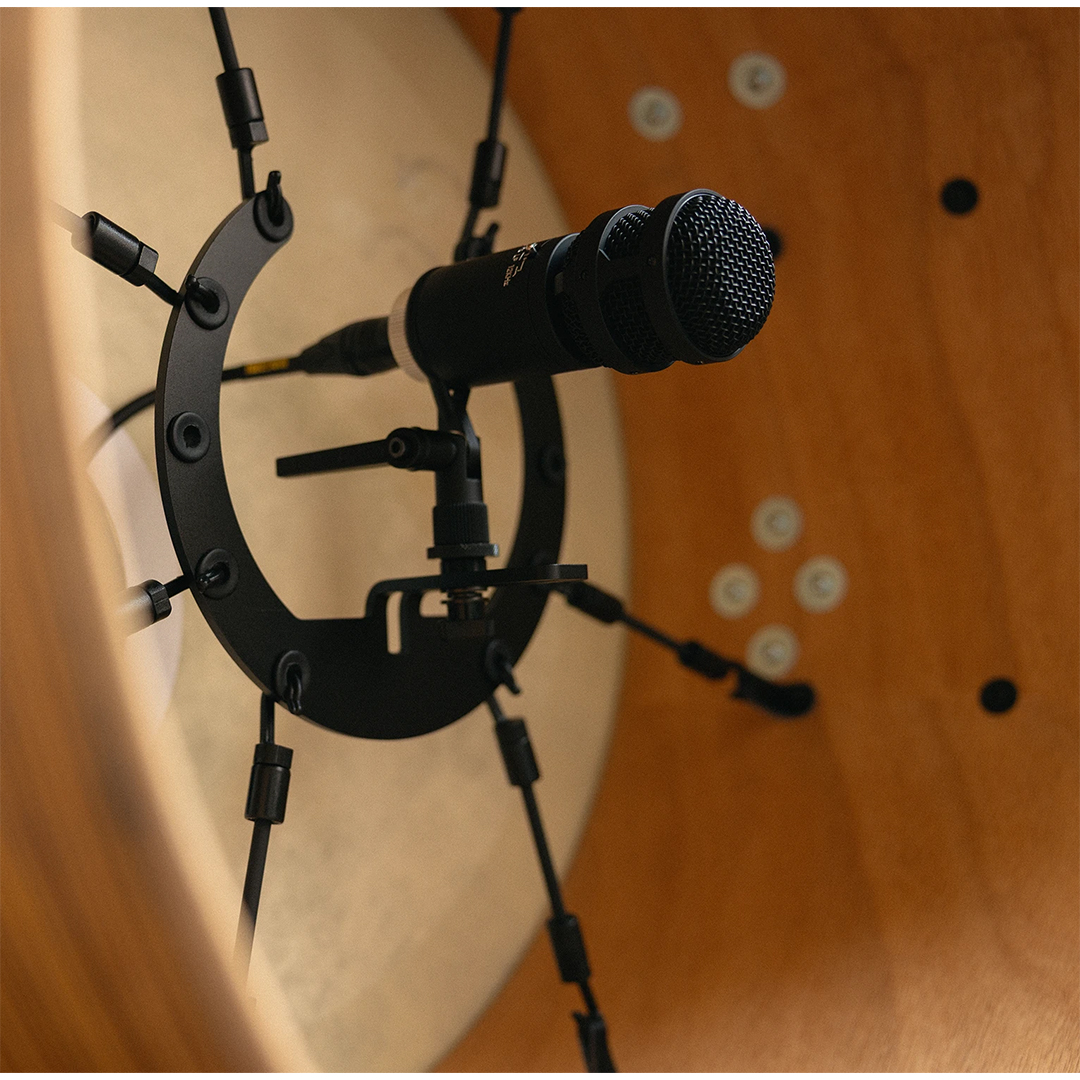

• End-address orientation — designed to be positioned facing the batter head from inside the drum; compact 4.9-inch length fits inside standard kick drum port holes

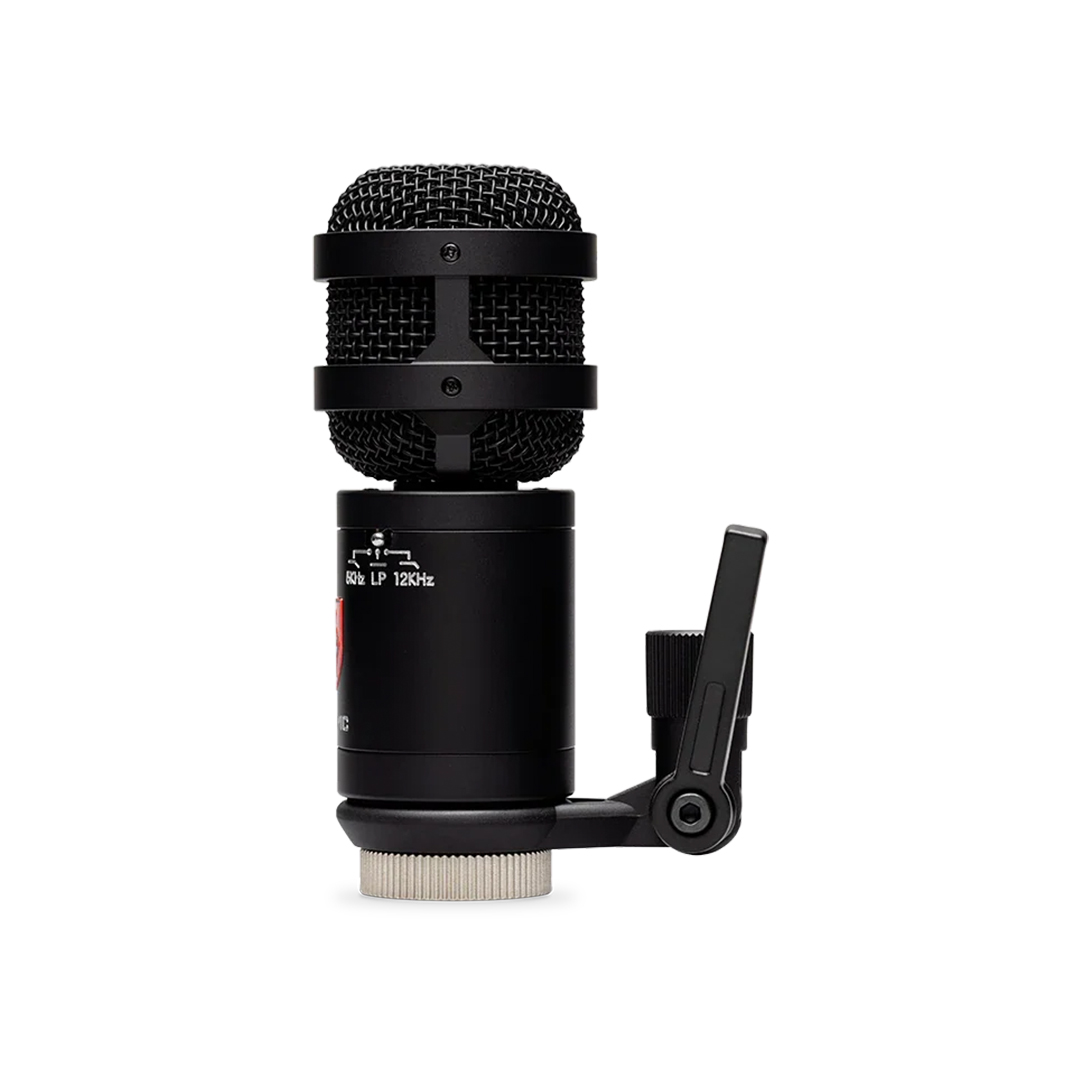

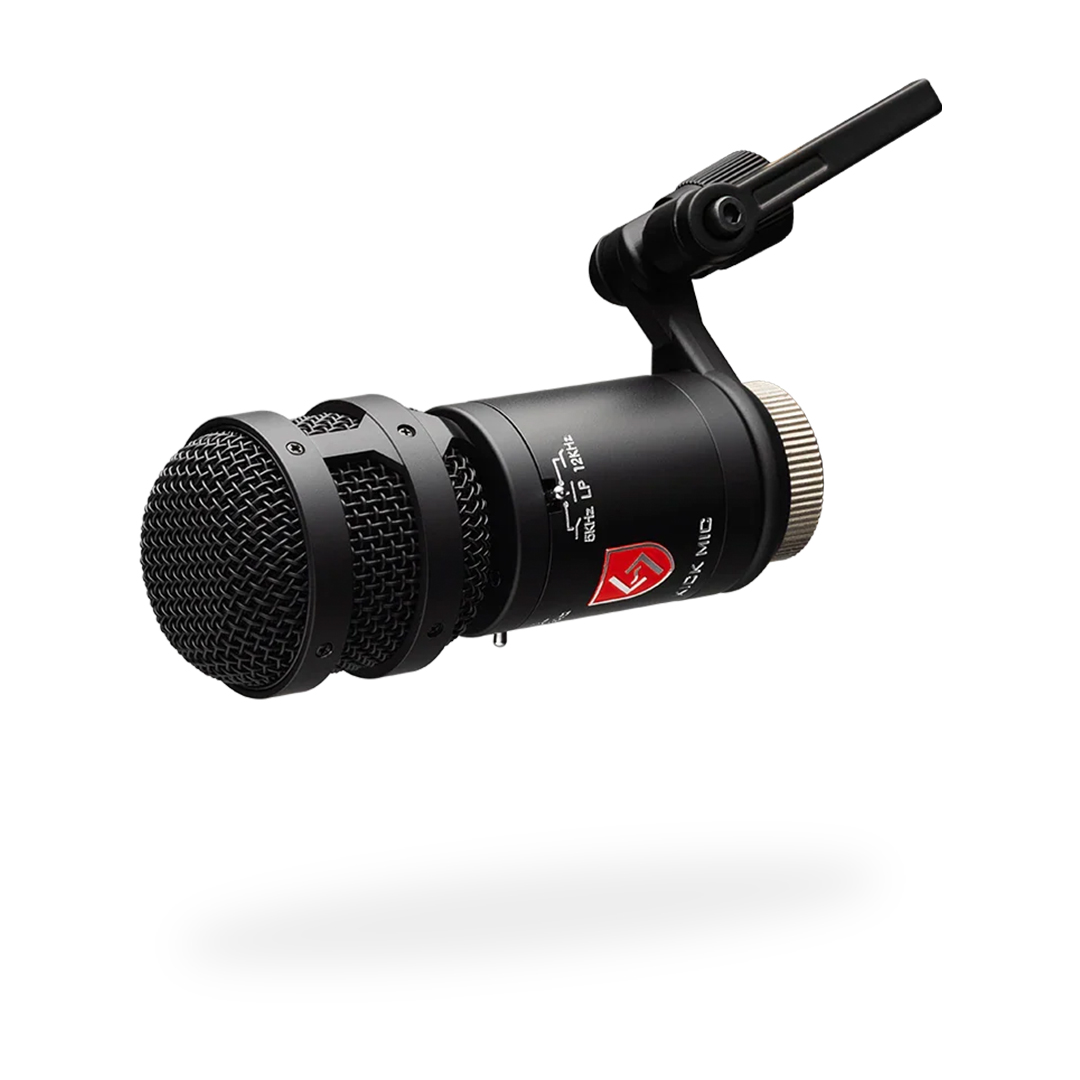

• Articulating swivel mount included — flexible positioning inside the drum shell; Cordura zipper bag also included

Specifications

• Type: End-address pressure gradient FET condenser
• Diaphragm: 17mm
• Effective Capsule: 40mm (KC608)
• Polar Pattern: Cardioid
• Pattern Stability: Cardioid to hypercardioid down to 50Hz
• Frequency Response: 20Hz–20kHz
• Self-Noise: <15dB-A
• Dynamic Range: 142dB minimum
• Max SPL: >142dB (0.5% THD @ 1kHz)
• Signal-to-Noise Ratio: 79dB
• Sensitivity: –51dBV/Pa (ref 0dB = 1V/Pa @ 1kHz)
• Output Impedance: >150Ω
• Connector: 3-pin XLR
• Power: 48V phantom power
• Dimensions (mic only): 4.9 × 2.0 in.
• Weight (mic only): 10.2 oz
• Included: Articulating swivel mount; Cordura zipper bag
