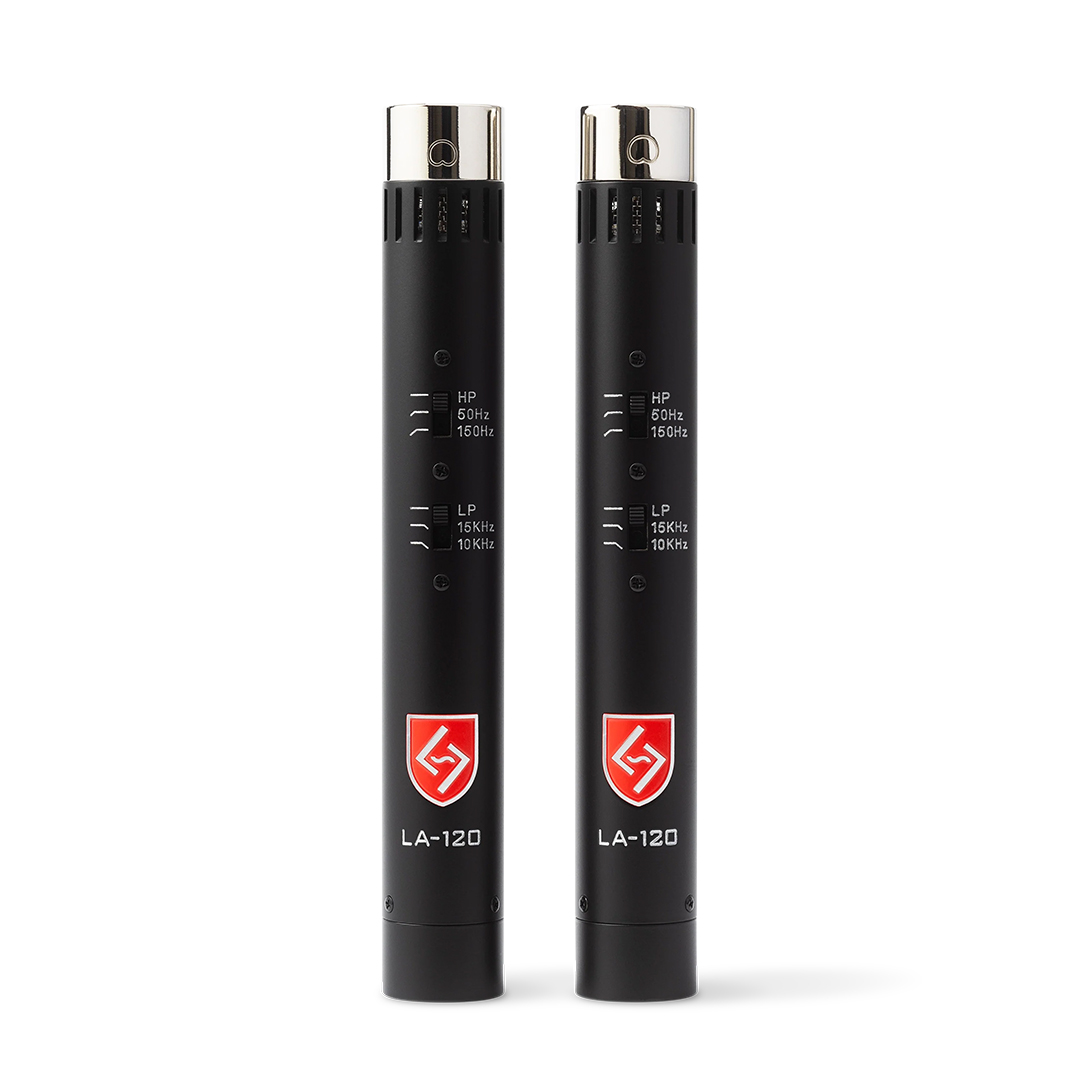

Lauten Audio LA-120 V2 Small-Diaphragm Condenser Microphone — Stereo Pair

The Lauten Audio LA-120 V2 is a matched stereo pair of small-diaphragm transformerless condenser microphones, each built around a U.S.-made JFET and hand-populated with polypropylene capacitors and resistors for transparent, uncolored transient capture. Each microphone ships with interchangeable 17mm cardioid and omnidirectional capsules, giving the pair a wide operational range from spot-miking to room and stereo overhead applications. Onboard three-position high-pass and low-pass filters allow tonal shaping at the capsule—the high-pass selects between Flat, 50Hz, or 120Hz, and the low-pass between Flat, 15kHz, or 10kHz—and optional in-line pads are available separately for high-SPL applications that require additional headroom beyond the microphone’s standard 120dB dynamic range. Designed and tested in Northern California.

Key Features

• Matched stereo pair — two LA-120 V2 microphones; matched for consistent polar pattern, sensitivity, and frequency response across both channels

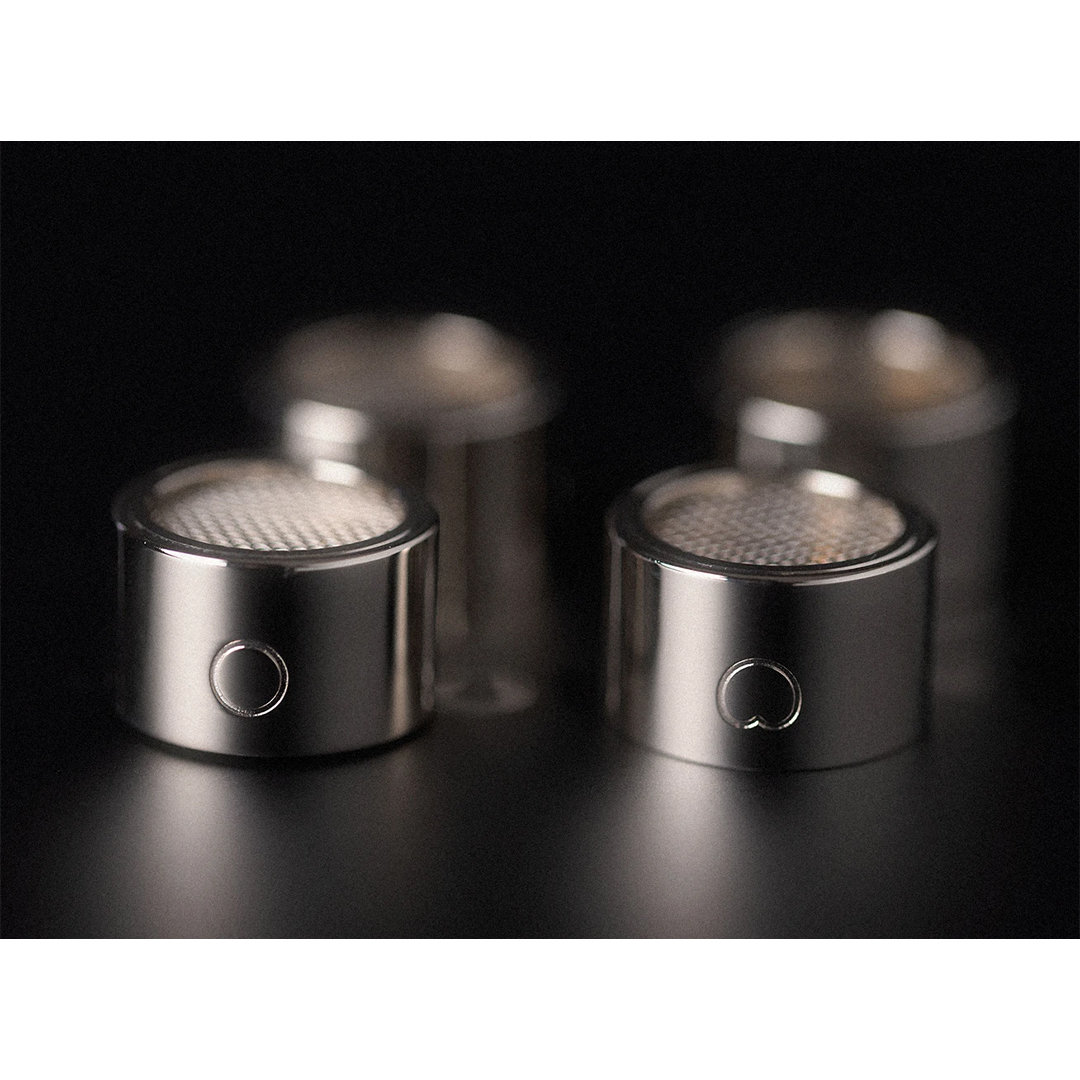

• Interchangeable 17mm capsules — cardioid and omni — each microphone ships with one cardioid and one omnidirectional capsule; capsules can be swapped to change polar pattern and application without changing microphones; two of each capsule type included across the pair
• U.S.-made JFET — transformerless signal path — no output transformer; polypropylene capacitors and resistors throughout; transformerless design prioritizes transparent, uncolored reproduction without transformer-introduced harmonic character
• Onboard three-position high-pass filter — Flat; 50Hz; 120Hz; controls low-frequency content at the capsule before the signal reaches the preamp
• Onboard three-position low-pass filter — Flat; 15kHz; 10kHz; rolls off high-frequency content at the capsule for darker, more vintage-leaning character when needed
• Optional in-line pads (sold separately) — extend usable dynamic range on high-SPL sources beyond the standard 130dB maximum SPL
• Designed and tested in Northern California
• Includes two stand mounts and two windscreens

Specifications

• Type: Transformerless condenser
• Capsule: 17mm pressure gradient (interchangeable)
• Polar Patterns: Cardioid; Omnidirectional (via included capsules)
• Frequency Response: 20Hz–20kHz
• High-Pass Filter: Flat; 50Hz; 120Hz
• Low-Pass Filter: Flat; 15kHz; 10kHz
• Self-Noise: <15dB-A
• Dynamic Range: 120dB minimum
• Max SPL: 130dB (0.5% THD @ 1kHz)
• Sensitivity: 10mV/Pa (–40dB; ref 0dB = 1V/Pa @ 1kHz)
• Output Impedance: <200Ω
• Connector: 3-pin XLR
• Power: 48V phantom power
• Mic + Mount Weight (each): 6 oz
• Box Dimensions: 4 × 10 × 10 in.
• In-Box Weight: 2.7 lbs

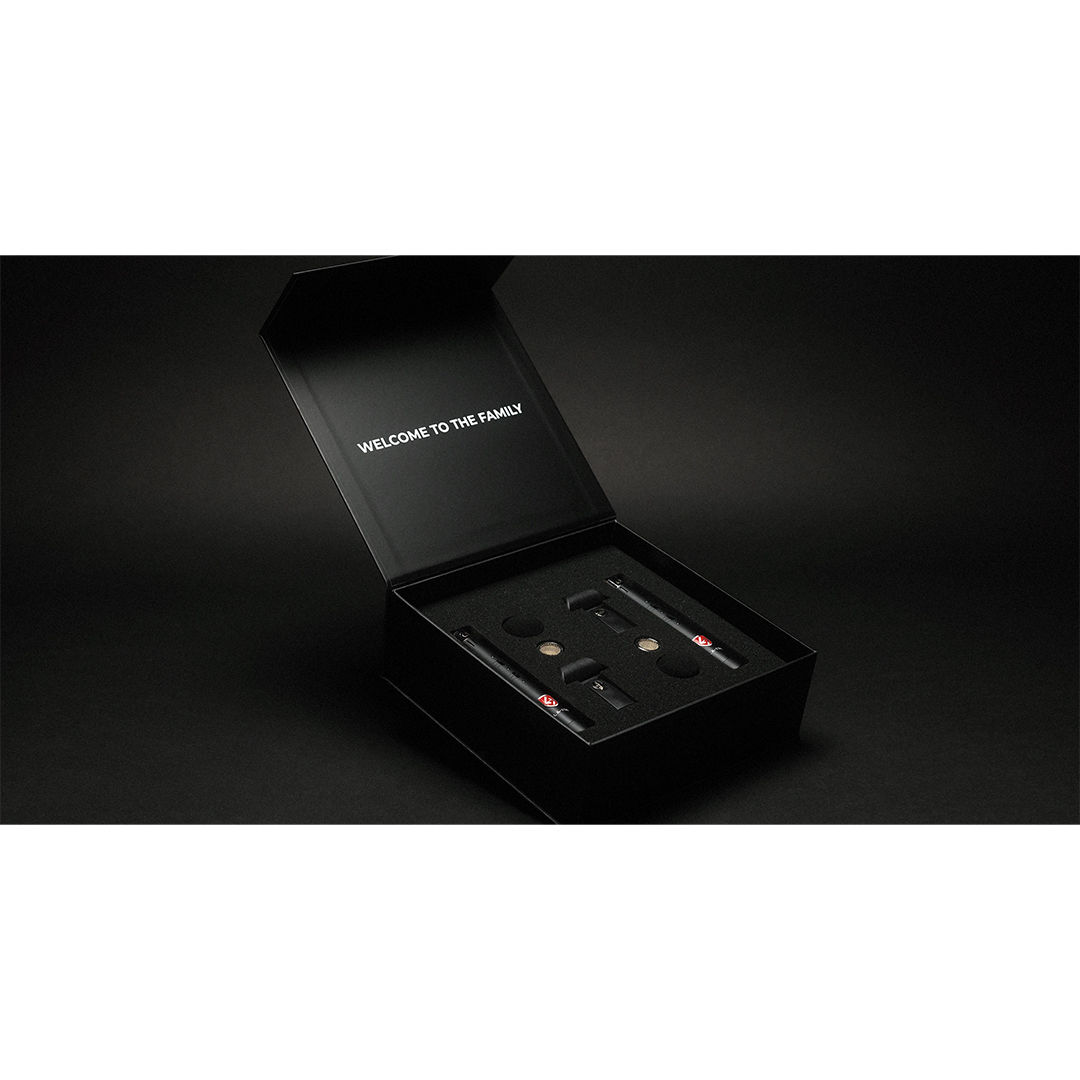

• Included (per pair): 2 × cardioid capsule; 2 × omni capsule; 2 × stand mount; 2 × windscreen
