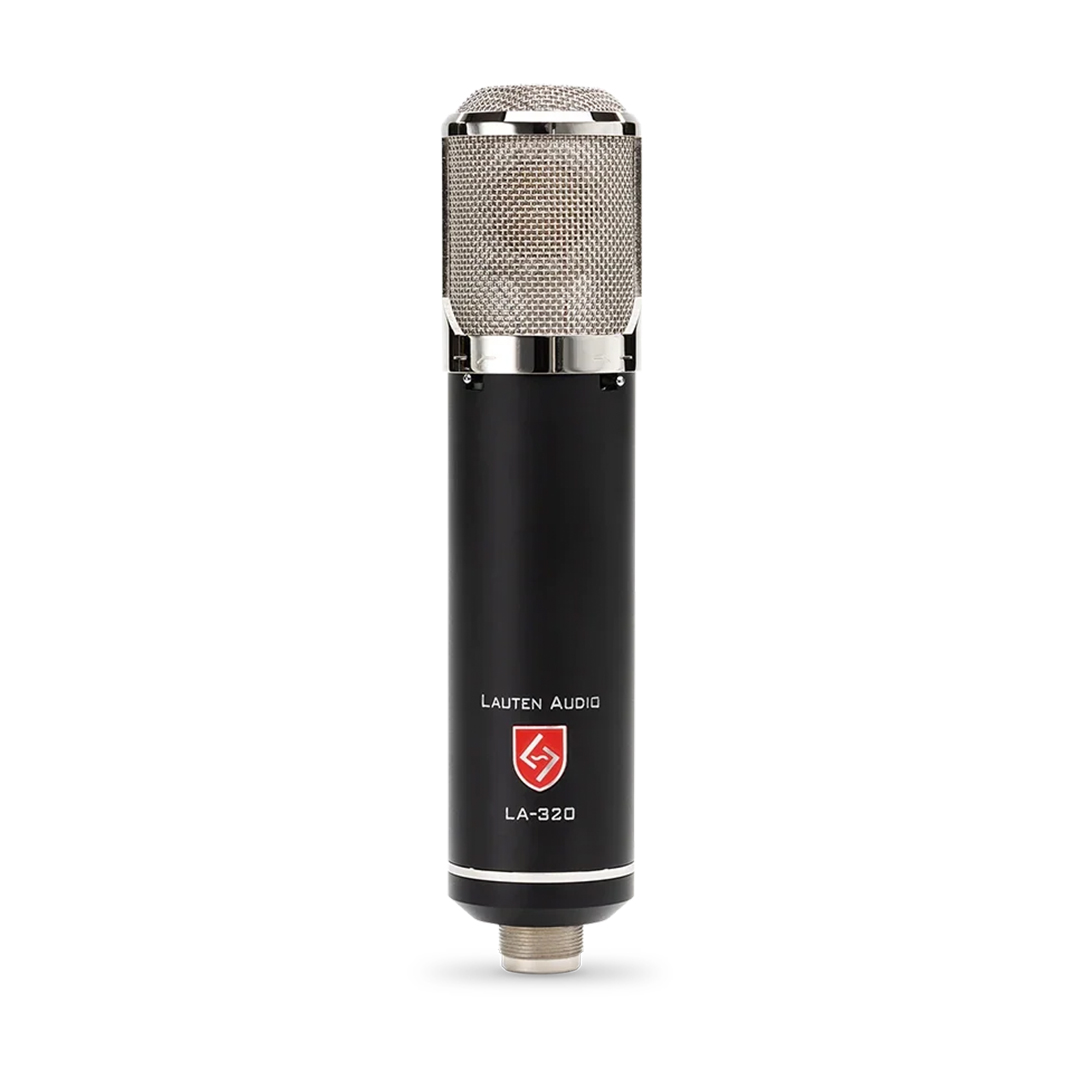

Lauten Audio LA-320 V2 Large-Diaphragm Tube Condenser Microphone

The Lauten Audio LA-320 V2 is a transformer-balanced tube condenser microphone built around a hand-tuned 32mm center-terminated capsule and an ECC83 dual triode vacuum tube, hand-soldered with high-resolution polypropylene capacitors and resistors and a vintage-inspired output transformer. An onboard voicing switch selects between a warmer classic tube character and a clearer modern tube character, extending the LA-320 V2’s usable range across source types without changing microphones. High-pass and low-pass filter switches provide additional tonal shaping at the front end, and the custom capsule design imparts a gentle natural compression and tonal balance suited to sources that are traditionally difficult to record. The LA-320 V2 is designed and tested in Northern California and ships with a spider shock mount, dedicated power supply, and 5-pin cable.

Key Features

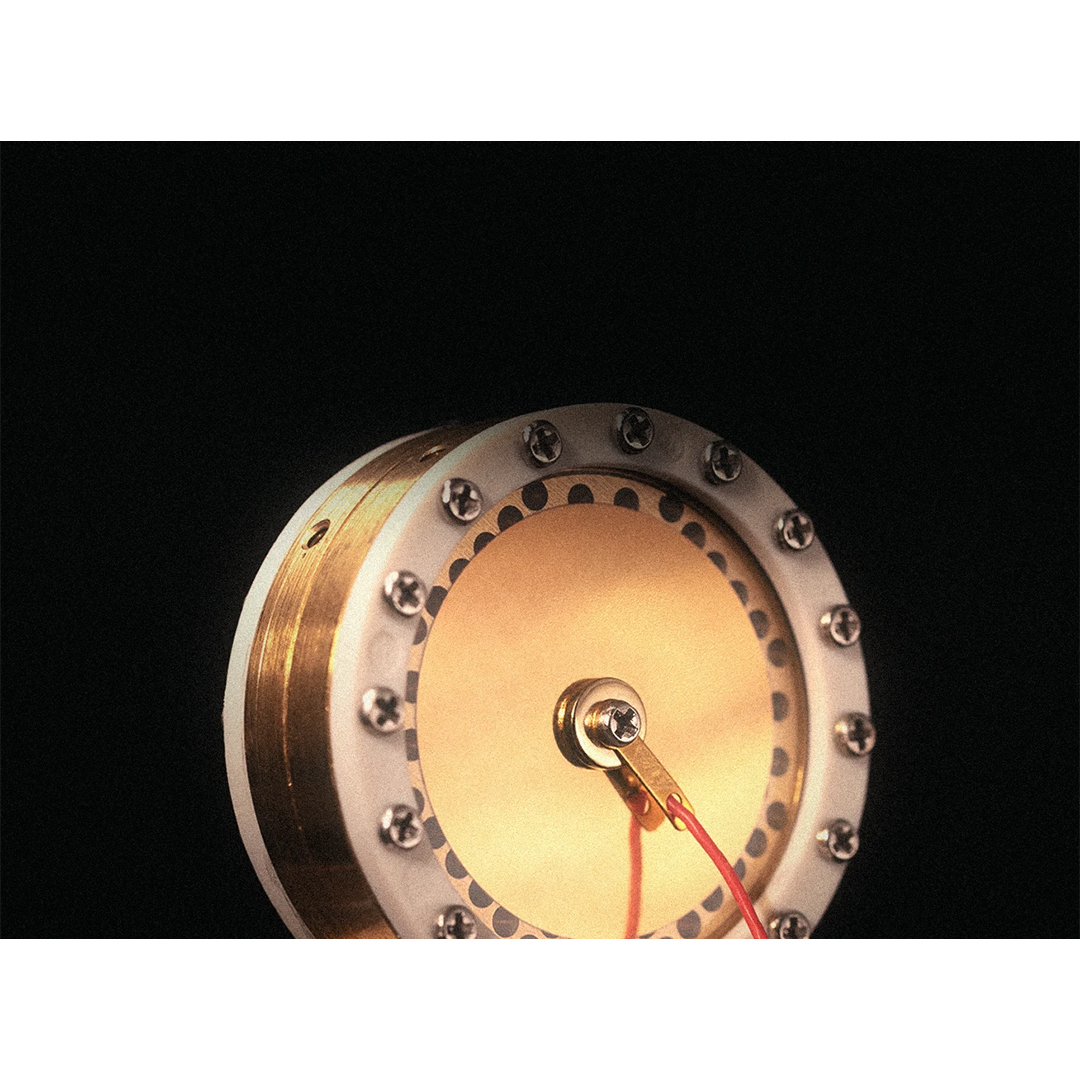

• Hand-tuned 32mm center-terminated capsule — custom Lauten Audio transducer; center-terminated construction; imparts gentle natural compression and tonal balance, helping manage sources that are traditionally difficult to capture
• ECC83 dual triode tube circuit — hand-soldered signal path using high-resolution, low-distortion polypropylene capacitors and resistors; vintage-inspired output transformer; transformer-balanced output
• Onboard voicing switch — selects between Classic mode (warmer, darker tube character associated with vintage signal chains) and Modern mode (cleaner, more extended high-frequency response with tube coloration retained); eliminates the need for mic swaps across different applications
• High-pass filter — Flat or 120Hz; reduces low-frequency content and proximity effect
• Low-pass filter — Flat or 12kHz; rolls off the high-frequency range for a darker, more vintage tonal character
• Includes spider shock mount, PSU, and 5-pin cable — dedicated power supply is switchable from 100V to 240V; connects to the microphone via 5-pin XLR, with a separate 3-pin XLR from PSU to preamp
• Designed and tested in Northern California

Specifications

• Type: Transformer-balanced tube condenser
• Tube: ECC83
• Capsule: 32mm center-terminated pressure gradient
• Polar Pattern: Cardioid
• Frequency Response: 20Hz–20kHz
• High-Pass Filter: Flat; 120Hz
• Low-Pass Filter: Flat; 12kHz
• Self-Noise: <17dB-A
• Dynamic Range: 120dB minimum
• Max SPL: 130dB (0.5% THD @ 1kHz)
• Sensitivity: 14mV/Pa (@ 1kHz, 74dB SPL)
• Output Impedance: <200Ω
• Connector: 5-pin XLR (PSU to mic); 3-pin XLR (PSU to preamp)
• Power: Included PSU (100–240V switchable)
• Mic + Shock Mount Weight: 1 lb 11 oz
• Box Dimensions: 5 × 12 × 15 in.
• Box Weight: 8.2 lbs

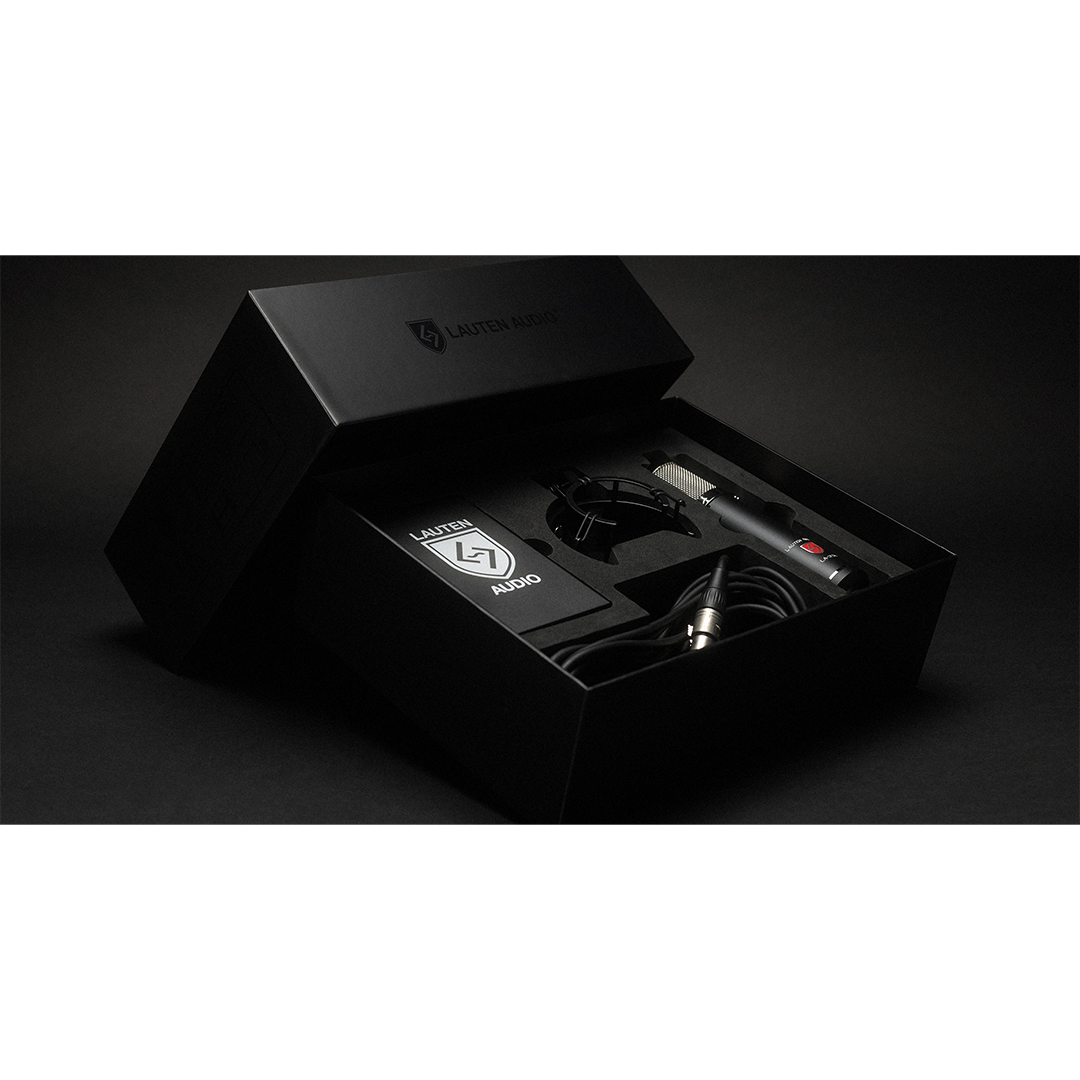

• Included: Spider shock mount; power supply; 5-pin cable
