Lavry SAVITR (AUX)

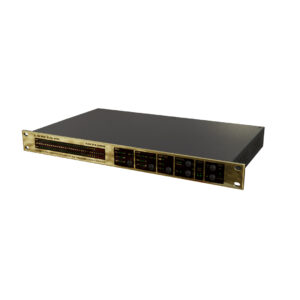

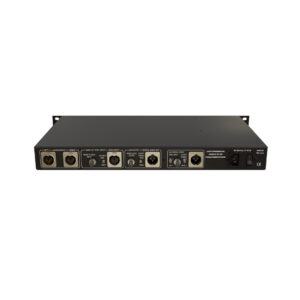

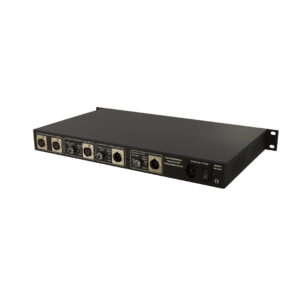

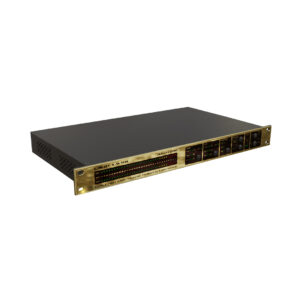

New from Lavry, the AD-24-200 Savitr provides improved quality and ease of use for the most technically demanding recording and mastering studios.
This astonishing converter outperforms previous AD122 series converters across the board. The Savitr grants low distortion, redefining the industry standard. It extends the clock range to include 192 kHz and automates the search for external clock signals.
The Savitr also offers a 2nd digital audio output with independent user control over audio formats and clocking to either internal or external clock sources.
FEATURES INCLUDE:
- Pristine audio performance (THD+N) up to 200 kHz sample rate
- Intuitive operation
- High-resolution meter display
- Main & Auxiliary digital outputs
- Independent audio formats (AES/SPDIF)
- Independent clocking (Search & Lock/ Internal)
- User selectable options:
- MX clipping (on/off)
- Soft saturation levels (4)
- Low Latency mode (on/off)
PERFORMANCE
THD+N (0 dB Internal Gain)
| Analog Input Level |
Source Frequency |
Gain |
20 kHz Bandwidth |
40 kHz Bandwidth |
| -1 dBFS |
1 kHz |
0 dB |
-110 dBFS 0.00032 %FS |
-107 dBFS 0.00045 %FS |
| -0.1 dBFS |
20 Hz to 20 kHz |
0 dB |
-109 dBFS 0.00035 %FS |
-103 dBFS 0.00071 %FS |
| -1 dBFS |
20 Hz to 20 kHz |
0 dB |
-109 dBFS 0.00035 %FS |
-106 dBFS 0.00050 %FS |
| -3 dBFS |
20 Hz to 20 kHz |
0 dB |
-113 dBFS 0.00022 %FS |
-110 dBFS 0.00032 %FS |
THD+N (with Internal Gain)
6 dB of Internal Gain: Increases THD+N by less than 2dB of the values above.
Dynamic Range
| Sample Rate |
Bandwidth |
Unweighted |
A-Weighted |
| 44.1 kHz |
20 kHz |
126 dBFS |
128 dBFS |
| 96 kHz |
40 kHz |
122 dBFS |
128 dBFS |
| 192 kHz |
80 kHz |
104 dBFS |
128 dBFS |
Channel Separation
1 kHz: 123 dBFS
20-20 kHz: 108 dBFS
Latency
| Conversion Rate |
Main Output – Best Quality |
Main Output – Low Latency |
Auxiliary Output – Best Quality |
Auxiliary Output – Low Latency |
| 44.1 kHz |
471 µs |
153 µs |
3.7 ms |
3.5 ms |
| 48 kHz |
440 µs |
150 µs |
3.4 ms |
3.4 ms |
| 88.2 kHz |
267 µs |
109 µs |
1.9 ms |
1.7 ms |
| 96 kHz |
249 µs |
103 µs |
1.7 ms |
1.6 ms |
| 176.4 kHz |
137 µs |
89 µs |
940 µs |
890 µs |
| 192 kHz |
130 µs |
86 µs |
865 µs |
820 µs |
