Lavry SAVITR (MWC)

$8,600.00

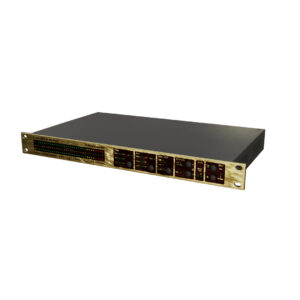

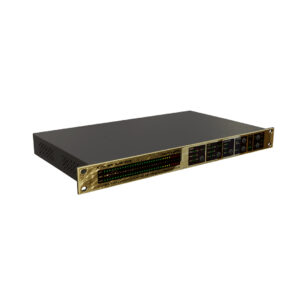

Lavry SAVITR (MWC)

The AD-24-200 Savitr provides improved quality and ease of use for the most technically demanding recording and mastering studios.

This astonishing converter outperforms previous AD122 series converters across the board. The Savitr grants low distortion, redefining the industry standard. It extends the clock range to include 192 kHz and automates the search for external clock signals.

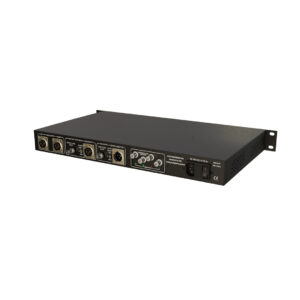

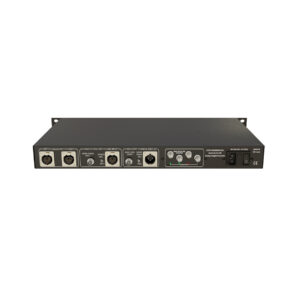

The Multiple WordClock configuration of the Savitr includes 4 additional WordClock outputs with termination sensing and indication LEDs. Proper termination reduces clock jitter, providing lower distortion. These outputs transform the Savitr into a superb masterclock for professional audio work.

FEATURES INCLUDE:

  • Pristine audio performance (THD+N) up to 200 kHz sample rate
  • Intuitive operation
  • High-resolution meter display
  • Stereo digital output
  • Independent audio formats (AES/SPDIF)
  • Independent clocking (Search & Lock/ Internal)
  • Multiple WordClock Module
  • WC outputs (4) with termination sensing and red/green LED indication
  • User selectable options:
    • MX clipping (on/off)
    • Soft saturation levels (4)
    • Low Latency mode (on/off)

PERFORMANCE

THD+N (0 dB Internal Gain)

Analog Input Level Source Frequency Gain 20 kHz Bandwidth 40 kHz Bandwidth
-1 dBFS 1 kHz 0 dB -110 dBFS 0.00032 %FS -107 dBFS 0.00045 %FS
-0.1 dBFS 20 Hz to 20 kHz 0 dB -109 dBFS 0.00035 %FS -103 dBFS 0.00071 %FS
-1 dBFS 20 Hz to 20 kHz 0 dB -109 dBFS 0.00035 %FS -106 dBFS 0.00050 %FS
-3 dBFS 20 Hz to 20 kHz 0 dB -113 dBFS 0.00022 %FS -110 dBFS 0.00032 %FS

THD+N (with Internal Gain)

6 dB of Internal Gain: Increases THD+N by less than 2dB of the values above.

Dynamic Range

Sample Rate Bandwidth Unweighted A-Weighted
44.1 kHz 20 kHz 126 dBFS 128 dBFS
96 kHz 40 kHz 122 dBFS 128 dBFS
192 kHz 80 kHz 104 dBFS 128 dBFS

Channel Separation

1 kHz: 123 dBFS

20-20 kHz: 108 dBFS

Latency

Conversion Rate Best Quality Low Latency
44.1 kHz 471 µs 153 µs
48 kHz 440 µs 150 µs
88.2 kHz 267 µs 109 µs
96 kHz 249 µs 103 µs
176.4 kHz 137 µs 89 µs
192 kHz 130 µs 86 µs
