Maag Audio PREQ2

Overview

Introducing the PREQ2™ by Mäag Audio, a dual mic preamp with EQ that combines analog precision for both recording and mixing, housed in a 1U standalone unit. The PREQ2 comes with Cliff Mäag’s legendary Air Band® shelving equalizer, first introduced in 1993 with the NTI EQ3 equalizer, ensuring top-tier sound quality.

Features

  • Dual matched channels with separate rear panel line level input and microphone XLR connectors.
  • Switchable +48-volt phantom powering for flexibility with different microphones.
  • Discrete Class-A transistor preamp with nickel-core Mäag Audio-built input transformer for clean, detailed sound.
  • Mic preamp offers up to 71dB of gain with a high gain mode (up to +71dB) using the 25dB gain switch.
  • Line level toggle switch for easy input switching between microphone and line sources.
  • 1 mega-ohm instrument input with companion Thru jack, allowing for direct recording and re-amplification capabilities.
  • High and low gain ranges selectable for optimized input control.
  • Three EQ/filter sections for tonal enhancement and correction:
    • High pass filter with a sweep range from 20Hz to 200Hz.
    • Low Frequency bell-shaped equalizer with boost up to 9dB, with selectable frequencies ranging from 10Hz to 165Hz.

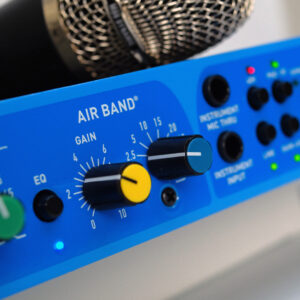

    • Air Band shelving equalizer with frequency choices: 2.5, 5, 10, 15, 20, and 40 kHz for euphonic tonal enhancement.
  • All switches have LED indicators, and all controls are detented except for the mic gain control for easy recall.

Complete Set

  • Dual mic preamp with comprehensive EQ and Air Band technology.
  • Rear panel XLR outputs for each channel and on/off/fuse mains switch for secure power management.
Description Value
Noise Level (lowest gain setting) -100 dB
Equivalent Input Noise (EIN) -128 dB
Balanced XLR Output Headroom +27 dBu
Gain Range (Low) +20 dB to +42 dB
Gain Range (High, +25 Switch) +42 dB to +71 dB
Switchable Pad -20 dB with Green LED indicator
Phantom Power +48 Volt, switchable with Red LED indicator
Phase Reversal Switch to invert phase of balanced output
Signal Indicators Green signal present LED, Red Peak LED (+26 dBu)
