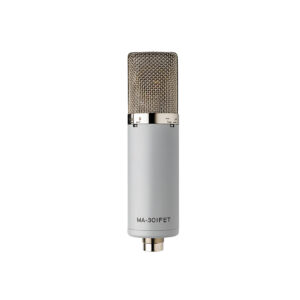

Mojave MA-301fetVG

A Versatile Multi-Pattern Large Diaphragm Solid-State Condenser Microphone. Building on the foundation of the acclaimed MA-201fetVG, the MA-301fetVG offers enhanced features like a 3-position pickup pattern selector, a 15dB pad, and a switchable bass roll-off, making it incredibly versatile for all recording needs.

Key Features

• Multi-Pattern Selection: Offers cardioid, omnidirectional, and figure-eight patterns to suit any recording situation.
• High-Performance Capsule: Features a 3-micron gold-sputtered dual-diaphragm capsule for pristine audio capture.
• Premium Components: Includes a Jensen audio transformer and military-grade FET for exceptional sound quality.
• Switchable 15dB Pad and Bass Roll-off: Provides versatility in handling different sound sources and controlling low-frequency response.

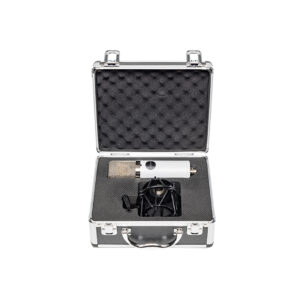

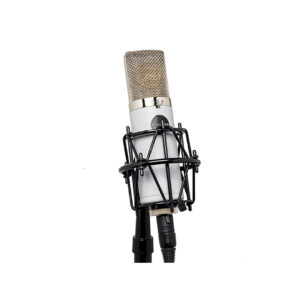

• Professional Accessories: Comes with a shock mount and protective case for professional use and easy transport.

Recommended Applications

• Vocals, Voice Over, and Broadcast
• High SPL sources like Kick Drums and Bass Guitar Amps
• Electric Guitar, Piano
• Drum Overheads and Drum Rooms

• Transducer Type: Externally polarized, pressure gradient capacitor – double diaphragm.
• Diaphragm: 1-inch diameter, gold sputtered, 3 microns thickness
• Polar Pattern: Omni, cardioid, and figure-8
• Frequency Response: 20 Hz to 20 kHz, +/-3 dB. Bass cut switch provides 6 dB/octave attenuation below 100 Hz.
• Sensitivity: -40.5 dB re. 1V/pa
• Maximum SPL: 120 dB (pad off), 135 dB (pad on)
• Distortion: <1% @ 120 dB SPL, <3% @ 134 dB SPL (pad off); <1% @ 134 dB SPL, <3% @ 148 dB SPL (pad on)
• Self Noise: 14 dB nominal, not to exceed 16 dB (A weighted)
• Pad: 15 dB
• Bass Cut: 6 dB per octave below 100 hertz.
• Impedance: 550 ohms, transformer balanced (Jensen)
• Powering: 48VDC phantom power; current 1.2 mA
• Dimensions and Weight:
  • Carrying case with microphone, shock mount: 10″ x 9″ x 4.5″, 4 lbs.
  • Microphone: 7 5/8″ X 2″ (194mm x 51mm), 1 lb. (0.45Kg)
