Myburgh M1 Tube Microphone


Myburgh M1 Tube Microphone

The M1 is a new tube microphone with an all-new circuit design inspired by the vintage greats. Designed by Andrew Myburgh, Andreas Grosser, and Eckehard Dux, the M1 offers exceptional sound quality and unprecedented build quality.

Capsule & Tube

The M1 incorporates a German-made Mylar M7 capsule manufactured by Siegfried Thiersch and a Russian military-grade long-life tube.

Amplifier & Transformers

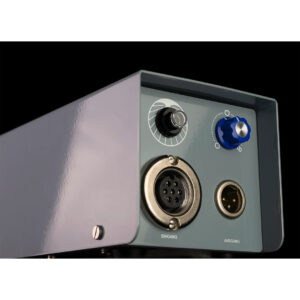

The M1’s amplifier boasts an incredible linear frequency response with minimal cut-off below 30Hz or over 20kHz. It features two custom-built transformers, one in the mic and another in the power supply. The combination of the amplifier design, the German-made capsule, and the new capsule headbasket design gives the M1 its unique sound.

Noise Floor, Output & SPL

The M1 has a super low noise floor, a high output, and handles SPL like your favorite FET kick drum mic. Variable polar patterns and true cardioid are key features of this microphone.

Unprecedented Build Quality

Made largely of brass, the M1’s build quality is unprecedented. All metalwork is custom designed and manufactured, ensuring a mechanical lifespan far beyond the typical modern-day microphone. The M1 is built to last a few lifetimes.

  • Circuit Design: Original all-new circuit design
  • Polar Pattern: Variable on detented potentiometer: Omni; Cardioid; Figure 8 plus 100% Cardioid selectable on PSU
  • Frequency Response: 20 Hz – 20 kHz
  • Internal Pre-Amplification Stage: Linear 30 Hz – 20 kHz
  • Sensitivity: 24mV/Pa
  • Equivalent Noise Level: 15dBA
  • Maximum SPL: 124 dB
  • Capsule: M7 Thiersch Mylar
  • Tube: Russian Military Grade Tube
  • Transformers: Custom specifications. M1 and PSU transformers by Pikatron
  • Cable: Mogami Neglex 3172 tube microphone cable 7m (23 ft)
  • Connectors: 7 Pin = Binder and 3 pin XLR = Neutrik
  • Output Impedance: 200 Ω
  • Dimensions: M1 22.5cm (8.85”) / M1 + Swivel = 35.5cm (14”)
  • Weight: M1 = 0.6 kg (1.3 lbs) / M1 + Swivel = 1.9 kg (4.2 lbs)
  • Shipping Weight: 9 kg (20 lbs)
  • Peripherals: Custom M1 box, Waterproof Case, Swivel pouch
