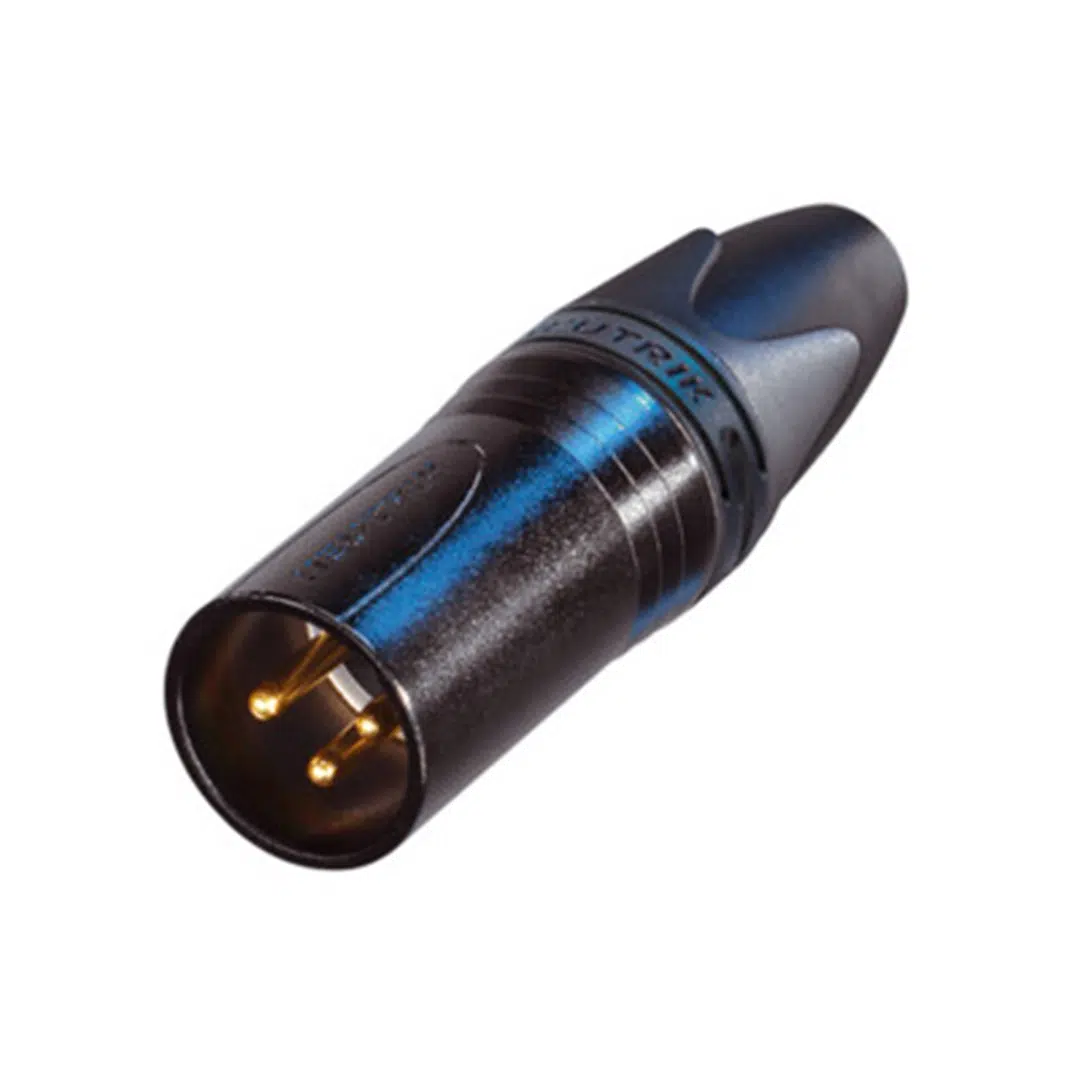

Neutrik NC3MXX-B 3-Pole XLR Male Cable Connector – Black/Gold

The Neutrik NC3MXX-B is a 3-pole XLR male cable connector featuring a black KTL-coated zinc diecast shell and gold-over-nickel contacts, representing Neutrik’s next-generation XX Series update to the globally adopted X Series standard. The improved locking recess eliminates the window opening of the previous design for a more robust housing, while the upgraded chuck-type strain relief provides higher pull-out resistance and faster assembly. A polyurethane boot gland protects the cable entry point from bending stress, and the internal shell thread is recessed to guard against damage during handling. With a 16A rated current per contact, max 14AWG wire capacity, and compatibility with cable ODs from 3.5 to 8.0mm, the NC3MXX-B handles the full range of professional audio cable assembly applications.

Key Features

• Gold-over-nickel contacts — 0.2μm Au hard alloy over 2μm Ni for low contact resistance (≤3 mΩ) and long-term reliability
• Improved locking recess — window-free design increases housing strength and durability over previous X Series
• Upgraded chuck-type strain relief — higher pull-out force than previous generation; faster and easier to assemble
• Polyurethane boot gland — protects cable at the entry point from repeated bending stress
• Black KTL shell coating — zinc diecast shell with black coating for a sleek, professional appearance
• Protected internal shell thread — recessed to prevent damage during assembly and handling
• Colored ring and boot options available — for channel coding and cable identification
• Latch lock — secure, positive locking engagement

Specifications

• Type: 3-pole XLR cable connector
• Gender: Male
• Shell Finish: Black KTL-coated zinc diecast
• Contact Plating: 0.2 μm Au hard alloy over 2 μm Ni
• Contact Material: Brass (CuZn39Pb3)
• Wiring: Solder
• Wire Size: Max 14AWG (2.5mm²)
• Cable O.D.: 3.5–8.0 mm (0.14–0.31 in.)
• Rated Current per Contact: 16A
• Rated Voltage: <50V
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: >10 GΩ (initial)
• Contact Resistance: ≤3 mΩ
• Capacitance Between Contacts: ≤4 pF
• Locking: Latch lock
• Mechanical Lifetime: >1,000 mating cycles
• Protection Class: IP 40
• Temperature Range: –22°F to +176°F (–30°C to +80°C)
• Boot Material: Polyurethane
• Insert: Polyamide (PA66)
• Strain Relief: Polyacetal (POM)
• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
