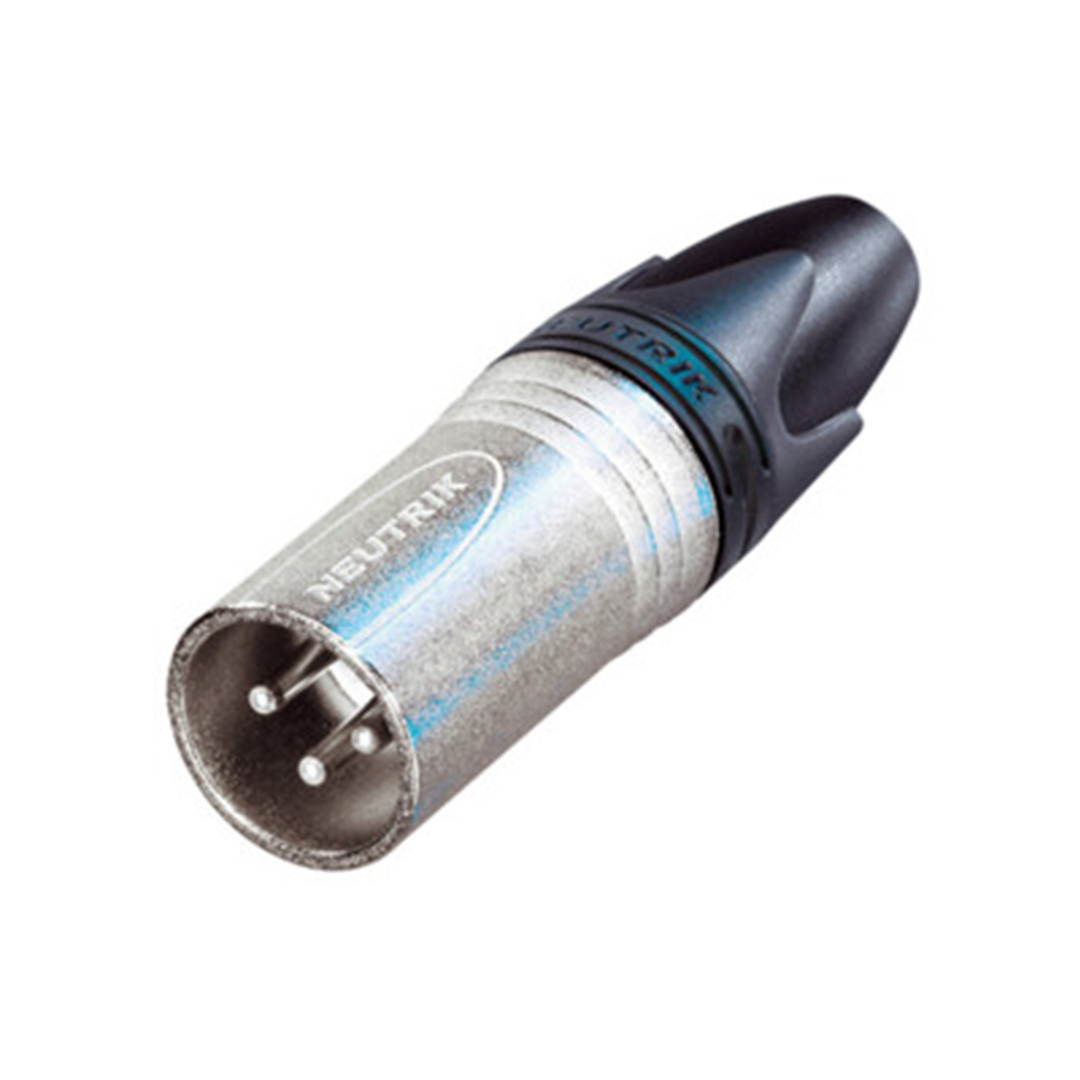

Neutrik NC3MXX 3-Pole XLR Male Cable Connector – Nickel/Silver

The Neutrik NC3MXX is a 3-pole XLR male cable connector featuring a nickel-plated zinc diecast shell and silver contacts, representing Neutrik’s next-generation XX Series successor to the globally adopted X Series. The improved locking recess eliminates the window opening of the previous design for a more robust housing, while the upgraded chuck-type strain relief provides higher pull-out resistance and faster assembly. A polyurethane boot gland protects the cable entry point from bending stress, and the internal shell thread is recessed to guard against damage during handling. With a 16A rated current per contact, max 14AWG wire capacity, and compatibility with cable ODs from 3.5 to 8.0mm, the NC3MXX handles the full range of professional audio cable assembly applications.

Key Features

• Silver contacts — 2 μm Ag plating on brass (CuZn39Pb3) contacts for reliable, low-resistance termination
• Improved locking recess — window-free design increases housing strength and durability over previous X Series
• Upgraded chuck-type strain relief — higher pull-out force than previous generation; faster and easier to assemble
• Polyurethane boot gland — protects cable at the entry point from repeated bending stress
• Nickel-plated zinc diecast shell — rugged and dependable for professional use
• Protected internal shell thread — recessed to prevent damage during assembly and handling
• Colored ring and boot options available — for channel coding and cable identification
• Latch lock — secure, positive locking engagement

Specifications

• Type: 3-pole XLR cable connector
• Gender: Male
• Shell: Zinc diecast (ZnAl4Cu1), nickel-plated
• Contact Plating: 2 μm Ag (silver)
• Contact Material: Brass (CuZn39Pb3)
• Wiring: Solder
• Wire Size: Max 14AWG (2.5mm²)
• Cable O.D.: 3.5–8.0 mm (0.14–0.31 in.)
• Rated Current per Contact: 16A
• Rated Voltage: <50V
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: >10 GΩ (initial)
• Contact Resistance: ≤3 mΩ
• Capacitance Between Contacts: ≤4 pF
• Locking: Latch lock
• Locking Element: Zinc diecast (ZnAl4Cu1)
• Mechanical Lifetime: >1,000 mating cycles
• Protection Class: IP 40
• Temperature Range: –22°F to +176°F (–30°C to +80°C)
• Boot Material: Polyurethane
• Insert: Polyamide (PA66)
• Strain Relief: Polyacetal (POM)
• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
