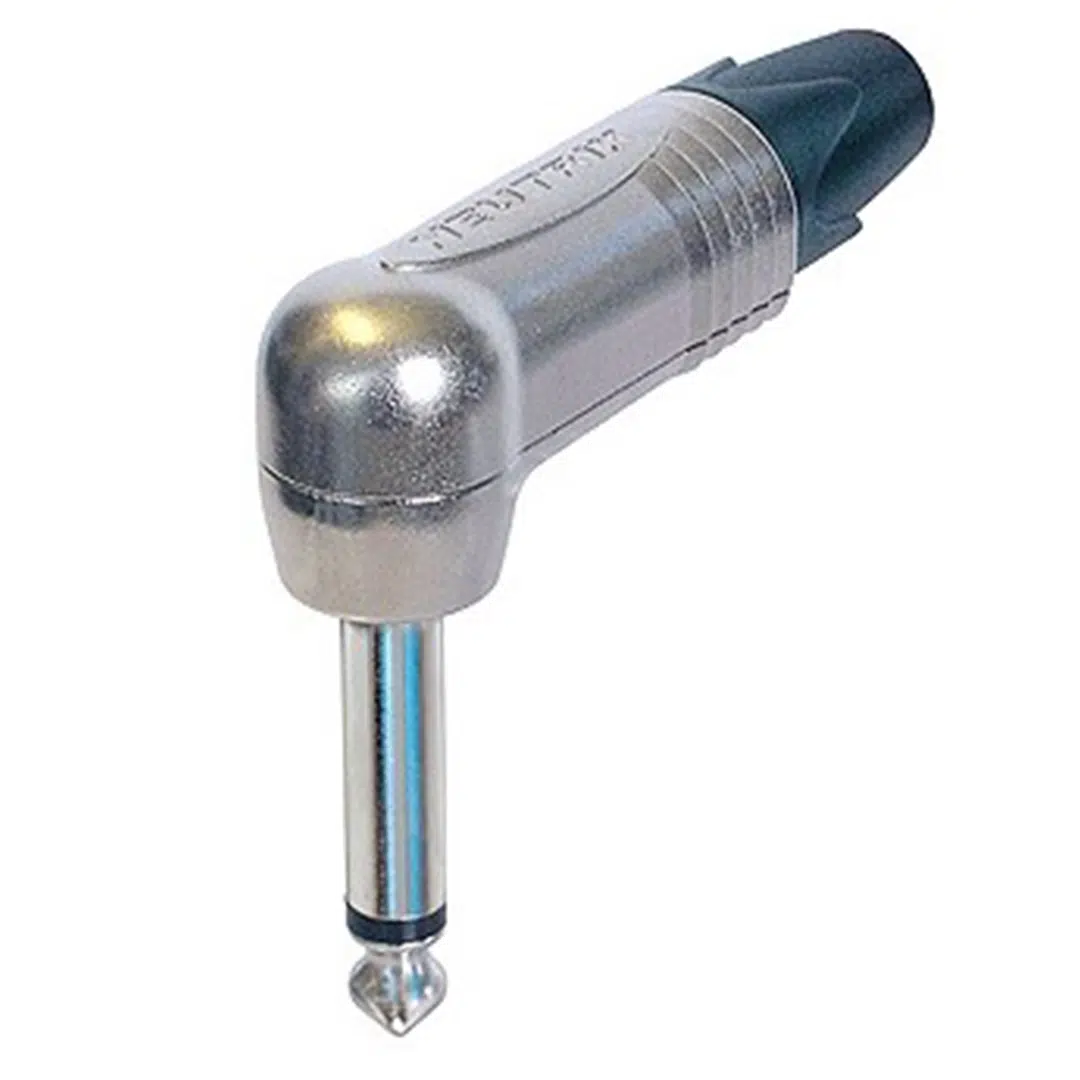

Neutrik NP2RX 2-Pole Right-Angle 1/4 Inch Phone Plug – Nickel

The Neutrik NP2RX is a professional 2-pole (TS) right-angle 1/4-inch phone plug with an all-metal housing, nickel contacts, and the slim-profile engineering of the Plug X Series. At 14.5mm wide—the thinnest A-gauge 1/4″ plug available—the NP2RX fits the 15.88mm jack pitch requirements of high-density jackfields while the right-angle exit keeps cable routing clean and low-profile against panel-mounted jacks. The all-metal housing improves on the predecessor NP*RCS by eliminating its plastic cover, increasing both durability and EMI protection. A precision-machined one-piece tip contact without rivets prevents tip hook-up or breakage, and the chuck-type strain relief accommodates cable ODs from 4 to 7mm.

Key Features

• Right-angle cable exit — keeps cable routing low-profile and reduces strain at panel-mounted jacks
• All-metal housing — eliminates the plastic cover found on the predecessor NP*RCS for improved durability and EMI protection
• 14.5mm slim shell — thinnest A-gauge 1/4″ plug available; fits 15.88mm pitch high-density jackfields
• Precision-machined one-piece tip contact — no rivets; eliminates tip hook-up in sockets and reduces risk of tip breakage
• Chuck-type strain relief — proven cable retention system; accommodates cable OD from 4 to 7mm (0.16 to 0.28 in.)
• Nickel-plated zinc diecast shell — robust and durable for professional use
• Broad application range — guitar cables, instrument connections, audio snakes, speakers, amplifiers, and mixing desks

Specifications

• Type: 2-pole (TS) right-angle 1/4 in. phone plug
• Gender: Male
• Shell Width: 14.5 mm
• Shell Material: Zinc diecast (ZnAl4Cu1), nickel-plated
• Contact Plating: 2 μm Ni (nickel)
• Contact Material: Brass (CuZn39Pb3)
• Wiring: Solder
• Wire Size: Up to 18AWG (1mm²)
• Cable O.D.: 4–7 mm (0.16–0.28 in.)
• Rated Voltage: <50V
• Dielectric Strength: 1 kVdc
• Insulation Resistance: >2 GΩ (initial)
• Mechanical Lifetime: >1,000 mating cycles
• Temperature Range: –4°F to +149°F (–20°C to +65°C)
• Bushing: Polyacetal (POM) + PU
• Insert: Polyamide (PA 6.6, 30% GR)
• Strain Relief: Polyacetal (POM)
• Standards: IEC 60603-11 / EIA RS-453
