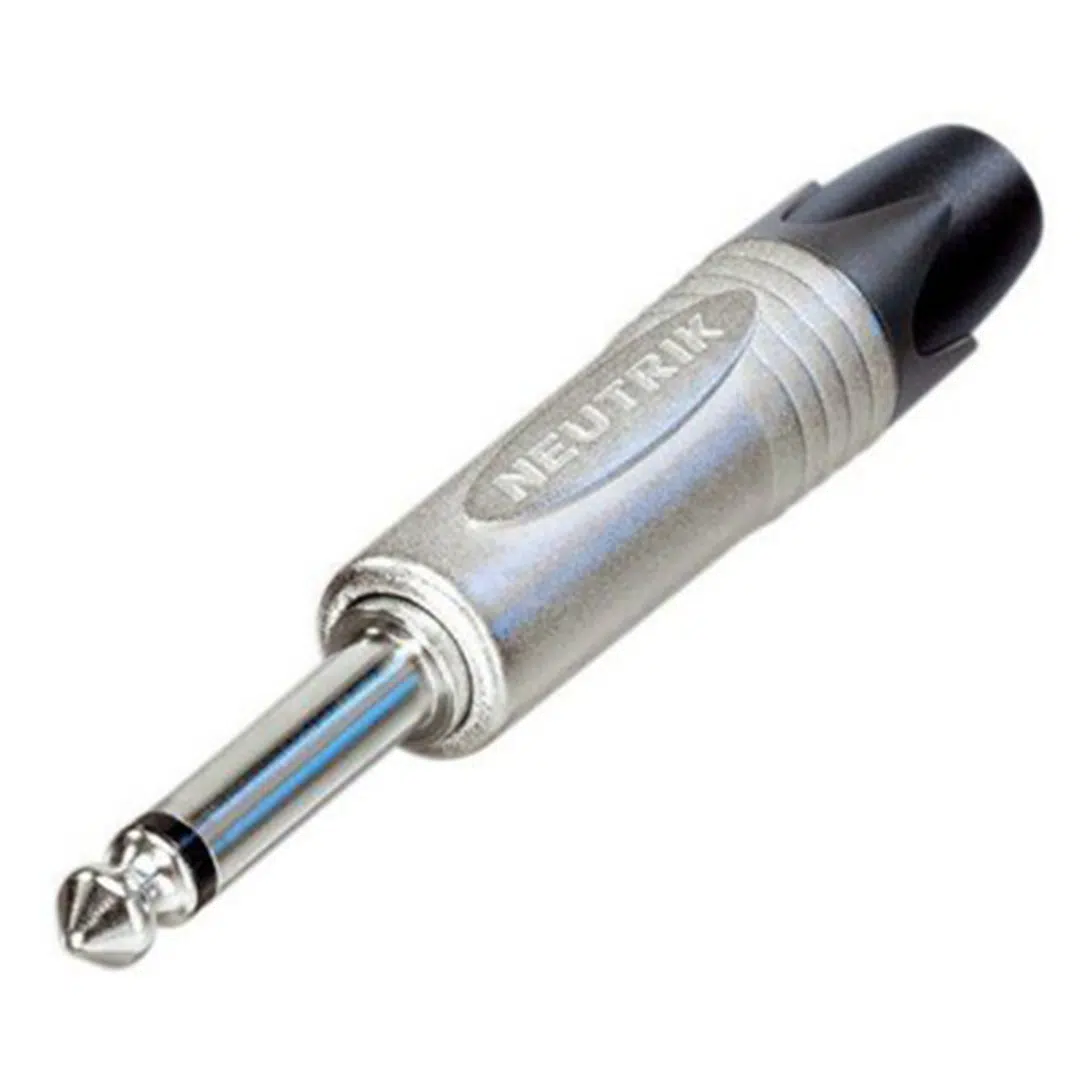

Neutrik NP2X 2-Pole 1/4 Inch Phone Plug – Nickel

The Neutrik NP2X is a professional 2-pole (TS) 1/4-inch phone plug engineered for high-density jackfield applications and general professional audio assembly. At just 14.5mm wide—the thinnest A-gauge 1/4″ plug available—the NP2X meets the 15.88mm jack pitch requirements of modern high-density patchbays without sacrificing durability or build quality. A precision-machined one-piece tip contact eliminates rivets, preventing the tip from snagging in a socket or breaking under stress, while Neutrik’s proven chuck-type strain relief provides secure cable retention across a cable OD range of 4 to 7mm. The NP2X is suited for guitar cables, instrument connections, audio snakes, speakers, amplifiers, and mixing desk applications.

Key Features

• 14.5mm slim shell — thinnest A-gauge 1/4″ plug available; fits 15.88mm pitch high-density jackfields
• Precision-machined one-piece tip contact — no rivets; eliminates tip hook-up in sockets and reduces risk of tip breakage
• Chuck-type strain relief — Neutrik’s proven cable retention system; accommodates cable OD from 4 to 7mm (0.16 to 0.28 in.)
• Robust zinc diecast shell — nickel-plated; built for professional use
• Solder contacts — brass contacts with 2μm nickel plating for reliable, low-resistance termination
• Broad application range — guitar cables, instrument connections, audio snakes, speakers, amplifiers, and mixing desks

Specifications

• Type: 2-pole (TS) 1/4 in. phone plug
• Gender: Male
• Shell Width: 14.5 mm
• Shell Material: Zinc diecast (ZnAl4Cu1), nickel-plated
• Contact Material: Brass (CuZn39Pb3), 2 μm nickel-plated
• Wiring: Solder
• Wire Size: Up to 18AWG (1mm²)
• Cable O.D.: 4–7 mm (0.16–0.28 in.)
• Rated Voltage: <50V
• Dielectric Strength: 1 kVdc
• Insulation Resistance: >2 GΩ initial; ≥1 GΩ after damp heat test
• Mechanical Lifetime: >1,000 mating cycles
• Temperature Range: –4°F to +149°F (–20°C to +65°C)
• Bushing: Polyacetal (POM) + PU
• Insert: Polyamide (PA 6.6, 30% GR)
• Strain Relief: Polyacetal (POM)
• Standards: IEC 60603-11 / EIA RS-453
