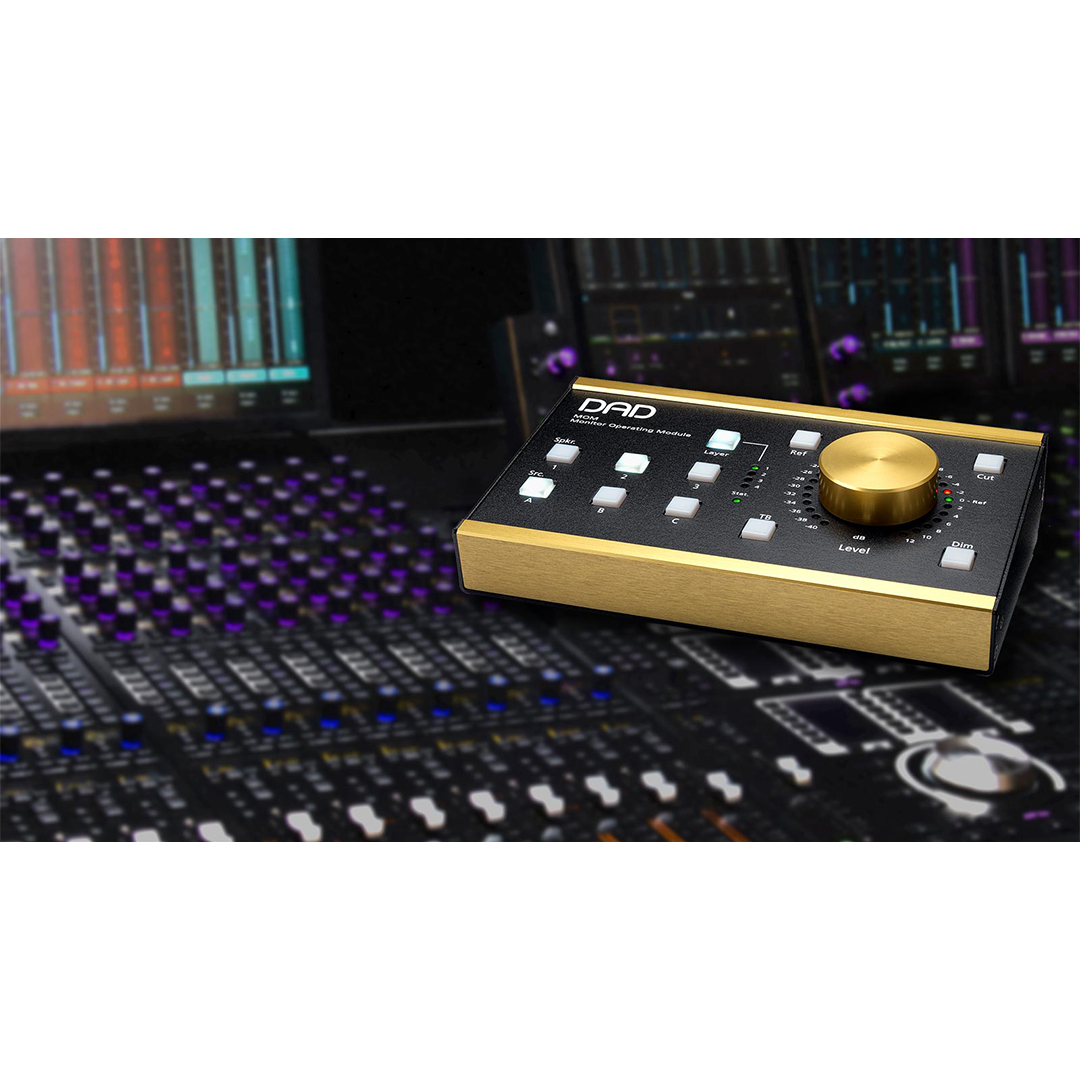

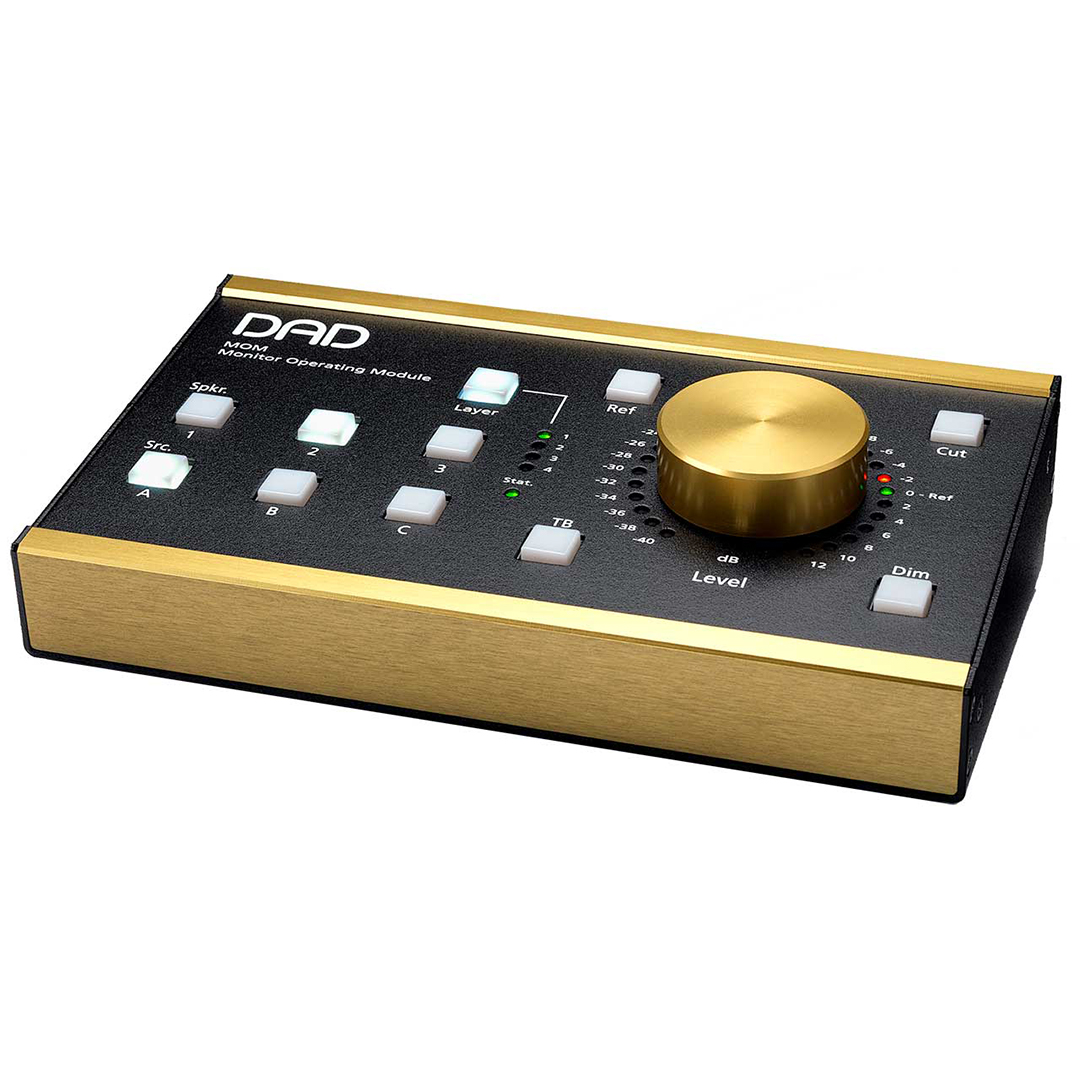

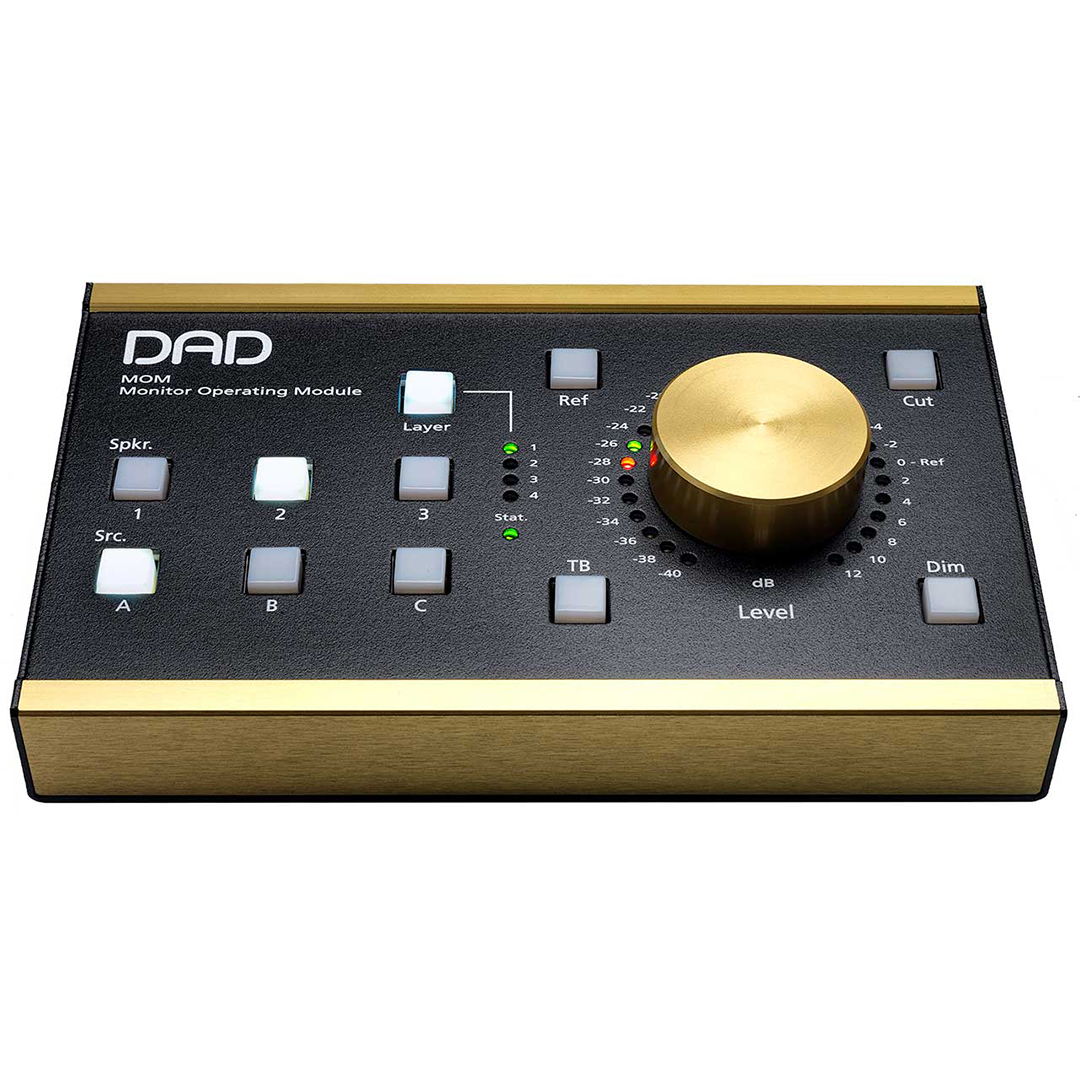

NTP Technology DAD MOM Monitor Operating Module

The DAD MOM Monitor Operating Module from [NTP Technology](chatgpt://generic-entity?number=0) delivers precise, hands-on control for modern monitoring workflows where tactile operation still matters. Designed to pair seamlessly with AX32R and DX32R systems running the PRO|MON|3 license, MOM functions as a network-connected remote controller, placing critical monitor functions directly at your fingertips while all audio routing remains within the DAD hardware. The result is a powerful, flexible monitoring solution that combines software precision with the immediacy of dedicated hardware control.

Key Features

• Dedicated hardware monitor controller designed for AX32R and DX32R systems with PRO|MON|3.
• Large, high-quality rotary knob for precise and intuitive master level control.
• Source selection for switching between multiple input sources.
• Monitor configuration switching, supporting formats from mono through immersive Atmos layouts.
• Mute and solo control of individual monitor channels.
• Integrated talkback functionality.
• Dim, Cut, and Reference Level controls for fast monitoring adjustments.
• Ethernet-based remote operation with no audio passing through the unit.

Layer Functionality

• Unique Layer feature allows up to four independent control configurations.
• Freely assign control functions within DADman software to suit specific workflows.
• Instant switching between layers enables task-specific control layouts.
• Ideal for shared studios, multiple engineers, or external producers with customized access.
• Supports role-based control, including restricted access to master volume if desired.

Integration & Compatibility

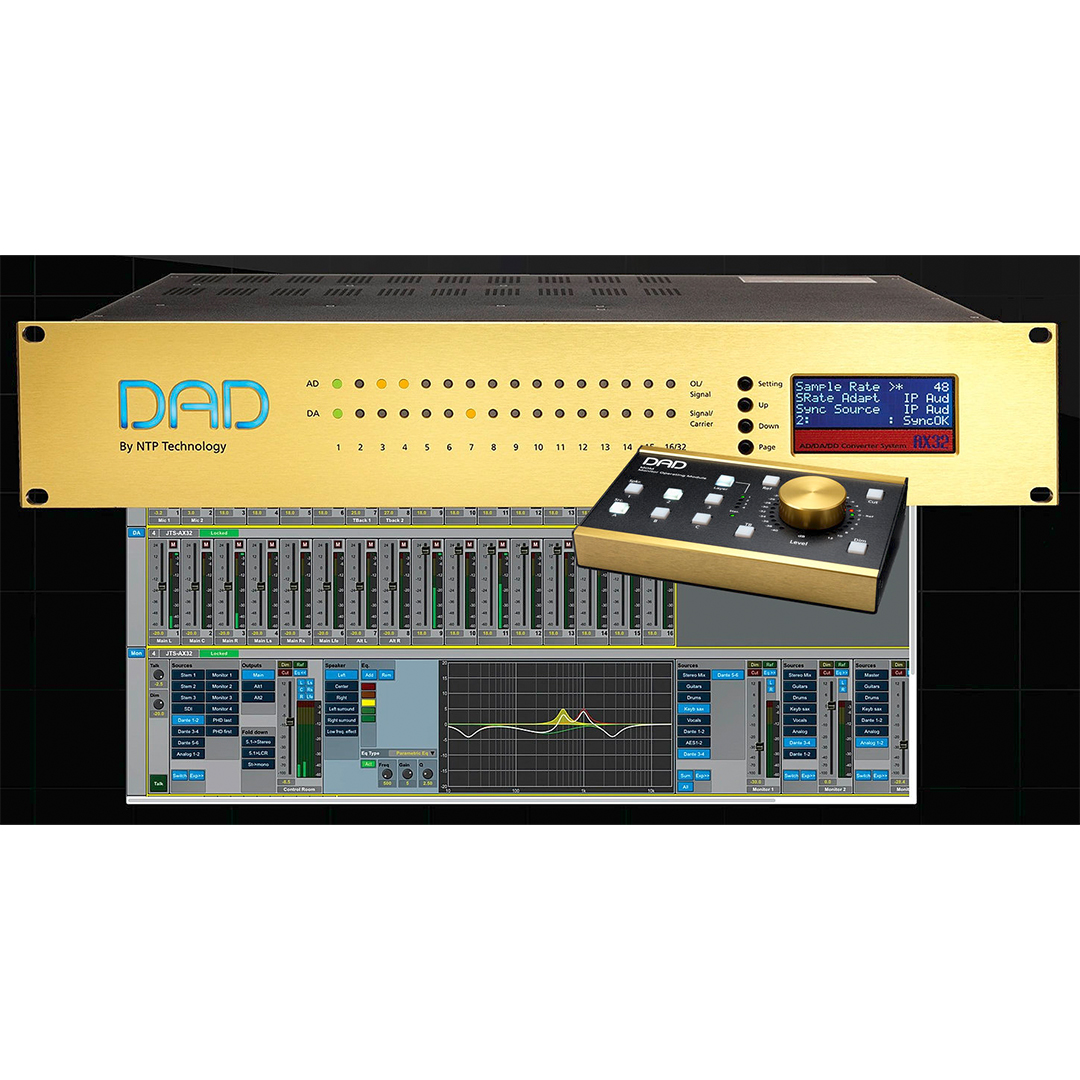

• Seamless integration with AX32R, DX32R, and Avid MTRX-based systems.
• EUCON protocol compatibility for synchronization with other control surfaces.
• Works alongside Avid S3 and S6 consoles, Avid Dock, and the Pro Tools Control App for iPad.

Technical Specifications

• Power: IEEE 802.3af PoE or 5 VDC / 1A
• Power Adapter: 100–240 VAC, 50/60 Hz, 0.18A
• Dimensions: 6.8” × 4.25” × 1.7” (172 × 108 × 43 mm)
• Weight: 2 lbs (0.95 kg)
• Number of Keys: 10
• Number of Layers: 4
• GPI Input: 1
