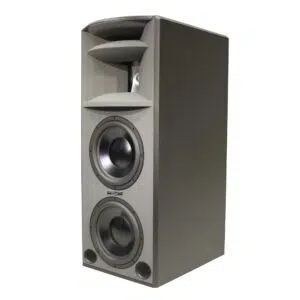

Ocean Way Audio HR3.5 Reference Monitor

A pinnacle of audio technology and performance, designed to meet the exacting demands of audio professionals, whether stand-alone or soffit-mounted.

Key Features

  • Advanced Acoustic Design: Inherits the legacy of the HR4S with a frequency response of 20 Hz to 22 kHz, ideal for professional production environments.
  • Integrated 2-Way Dual-Horn System: Features a 1” HF driver and 8” MF drivers, enhanced by twin 12” sub-bass drivers for mechanical time alignment and precision.

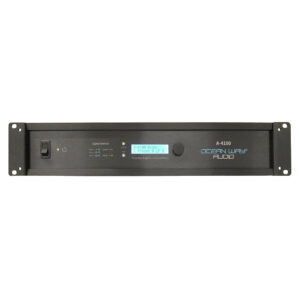

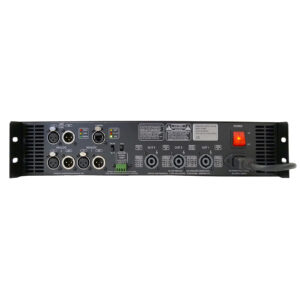

  • State-of-the-Art A-4100 Amplifiers: Employs tri-amplified power with 3,400 watts per channel, supporting high-resolution audio through analog and digital inputs.
  • Geometrically-Complex Waveguide System: Features Ocean Way Audio’s innovative waveguide design for expansive dispersion and detailed imaging.
  • Wide Sweet Spot and Consistent Directivity Response: Ultra-wide 100×40 degree dispersion ensures a vast and consistent stereo image throughout the listening environment.
  • Powerful SPL and Imaging Performance: Delivers 120dB SPL with outstanding bass and center imaging, suitable for critical listening tasks.
  • Flexible Installation Options: Offers rack-mountable amplification for versatile installation configurations.
  • Precision Component Matching: Ensures meticulous attention to detail and consistency for high performance across units.
  • Musical Instrument Craftsmanship: Emphasizes the craftsmanship akin to building a fine musical instrument, reflecting dedication to sonic excellence.
  • Powered: Yes. Accepts analog/digital inputs 24 bit/96 kHz.
  • Driver Configuration: 3-way, compression-driven horns/waveguides.
  • HF Driver Size / Amp: 1” / 500W per channel.
  • MF Driver Size / Amp: 8″ / 500W per channel.
  • LF Driver Size / Amp: Twin 12″ / 2400W per channel.
  • Horizontal / Vertical Directivity Ctr: 100 / 40 degrees.
  • Frequency Range 3-Way: 20Hz-22kHz.
  • Maximum Peak SPL 3-Way: 120dB.
  • Enclosure Type: Ported.
  • Dimensions: 43″H x 17.5″ W x 25.5”D.
