Ocean Way Audio HR4S

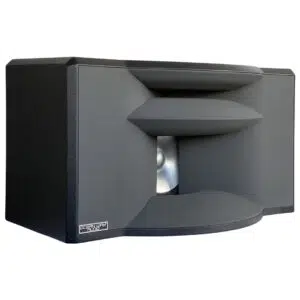

Ocean Way Audio HR4 Reference Monitor

*HR4S includes 1x HR4 Studio Monitor and 1x S12A Subwoofer for a complete 3-Way System*

The Ocean Way Audio HR4 Reference Monitor offers an unparalleled listening experience in recording studio environments. With its advanced dual/hybrid waveguide system, high-definition drivers, and exceptional dispersion characteristics, the HR4 sets a new standard for accuracy and clarity in reference monitoring. Whether used in stereo configurations or as part of a 3-Way system, the HR4 is designed to meet the demands of discerning audio professionals and studios.

Key Features

  • Advanced Acoustic Design: 24” integrated 2-way dual-horn system based on Ocean Way Audio’s proprietary dual/hybrid waveguide system.
  • Wide Dispersion and Sweet Spot: Ultra-wide 100×40 degree dispersion pattern, creating an extensive horizontal sweet spot and consistent stereo imaging across the listening environment.
  • Exceptional Stereo Imaging: Geometrically-complex surfaces ensure accurate and detailed imaging for an immersive listening experience.
  • High-Definition Drivers: High-definition HF driver and geometrically reinforced 8” aluminum LF driver within a ported cabinet for precise audio reproduction.
  • Seamless Driver Integration: The three-way, self-powered design provides a uniform frequency response from 25 Hz to 22 kHz, integrating the drivers seamlessly.
  • Impressive Low-Frequency Response: Comprehensive coverage of the audible spectrum, extending from 25 Hz to 22 kHz.
  • High-Resolution Audio Support: Handles high-resolution 24-bit/192kHz audio streams, ensuring precision in audio detail reproduction.
  • Powerful Amplification: 250 watts per channel for the HR4 and 700 watts for the S12A subwoofer, supporting dynamic sound reproduction.
  • 3-Way Enhanced Power: The inclusion of the S12A subwoofer enhances low-frequency performance and overall power.
  • Powered: Yes. Accepts analog/digital inputs 24 bit/192 kHz.
  • Driver Configuration: 3-way, compression-driven horns/waveguides.
  • HF Driver Size / Amp: 1” / 125W.
  • LF Driver Size / Amp: 8” / 125W.
  • Subwoofer Size / Amp: 12″ / 700W.
  • AES-3 Digital Inputs: Yes.
  • Horizontal / Vertical Directivity Ctr: 100 / 40 degrees.
  • Frequency Range: 25Hz-22kHz.
  • Maximum Peak SPL 3-Way: 118dB.
  • Enclosure Type: Ported.
  • Dimensions (HR4): 14”H x 25.5”W x 14”D.
  • Weight (HR4): 57 lbs.
  • Dimensions (S12A Sub): 18”H x 18” W x 21.5”D.
  • Weight (S12A Sub): 78 lbs.
