Ocean Way Audio S10A

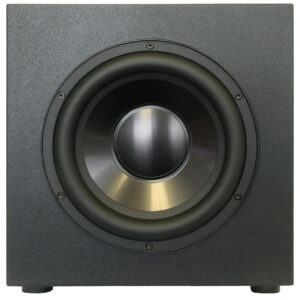

Ocean Way Audio S10A Subwoofer

The Ocean Way Audio S10A Subwoofer is a high-quality and powerful low-frequency reproduction solution designed for various applications, including home-based music studios, smaller project recording rooms, and home theaters where accurate and impactful bass is essential. Crafted by Allen Sides, a five-time Grammy® award-winning engineer/producer, and renowned studio owner/designer, the S10A serves as an ideal companion subwoofer for Ocean Way Audio HR5, Pro2A, or other high-quality nearfield/midfield monitoring systems.

Key Features

  • Companion for High-Quality Monitoring: Designed as a perfect companion subwoofer for the Ocean Way Audio HR5 Reference Monitor and other premium monitoring systems.
  • Powerful Internal Amplifier: Equipped with a robust 300W internal amplifier to deliver ample power for accurate and impactful low-frequency reproduction.
  • Single 10″ Woofer: Features a single 10-inch woofer that is optimized for producing clean and precise bass frequencies.
  • Wide Frequency Range: Covers a frequency range from 20Hz to 120Hz, ensuring a comprehensive response for reproducing the full spectrum of low-end sounds.
  • Maximum SPL of 110dB: Capable of generating a maximum Sound Pressure Level (SPL) of 110dB, providing sufficient volume for typical home and project recording environments.
  • Stereo XLR Inputs and Outputs: Stereo XLR input and output connectors facilitate easy integration into various studio and listening environments.
  • Flexible Controls: Offers a range of parameter adjustments to tailor the subwoofer’s performance to specific requirements. Control options include Gain, LF Adjust, Adjustable Crossover, and Delay.
  • Power Conservation Features: Includes a 12V trigger input/output for power conservation and other applications, allowing for energy-efficient operation.
  • Powered: Yes
  • Driver Configuration: Single 10″
  • Amplifier: 300W
  • Frequency Range: 20Hz – 120Hz
  • Maximum SPL: 110dB
  • Enclosure Type: Sealed
  • Controls: Power (On/Auto/Off), Gain, LF Adjust, Crossover Sweep (60Hz – 120Hz), Delay (0ms – 20ms)

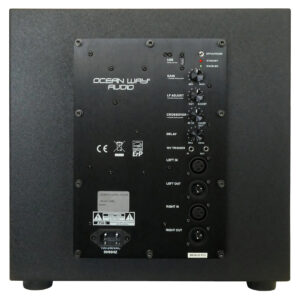

  • Inputs/Output: XLR In (L/R), XLR Out (L/R), 12V Trigger (In/Out)
  • Dimensions: 14”H x 14”W x 18.5”D
  • Weight: 52 lbs.
