Peluso P-24 Large-Diaphragm Tube Condenser Stereo Microphone

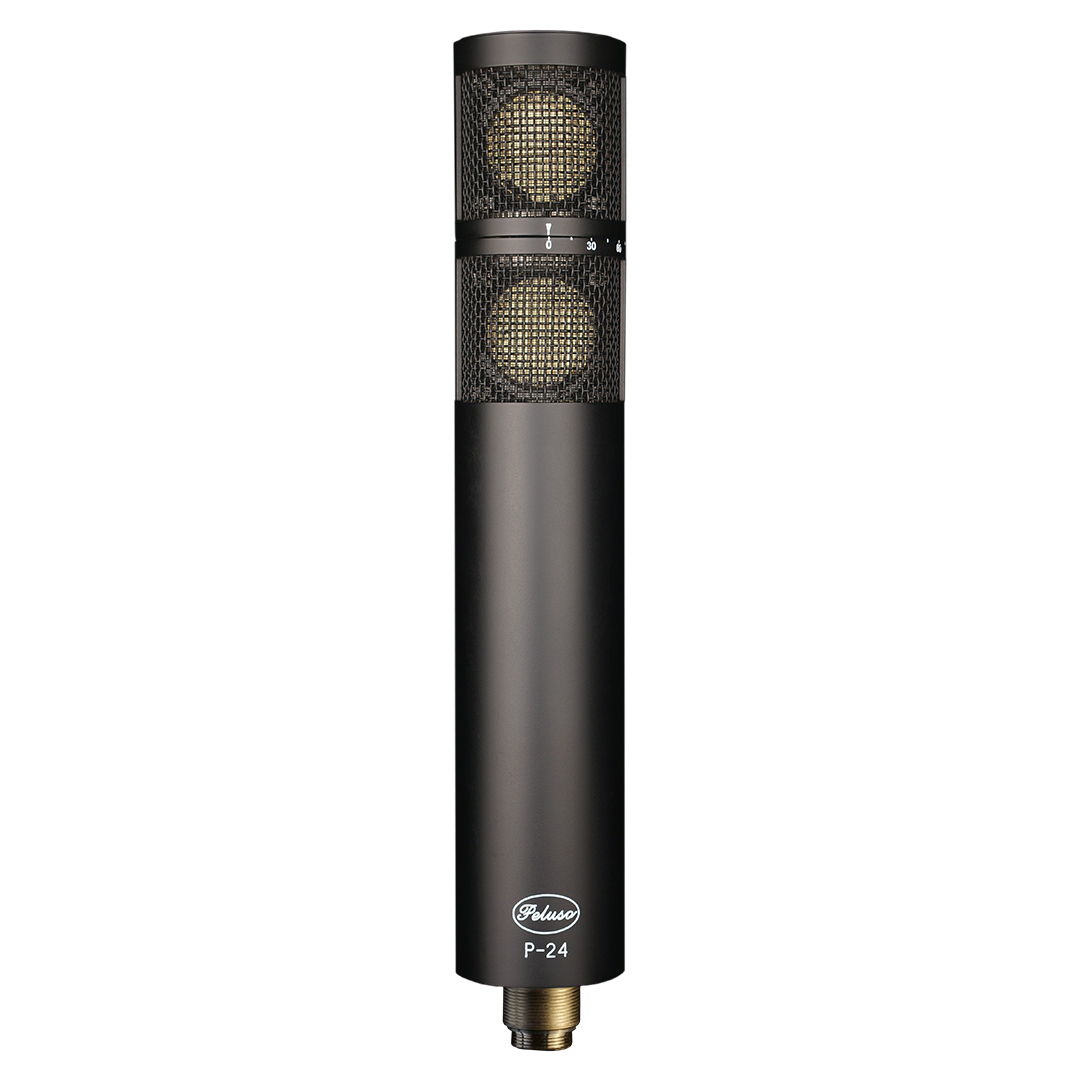

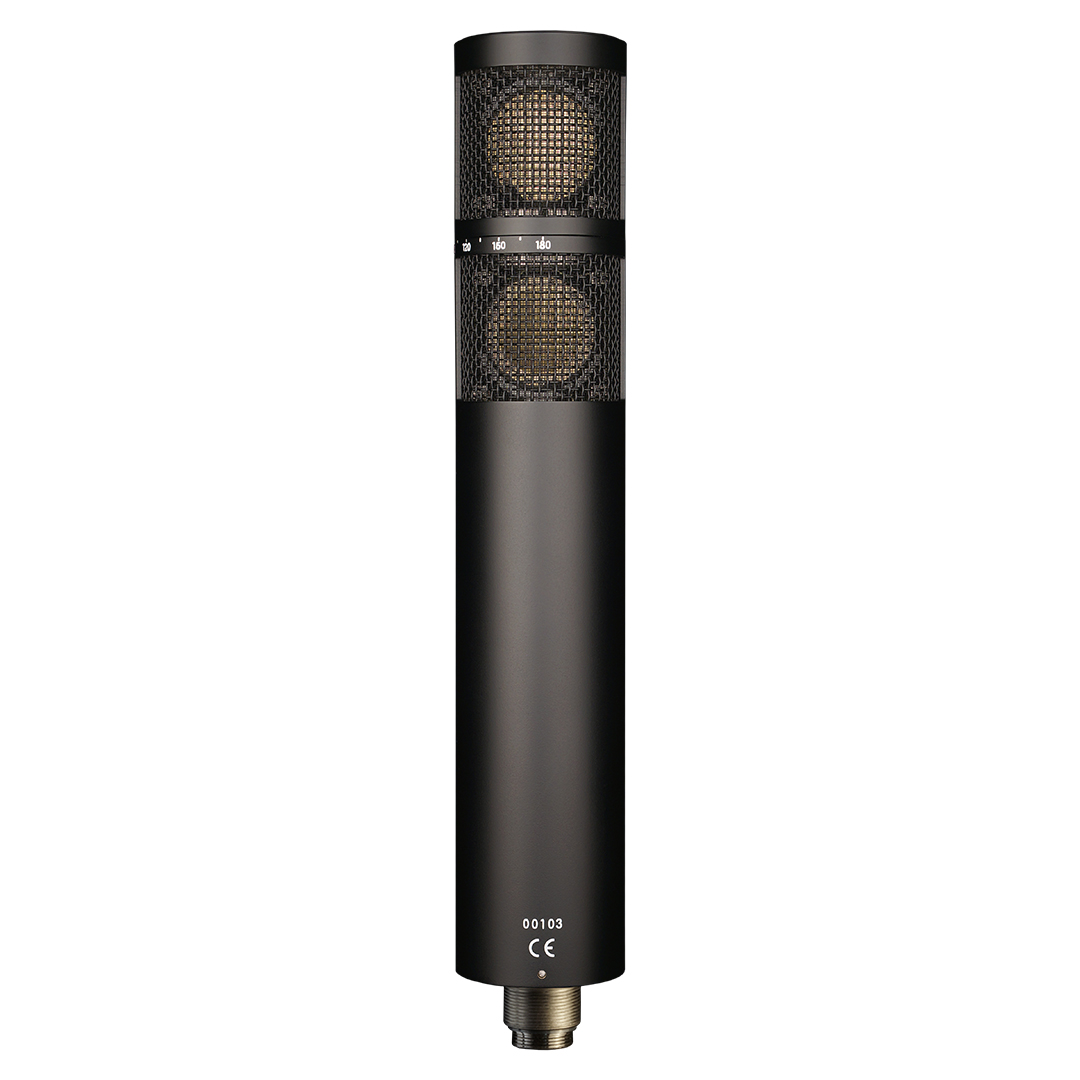

The Peluso P-24 is a large-diaphragm tube condenser stereo microphone housing two complete vacuum tube mic systems in a single body, styled after the AKG C 24. At the heart of each channel is a P-CK-12 dual-diaphragm 32mm edge-terminated condenser capsule—a historically accurate reconstruction engineered entirely by Peluso—with the upper capsule rotating 180° for fast repositioning between X-Y, Mid-Side, and Blumlein coincident stereo techniques. Each capsule offers nine independently selectable polar patterns (controlled remotely at the power supply), and the two signal chains run independently through separate high-impedance circuit boards and isolated Custom T14/1 transformers, both powered by a single 6072AM glass triode vacuum tube. Designed, engineered, and built in Virginia, the P-24 ships as a complete kit including a 12-pin stereo cable, stereo power supply, shock mount, and locking flight case, and is covered by Peluso’s 3-year warranty including tubes.

Key Features

• Dual P-CK-12 edge-terminated capsules — historically accurate pair of 32mm dual-diaphragm edge-terminated condenser capsules; re-engineered entirely by Peluso in Virginia

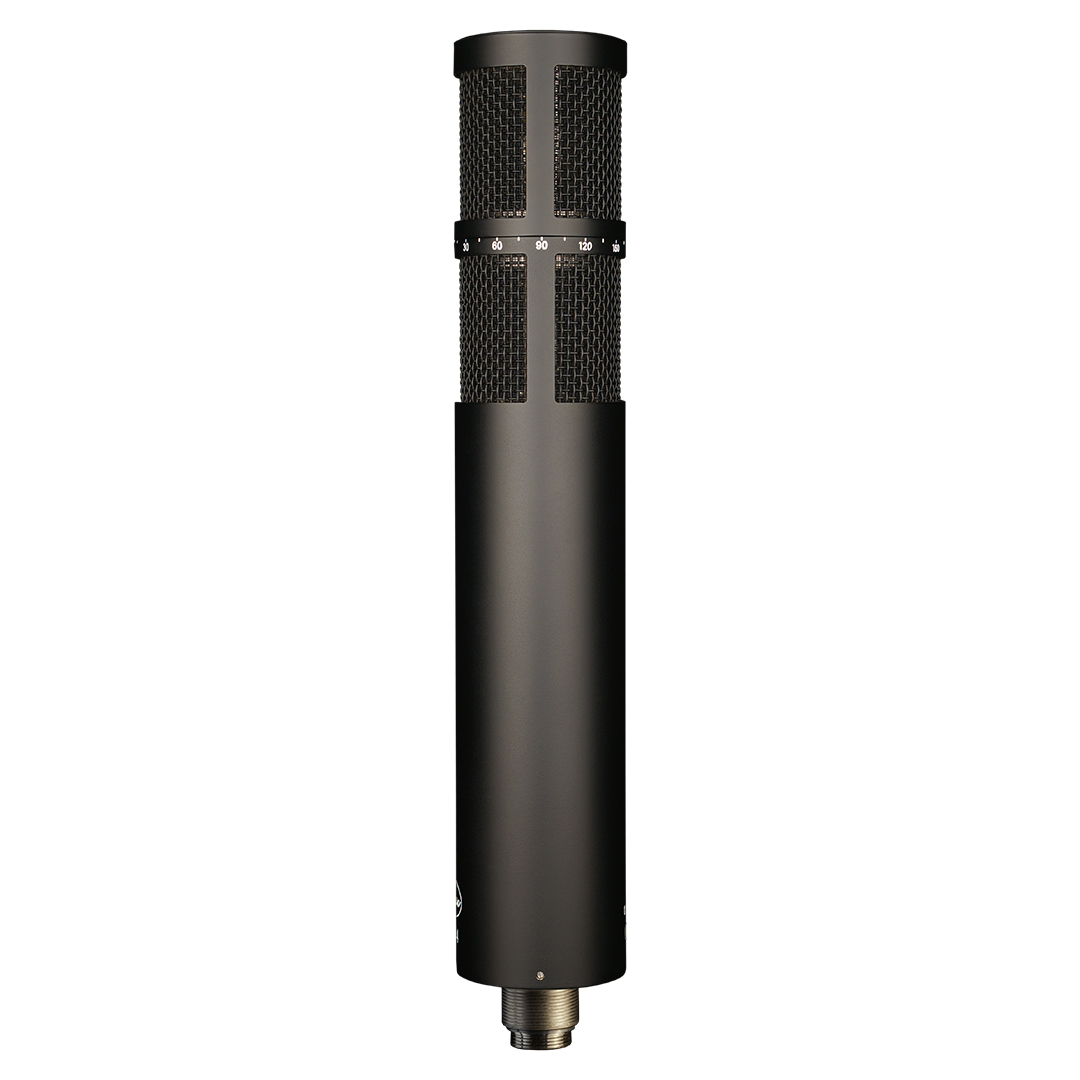

• Upper capsule rotates 180° — repositions quickly between X-Y, Mid-Side, and Blumlein coincident stereo configurations without moving stands or re-patching
• 9 independently selectable polar patterns (per capsule) — switchable from omnidirectional to bidirectional; controlled remotely at the power supply; each capsule set independently

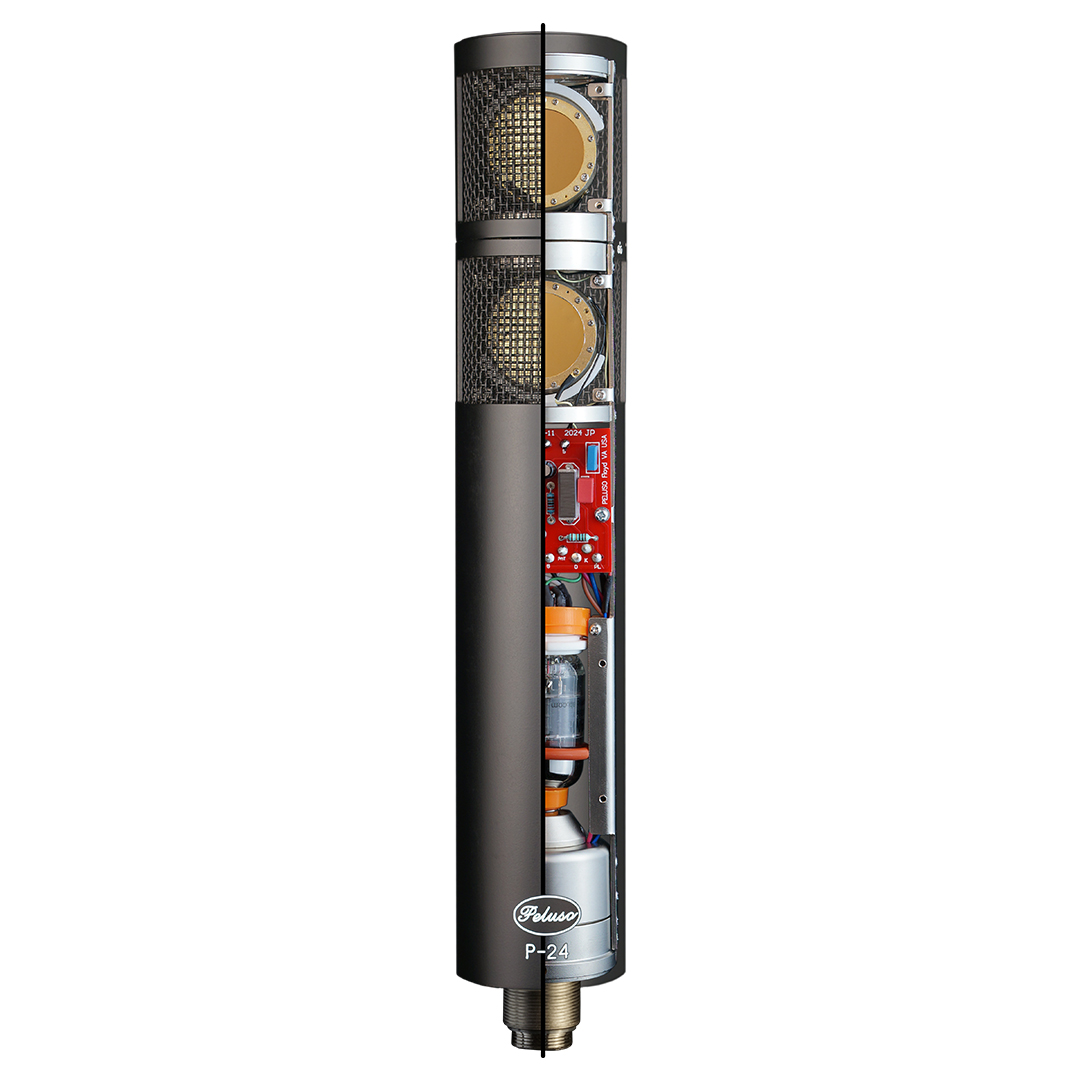

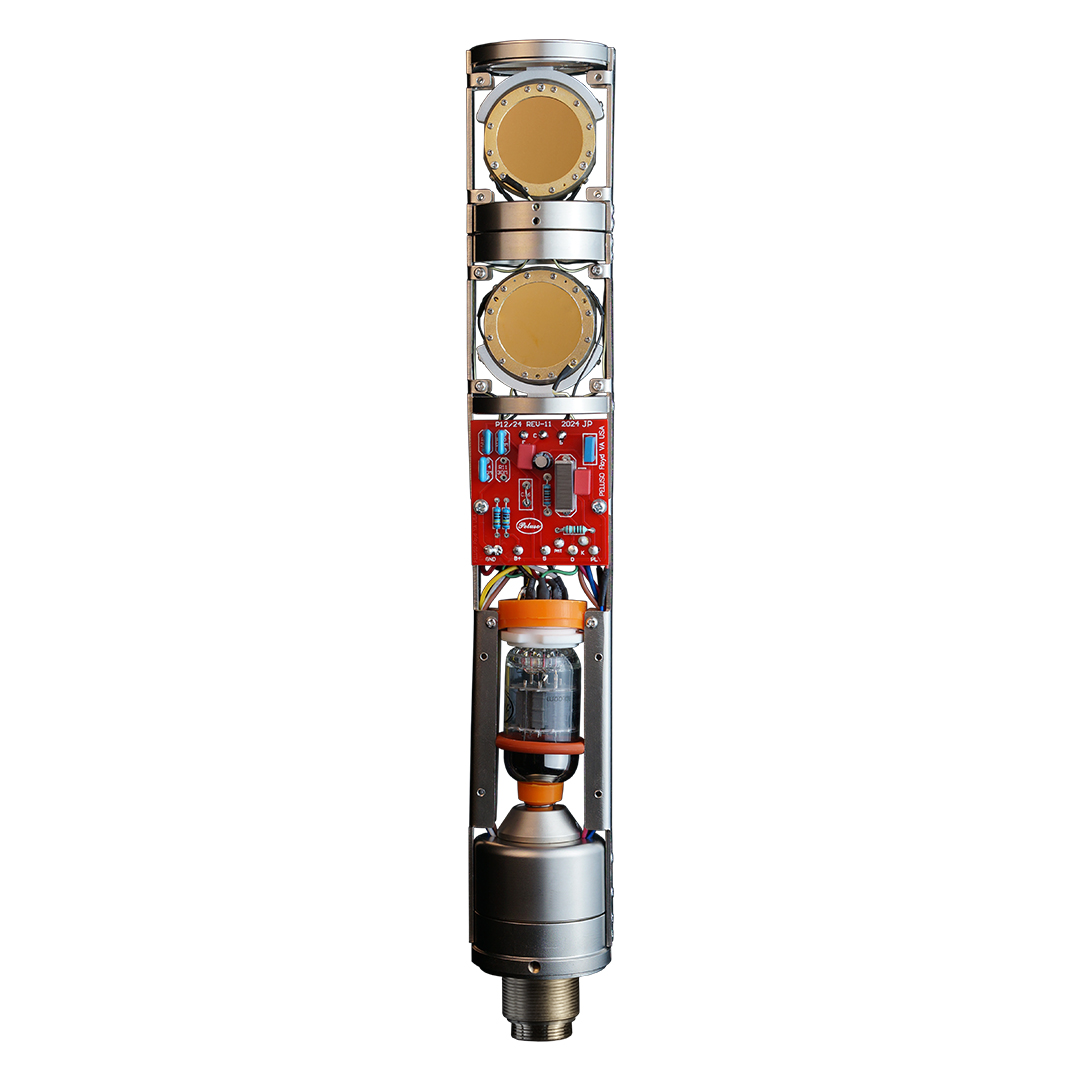

• Dual independent signal chains — separate high-impedance circuit boards and isolated Custom T14/1 transformer outputs for each capsule; both powered by a single 6072AM glass triode vacuum tube
• Single 6072AM glass triode tube — running both circuits through one tube yields improved low-end response and a smoother, fuller top end compared to separate tube implementations
• Dual Custom T14/1 transformer outputs — custom transformers isolated per channel for independent signal integrity
• Heavy-duty 12-pin screw-on connector — locking connection for reliable stereo signal transport
• All-metal double-mesh head grille
• Designed, engineered, and built in Virginia

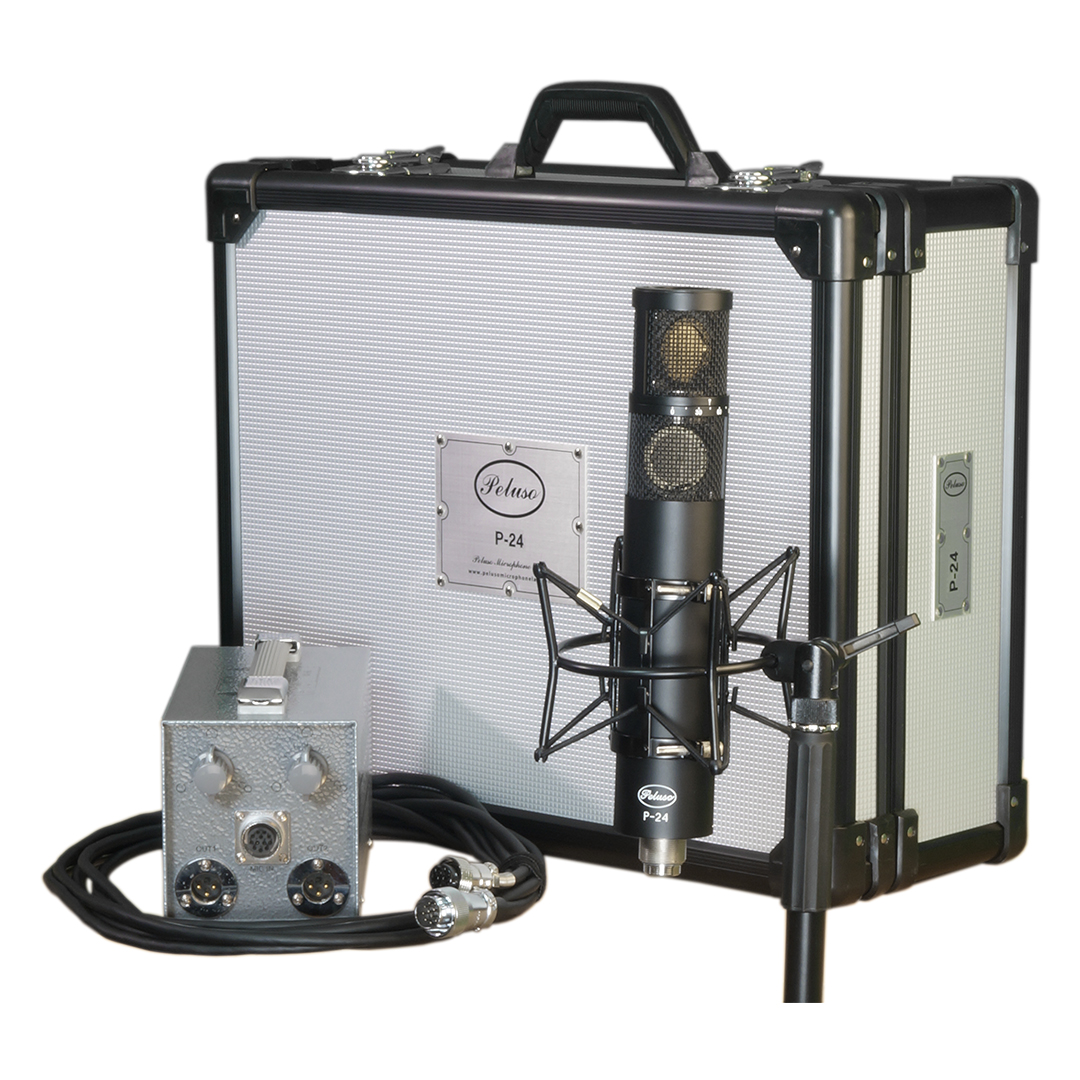

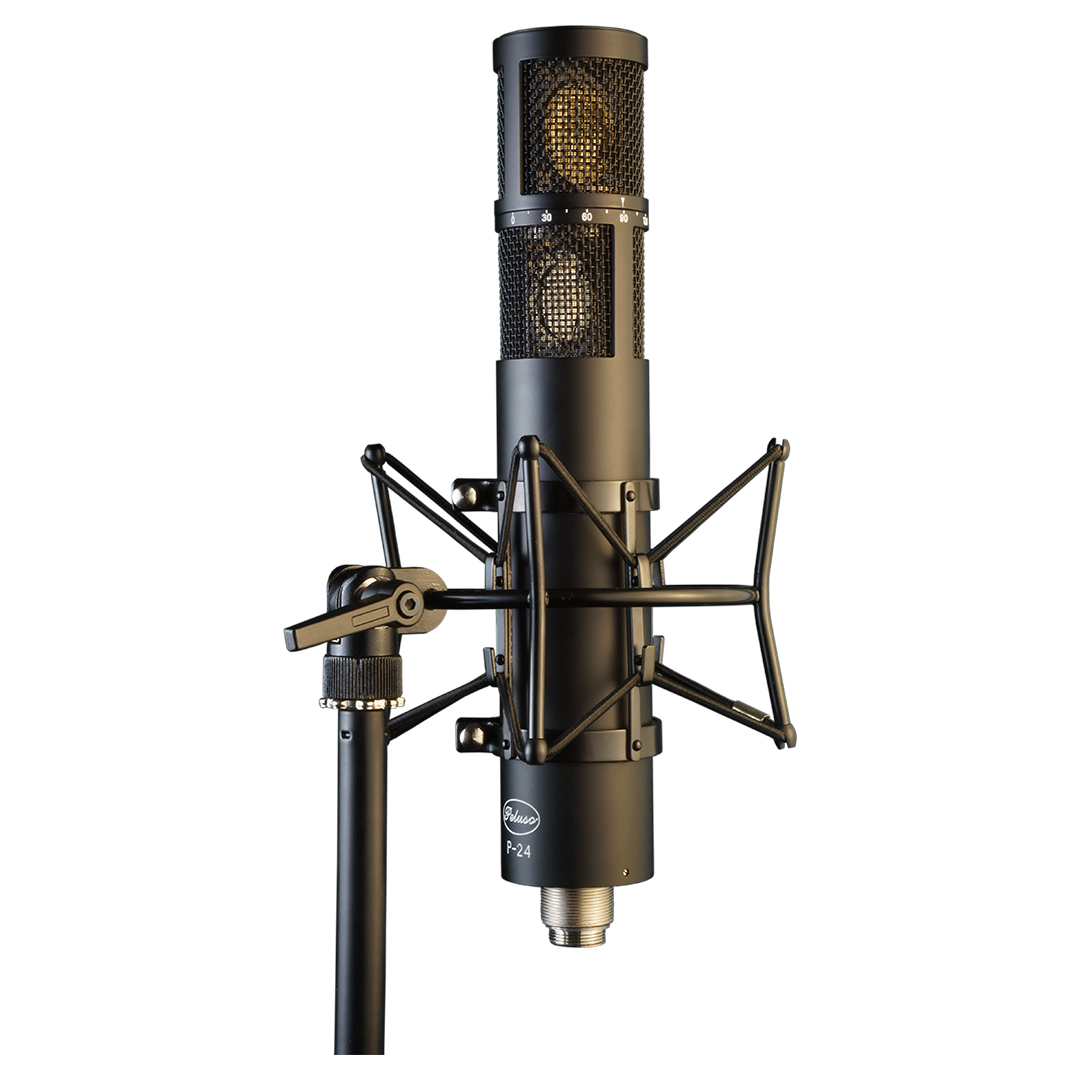

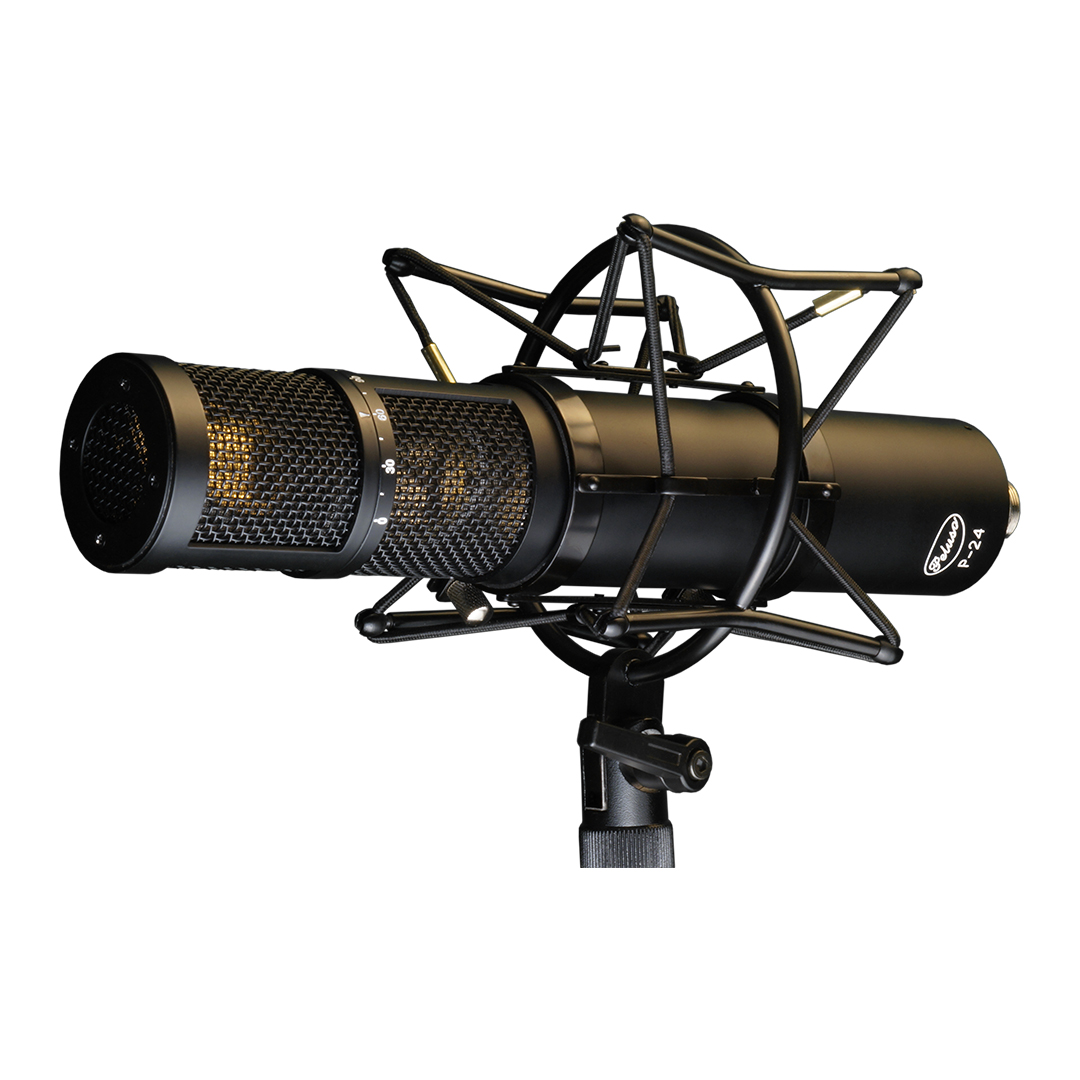

• Complete kit included — P-24 microphone, 12-pin stereo cable, stereo power supply (115V/230V), shock mount, and locking flight case
• 3-year warranty — covers materials, workmanship, and tubes

Specifications

• Transducer Type: Condenser (pressure gradient)
• Capsule: Dual P-CK-12 (32mm; edge-terminated; dual-diaphragm)
• Polar Patterns: 9 per capsule (omni through bidirectional; remote selectable)
• Frequency Range: 20Hz–24kHz
• Sensitivity: 11mV/Pa
• Equivalent Noise: 15dB (A-weighted)
• Max SPL: 138dB
• Output Impedance: 200 Ω
• Tube: 6072AM glass triode (single)

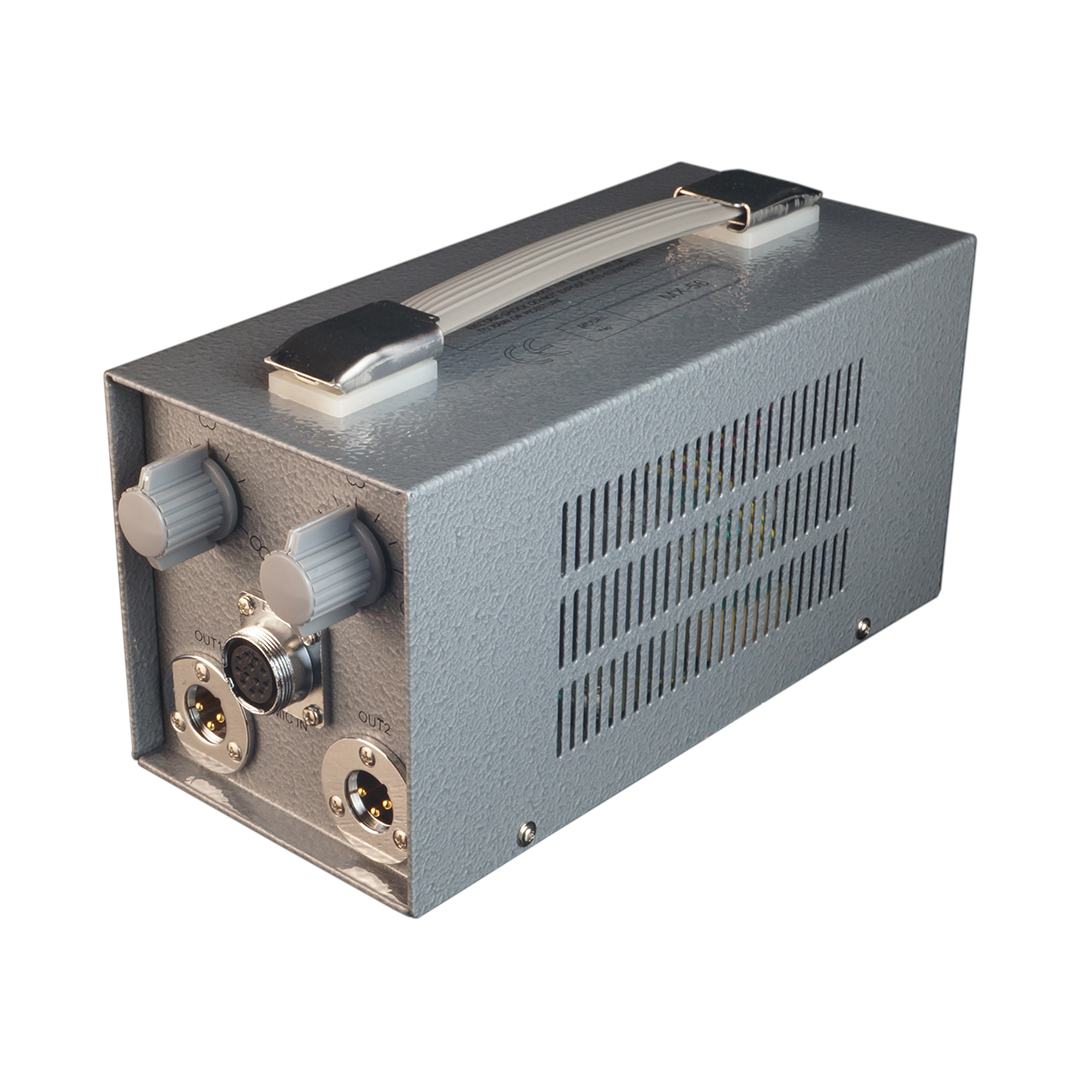

• Power: Dedicated stereo PSU (115V / 230V AC)
• Connector: 12-pin screw-on
• Weight: 2.3 lbs (1,058 g)
• Dimensions: 2.0 × 10.6 in. (50 × 269 mm)
• Includes: 12-pin stereo cable, stereo power supply, shock mount, locking flight case
• Warranty: 3-year (materials, workmanship, and tubes)
