Peluso SR-14

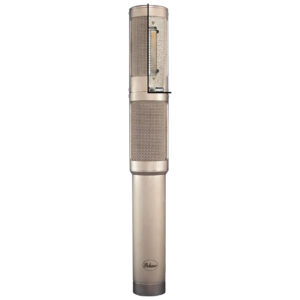

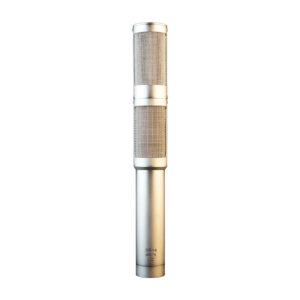

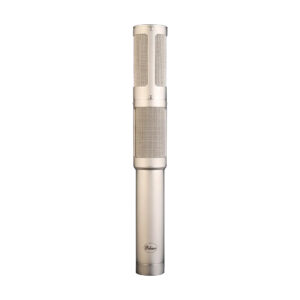

The Peluso SR-14 is a stereo ribbon microphone designed to capture the classic vintage sound of early RCA ribbon microphones. Built with two complete R-14 microphones in one body, the upper ribbon element can rotate up to 90 degrees, allowing for stereo recording techniques such as the Blumlein technique and mid-side setups. The SR-14 features long ribbon geometry with a thin corrugated aluminum ribbon tensioned between rare earth neodymium magnets. This design produces a clean, balanced output with a warm, rich, and silky smooth sound, while a subtle low-end roll-off on the backside counters proximity effect. With very low self-noise and high SPL handling, the SR-14 is an un-hyped, natural-sounding microphone that takes EQ beautifully, making it the perfect stereo complement to condenser microphones in your collection.

Key Features:

• Long geometry ribbon design with dual ribbon elements
• Classic ribbon microphone sound
• Very low self-noise
• Handles very high SPL levels
• Rotatable upper ribbon for versatile stereo recording techniques
• Custom wound output transformer for balanced output
• Figure-8 polar pattern for each ribbon
• Ideal for stereo recording, including Blumlein and mid-side setups

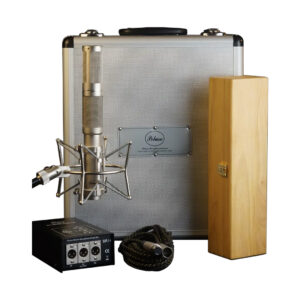

Microphone Kit Includes:

• Peluso SR-14 Microphone
• Wood microphone box
• Stereo matrix
• Shock mount
• 7-pin cable
• Locking flight case

• Type: Ribbon-velocity studio microphone with stereo matrix
• Operating Principle: Electrodynamic pressure gradient
• Magnets: Rare earth neodymium
• Frequency Range: 30Hz – 16kHz
• Polar Pattern: Two figure-8 (bi-directional) patterns
• Sensitivity: -52 dBV (re 1v/pa)
• Impedance: 200 ohms
• SPL: 149 dB
• Equivalent Noise: 0 dB(A)
• Power Requirements: None required or recommended
• Size: 36mm x 281mm
• Weight: 750g
