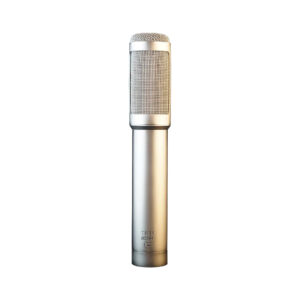

Peluso TR-14

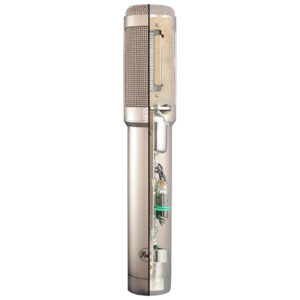

The Peluso TR-14 Tube Ribbon Microphone combines the classic vintage-style ribbon sound with the warmth and harmonic complexity of a tube gain stage. Modeled after the early RCA ribbon microphones, the TR-14 features a long ribbon geometry with a thin corrugated aluminum ribbon tensioned between rare earth neodymium magnets. The ribbon’s position just forward of the magnet center provides a subtle low-end roll-off on the backside, effectively countering proximity effect when needed. Designed to handle low-level sources and long cable runs, the TR-14 delivers clean, balanced output through its custom output transformer. The rich, warm, and silky smooth sound of the ribbon is enhanced by the tube amplifier stage, making the TR-14 an excellent complement to condenser microphones in your collection.

Key Features:

• Long geometry ribbon design
• Tube amplifier stage for added harmonic complexity
• Great for long cable runs and low-level sources
• Classic ribbon microphone sound with added warmth
• Custom wound output transformer for balanced output
• Figure-8 polar pattern for bi-directional recording
• Ideal for studio applications

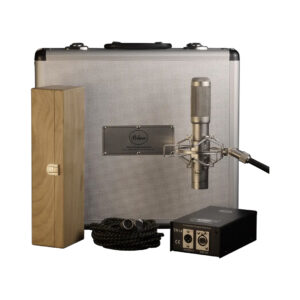

Microphone Kit Includes:

• Peluso TR-14 Microphone
• Wood microphone box
• Power supply
• 7-pin XLR cable assembly

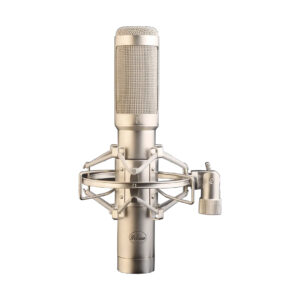

• Shock mount
• Locking padded flight case

• Type: Ribbon-velocity studio microphone
• Operating Principle: Electrodynamic pressure gradient
• Magnets: Rare earth neodymium
• Frequency Range: 30Hz – 16kHz
• Polar Pattern: Figure-8 (bi-directional)
• Sensitivity: -35 dBV (re 1v/pa)
• Impedance: 200 ohms
• SPL: 149 dB
• Equivalent Noise: 15 dB(A)
• Tube Type: CK5784 / 6J1P sub-miniature glass tube
• Power Requirements: Dedicated power supply, 115V or 230V AC
• Size: 36mm x 210mm
• Weight: 450g
