Phoenix Audio ASCENT-Q2 2-Channel Mic Preamp w/ EQ

A Versatile, Modern Class-A Mic Preamp/DI

The Phoenix Ascent Mic Preamp/DIs take a modern approach to Class-A circuit design that delivers a wide range of tones without sacrificing the beloved vibe of true Class-A design. Available in mono (1/2RU), dual mono (1RU), or with EQ in both mono and dual mono, the Ascent series provides exceptional versatility and superior sound quality. The unique Ascent circuit can go from ultra-clean tones to the warm, saturated character reminiscent of the UK’s most heralded vintage designs. As a result, the Ascent Preamp/DI has become a top-tier choice for engineers worldwide and is considered a modern-day classic.

Key Features

• Hi-Fi Transformerless Mic Input Stage – Phoenix Audio’s unique electronically-balanced, transformerless mic input circuit delivers full frequency response and fast transients, while maintaining the warm and smooth Class-A characteristics.
• Legendary Transformer-Balanced Output Stage – Custom-wound DB694 output transformer paired with Phoenix’s proprietary fully discrete DSOP-2 output amplifier provides a smooth transition from ultra-clean to beautifully saturated tones.
• Ultra-High Impedance DI Circuit – The DI circuit features an input impedance of 10MΩ with no FETs, allowing for pristine sound with modern and vintage instruments, enhancing sparkle and growl as if connected to an amplifier.
• Easy and Intuitive Operation – The Ascent series offers intuitive controls for quick and precise sound adjustments using a stepped input gain control and variable output fader for easy tone shaping.

Phoenix Ascent Gyrator EQs

An EQ As Versatile As It Is Unique

Phoenix Audio’s Ascent Gyrator EQ is one of today’s most unique and musical EQs, allowing an incredible variety of sounds suitable for mix buss tone shaping, frequency carving, and Class-A saturation. Available in both mono and dual mono versions, the Ascent Gyrator EQ delivers powerful and effortless tone shaping capabilities.

4-Bands of Gyration

The Gyrator EQ gives you High, High-Mid, Low-Mid, and Low frequency bands with precision frequency control, offering musical frequency modifications that maintain the core quality of your signal. Even at extreme settings, the EQ remains musical and clean, providing bold, gut-level EQ moves without sounding harsh or out of phase.

Features of Ascent Mic Preamp/DI

• Phoenix Audio’s unique Class-A, transformerless, true-balanced mic input stage
• Phoenix Audio’s transformer-balanced DSOP-2 Class-A discrete output stage with custom wound DB694 output transformer
• Wired with PTFE silver-plated military grade cable
• -15dB input pad, LED Gain Metering
• Push buttons: Hi-Pass, Phase Reverse, Switchable 48V phantom power
• High Pass Filter on Push-button Switch (Roll-off -6dB per octave @ 80Hz)
• Phase Reverse on Push-Button Switch
• Mic Pre Gain Range: -30 to -70 in 5dB steps, with 10dB more available on the detented output fader

• Mic Input: Transformerless, true-balanced input with XLR connections
• Mic Impedance: 10K ohms for optimal performance with ribbon and dynamic microphones
• Output Transformer: Custom transformer-balanced DSOP-2 Class-A discrete output stage
• Gain Range: -30 to -70 dB in 5 dB steps, with additional 10 dB on the output fader
• Gyrator EQ Bands: High – 25K, 15K, 10K; Hi Mid – 6K, 3K, 1K6; Low Mid – 800Hz, 400Hz, 200Hz; Low – 130Hz, 80Hz, 40Hz
• High-Pass Filter: 80Hz, 12dB/octave

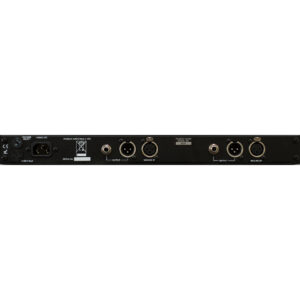

• Output Connections: XLR and TRS 1/4″ jack on rear
• Power Supply: 240V/110V mains voltage input selector (optional 19″ rack kit available)

The Phoenix Audio ASCENT-Q2 2-Channel Mic Preamp w/ EQ offers dual mono Class-A sound with intuitive controls, delivering a wide range of tones suitable for any recording application.
