Purple Audio Odd

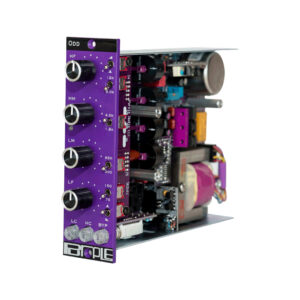

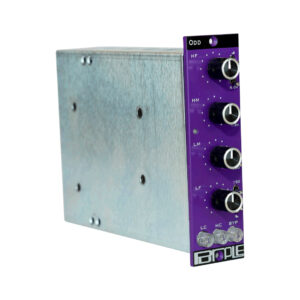

The Purple Audio Odd is a four-band inductor-based EQ, designed to work in standard 500 racks. Designed by Ed Anderson for Purple Audio, the Odd offers a modern update of the classic “swinging inputs” console EQ with four easy-to-use bands.

Each band uses a high-quality inductor and carefully selected caps to provide two switchable frequencies. The bands are shaped and spaced to be musical, even at full boost or cut. The highest band can be switched from bell to shelf, to boost frequencies extending well beyond 20kHz. The lowest band can also be switched from bell to shelf, reaching down into the subsonic range.

There are illuminated pushbuttons for additional fixed low (red) and high (yellow) cut filters. A relay true bypass (green) allows for easy comparison with unprocessed source material. With the low and high cut switched out, and all four bands set to 0, the frequency response is +/- 0.25dB from 15Hz to 25kHz, and -3dB at 60kHz.

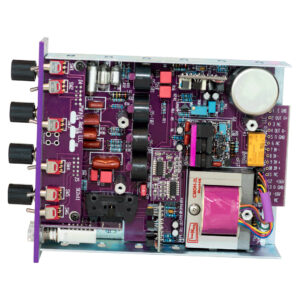

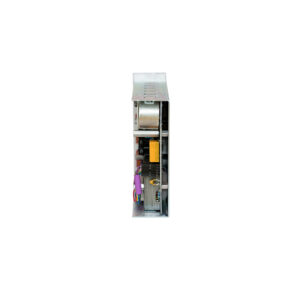

With specialized input and output transformers, the Odd has plenty of headroom, even at full boost. The entire circuit is discrete, with no electrolytic capacitors in the signal path, and no servo amps. With only two active stages, the current draw is low enough to work in any rack, leaving plenty of power for other modules. The Odd uses one KDJ3 opamp and one KDJ4 opamp.

Features

• High frequency switchable from bell to shelf
• High frequency: 12kHz / 8kHz
• High-mid frequency: 4kHz / 1.8kHz
• Low-mid frequency: 650Hz / 300Hz
• Low frequency: 150Hz / 75Hz
• Low frequency switchable from bell to shelf
• Each band boost or cut by 12dB
• Switchable High cut at 12kHz
• Switchable Low cut at 60Hz
• Relay True Bypass
• Tricolor LED level meter
• Transformer balanced in and out
• Discrete signal path
• No electrolytic caps in signal path
• Current consumption: 60mA
• Over Current Resettable Fused (prevents any module problem from affecting your rack)
• ROHS – Lead Free

• High frequency: 12kHz / 8kHz, switchable from bell to shelf
• High-mid frequency: 4kHz / 1.8kHz
• Low-mid frequency: 650Hz / 300Hz
• Low frequency: 150Hz / 75Hz, switchable from bell to shelf
• Boost or cut by 12dB per band
• Switchable High cut at 12kHz
• Switchable Low cut at 60Hz
• Frequency response: +/- 0.25dB from 15Hz to 25kHz, -3dB at 60kHz
• Current consumption: 60mA

Pinout

• Pin 1: Chassis Ground
• Pin 2: Output A +
• Pin 3: NC
• Pin 4: Output A –
• Pin 5: Audio Ground
• Pin 6: NC
• Pin 7: Input –
• Pin 8: Input –
• Pin 9: Input +
• Pin 10: Input +
• Pin 11: NC
• Pin 12: +15 or 16VDC 60ma
• Pin 13: Audio Ground
• Pin 14: -15 or 16VDC 60ma
• Pin 15: NC (+48VDC)
