Redco Little Red Cue Box

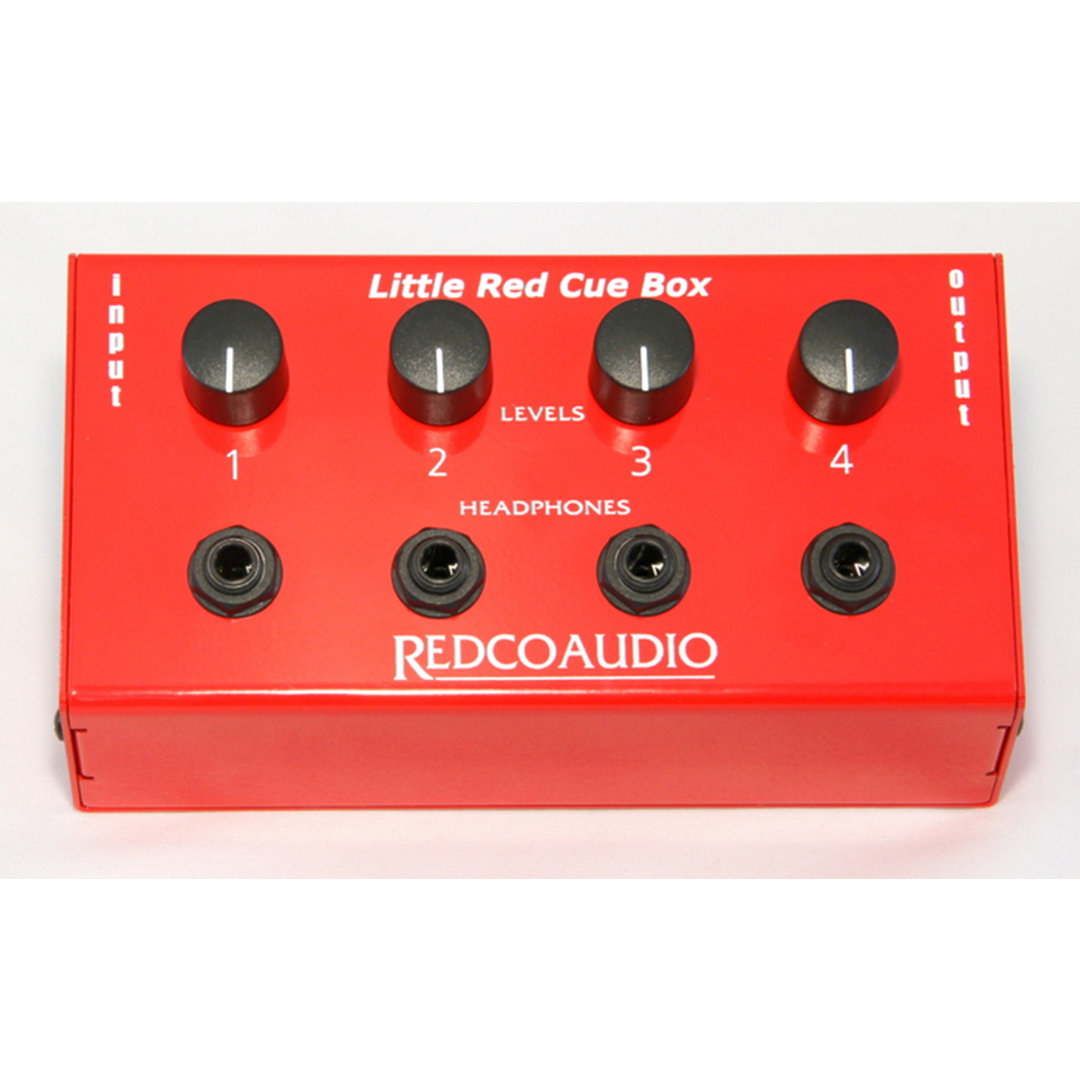

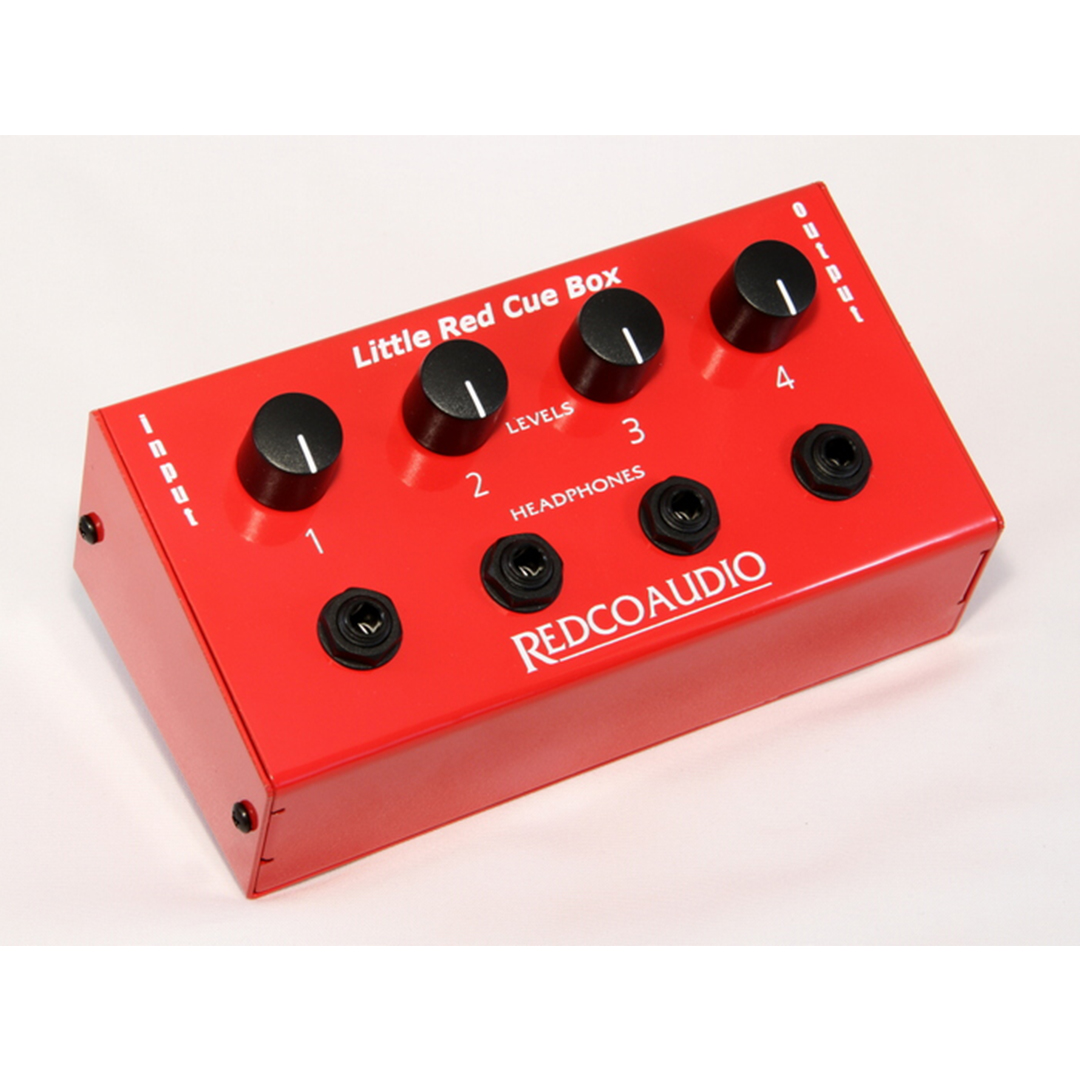

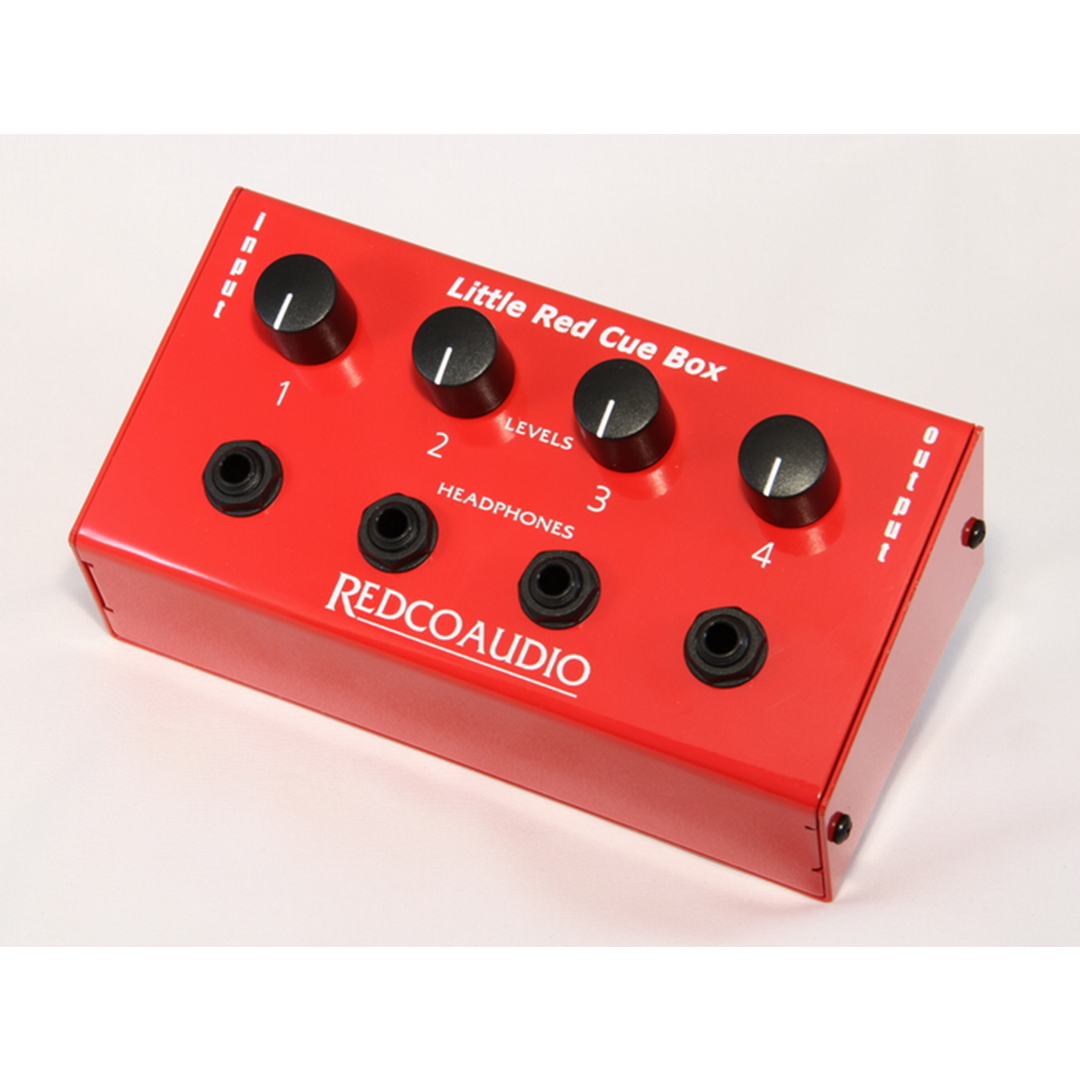

The Redco Little Red Cue Box is a compact, professional headphone distribution solution designed for reliable cue monitoring in recording studios. It allows up to four pairs of stereo headphones to share the same cue mix, with independent level control for each listener. Built for durability and flexibility, the Little Red Cue Box is ideal for tracking sessions where multiple musicians or vocalists need comfortable, personalized headphone levels from a single cue source.

Key Features

• Full stereo headphone distribution for studio cue monitoring.
• Supports up to four pairs of dynamic stereo headphones.
• Independent rotary level control for each headphone output.
• XLR input and output for easy series interconnection.
• Allows multiple units to be cascaded using standard microphone cables.
• Durable red powder coat finish for studio and stage environments.
• Threaded base for mounting directly to microphone stands.

Studio Applications

• Ideal for recording sessions with multiple performers sharing a single cue mix.
• Perfect for background vocal sessions, ensemble tracking, and overdubs.
• Provides consistent cue distribution while allowing individual volume adjustment.
• Compact footprint makes it easy to place near performers.

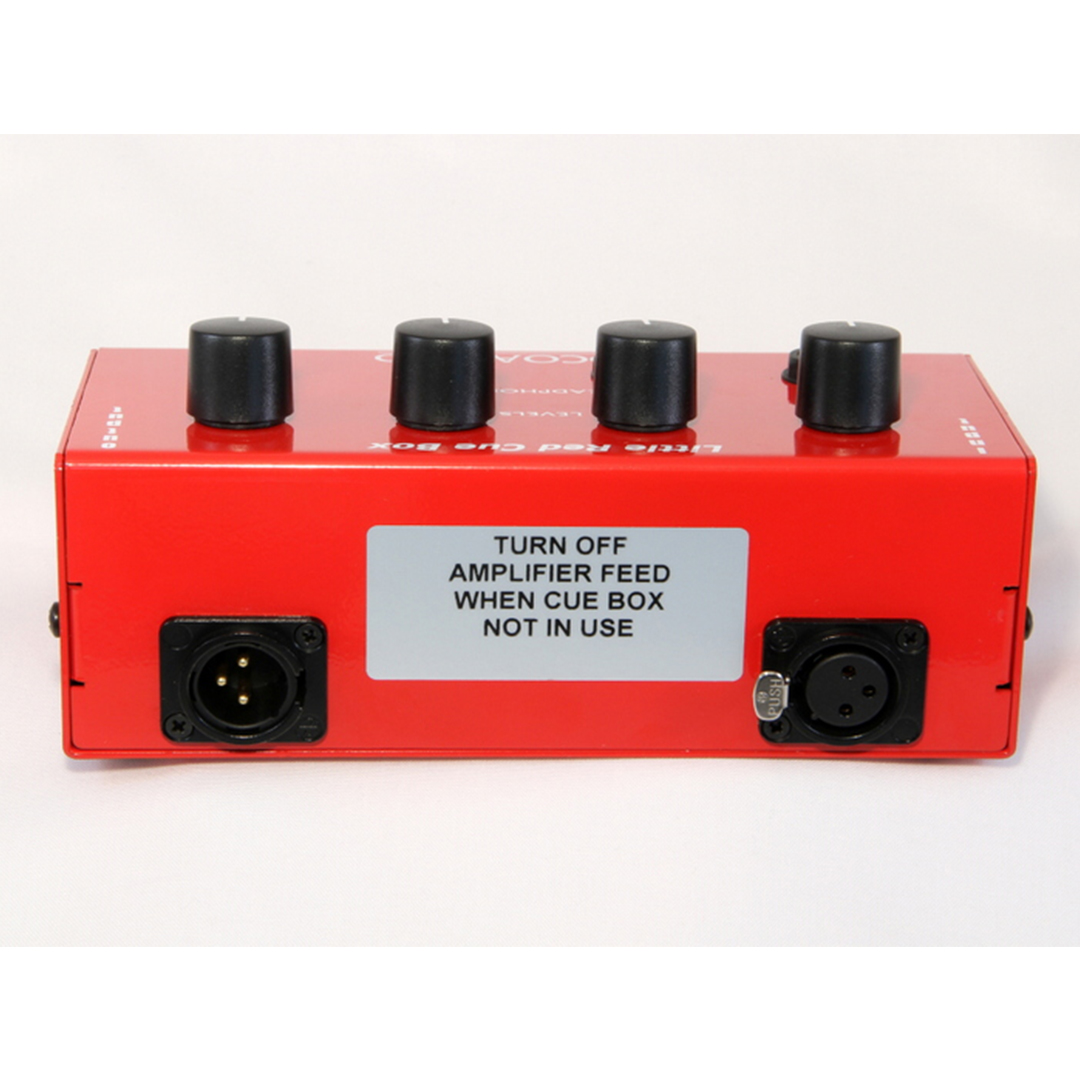

Connectivity & Expansion

• XLR input accepts stereo cue signal from a headphone amplifier.
• XLR output passes signal through for chaining additional cue boxes.
• Cascading capability depends on headphone impedance and overall load.
• Uses standard XLR microphone cables for input and expansion.

Build & Design

• Rugged enclosure designed for daily studio use.
• Mar-resistant red powder coat finish.
• Threaded base allows secure mounting to mic stands.
• Designed and assembled for professional audio environments.

Specifications

• Operation: Full stereo
• Headphone Outputs: Four stereo 1/4″ TRS jacks
• Headphone Type: Dynamic headphones
• Output Configuration: Parallel outputs with independent level control
• Input
• Connector: 3-pin female XLR
• Pin 1: Common ground
• Pin 2: Right cue signal
• Pin 3: Left cue signal
• Output
• Connector: 3-pin male XLR
• Signal: Straight-through from input for cascading additional units
• Physical
• Dimensions: 3.5 × 7 × 2.5 inches (nominal)
