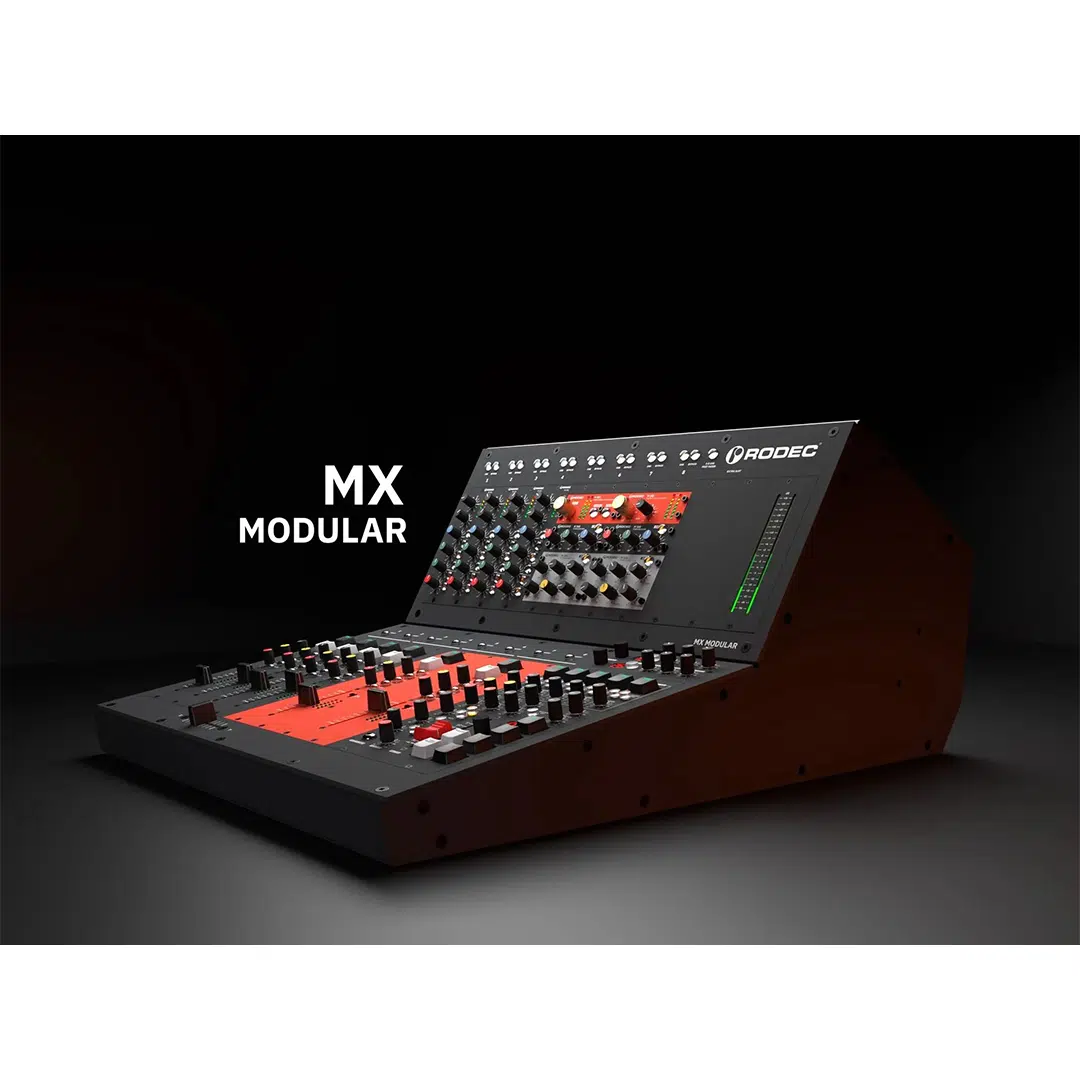

Rodec MX Modular Analog Mixing Console

The Rodec MX Modular is more than a mixer—it’s a performance instrument designed for artists, producers, and engineers who rely on hands-on control and uncompromising sound. Built to move seamlessly between studio and stage, the MX Modular combines a fully analog signal path with modern digital integration, giving users a flexible, tactile command center for mixing, performance, and hybrid workflows.

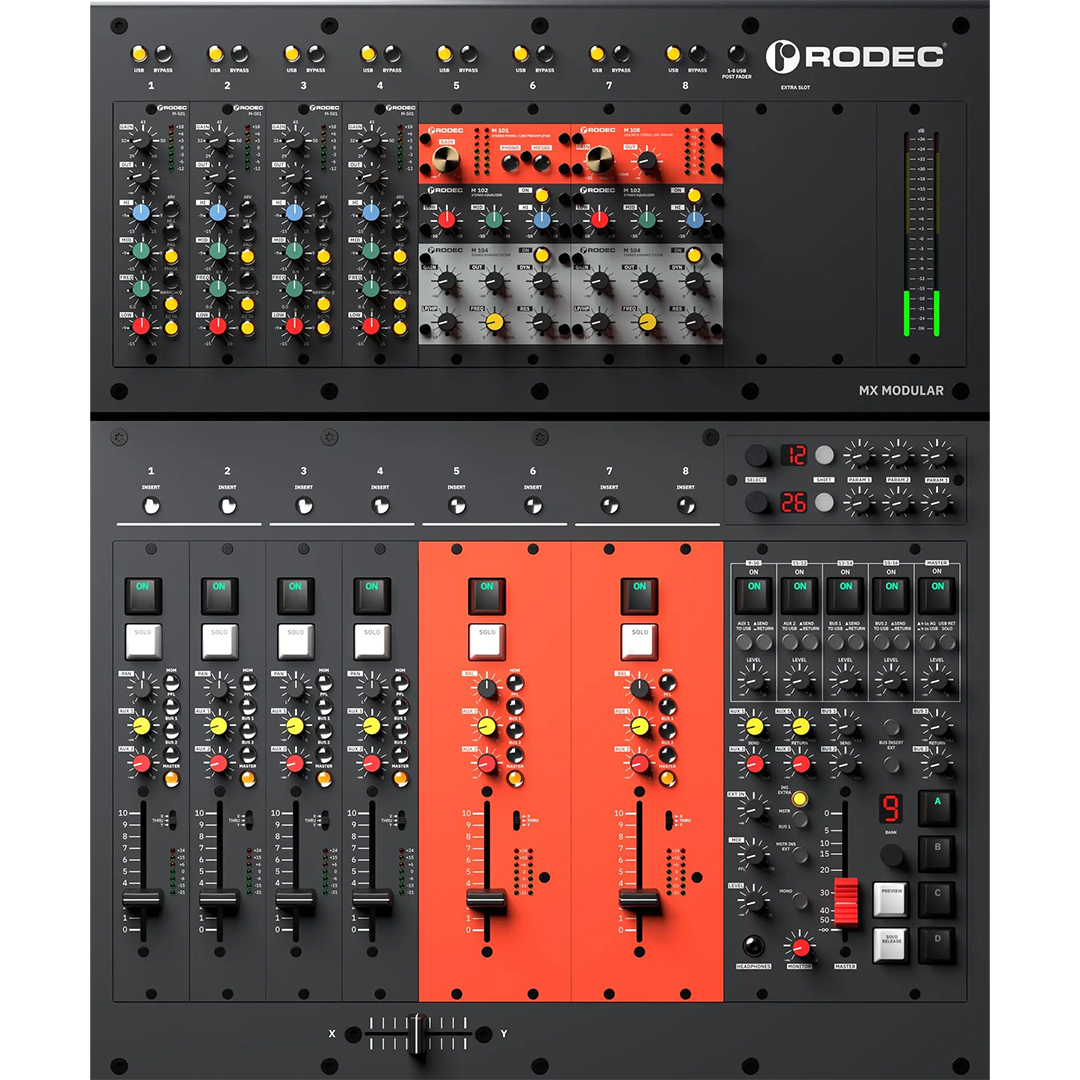

Modular Architecture with 500 & 100 Series Integration

At the core of the MX Modular is a highly flexible modular design that supports both 500-series and Rodec 100-series modules. With ten 500-series slots, users can build a signal chain tailored to their exact needs. An innovative stereo backplane adapter allows two mono slots to be paired into a stereo slot, making it easy to integrate Rodec’s 100-series modules for stereo processing.

• 10 slots for 500-series modules.
• Support for Rodec 100-series modules via stereo backplane adapter.
• Expandable architecture that evolves with your workflow.

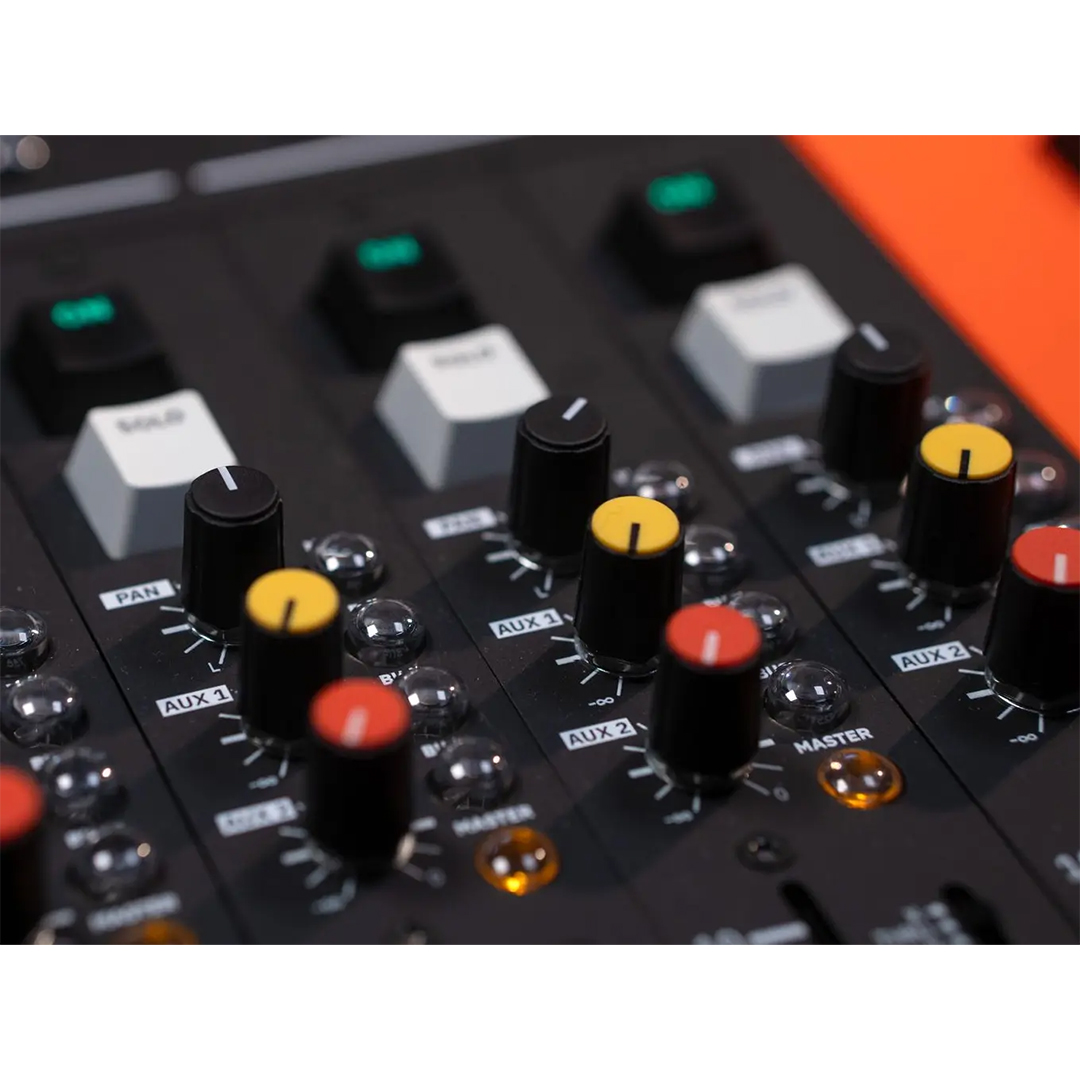

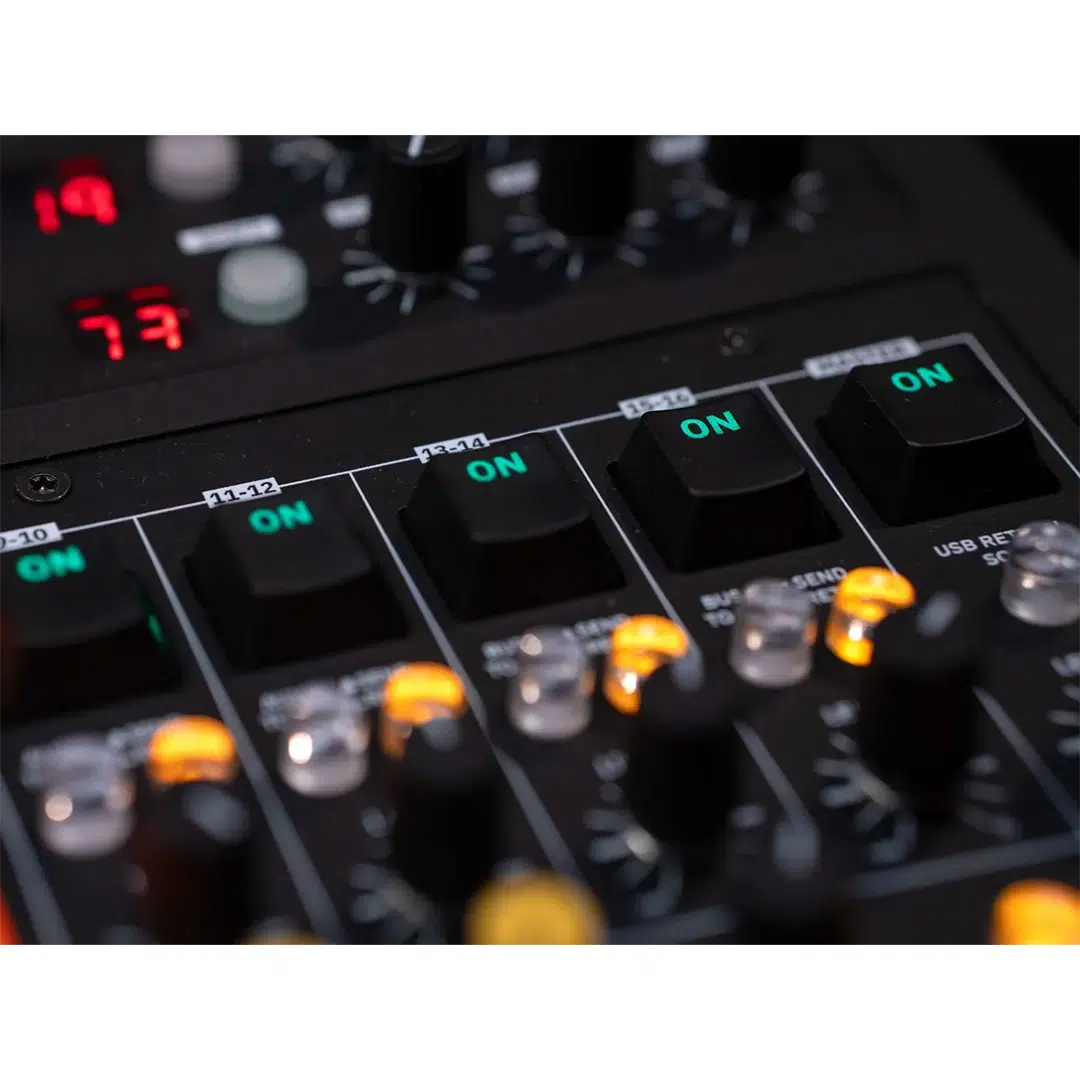

Performance-Ready Control with Scenes and FX

Designed with live performance in mind, the MX Modular features programmable mute and solo buttons that can be grouped into scenes for instant recall. A built-in digital FX module provides Rodec-engineered delay and reverb algorithms, routed intuitively via AUX 1 and AUX 2. With 99 customizable preset banks, effects can be dialed in and recalled effortlessly in both studio and live environments.

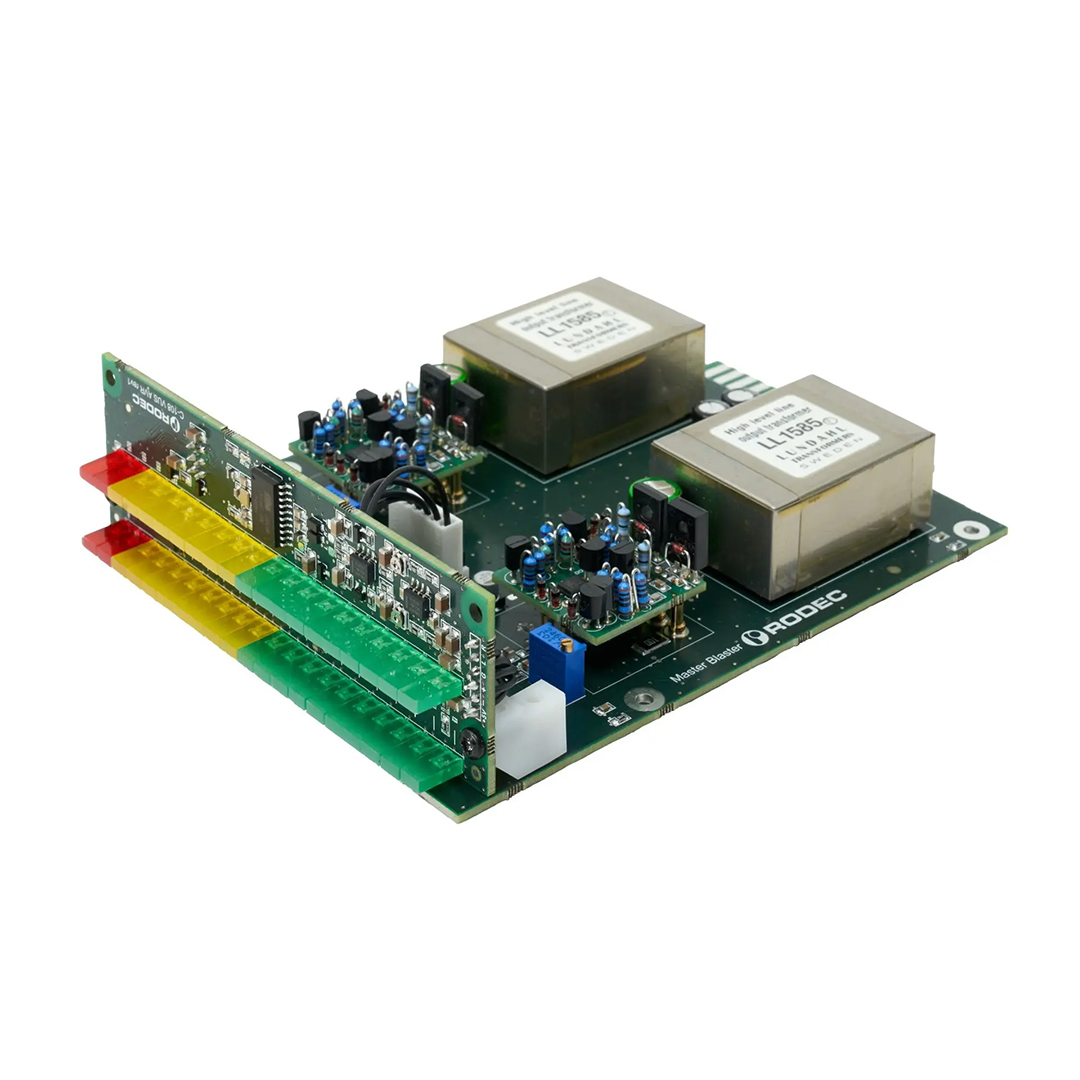

High-Headroom Master Output

The master output stage features discrete operational amplifiers paired with Lundahl transformers, delivering a balanced output with up to +28 dBu of headroom. This robust output design preserves clarity, depth, and punch—even at high levels—making the MX Modular equally reliable for tracking, mixing, and front-of-house duties.

Integrated USB-C Interface for Hybrid Setups

Bridging analog warmth with digital flexibility, the MX Modular includes a built-in, class-compliant USB-C interface offering 18 inputs and 18 outputs. Powered by premium AKM ADCs and ESS DACs, the interface enables low-latency, multi-channel audio streaming to and from computers or other class-compliant hosts—ideal for modern hybrid workflows.

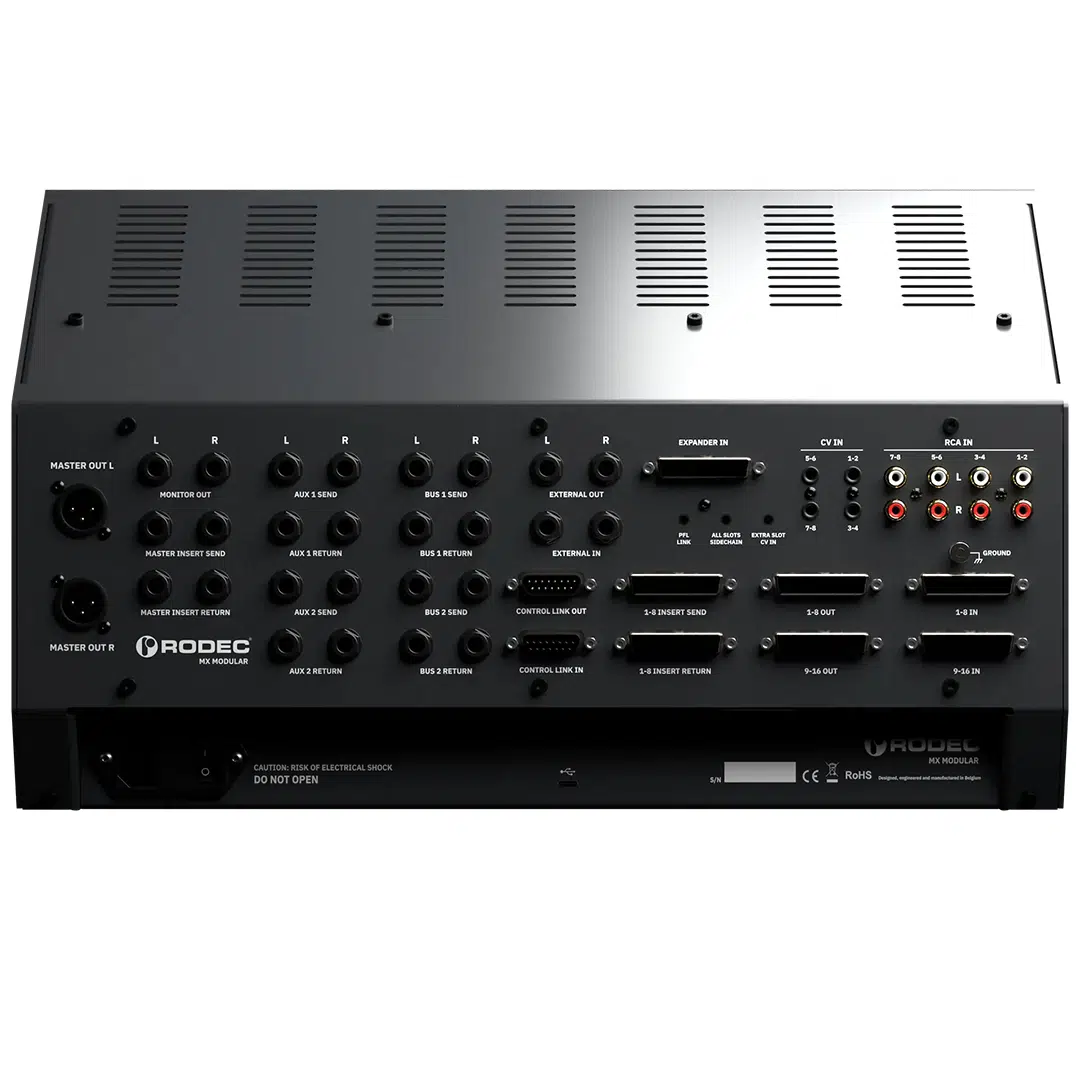

Flexible Routing and Creative Control

• 18 balanced inputs with direct outputs per channel.
• 2 stereo AUX sends and 2 stereo BUS routings per channel.
• Dedicated Master, Monitor, and External outputs.
• RCA inputs for optional M-101-series phono stages.
• Four stereo CV inputs and a dedicated sidechain input.
• Cascadable MX Modular consoles for expanded systems.

Technical Specifications

• Modular high-end analog console in a compact format.
• 10 slots for 500-series modules.
• 5 stereo sum channels + 4 stereo return channels.
• 18-channel AD/DA USB-C interface with AKM ADCs and ESS DACs.
• 3 analog summing busses including the master bus.
• Up to 28 analog summing channels total.
• Stereo inserts on master bus and busses, plus per-channel inserts.
• Balanced master output with discrete opamps and Lundahl transformers.
• Headphone output with independent level and cue/mix control.

Physical Specifications

• Dimensions (W × H × D): 17.8 × 11.2 × 24.6 inches
• Weight: 21.8 lbs
• Finish: Charcoal
