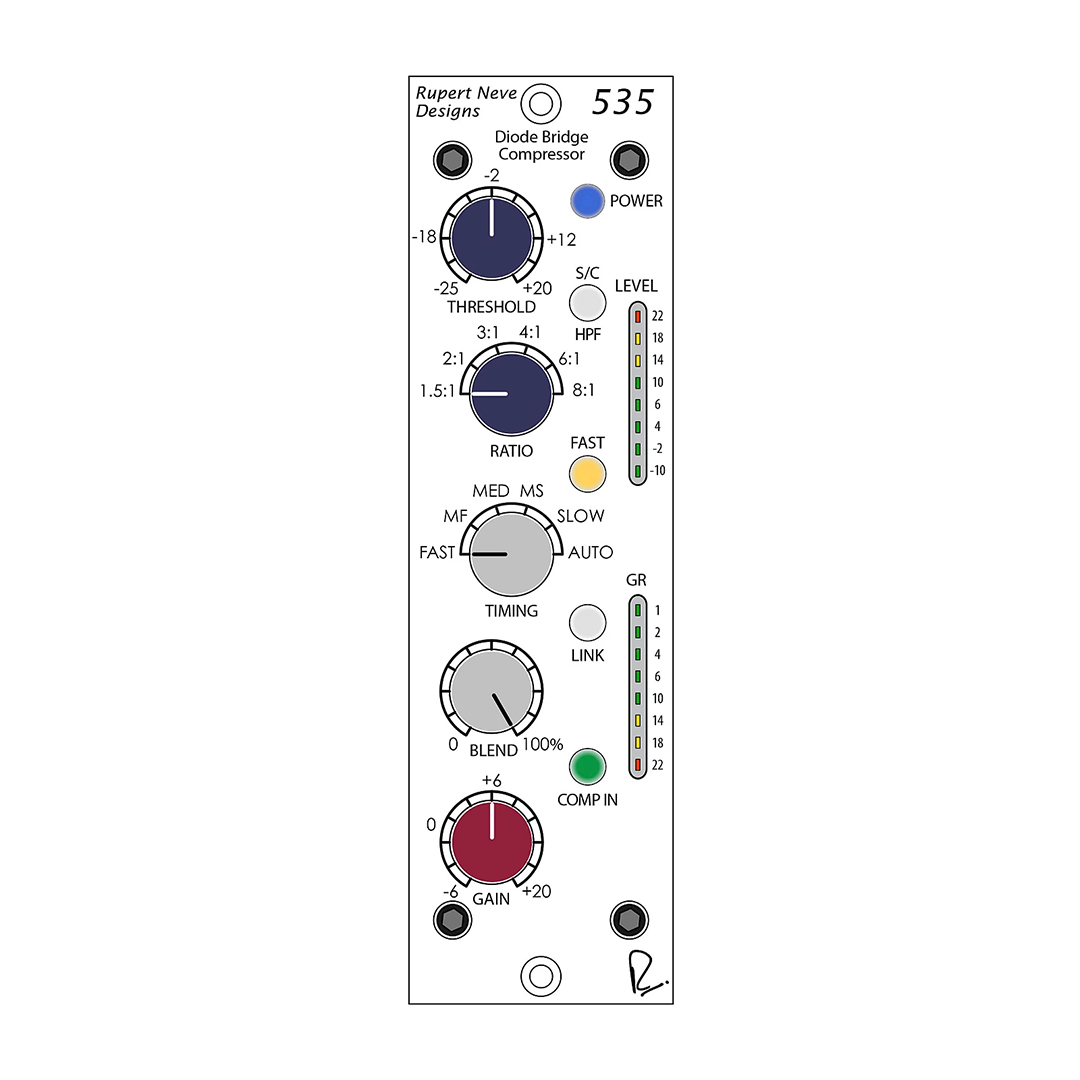

Rupert Neve Designs 535 Diode Bridge Compressor
The Rupert Neve Designs 535 Diode Bridge Compressor is a punchy, thick, and versatile tool that delivers the iconic sound of vintage compression with modern enhancements. Based on the dynamics circuit of the renowned Shelford Channel, the 535 offers the harmonically rich tone of Rupert Neve’s classic 2254 compressor, combined with advanced timing controls, reduced noise, and internal parallel processing capabilities.
Key Features:
- Diode Bridge Compression: Offers a weighty, harmonically rich tonality, ideal for vocals, electric guitars, bass, and drums.
- Threshold Control: 31-position detented pot for precision control, ranging from -25dB to +20dB.
- Ratio Selector: Six pre-selected ratios from 1.5:1 to 8:1 for dynamic and tailored compression.
- Advanced Timing: Unified six-position rotary switch for attack and release settings, with FAST mode for greater flexibility.
- Parallel Compression: Blend control for mixing compressed and uncompressed signals for nuanced results.
- High-Pass Side Chain: 12dB/octave 150Hz filter to minimize low-frequency impact on compression.
- Flexible Metering: LED meters for precise output level and gain reduction monitoring.
- Modern Enhancements: Fully stepped controls, expanded time constants, and full-wave sidechain detection for improved accuracy.
Specifications
- Maximum Input Level: +23.5 dBu
- Maximum Output Level: +23.5 dBu
- Input Impedance: 10k Ohm
- Output Impedance: 40 Ohm
- THD+N: 0.001% @ 1 kHz @ Maximum Output Level
- Noise: -101 dBu (22 Hz – 22 kHz BW)
- Frequency Response: 10 Hz – 120 kHz, +/- 0.1 dB
- Power Consumption: +/-16VDC, 100 mA
- Shipping Dimensions: 7.75″ x 10″ x 3″
- Shipping Weight: 3 lbs (1.4 kg)
Why Choose the 535 Diode Bridge Compressor?
The Rupert Neve Designs 535 combines the best of vintage tone and modern innovation, making it an indispensable tool for professional audio engineers and producers. Whether you’re looking to add depth and presence to vocals or bring drums to the forefront of your mix, the 535 delivers timeless sonic quality with precision and versatility.
