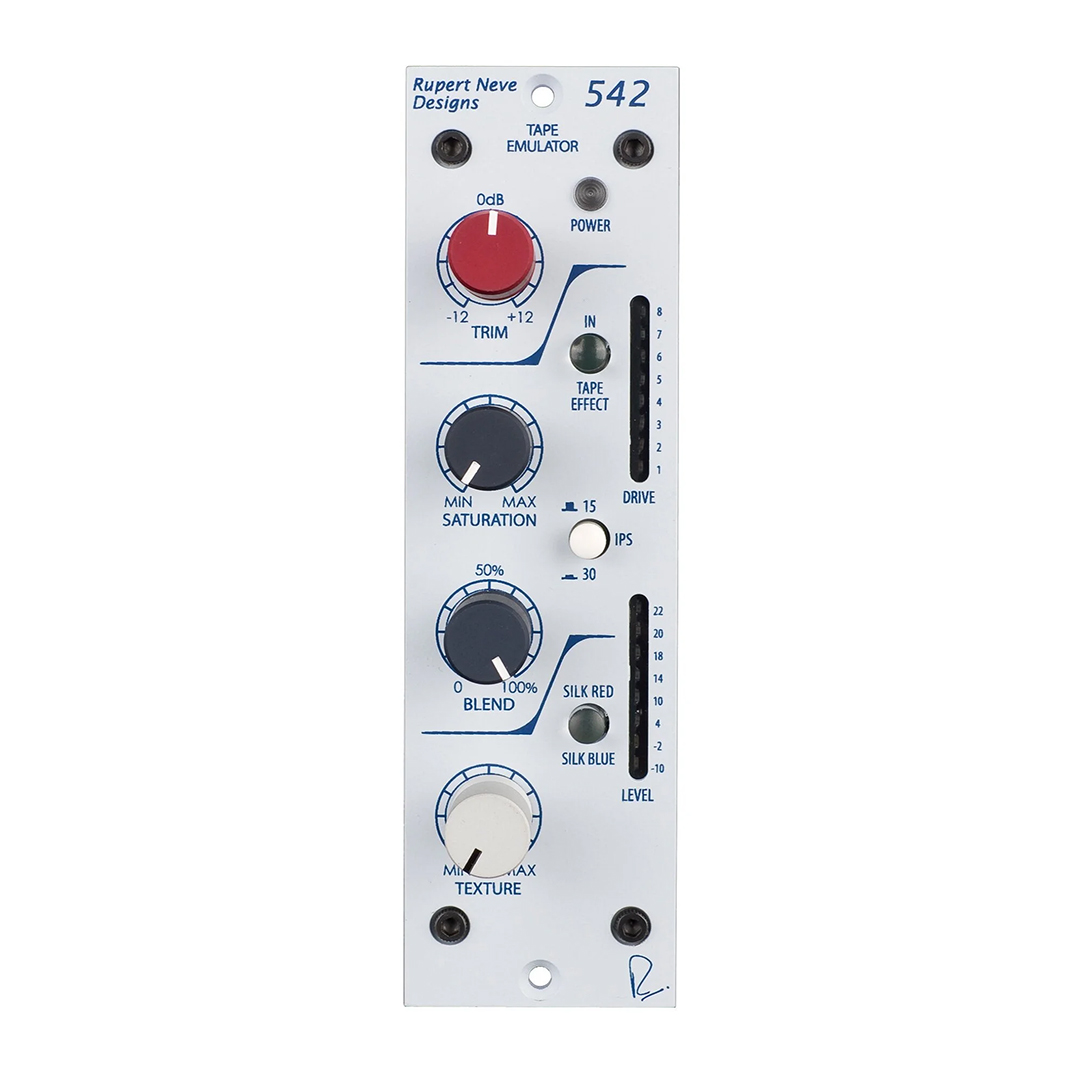

Rupert Neve Designs 542: 500 Series Tape Emulator

Overview: The Ultimate Analog Color Box

The 542 Tape Emulator is a specialized 500 Series module designed to deliver the elusive, musical qualities of professional analog tape to the modern digital workstation. By incorporating a meticulously crafted tape emulation circuit, Rupert Neve Designs allows engineers to impart authentic harmonic saturation and silkiness to digital tracks. This unit serves as much more than a simple effect; it is a sophisticated tonal sculpting tool that provides the “glue” and warmth traditionally reserved for high-end open-reel tape machines.

Key Features & Benefits

• True Analog Tape Emulation: The 542 utilizes a custom interstage transformer that acts as a “record head,” coupled with a “replay” amplifier that applies a classic tape EQ curve. This non-linear circuit produces the natural compression and harmonic density found in analog tape.

• Selectable 15 / 30 IPS Modes: Users can toggle between two distinct frequency responses. The 15 IPS mode provides a significant “head bump” centered around 60Hz and a vintage high-end roll-off, while the 30 IPS mode offers a flatter response with a head bump near 125Hz for a more hi-fi character.

• Variable Saturation and Blend: The continuously variable Saturation control drives the “record head” circuit to increase harmonic content. Rupert Neve Designs included a Blend control to allow for parallel processing, letting the engineer mix the processed tape signal with the dry original to maintain transient detail.

• Integrated Soft Clip Circuit: To tame the harshest digital transients, the 542 features a soft-clipper that engages at higher drive levels. This gently rounds off peaks in a musical fashion, similar to how magnetic tape handles extreme signal levels.

• Variable Silk and Texture: The signature Silk Red and Blue circuits are included to further manipulate harmonic density. Silk Red emphasizes high-mid and high-frequency saturation, while Silk Blue adds weight and thickness to the low-mids and lows.

• Low Frequency Compensation: As Saturation is increased, the 542 intelligently manages low-frequency balance. At lower saturation levels, it provides a subtle bass boost that tapers off as the signal becomes denser, ensuring the bottom end never becomes “muddy.”

• Advanced Metering: Two eight-segment LED meters provide critical feedback. The Level meter monitors the output level before the Silk circuit, while the Drive meter displays the signal level being sent to the “record head,” indicating exactly when the soft-clip circuit engages.

Technical Specifications
