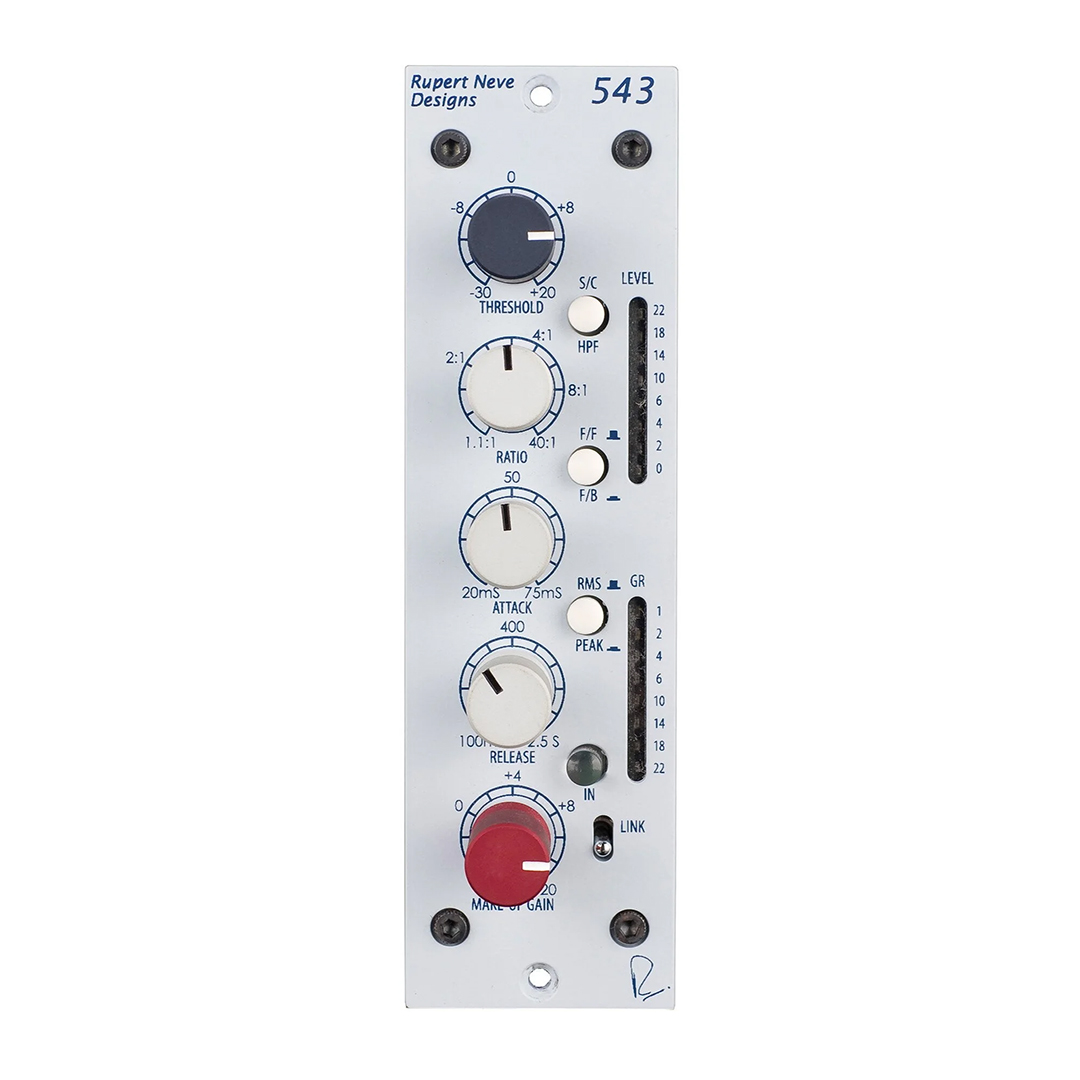

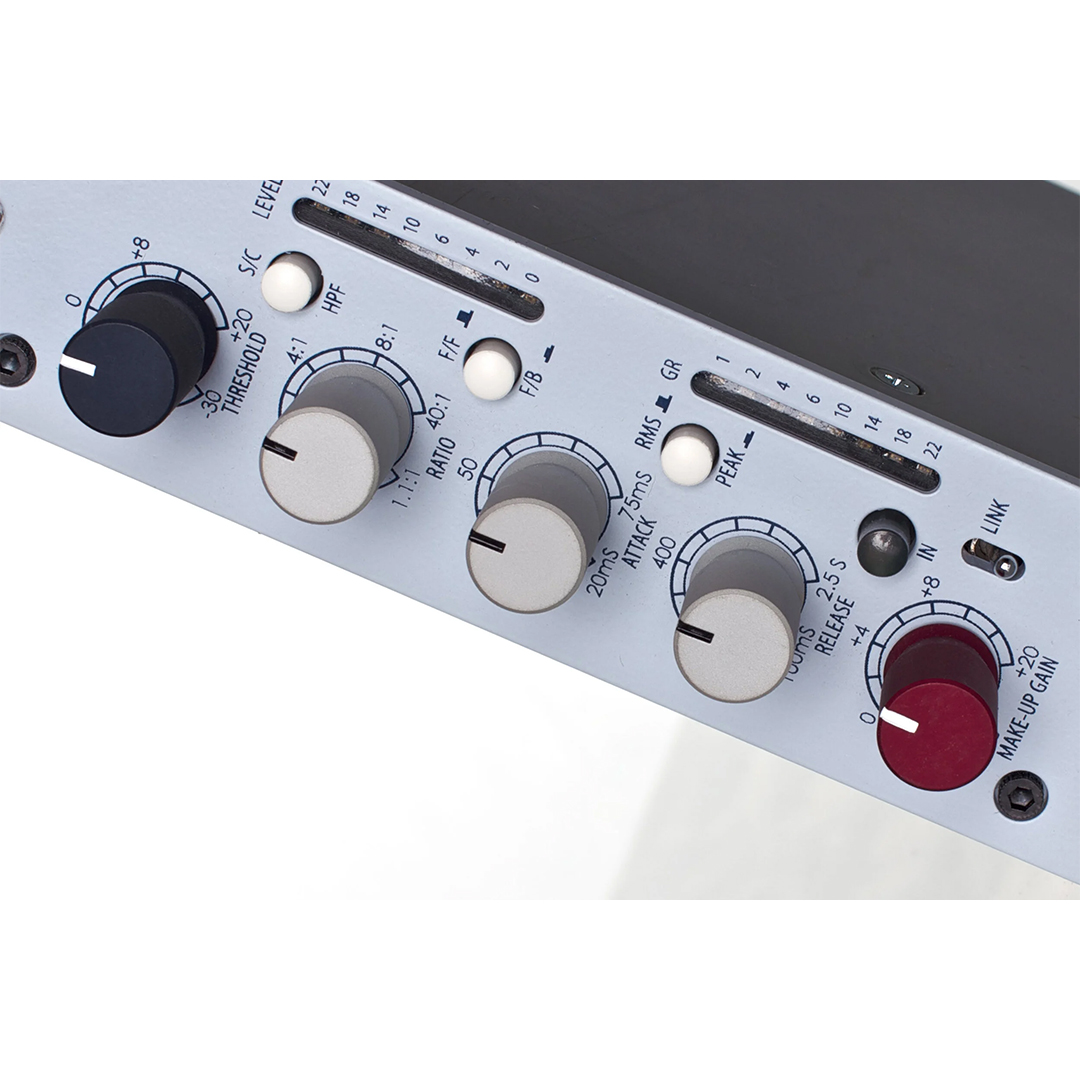

Rupert Neve Designs 543: 500 Series VCA Compressor

Overview: Clean, Precise, and Powerful Level Control

The 543 Compressor delivers unobtrusive, musical dynamic control and high-ratio limiting with massive flexibility and precision. Built as a mono 500 Series module, it is based on the impeccably transparent VCA (Voltage Controlled Amplifier) circuits found in the company’s award-winning Portico series. Whether tracking, mixing, or mastering, the 543 provides an astonishing degree of control, allowing for subtle warmth or aggressive peak prevention without ever compromising the integrity of the original source.

Key Features & Benefits

• Advanced VCA Topology: Unlike diode bridge designs that add heavy coloration, the 543 utilizes a very accurate, low-noise VCA. This ensures immense dynamic control and subtle warmth without leaving a heavy sonic imprint on tracks or mixes.

• Feed-Forward and Feed-Back Modes: Rupert Neve Designs included a toggle to change where the VCA control voltage is captured. Feed-back mode provides the smoother, more musical response characteristic of classic vintage designs, while Feed-forward mode offers the faster, more technically accurate response required for modern envelope shaping.

• Peak and RMS Detection: The 543 can respond to either RMS levels—mimicking the way the human ear perceives loudness—or Peak levels, which are essential for preventing clipping and maximizing signal voltage.

• Sidechain High-Pass Filter: A built-in 250Hz high-pass filter can be engaged in the sidechain circuit. This prevents low-frequency energy (such as a kick drum) from over-triggering the compressor, ensuring the rest of the frequency spectrum remains open and natural.

• Comprehensive Dynamics Control: Featuring continuously variable Threshold, Ratio, Attack, and Release, the 543 offers a level of precision typically reserved for large-format consoles. The Ratio ranges from a gentle 1.1:1 to a hard 40:1 Limit.

• Stereo Link Capabilities: Multiple 543 modules can be linked for stereo operation using the front-panel Link switch, making it an ideal choice for bus processing or mastering applications.

• Signature Class-A Design: By utilizing the company’s custom-wound transformers and Class-A line amplifiers, the 543 maintains a wide frequency response and exceptional headroom even under heavy compression.

Technical Specifications
