Rupert Neve Designs RNDI-8: Eight Channels of Legendary Direct Tone

Overview: Uncompromised DI Performance in a 1U Chassis

The RNDI-8 brings the signature sound of the industry-standard RNDI to a high-density, eight-channel rack format. Rupert Neve Designs engineered this unit to serve as the ultimate interface for high-end stage rigs, professional studios, and complex synthesizer setups. By combining discrete FET input stages with custom-wound output transformers, the RNDI-8 captures the full harmonic depth and clarity of any instrument source while ensuring absolute reliability on the road or in the studio.

Key Features & Benefits

• Class-A Discrete FET Amplifiers: The RNDI-8 utilizes high-impedance (2.2M Ohm) input stages that eliminate crossover distortion, delivering a natural frequency response that extends from below 5Hz to beyond 90kHz.

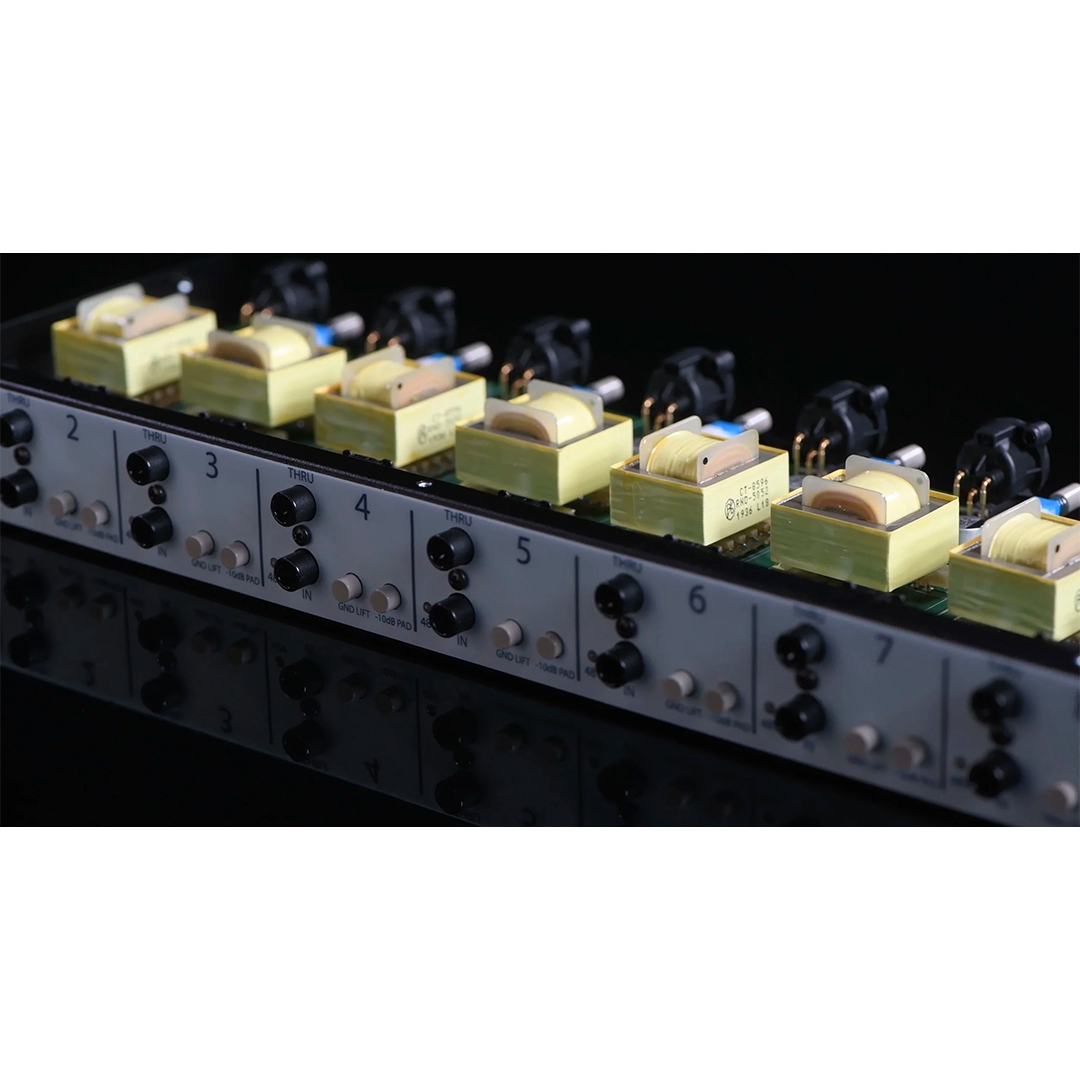

• Custom Rupert Neve Output Transformers: Each channel features a custom transformer designed to add musical harmonics and dimension while providing total galvanic isolation.

• Massive Input Headroom: With the ability to handle +20.5 dBu (or +30.5 dBu with the -10dB pad engaged), the RNDI-8 easily manages high-output professional line-level sources, keyboards, and active instruments.

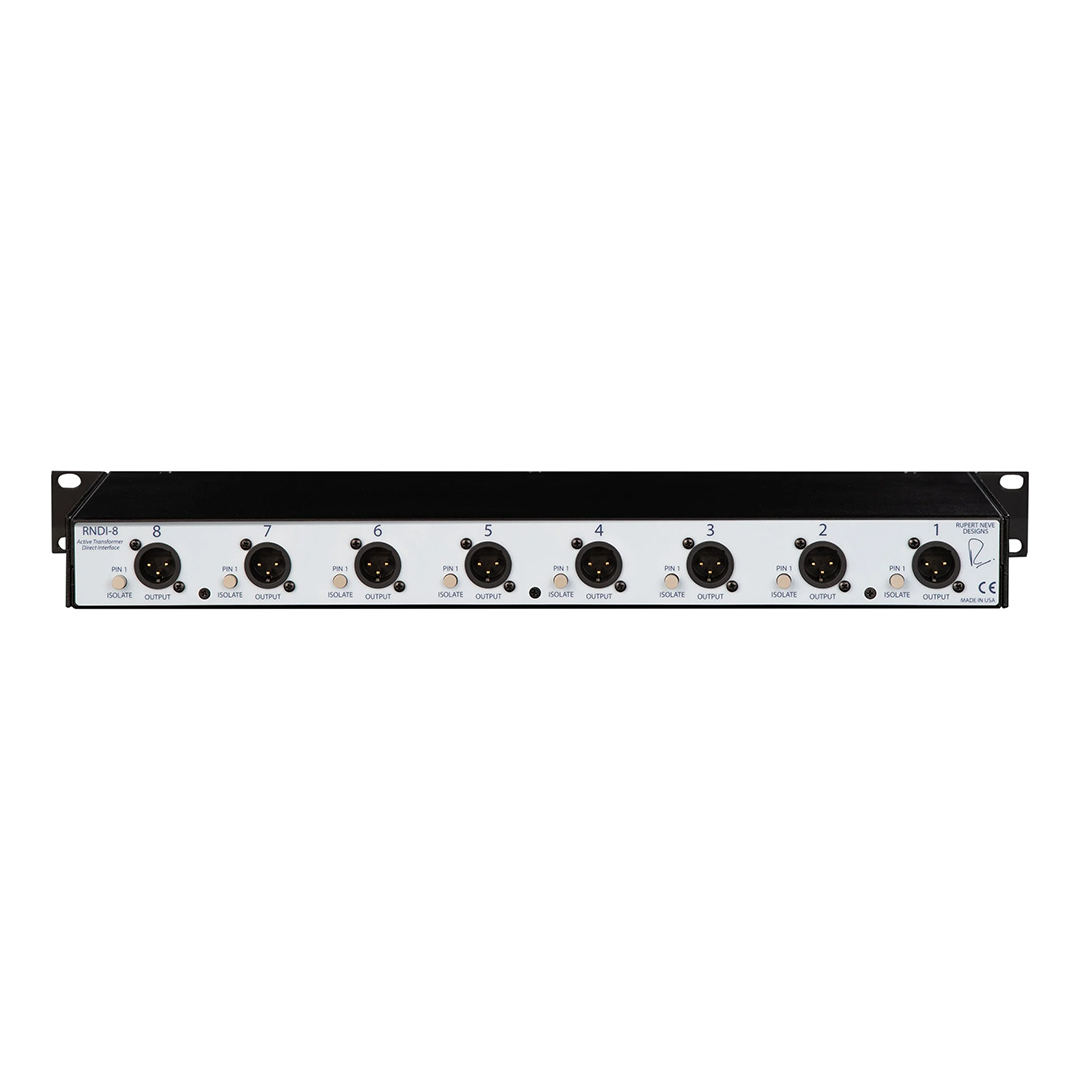

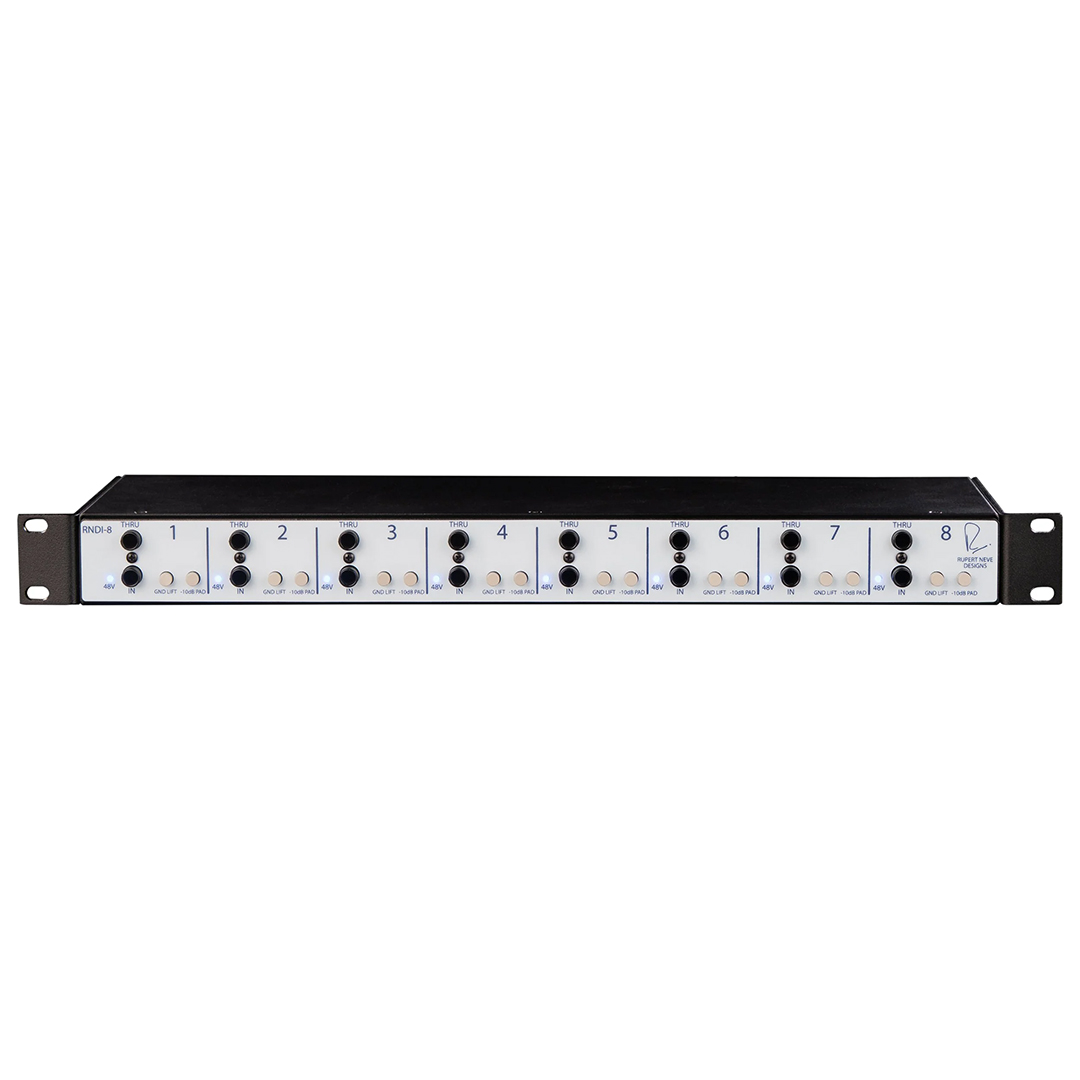

• Dual Ground Lift Architecture: Rupert Neve Designs included both individual “Pin 1 Isolate” switches on the rear and circuit-to-chassis ground lifts on the front panel to troubleshoot and eliminate complex ground hum issues instantly.

• Low-Impedance Drive: The transformer-coupled outputs stay below 40 Ohms, allowing the RNDI-8 to drive long cable runs—even over 100 feet—with zero loss in high-frequency detail.

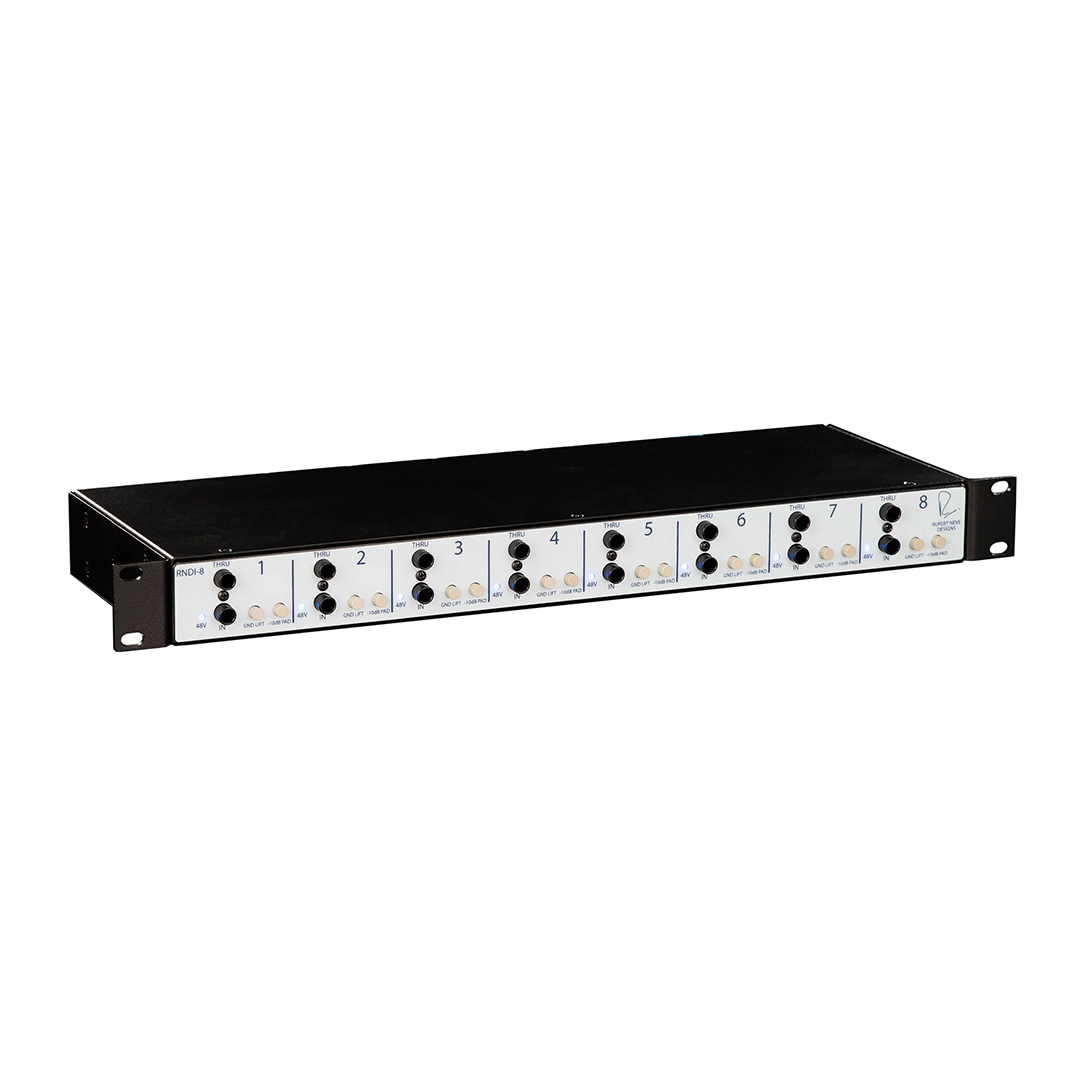

• Professional Studio Build: The 1U steel chassis is finished with industrial-grade powder coating and features reversible rack ears for flexible mounting in various rack configurations.

Technical Specifications
