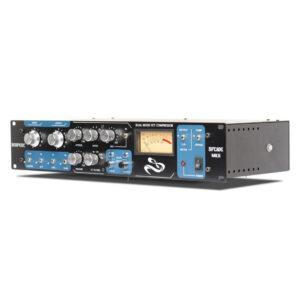

Serpent Audio SPLICE MKII FET Compressor

Four Compressors in One

The Splice™ MKII brings FET compression to a whole new level, faithfully recreating the circuitry and sound of not one, but two classic FET compressors. The Splice MKII’s unique mode switching allows the user to switch between the classic Blackface or vintage Bluestripe circuits at the push of a button. In addition, the Splice MKII can also mix and match the two for entirely new sounds that can only be found with the Splice MKII (i.e. Blue Input Circuitry + Black Output Circuitry for “Blueface” mode or Black Input Circuitry + Blue Output Circuitry for “Blackstripe” mode). It’s like having 4 compressors in one.

Overview

• Four Compressor circuits in one box:
  • Input Circuit Black + Output Circuit Black = “Classic Blackface Mode”
  • Input Blue + Output Blue = “Classic Bluestripe Mode”
  • Input Blue + Output Black = “Blueface Mode” (Unique to the Splice)
  • Input Black + Output Blue = “Blackstripe Mode” (Unique to the Splice)
• Stereo Linkable w/ front panel switch
• External Send & Return w/ front panel switch
• “All Buttons In” / Slam Mode front panel switch
• True Bypass (Relay Controlled) w/ front panel switch
• Integrated Mix/Blend Control w/ switchable bypassing for in-the-box parallel processing
• Integrated Active Sidechain Filters
• Switchable 600R Output loading allows optimization with both vintage and modern equipment
• 45dB of Gain (with no limiting)
• Attack Time – 20 to 800 Microseconds
• Release Time – 50 Milliseconds to 1.1 Seconds
• Compression Ratios – 2:1, 4:1, 8:1, 12:1, 20:1 & Soft Bypass (BP)
• True VU meter w/ meter buffer circuitry
• Integrated Linear Power Supply
• 115V/230V compatible (User selectable on rear panel)
• Backed by a 2 Year Limited Warranty
