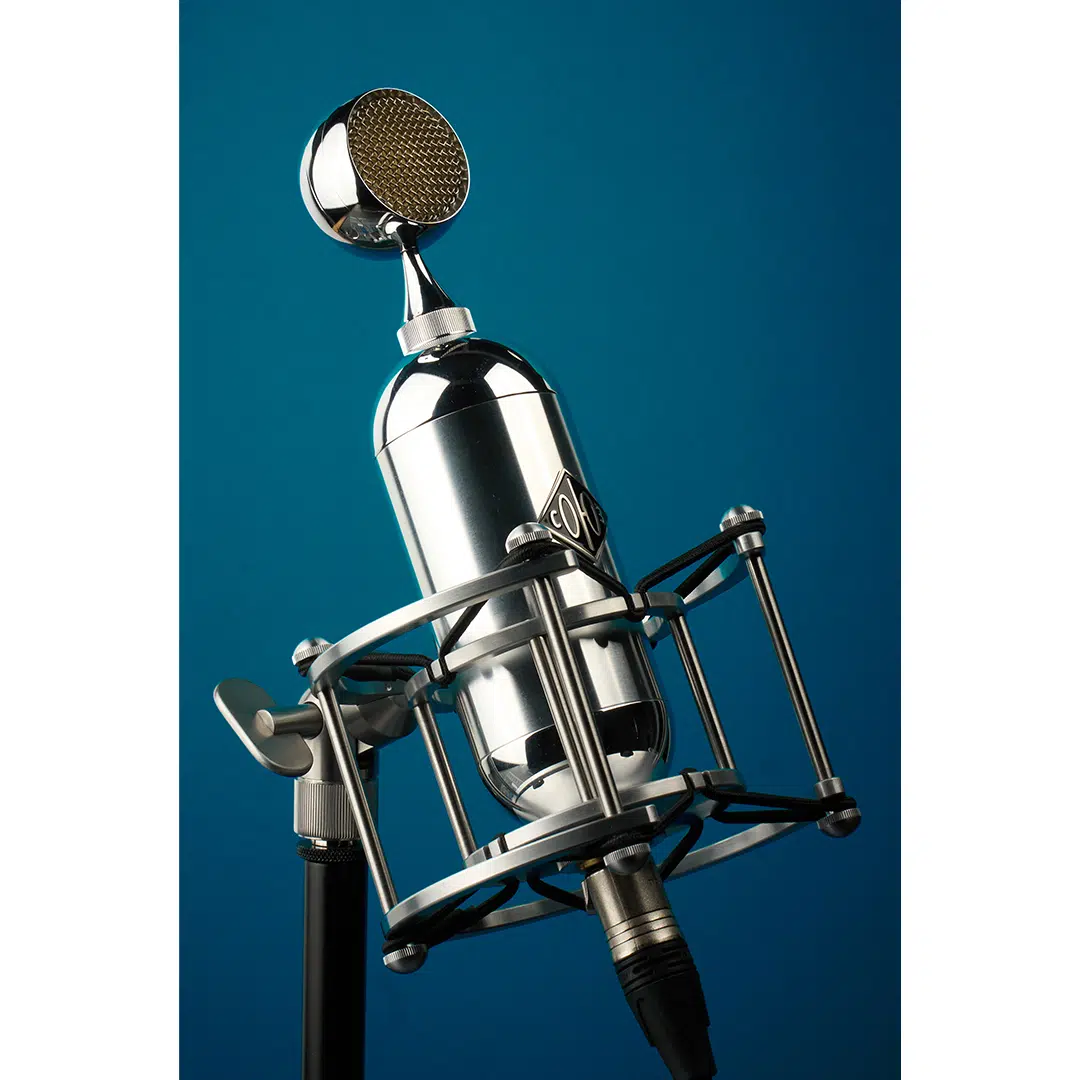

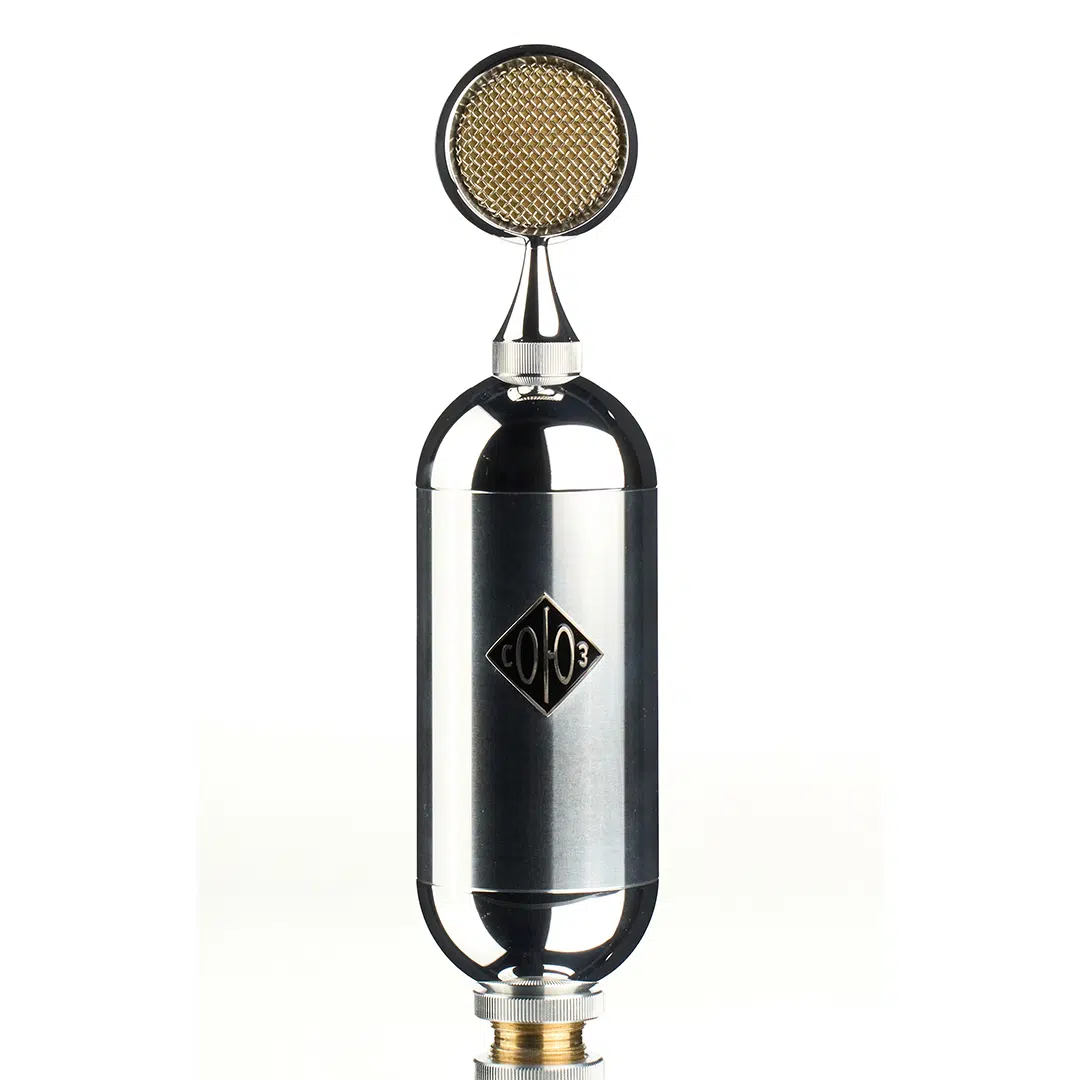

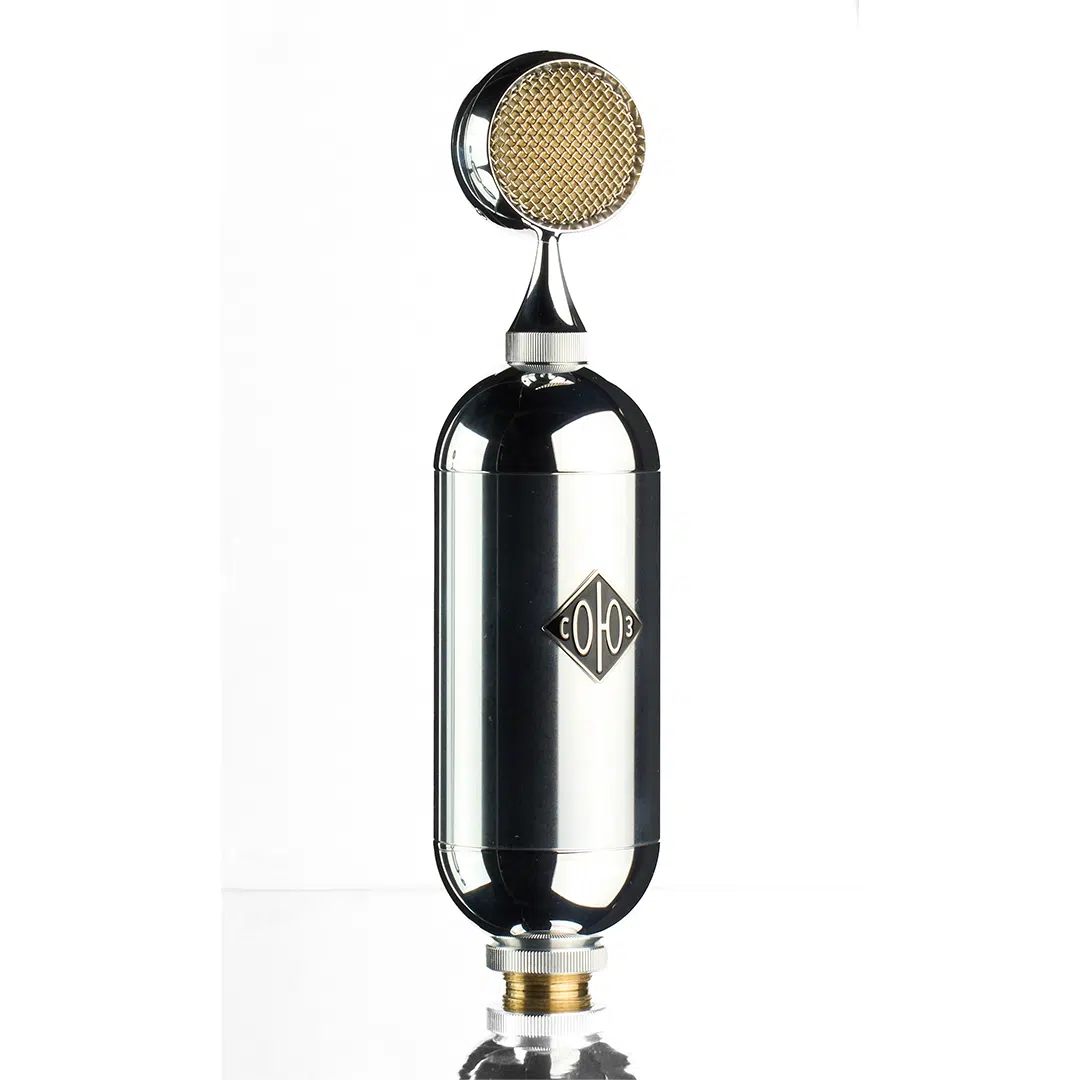

Soyuz Silver 17 Large-Diaphragm Tube Condenser Microphone

The Soyuz Silver 17 is a large-diaphragm tube condenser microphone built around the S17E—a newly developed edge-terminated version of the original S17 capsule—that extends the 017 Series’ signature full-bodied character with greater presence, air, and natural top-end extension. The 34mm hand-machined, gold-sputtered S17E capsule draws on K67 geometry for its dense low-end and midrange foundation, while edge termination routes the electrical charge directly to the diaphragm through the mounting ring rather than a center screw, eliminating obstruction at the capsule’s most sensitive area for a freer, more open response. The circuit is built entirely by hand—point-to-point wiring throughout, in-house wound transformers, and the military-grade 6ZH1P tube proven across the full 017 lineage—with bodies hand-turned on the lathe and backplates individually cut, polished, and tensioned. Powered by the included dedicated PSU, the Silver 17 delivers 20dB self-noise, 140dB max SPL handling, and a 120dB dynamic range.

Key Features

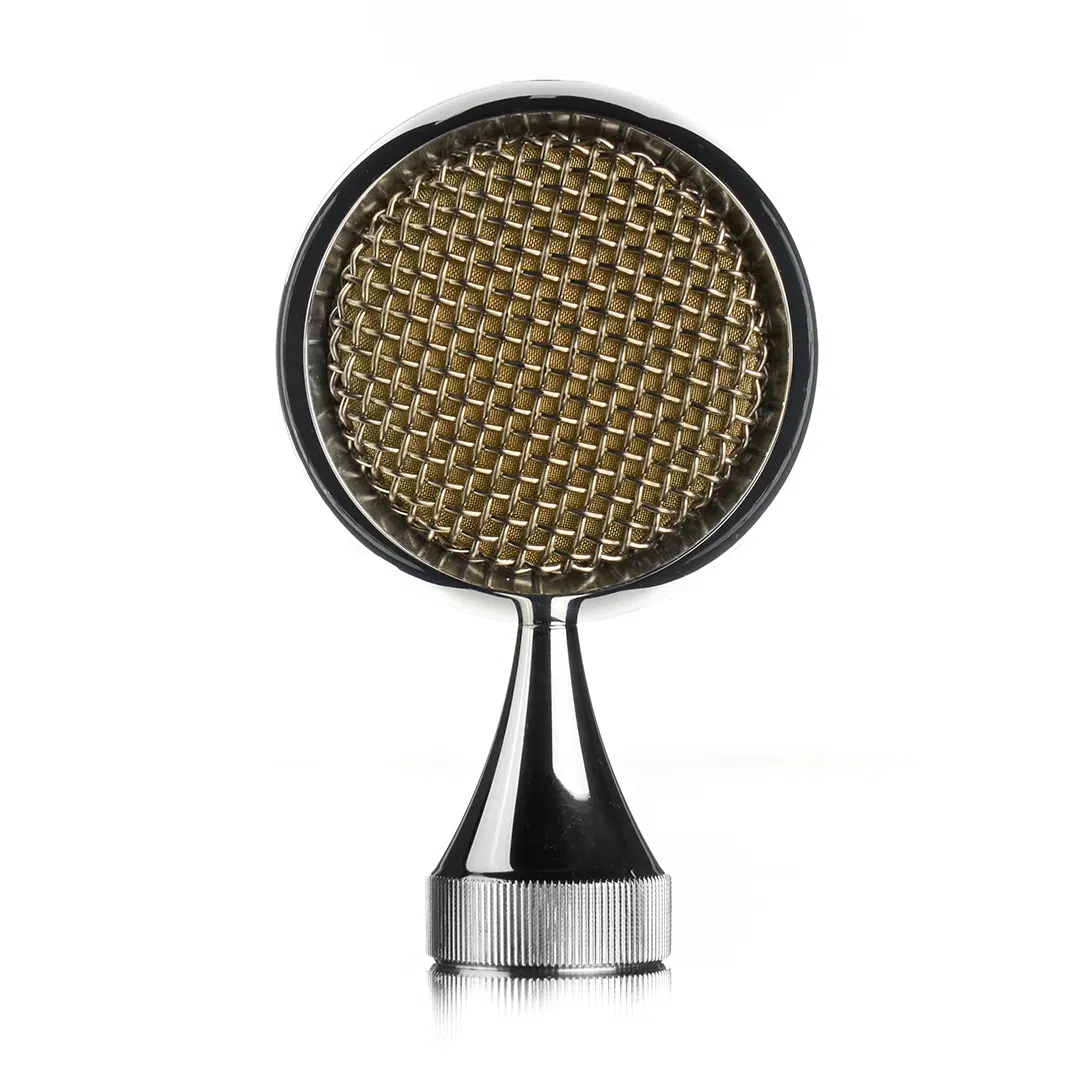

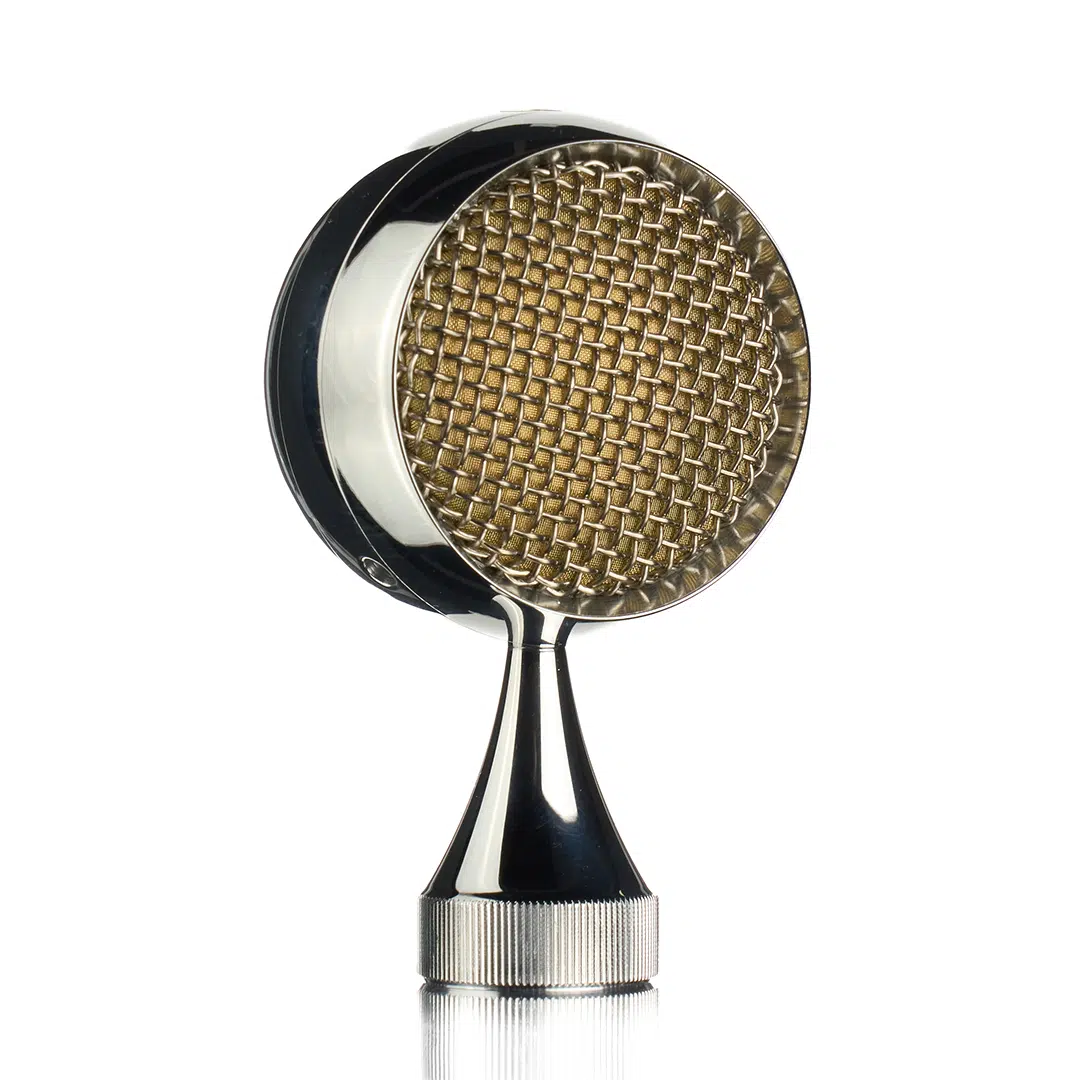

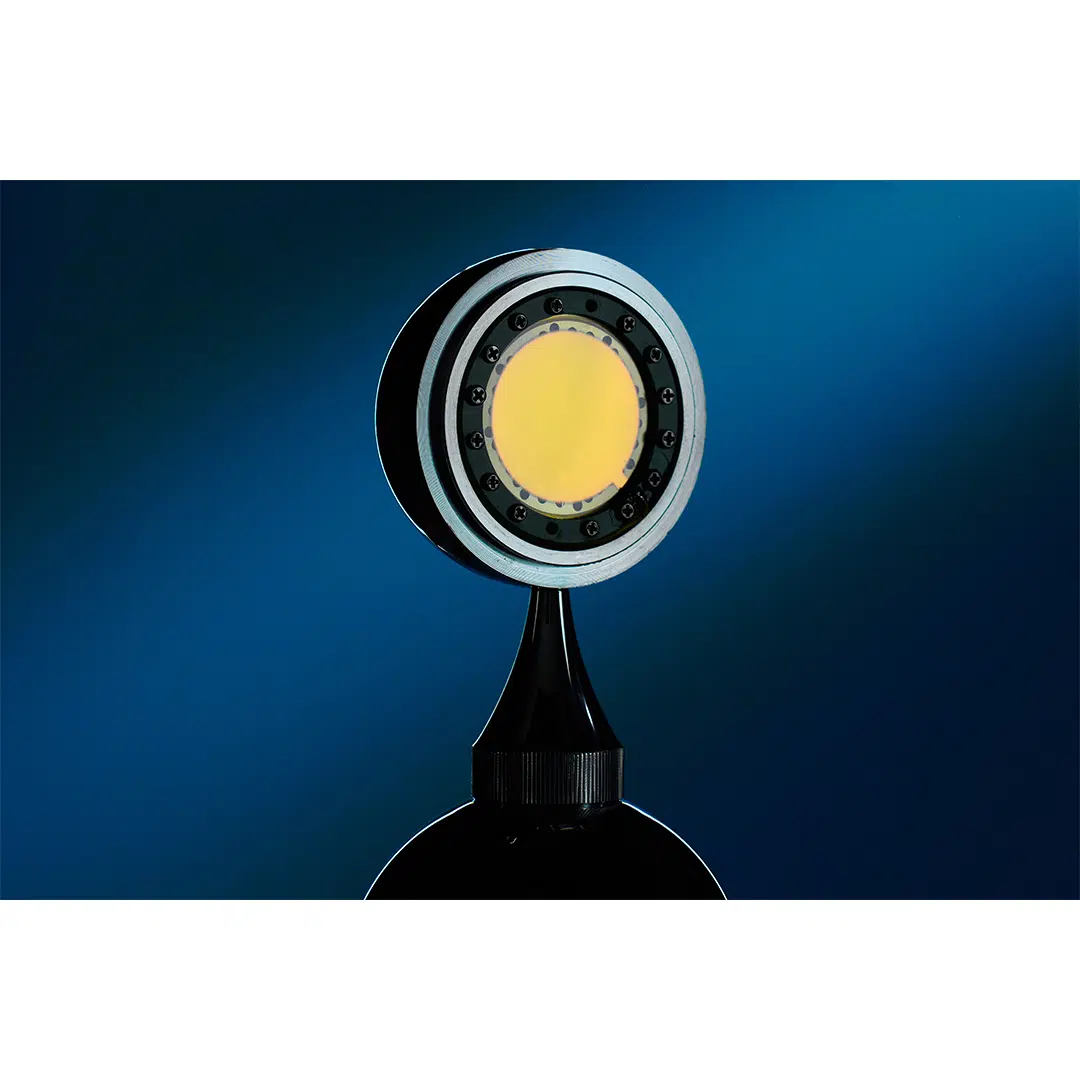

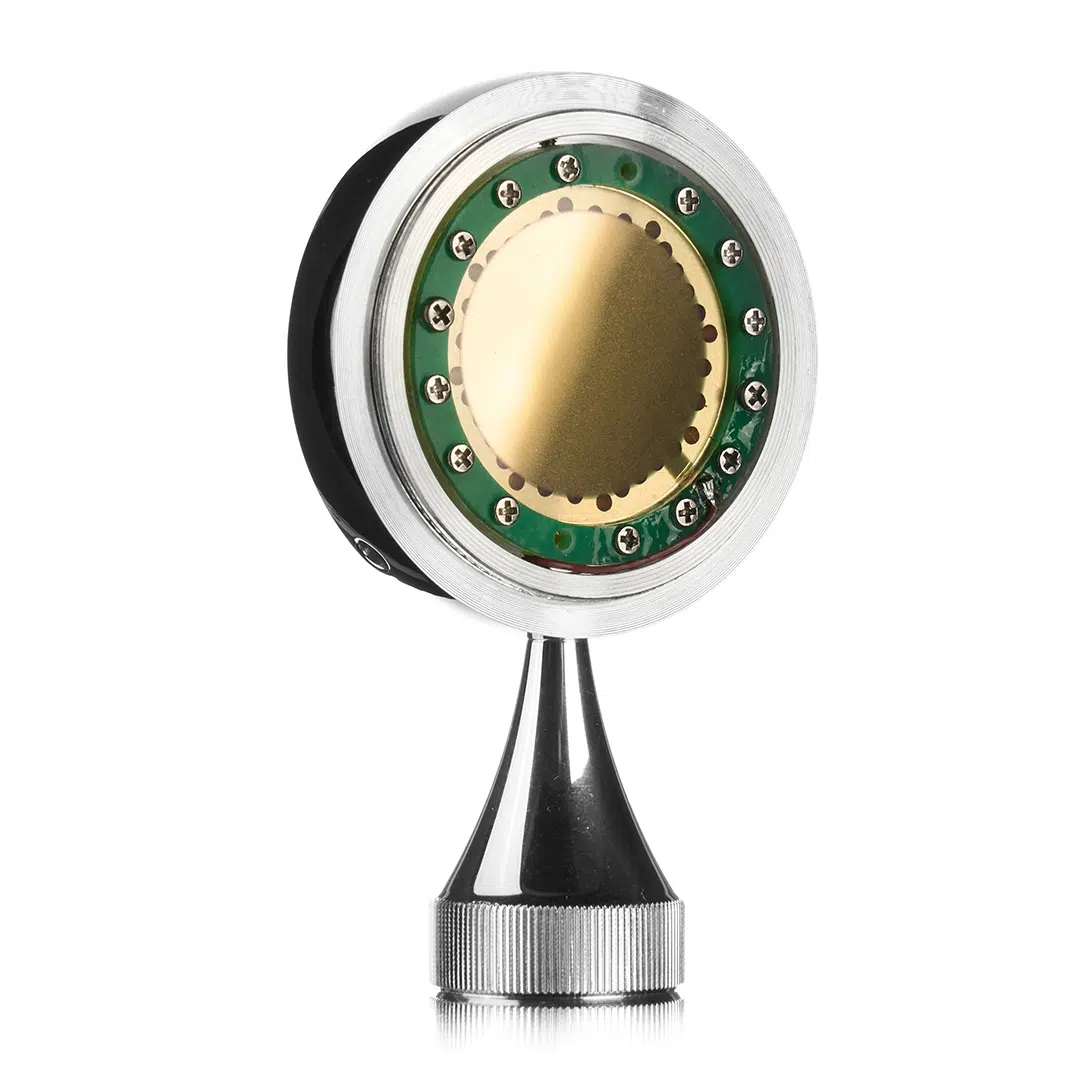

• Custom S17E edge-terminated capsule — 34mm hand-machined, gold-sputtered design developed entirely in-house; edge termination applies charge directly to the diaphragm and routes through the mounting ring—no center screw obstruction at the capsule’s most sensitive area; freer diaphragm response across the full frequency range
• 017 Series sonic foundation with extended top-end — retains the larger-than-life lows and rich midrange of the 017 TUBE with greater emphasis on presence and clarity; smooth upper-range lift adds detail and openness without exaggeration or brittleness
• Military-grade 6ZH1P tube — the same tube at the heart of the 017 Series lineage; selected for stability, character, and consistency
• In-house wound transformers — custom transformer design integral to the Silver 17’s tonal character; wound at Soyuz’s facility
• True point-to-point wiring — hand-wired throughout; no PCB in the signal path
• Fully handcrafted construction — bodies hand-turned on the lathe; backplates individually cut, polished, and tensioned by hand at Soyuz’s facility

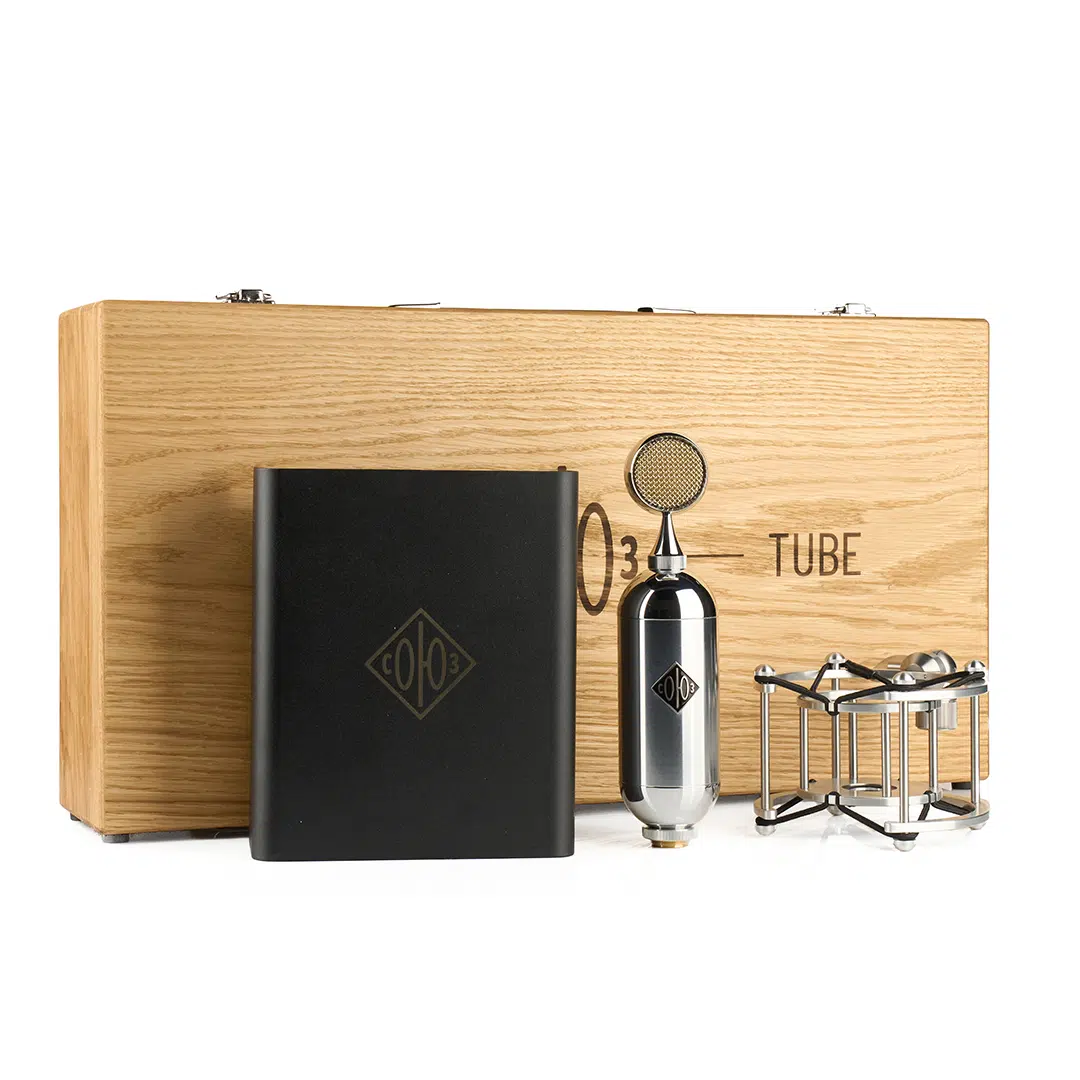

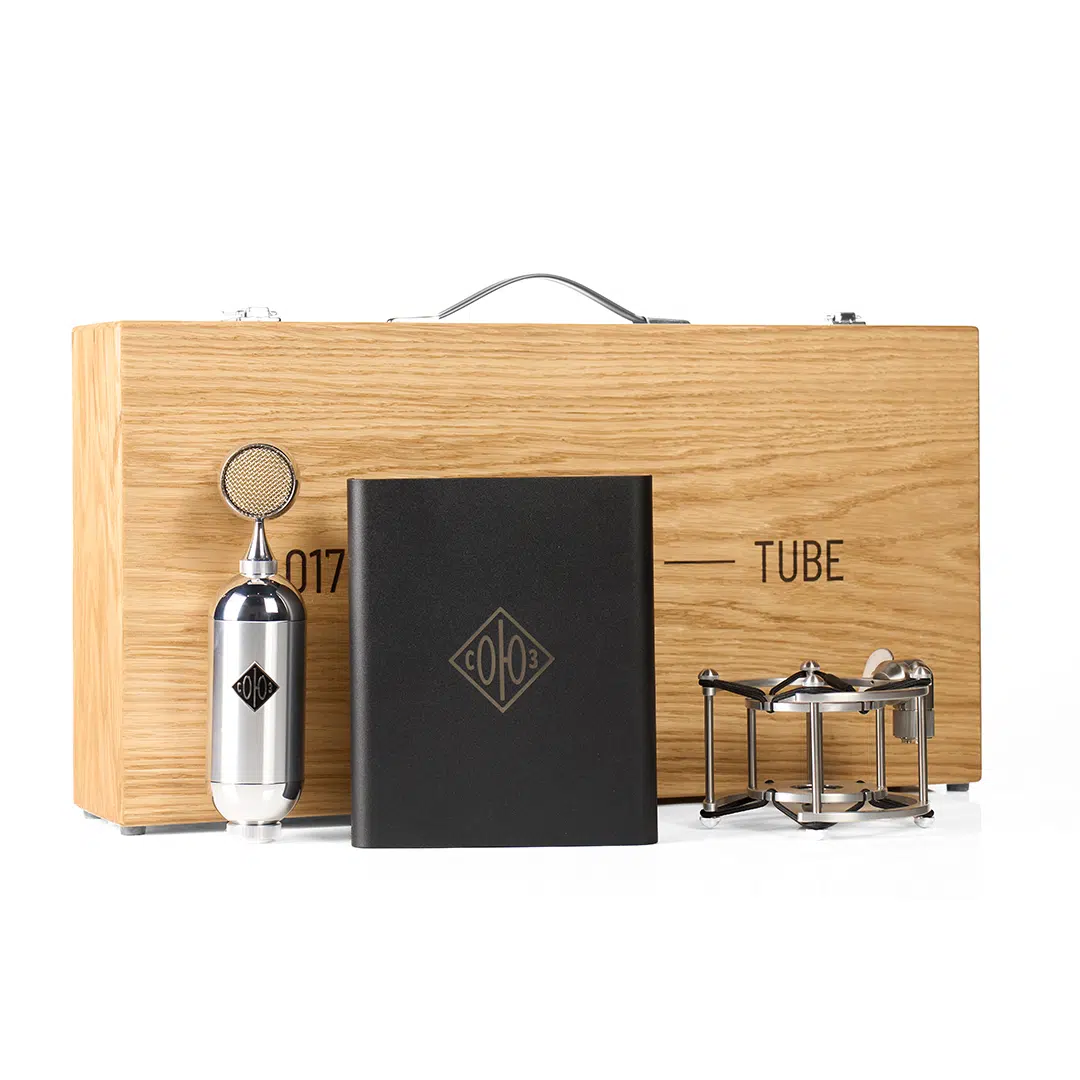

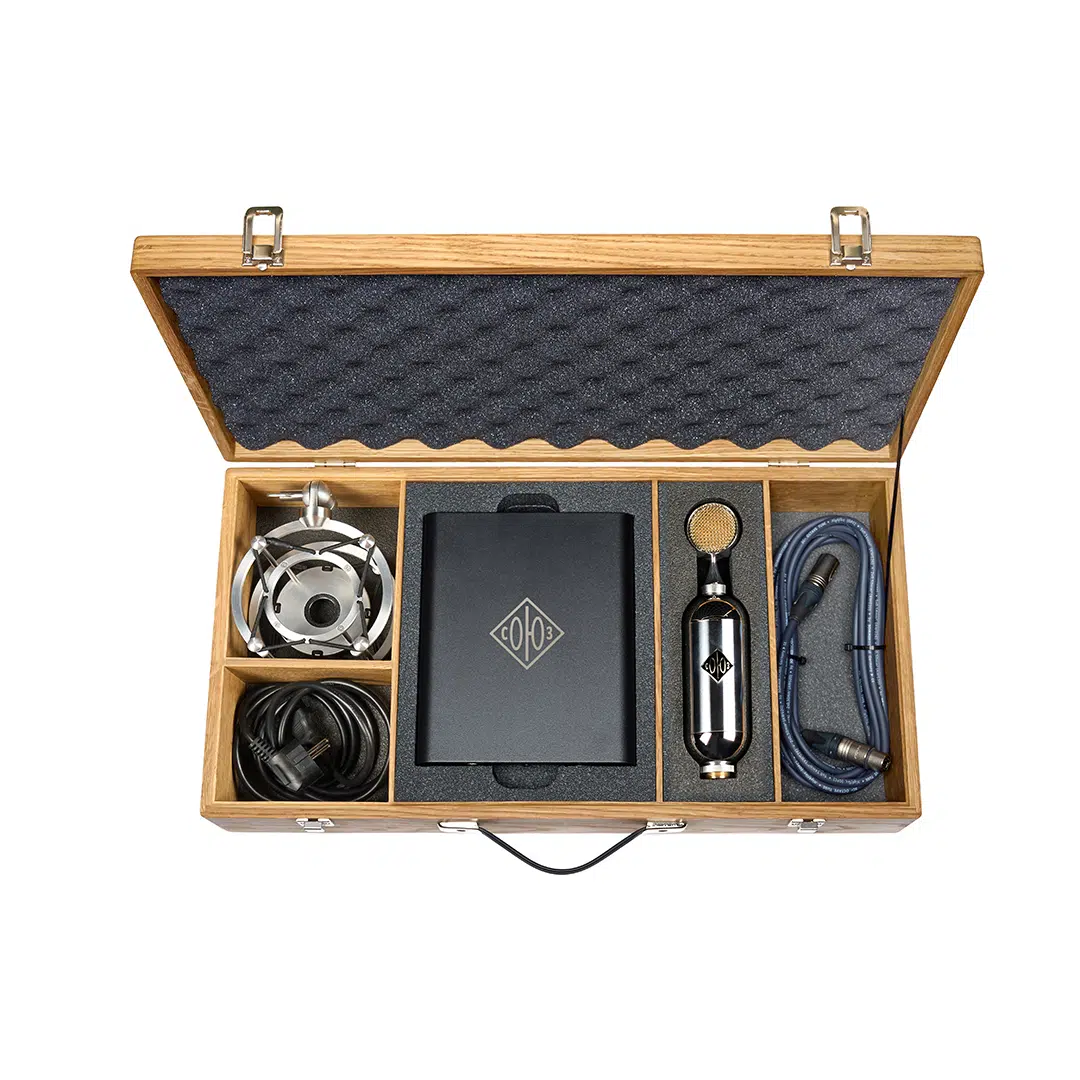

• Dedicated PSU included — switchable for 220–240V and 110–115V (US) operation
• Versatile source coverage — vocals, acoustic guitar, keys, strings, drums and percussion, voice-over, and broadcast; suited for any source requiring depth and presence without excessive darkness

Specifications

• Transducer Type: Condenser, large diaphragm
• Polar Pattern: Cardioid
• Capsule: S17E (34mm; hand-machined; gold-sputtered; edge-terminated)
• Tube: 6ZH1P (military-grade)
• Frequency Response: 20Hz–20kHz
• Self-Noise: 20dB (A-weighted)
• Dynamic Range: 120dB
• Max SPL: 140dB
• Sensitivity: 40mV/Pa
• Output Impedance: 270 Ω
• Power: Dedicated PSU included (110–115V US / 220–240V)
• Weight: 1.4 lbs (630 g)
• Dimensions: 2.2 × 8.9 in. (55 × 226 mm)
