SPL 2Control – Stereo Monitor Controller

The SPL 2Control is a high-fidelity compact stereo monitor controller that ensures precise and effortless control over your near-field and full-range monitors. With an all-analog signal path, two selectable stereo inputs, dual headphone monitoring, and a dedicated mono/subwoofer output, the 2Control is the ultimate tool for transparent monitoring in professional studios.

Key Features

• High-Precision Analog Monitoring: Fully analog design for pure, uncolored sound.
• Two Selectable Stereo Inputs: Easily switch between two audio sources.
• Dual Speaker Outputs: Control two pairs of studio monitors.
• Mono/Subwoofer Output: Dedicated third output for a subwoofer or mono speaker.

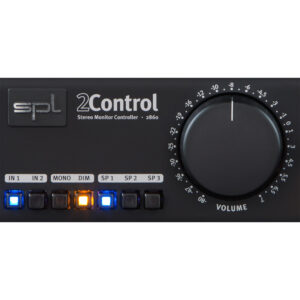

• High-Quality Volume Control: ALPS RK27 “Big Blue” potentiometer for smooth, precise adjustments.
• Integrated Phonitor Matrix: Features SPL’s Crossfeed technology for accurate headphone mixing.

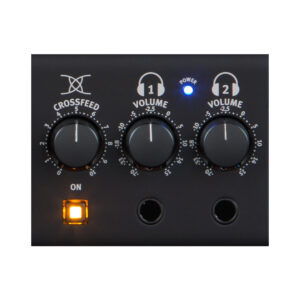

• Two Independent Headphone Outputs: Adjustable volume with Crossfeed processing.

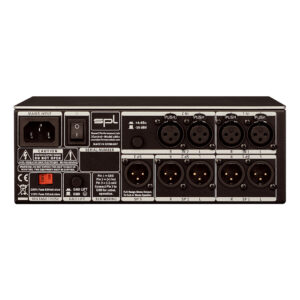

• Balanced XLR Connectivity: High-quality analog signal routing.

Superior Headphone Monitoring with Crossfeed

Mixing on headphones can introduce exaggerated stereo width and spatial effects, making it difficult to achieve mixes that translate well to speakers. The 2Control incorporates **SPL’s Crossfeed technology**, a core feature of the renowned Phonitor Matrix, ensuring your headphone mixes accurately represent a speaker setup. With continuously variable Crossfeed control, you can fine-tune the stereo field for a natural listening experience.

Specifications

Analog Inputs & Outputs:

• Balanced XLR connections
• Maximum input & output gain: 21.5 dBu
• Input impedance: 20 kΩ | Output impedance: 75 Ω
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD + N (0 dBu, 10 Hz – 22 kHz): 0.005%
• Noise (A-weighted): -96 dBu
• Crosstalk (1 kHz): -70 dB
• Dynamic range: 117 dB

Headphone Outputs:

• Dual 6.35 mm (1/4″) TRS jacks
• Source impedance: 22 Ω
• Noise (A-weighted, 600 Ω): -85 dBu

Power Supply:

• Internal Linear Power Supply with Toroidal Transformer
• Operating voltage: +/- 15V (analog) | +12V (relays & LEDs)
• Mains Voltage: 230V AC / 50Hz or 115V AC / 60Hz (selectable)
• Power consumption: max. 10 W

Dimensions & Weight:

• W x H x D: 215 x 100 x 220 mm (8.46 x 3.58 x 8.66 inches)
• Unit Weight: 2.1 kg (4.63 lbs)
• Shipping Weight: 4 kg (8.82 lbs)

The SPL 2Control is the perfect solution for engineers who demand transparent monitoring, precise control, and superior headphone translation. Whether you’re mixing, mastering, or tracking, this compact yet powerful monitor controller delivers the reliability and performance SPL is known for.
