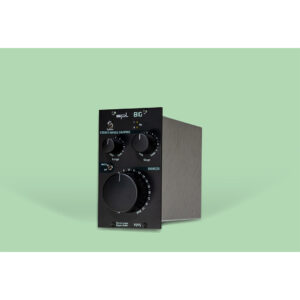

SPL BiG – The Stereo Image Bigger Maker for 500 Series

The SPL BiG is a unique stereo image enhancer for the 500 Series, designed to expand and shape the stereo field in a new and innovative way. Unlike traditional M/S processing, BiG employs a proprietary analog filter network to create an enlarged stereo image while maintaining a solid and phase-coherent mono signal. With just three intuitive controls, BiG offers effortless yet powerful stereo enhancement, making it a must-have for mixing, mastering, and creative sound design.

Key Features

• Innovative Stereo Processing: Expands the stereo image with zero phase artifacts.
• Three Intuitive Controls: Quickly shape the stereo field with Range, Stage, and BIGNESS.
• BASS Boost Circuit: Adds depth and warmth using a passive filter inspired by the SPL IRON Mastering Compressor.
• True Bypass: Instantly compare processed and unprocessed signals.
• 500 Series Compatible: Double-slot module designed for 500 Series racks.

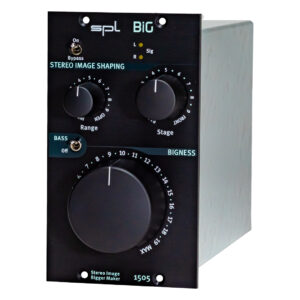

Controls & Functions

On/Bypass

The On/Bypass switch allows quick activation and deactivation of the module. Easily compare the original and processed signal with a simple flick of a switch.

Stereo Image Shaping

• Range: Selects the frequency range to be processed, allowing precise control over which part of the spectrum is affected.
• Stage: Moves the selected frequency range forward or backward in the stereo field, adjusting its perceived depth.
• BIGNESS: Controls the intensity of the stereo enhancement, from subtle width to massive expansion.

BASS Boost

Activate the BASS switch to add a warm and natural low-end boost. This passive filter is inspired by the AirBass circuit from the SPL IRON Mastering Compressor, providing a rich and full-bodied sound.

Unique Analog Processing

Unlike traditional stereo wideners that rely on M/S (mid/side) processing, BiG uses a custom analog filter network to process a difference signal derived from the original input. The processed signal is then mixed back into the original, creating a massive stereo image while ensuring perfect mono compatibility.

Premium Build & Sound Quality

• Through-Hole Technology: High-quality components ensure optimal sound performance.
• Zero Phase Shifts or Cancellations: Maintains a clean mono signal with no unwanted artifacts.
• Hand-Tested in Germany: Every unit is developed and fine-tuned for maximum sonic performance.

Specifications

Input & Output:

• Balanced XLR
• Maximum Input & Output Gain: +21 dBu
• Input Impedance: 20 kΩ
• Output Impedance: 150 Ω
• Common Mode Rejection: > 82 dB

Performance:

• Frequency Range (-3 dB): 10 Hz – 100 kHz
• THD + N (0 dBu, 10 Hz – 22 kHz): 0.03%
• Noise (A-weighted): -92.3 dBu
• Dynamic Range: 113 dB

Physical Specifications:

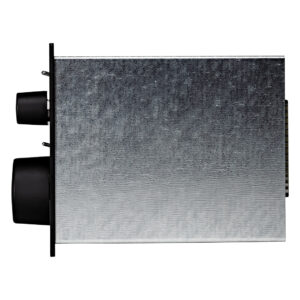

• Format: 500 Series, double-slot module
• Unit Weight: 0.9 kg (1.98 lbs)
• Shipping Weight: 1.05 kg (2.31 lbs)

The SPL BiG is a powerful and intuitive stereo enhancement tool designed to bring new depth, width, and dimensionality to your mixes and masters. Whether you’re looking for subtle expansion or dramatic stereo imaging, BiG delivers rich, musical, and natural-sounding results.
