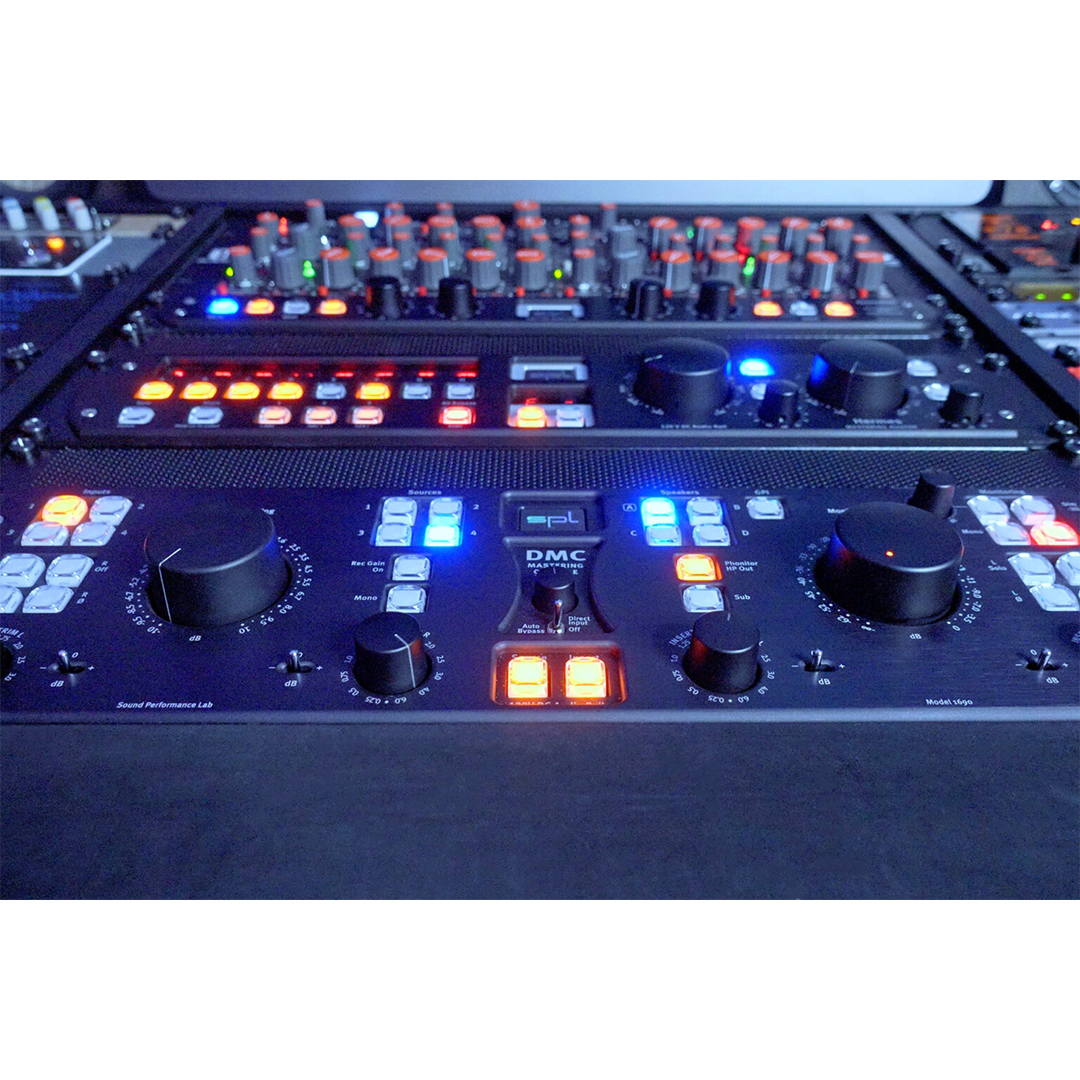

SPL DMC All Black – Mastering Console with 120V Technology

The SPL DMC All Black is the central hub of any professional mastering studio. With unparalleled 120V technology, it delivers exceptional audio transparency, unmatched headroom, and precise control over inputs, sources, monitoring, and inserts. The DMC seamlessly integrates with the SPL Hermes Mastering Router and MC16 for stereo and immersive audio applications, making it the most powerful mastering console available.

Key Features

• 120V Technology: Exceptional dynamic range and pristine audio quality.
• Four Stereo Inputs & Four Source Inputs: Compare, process, and route multiple audio signals.
• 0.25 dB Precision Trim: Fine-tune levels with exacting detail.
• Three Monitor Speaker Pairs & Mono Speaker Output: Seamless switching between nearfield, mid-field, and full-range speakers.
• Dedicated Phonitor HP Out: High-end headphone monitoring with auto-speaker mute option.
• Subwoofer Management: Assignable subwoofer control for seamless integration.
• Insert Returns with Trim: Optimize level compensation after external processing.
• Hermes Mastering Router Integration: Insert up to eight stereo processors.
• Surround & Immersive Audio Support: Expandable with MC16 for Dolby Atmos® and Auro 3D®.
• Loudness Compensation: Automatic or manual level adjustments for consistent monitoring.
• Phase & Solo Monitoring: Dedicated controls for precise mix evaluation.

Inputs & Sources

The DMC features two dedicated sections:

• Inputs: Connect audio sources for processing.
• Sources: Reference external signals for direct playback and comparison.

Each stereo input can be:

• Individually activated or bypassed.
• Phase-reversed for advanced processing.
• Trimmed in 0.25 dB steps for exact level matching.
• Switched to mono for phase and balance checks.

Monitoring & Inserts

The DMC provides ultimate flexibility for monitoring:

• Three stereo speaker outputs – switch between full-range, mid-field, and near-field monitors.
• Dedicated mono speaker output – precise mono compatibility checking.
• Phonitor HP Out – connect SPL Phonitor for high-end headphone monitoring.
• Subwoofer Control – program and pair the subwoofer with any speaker set.

The insert section allows external processing integration, with 0.25 dB precision trimming for accurate level matching after processing. The Hermes Mastering Router can be connected to dynamically route up to eight stereo processors.

Surround & Immersive Audio

The DMC seamlessly integrates with the SPL MC16 for full Dolby Atmos® and Auro 3D® monitoring. Stereo and multi-channel monitoring use the same speaker setup without replugging.

By holding the Speaker A button for two seconds, volume control shifts from the DMC to the MC16, and pressing it again returns control to the DMC. This allows engineers to switch between stereo and surround projects effortlessly.

The Power of 120V Technology

The SPL 120V SUPRA operational amplifiers provide:

• +/-60V internal voltage: Four times the headroom of standard mastering consoles.
• Extreme dynamic range: Up to 135 dB for pure, uncompromised audio.
• Unrivaled sonic precision: Low distortion and detailed sound reproduction.
• Fatigue-free listening: Crystal-clear monitoring even during extended sessions.

Built for Precision and Longevity

• 4mm Black Anodized Aluminum Front Panel: Rugged and professional-grade construction.
• Illuminated Large Monitoring Level Potentiometer: Clearly visible level indication from a distance.
• Gold-Plated Neutrik XLR Connectors: Ensures the highest-quality signal integrity.

Specifications

Analog Inputs & Outputs:

• Maximum Input & Output Gain: +32.5 dBu
• Input Impedance: 20 kΩ
• Output Impedance: 75 Ω
• Common Mode Rejection: -82 dBu
• Frequency Range (-3 dB): 4 Hz – 300 kHz
• Noise (A-weighted, +24 dBu, Rec Out, Insert On): -101.6 dBu
• Noise (A-weighted, +24 dBu, Speaker Out): -103.9 dBu
• THD + N (+24 dBu, Rec Out, Insert On): > 112 dB
• THD + N (+24 dBu, Speaker Out): > 108 dB

Internal Linear Power Supply:

• Operating Voltage for Analog Audio: +/- 60V
• Operating Voltage for Relays & LEDs: +12V

Mains Power Supply:

• Mains Voltage (Selectable): 230V AC / 50Hz; 115V AC / 60Hz
• Fuse for 230V: T 1A
• Fuse for 115V: T 2A
• Power Consumption: Max 40 VA

Dimensions & Weight:

• W x H x D: 482 x 132 x 300 mm (19 x 5.2 x 11.8 inches)
• Unit Weight: 10.2 kg (22.49 lbs)
• Shipping Weight: 12.35 kg (27.22 lbs)

The SPL DMC All Black is the ultimate mastering-grade console, designed for audio professionals who demand the highest fidelity, control, and precision. Whether used for stereo, surround, or immersive audio projects, the DMC ensures the most accurate and transparent signal path possible.
