SPL MC16 All Black – 16-Channel Mastering Monitor Controller

The SPL MC16 is designed to monitor surround and immersive audio projects (Dolby Atmos®, Auro 3D®) in the analog domain, offering the same unrivaled quality as SPL’s 120V stereo monitoring. With 16 channels and two selectable inputs, it ensures pristine audio quality for professional mastering and mixing environments.

Key Features

• 16-Channel Monitoring: Designed for immersive and surround audio formats.
• Two Selectable 16-Channel Inputs: Quickly compare different audio sources.
• High-Precision Analog Volume Control: Custom 16-level potentiometer for superior accuracy.
• Customizable Speaker Labels: Assign exact speaker names for seamless workflow.
• Save & Recall Speaker Setups: Three memory presets for different configurations.
• Solo Mode Presets: Create groups for front, ceiling, and rear speakers.
• 120V Technology: Unique SPL technology delivers superior headroom, dynamic range, and sonic clarity.

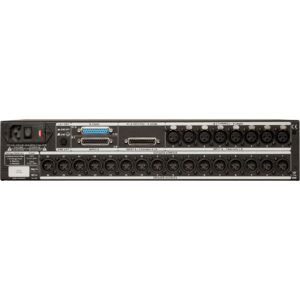

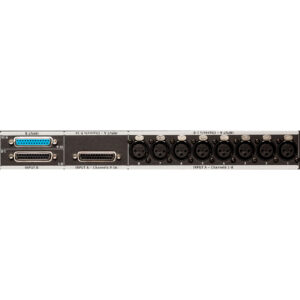

• High-Quality Analog Design: Fully balanced XLR & DB25 connections.

The Power of 120V Technology

The MC16 features SPL’s exclusive 120V technology, which operates at an unmatched DC voltage of +/-60V. This groundbreaking design ensures:

• +32.5 dBu Headroom: 12dB more than standard designs for ultimate clarity.
• Ultra-Low Distortion: Reduces ear fatigue for long mixing sessions.
• Extended Frequency Range: 4 Hz – 300 kHz for pristine audio reproduction.
• Unmatched Signal Integrity: Rich detail and effortless sound across all speakers.

Specifications

Analog Inputs & Outputs:

• Balanced XLR & DB25 connections
• Maximum input/output gain: 32.5 dBu
• Input impedance: 20 kΩ | Output impedance: 75 Ω
• Common mode rejection: -82 dBu
• Frequency range (-3 dB): 4 Hz – 300 kHz
• Crosstalk (1 kHz): -100 dBu
• THD + N (+24 dBu): > 112 dB
• Noise (A-weighted): -102.4 dB

Power Supply:

• Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage: +/- 60V (analog) | +12V (relays & LEDs)
• Mains Voltage: 230V AC / 50Hz or 115V AC / 60Hz (selectable)
• Power consumption: max. 70 VA

Dimensions & Weight:

• W x H x D: 482 x 88 x 300 mm (19 x 3.46 x 11.8 inches)
• Unit Weight: 8.4 kg (18.52 lbs)
• Shipping Weight: 11 kg (24.25 lbs)

With unparalleled analog performance, **the SPL MC16** is the ultimate choice for professional **immersive and surround sound monitoring**. Experience **120V technology** for an unmatched, fatigue-free mixing experience.
