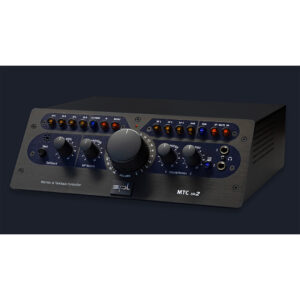

SPL MTC Mk2 – Next-Generation Monitor & Talkback Controller

The SPL MTC Mk2 is a high-end monitor and talkback controller designed for modern music production and professional studios. This latest iteration enhances the industry-standard MTC with advanced speaker selection, multiple monitoring modes, an integrated premium talkback system, high-powered headphone amplifiers with Phonitor Matrix, an artist mix input, and an improved internal audio voltage of ±18V for unparalleled audio fidelity. Whether mixing on speakers or headphones, the MTC Mk2 ensures precision monitoring with superior clarity and flexibility.

Key Features

• Precision Analog Volume Control: 45mm solid aluminum knob for intuitive and accurate adjustments.
• Three Speaker Outputs & Mono Subwoofer: Switch between stereo pairs and control subwoofers independently.
• Multiple Monitoring Modes: Stereo, mono, phase inversion, and LR Swap for detailed mix analysis.
• Mid-Side Monitoring: Isolate mid or side information for precise stereo field adjustments.
• High-End Headphone Output with Phonitor Matrix: Accurate speaker-like monitoring on headphones.
• Integrated Talkback System: Premium condenser microphone for crystal-clear communication.
• Dedicated Artist Mix Input: Seamless cue mix for monitoring in recording sessions.
• Metering Output: Connect external VU meters for professional metering.

Advanced Monitoring Controls

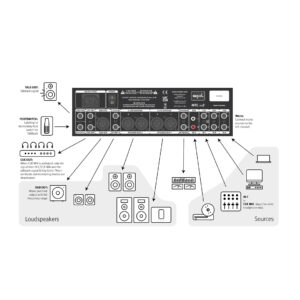

The MTC Mk2 allows seamless switching between up to four analog stereo inputs (balanced XLR/TRS and RCA). Each source can be summed for flexible reference monitoring. The stereo image can be altered via phase inversion and LR Swap, ideal for video dubbing and sample editing.

Superior Talkback & Cue Mix System

• High-fidelity condenser microphone ensures exceptional speech intelligibility.
• Assignable talkback routing to CUE OUT, artist headphones, or external speakers.
• Footswitch support allows hands-free talkback activation.
• Auto-level attenuation (-10 dB dip) improves communication clarity during playback.

Class-AB Headphone Amplifiers with Phonitor Matrix

Experience natural, fatigue-free headphone monitoring with SPL’s Phonitor Matrix. This analog circuit simulates speaker crosstalk for accurate spatial imaging.

• Crossfeed: Adjustable stereo field blending.
• Fixed 30° Speaker Angle: Mimics studio-standard monitoring conditions.
• -1 dB Center Level Attenuation: Ensures a natural stereo image.

Specifications

Analog Inputs & Outputs:

• XLR & TRS Jack (balanced), RCA (unbalanced)
• Maximum Input Gain (XLR, TRS Jack): 22.5 dBu
• Maximum Input Gain (RCA): 22.5 dBu
• Input Impedance (TRS Jack): 20 kΩ
• Input Impedance (RCA): 20 kΩ
• Output Impedance (XLR): 75 Ω

Audio Performance:

• Common Mode Rejection (1 kHz): 80 dBu
• Frequency Range (-3 dB): 10 Hz – 150 kHz
• THD+N (10 Hz – 22 kHz, 0 dBu): 0.0027%
• Noise (A-weighted): -94.3 dBu
• Dynamic Range (XLR, TRS Jack): 116.3 dB
• Dynamic Range (RCA): 116.3 dB

Power Supply:

• Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating Voltage for Analog Audio: ±18 V
• Operating Voltage for Relays & LEDs: +12 V
• Mains Voltage: 85-264 V AC / 47-440 Hz
• Power Consumption: 15 W

Dimensions & Weight:

• W x H x D: 272 x 91 x 275 mm (10.71 x 3.58 x 10.83 inches)
• Weight: 3 kg (6.61 lbs)
• Shipping Weight: 4.2 kg (9.26 lbs)

Designed for modern studios, the SPL MTC Mk2 is the ultimate monitor controller, delivering pristine sound quality, flexible monitoring, and seamless artist communication.
