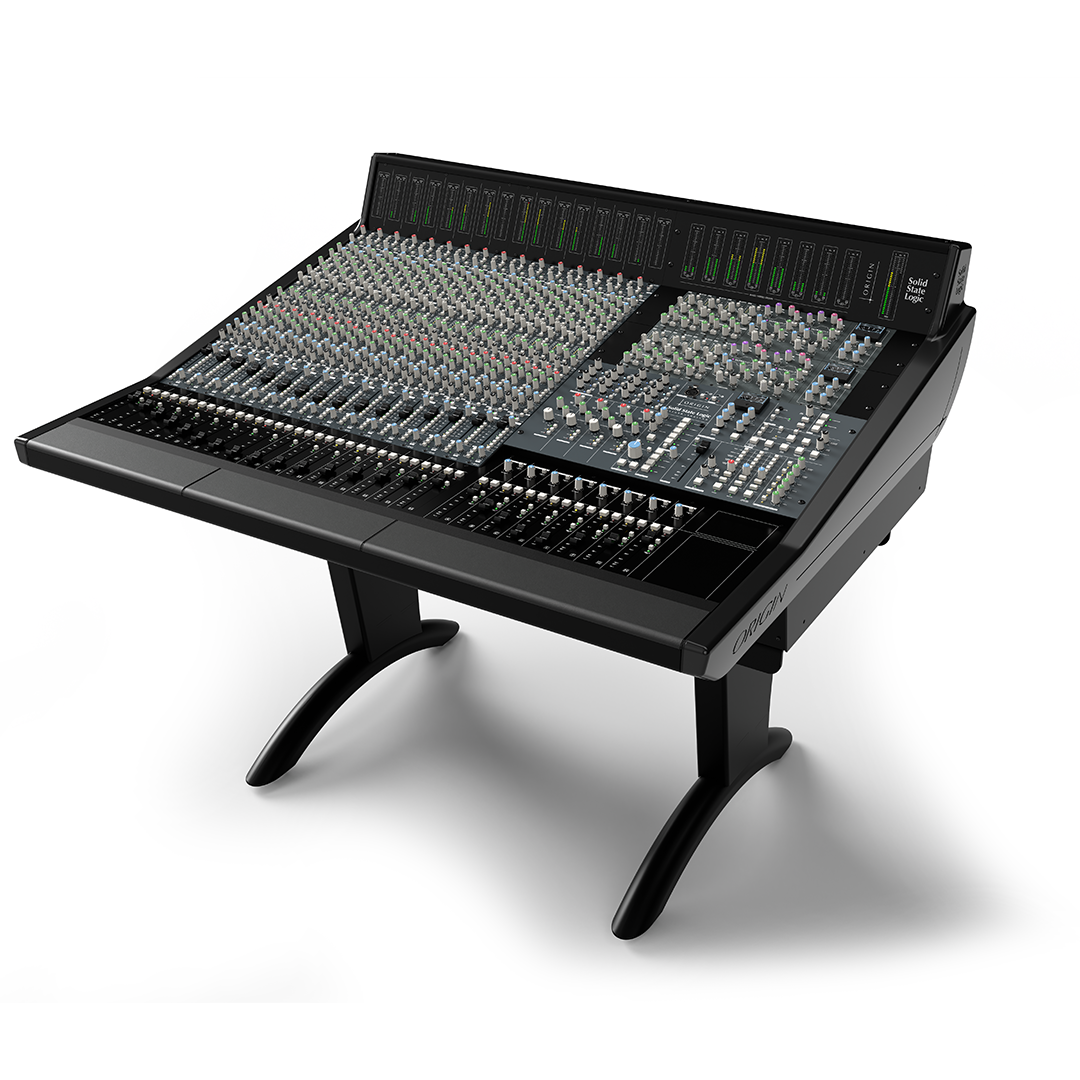

Solid State Logic ORIGIN EVO 16-Channel In-Line Analog Console

ORIGIN EVO carries forward the legacy of SSL’s iconic 4000 E Series console while integrating modern hybrid workflows. This 16-channel in-line design delivers up to 88 inputs at mixdown through small and large faders, featuring flexible PureDrive™ mic preamps that switch from ultra-clean transparency to warm, driven tones, authentic E Series dynamics with true RMS sidechain and Class A VCA circuitry, and the legendary 242 Black Knob EQ developed in collaboration with Sir George Martin. The enhanced Bus Compressor adds new compression ratios, built-in sidechain filter, and insert return while delivering the classic SSL glue and punch. A modular 19-inch rack-based centre section seamlessly integrates UF8 DAW control and custom outboard processing within arm’s reach, while advanced electronic bus routing eliminates traditional top-of-channel switches for improved ergonomics and reliability. With 0dB fader bypass for stem printing, insert points on every path, high and low-pass filters switchable to dynamics sidechain, and Auto Sleep power management, ORIGIN EVO faithfully recreates the character that defined the E Series and evolves it for contemporary production.

Key Features:

• PureDrive™ Mic Preamps: Discrete transistor design delivers +70dB of pristine, low-noise gain with switchable DRIVE mode (evolved from VHD technology) for warm, harmonically rich coloration when tracks demand character.

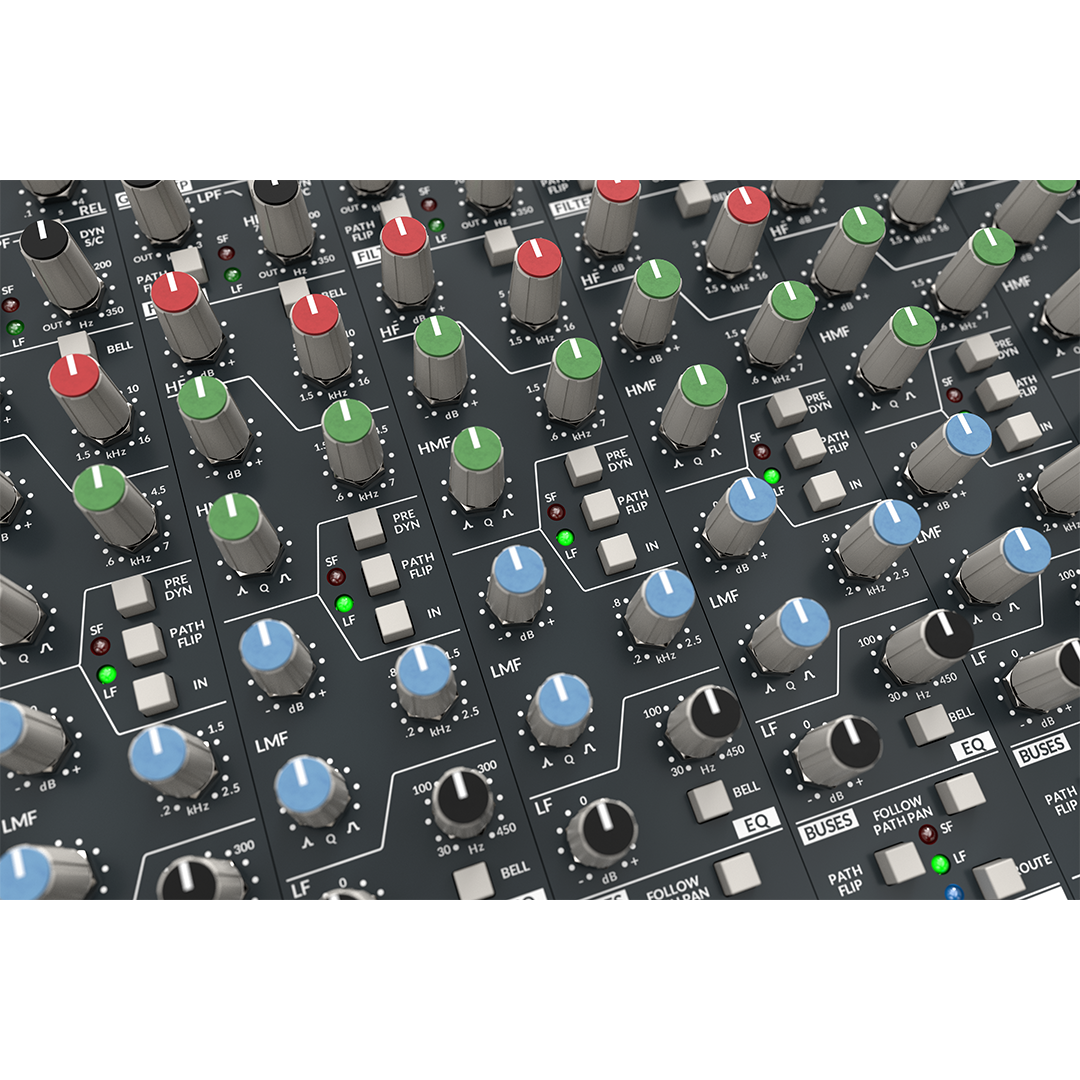

• Authentic E Series 242 Black Knob EQ: Four-band parametric EQ developed with Sir George Martin features dedicated HMF and LMF Q controls, HF/LF bell/shelf switching, and true circuit bypass for the professional shaping trusted for over four decades.

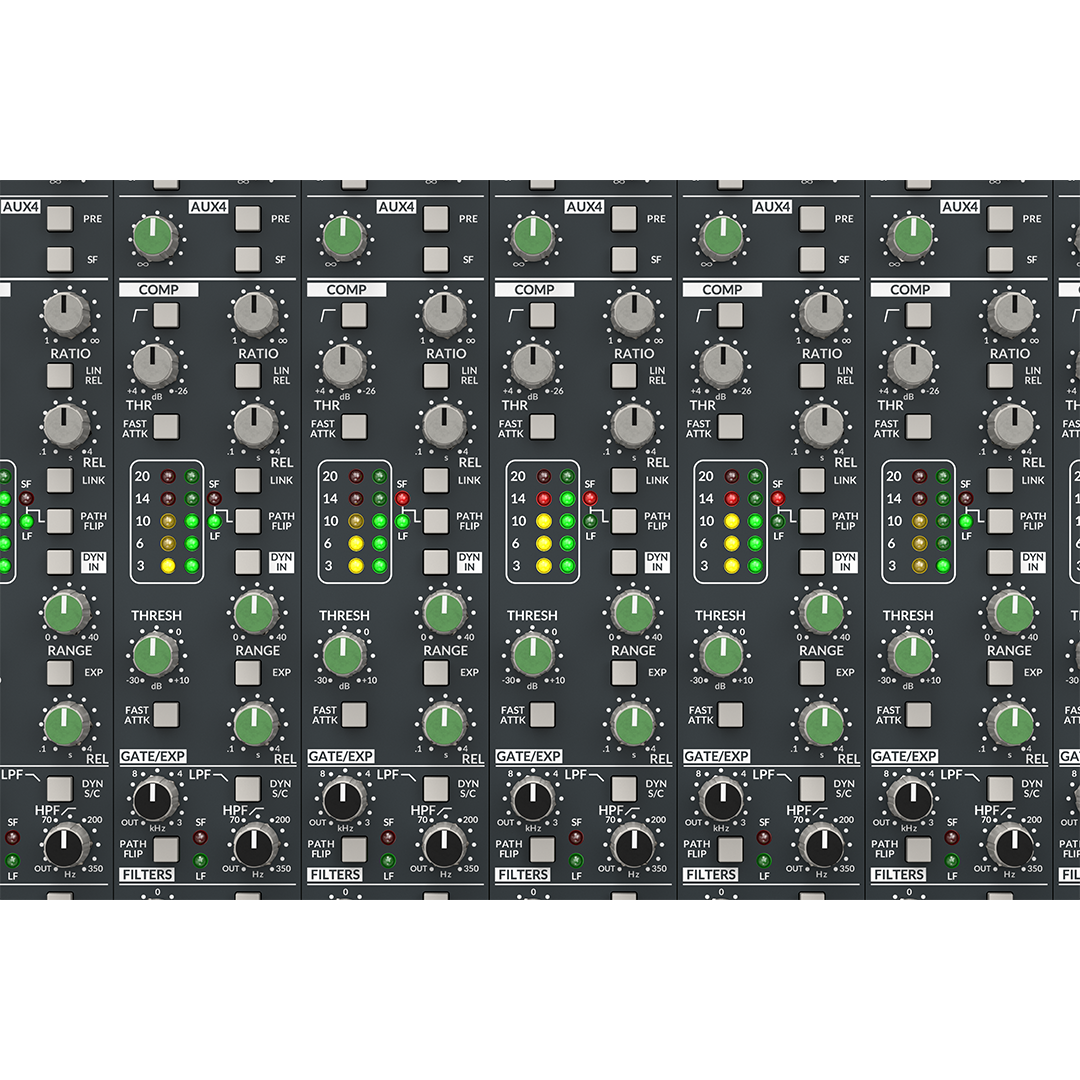

• E Series Dynamics on Every Channel: Compressor/limiter and expander/gate with true RMS sidechain detector, authentic Class A VCA chip, and three distinct compression characteristics via bypassable soft-knee, fast attack, and logarithmic/linear release options, plus channel linking.
• Enhanced SSL Bus Compressor: Legendary mix bus cohesion with new compression ratios, built-in sidechain high-pass filter, and insert return for external processing while maintaining the signature glue, power, and clarity of the original circuit.
• High and Low-Pass Filters: 18dB/octave HPF and 12dB/octave LPF with flexible routing (switchable to dynamics sidechain for gating drums or de-essing) and reversible EQ/Filter order for enhanced tonal shaping.
• Advanced Electronic Bus Routing: Single ROUTE select switch per channel addresses centrally located bus assignments with intelligent multi-select operation, eliminating repetitive reaching and improving reliability over traditional switch-based routing.

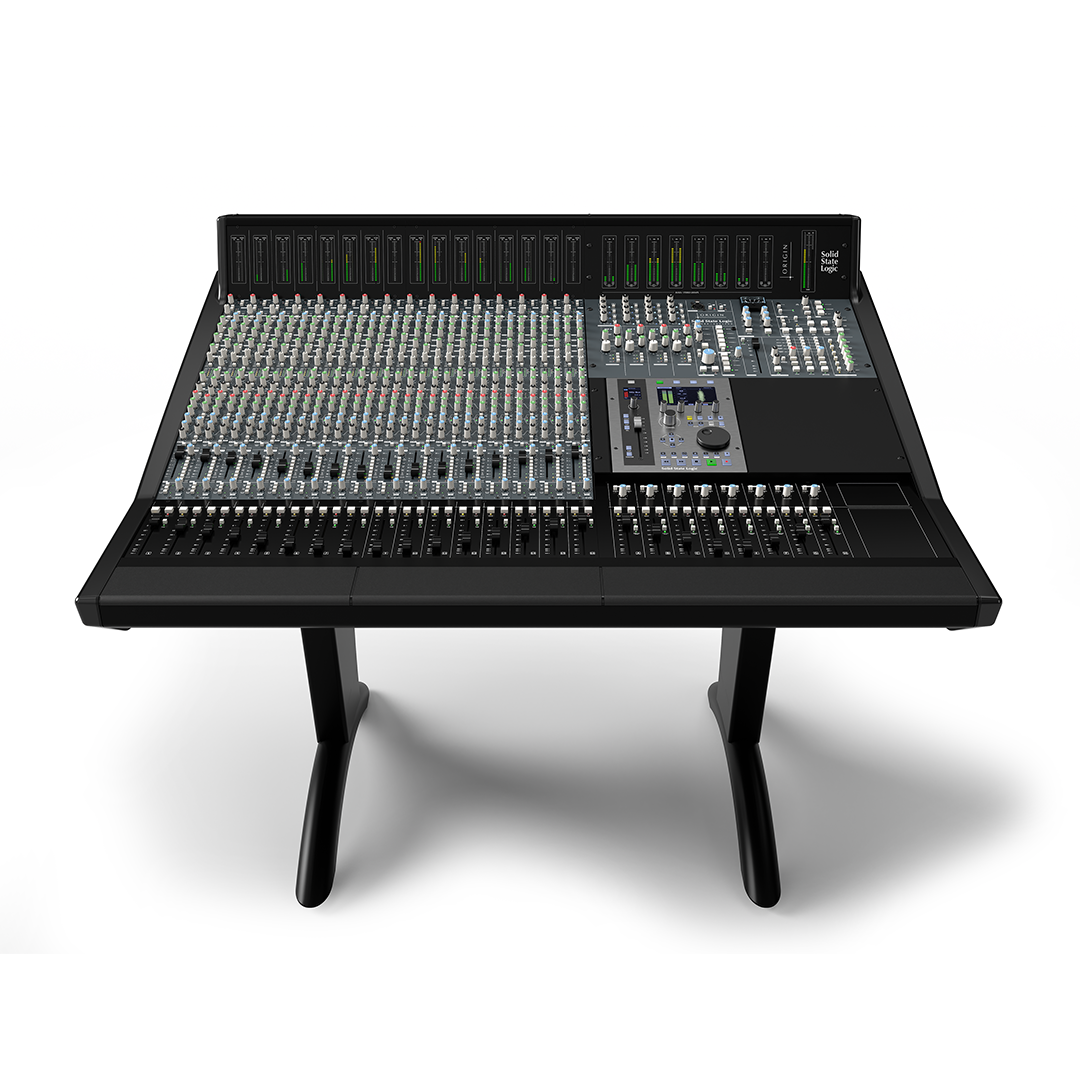

• Modular Centre Section for Hybrid Workflows: 19-inch rack-based design seamlessly integrates UF8 DAW controller, allows stereo group fader tile repositioning, accommodates custom outboard processing, and features movable 3U meter panel for optimal ergonomics.
• Optimized for Modern Production: 0dB fader bypass for stem printing, insert points on small and large faders, direct channel outputs, Auto Sleep power management, and comprehensive monitoring with alternate sources, dim, mono, polarity switching, and four stereo return inputs.

Specifications

• Format: 16-channel in-line analog console
• Inputs at Mixdown: Up to 88
• Faders per Channel: Small + Large
• Mic Preamps: PureDrive™ discrete transistor design, +70dB clean gain, switchable DRIVE mode
• Channel EQ: E Series 242 Black Knob (four-band parametric, HF/LF bell/shelf, dedicated HMF/LMF Q controls)
• Channel Dynamics: E Series compressor/limiter + expander/gate (true RMS sidechain, Class A VCA, three distinct characters, channel linking)
• High-Pass Filter: 18dB/octave (switchable to dynamics sidechain)
• Low-Pass Filter: 12dB/octave (switchable to dynamics sidechain)
• Bus Compressor: Enhanced SSL design with new ratios, sidechain HPF, insert return
• Mix Bus: High-headroom all-analog design with 100mm fader, fully balanced switched insert
• Stereo Cue Buses: 2
• Mono Buses: 4
• Track Buses: 16 (with ±10dB trims and routing assigns)
• Centre Section: Modular 19-inch rack-based (accommodates UF8, custom outboard, repositionable components)
• Bus Routing: Advanced electronic switching with single ROUTE select and multi-select operation
• Monitoring: Independent trims for Alt Mon 1/2, variable DIM, MONO, L/R mutes, polarity switch, multiple source selection with Sum
• Return Inputs: 4 stereo (route to mix and track buses, level-controlled feeds to Stereo Foldback A/B)
• Solo Section: Solo-In-Front with mix balance, Solo-In-Place (Large/Small/Group faders), PFL, Solo Level, Solo Clear, Red Light
• Power Management: Auto Sleep (automatic standby during inactivity)
• Insert Points: Every path (small and large faders)
• Direct Outputs: Per channel
• Fader Bypass: 0dB for stem printing
• Power Requirements: 100V–240V AC, 6.0A–12.0A
