Telefunken ELA M 260 Cardioid Stereo Set

Condition: Brand New
Telefunken ELA M 260 Cardioid Stereo Set
Telefunken ELA M 260 Cardioid Stereo Set - Image 2
Telefunken ELA M 260 Cardioid Stereo Set - Image 3
Telefunken ELA M 260 Cardioid Stereo Set - Image 4
Telefunken ELA M 260 Cardioid Stereo Set - Image 5
SKU SYTM-098 Categories , , Tag Brand:
Condition: Brand New

Telefunken ELA M 260 Cardioid Stereo Set

0 reviews

$2,895.00

or pay $482.50/month for 6 months* with the Providence Synchrony Card

Free shipping to the lower 48 states for orders of $99 and up.
Easy, Flexible Financing

We’ll match competitor 0% financing offers —
and accept most Synchrony cards.

Questions About This Product?

Call +1 (323) 617-9393

Chat with us

Email info@provsv.com

AVAILABLE TO ORDER
This product is not stocked for immediate shipment. Estimated delivery timing will be provided after checkout.

Telefunken ELA M 260 Cardioid Stereo Set

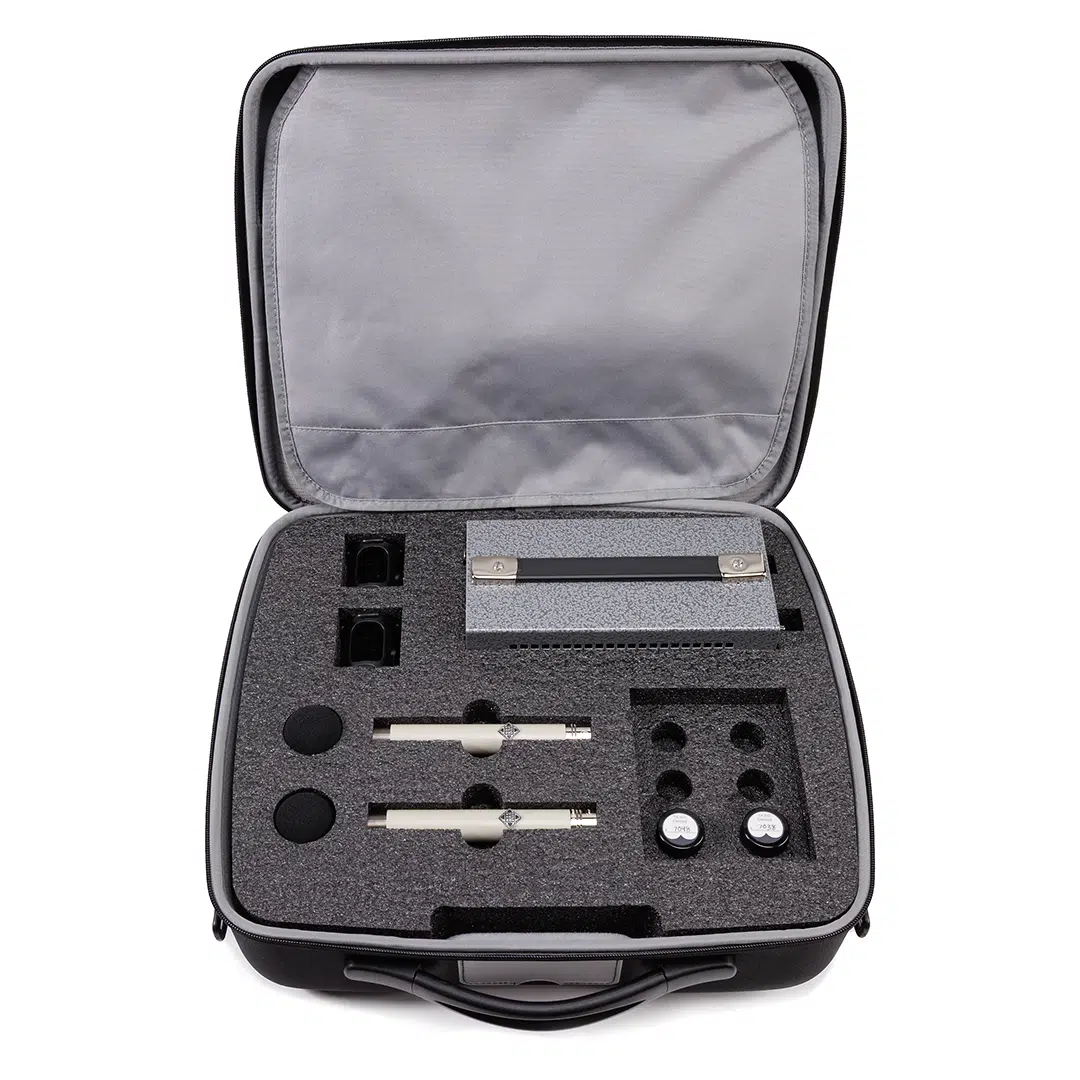

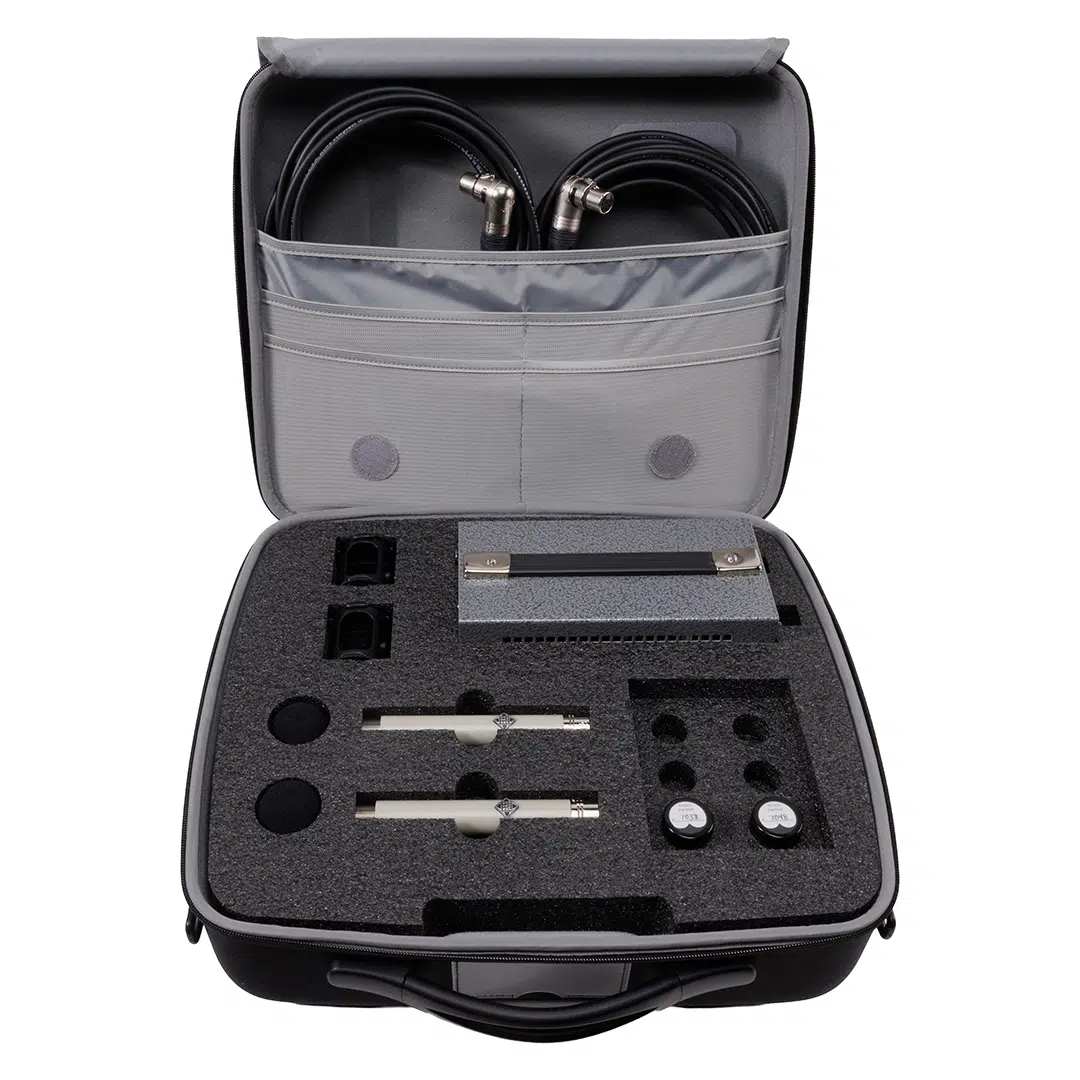

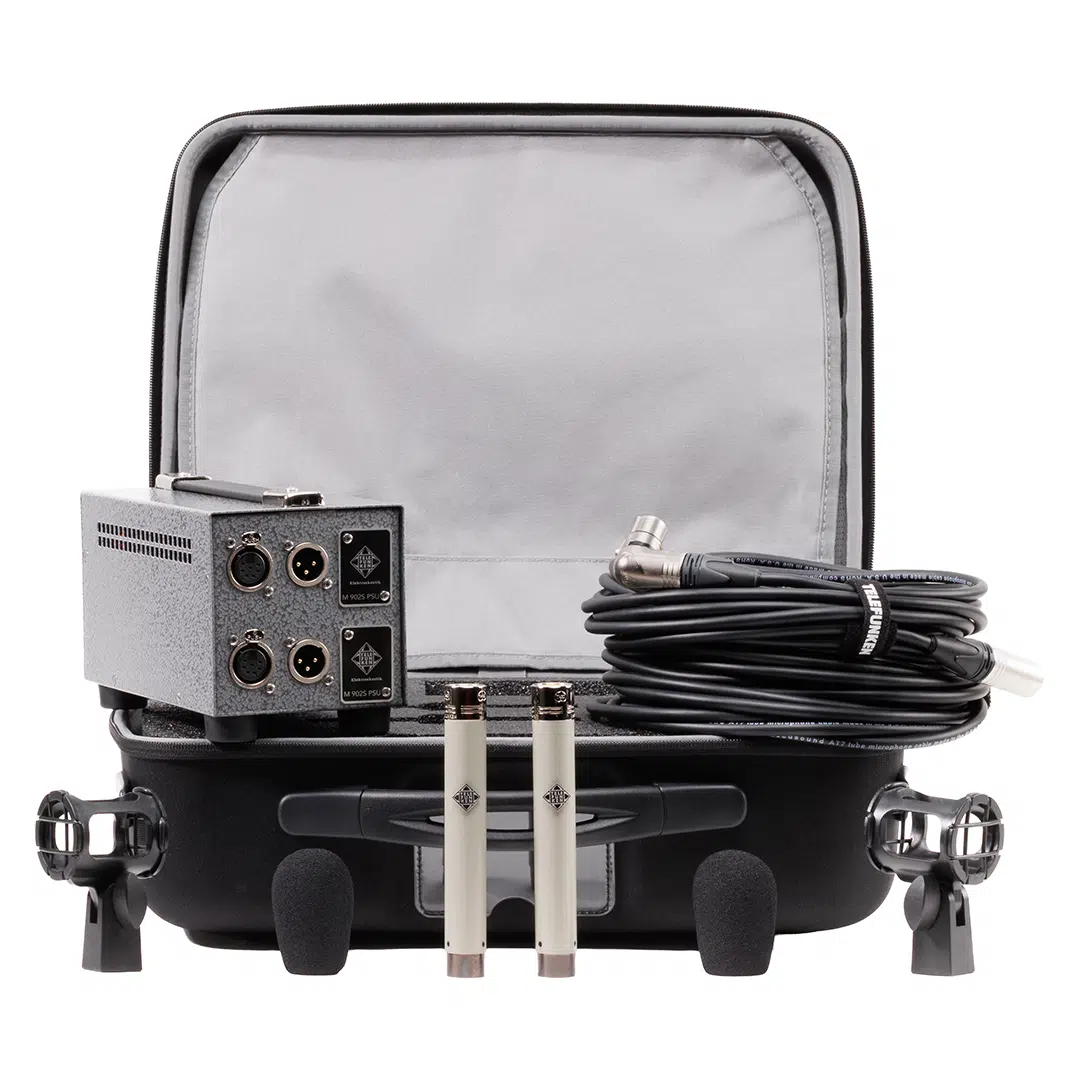

The Telefunken ELA M 260 Cardioid Stereo Set delivers a factory-matched pair of ELA M 260 tube microphones with TK60 Cardioid capsules, built for stereo acoustic recording where both transient precision and tonal warmth are essential. Each microphone shares the same hand-assembled USA construction, NOS Philips 5840W vacuum tube circuit, and custom American-made Telefunken Elektroakustik T60 output transformer, providing the matched character that consistent stereo imaging requires across XY, ORTF, and spaced pair configurations. The set ships with the M 902S dual-channel power supply, matched cables, elastic shock mounts, and windscreens in a ZC60S zipper case — everything needed for a complete matched stereo rig, in Los Angeles sessions and on location. The ELA M 260 Cardioid Stereo Set is a purpose-built matched system for engineers who want small diaphragm tube performance ready to deploy for acoustic instrument recording.

Key Features

  • Factory-matched pair of ELA M 260 tube microphones with TK60 Cardioid capsules
  • NOS Philips 5840W vacuum tube amplifier circuit in each body
  • Custom U.S.-made Telefunken Elektroakustik T60 output transformer

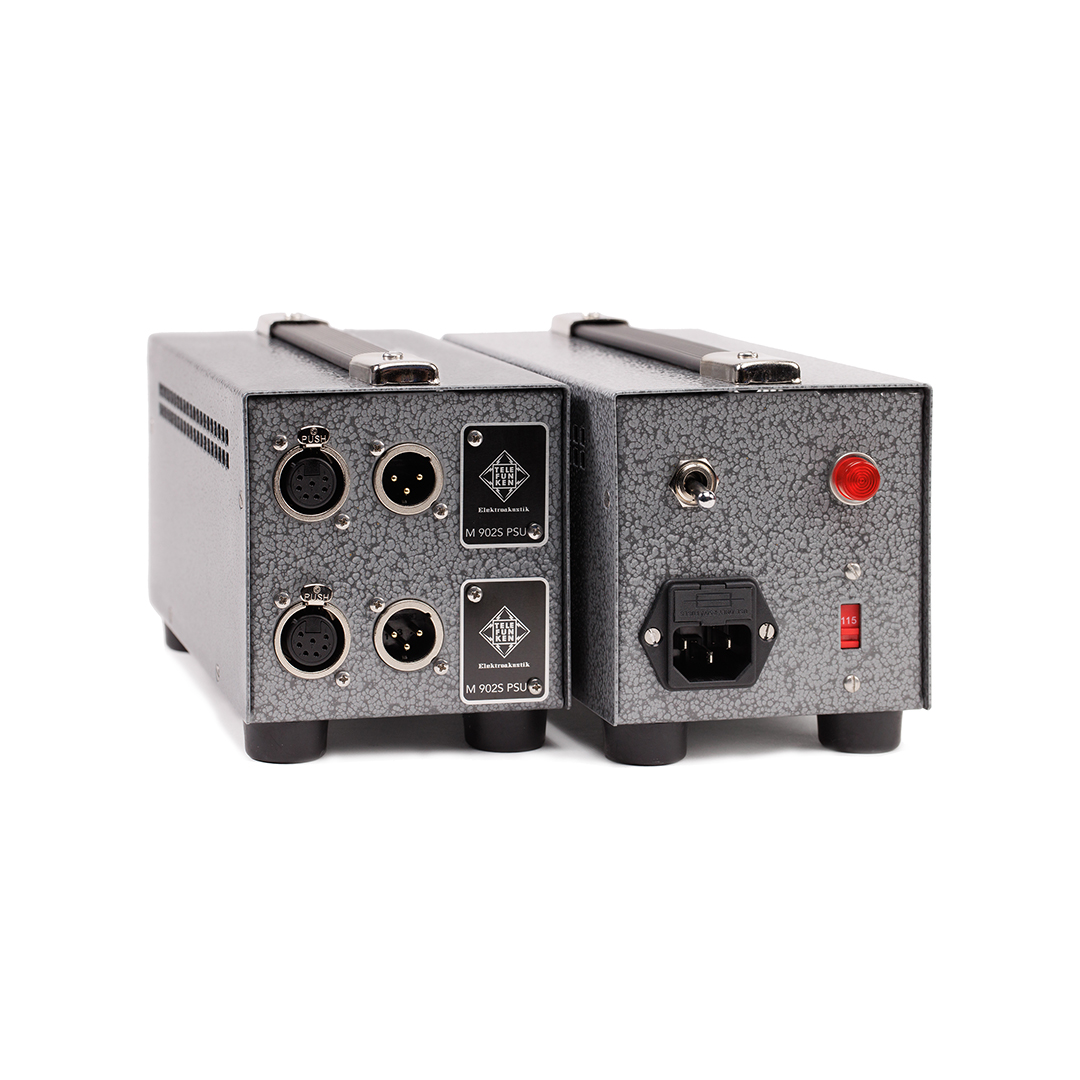

  • M 902S dual-channel power supply included
  • Matched construction for consistent stereo imaging and tonal balance
  • Flattering tone and open top end complements most acoustic instruments
  • 135 dB maximum SPL with 11 dBA self noise per microphone
  • Designed and hand-assembled in the USA

Specifications

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK60 — Edge Terminated Small Diaphragm, Thread-on
  • Tube: NOS Philips 5840W
  • Transformer: Telefunken Elektroakustik T60
  • Sensitivity: 16.5 mV/Pa, ±1 dB
  • THD at 1 kHz at 1 Pa (Amplifier): <0.15%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • S/N Ratio: 83 dBA
  • Self Noise (Amplifier): 11 dBA
  • Dimensions: 5.51″ L × 0.79″ Dia. (per microphone)
  • Weight: 0.26 lbs (per microphone)

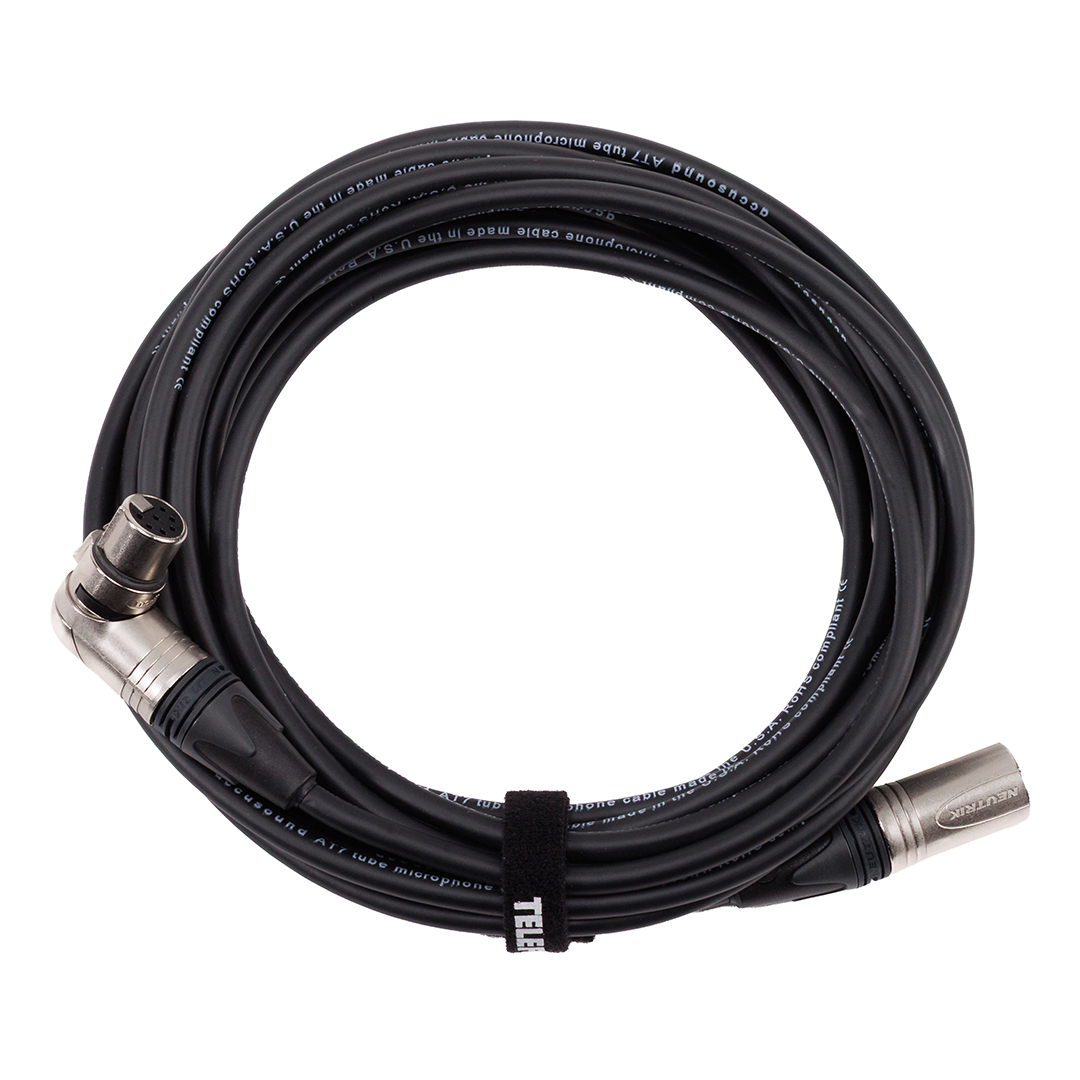

  • Included Accessories: (2) M 260 Tube Microphones, (2) TK60 Cardioid Capsules, M 902S Power Supply, (2) M 860 Right Angle 7-Pin XLR Tube Microphone Cables – 7m, (2) M 761 Elastic Shock Mounts, (2) WS20 20mm Foam Windscreens, ZC60S Zipper Case
