Telefunken ELA M 260 Master Set

Condition: Brand New
Telefunken ELA M 260 Master Set
Telefunken ELA M 260 Master Set - Image 2
Telefunken ELA M 260 Master Set - Image 3
SKU SYTM-013 Categories , , Tag Brand:
Condition: Brand New

Telefunken ELA M 260 Master Set

0 reviews

$1,695.00

or pay $282.50/month for 6 months* with the Providence Synchrony Card

Free shipping to the lower 48 states for orders of $99 and up.
Easy, Flexible Financing

We’ll match competitor 0% financing offers —
and accept most Synchrony cards.

Questions About This Product?

Call +1 (323) 617-9393

Chat with us

Email info@provsv.com

AVAILABLE TO ORDER
This product is not stocked for immediate shipment. Estimated delivery timing will be provided after checkout.

Telefunken ELA M 260 Master Set

The Telefunken ELA M 260 Master Set is among the rare small diaphragm tube microphones in production today, pairing a vintage-inspired NOS Philips 5840W vacuum tube amplifier with three interchangeable, thread-on TK6x Series capsules — TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid — for complete polar pattern flexibility in a single system. Hand-assembled in the USA with a custom American-made Telefunken Elektroakustik T60 output transformer, the ELA M 260 delivers the transient precision of a small diaphragm condenser alongside the tonal warmth and character that define classic tube recording. The Master Set ships as a complete system — microphone, three capsules, power supply, shock mount, cable, and case — suited to engineers and producers who record across a broad range of acoustic sources and session types. From strings and brass to woodwind, percussion, and drum overheads, the ELA M 260 offers tonal detail and an open top end that reward close, critical listening.

Key Features

  • Vintage-inspired NOS Philips 5840W vacuum tube amplifier circuit
  • Three thread-on TK6x Series capsules included: TK60 Cardioid, TK61 Omnidirectional, TK62 Hypercardioid
  • Custom U.S.-made Telefunken Elektroakustik T60 output transformer
  • Small diaphragm precision with classic tube warmth and open top end
  • 135 dB maximum SPL with 11 dBA self noise
  • Designed and hand-assembled in the USA
  • Recommended for acoustic guitar, violin, mandolin, brass, woodwind, and drum overheads

Specifications

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Hypercardioid (interchangeable thread-on capsules)
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsules: TK60, TK61, TK62 — Edge Terminated Small Diaphragm, Thread-on
  • Tube: NOS Philips 5840W
  • Transformer: Telefunken Elektroakustik T60
  • Sensitivity: 16.5 mV/Pa, ±1 dB
  • THD at 1 kHz at 1 Pa (Amplifier): <0.15%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • S/N Ratio: 83 dBA
  • Self Noise (Amplifier): 11 dBA
  • Dimensions: 5.51″ L × 0.79″ Dia.
  • Weight: 0.26 lbs

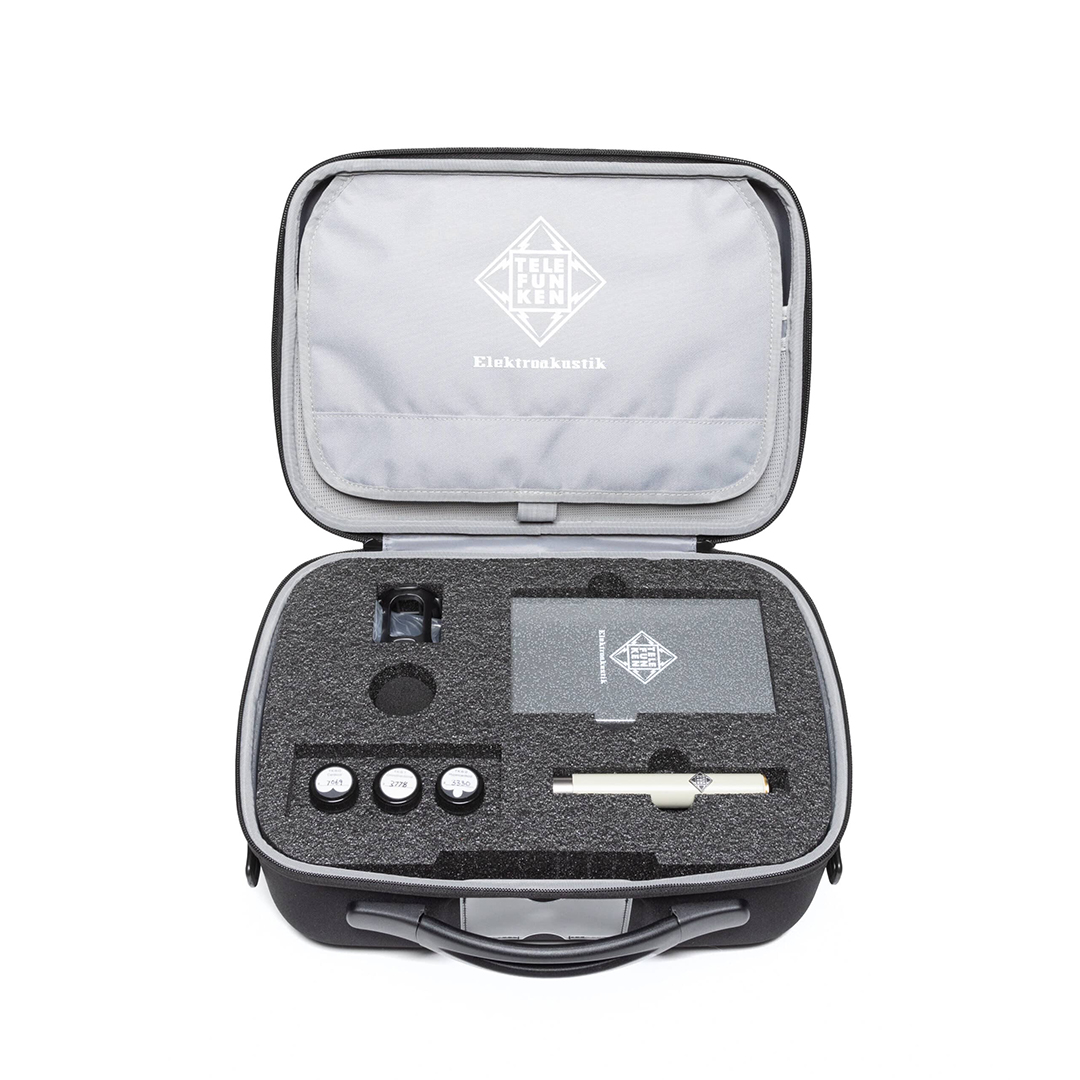

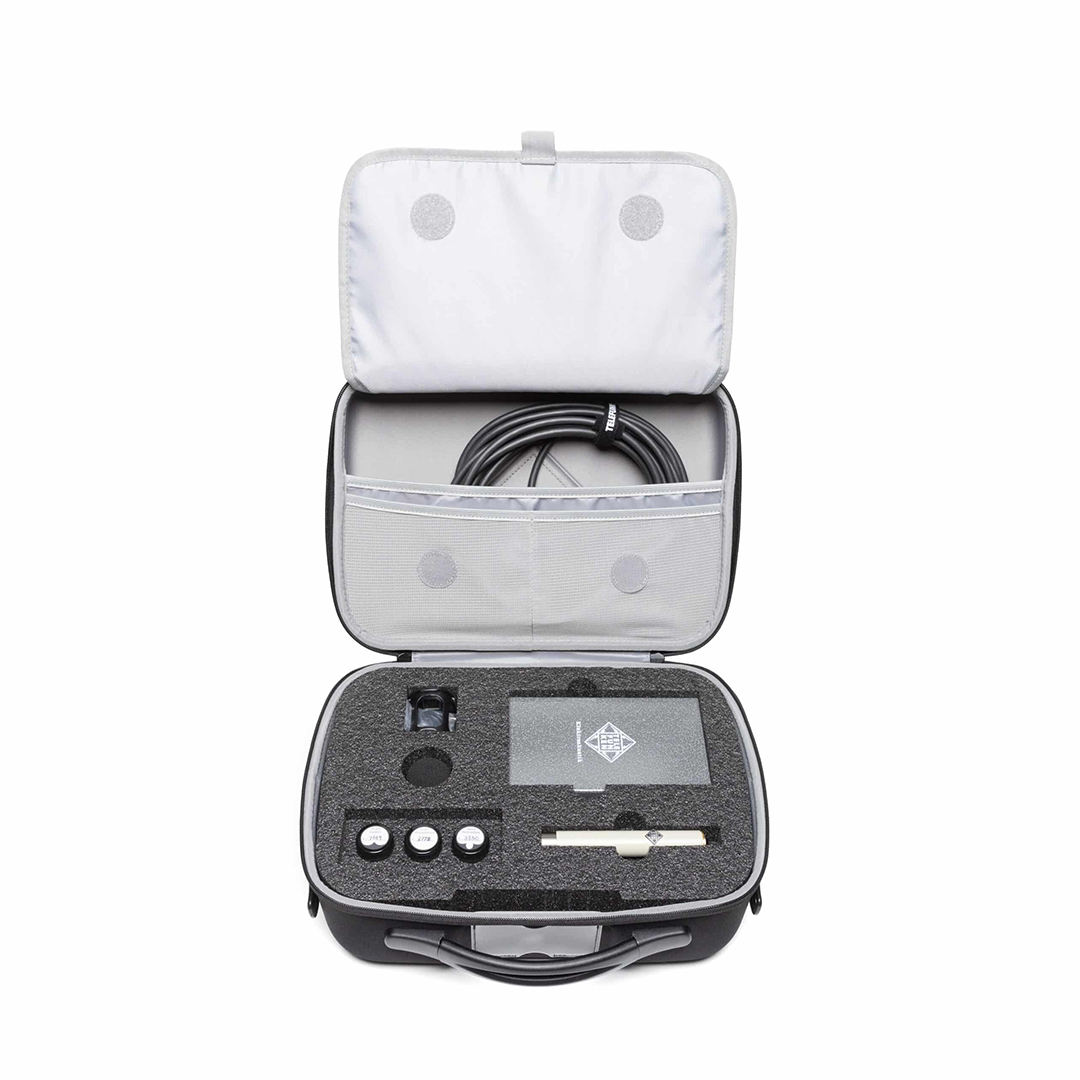

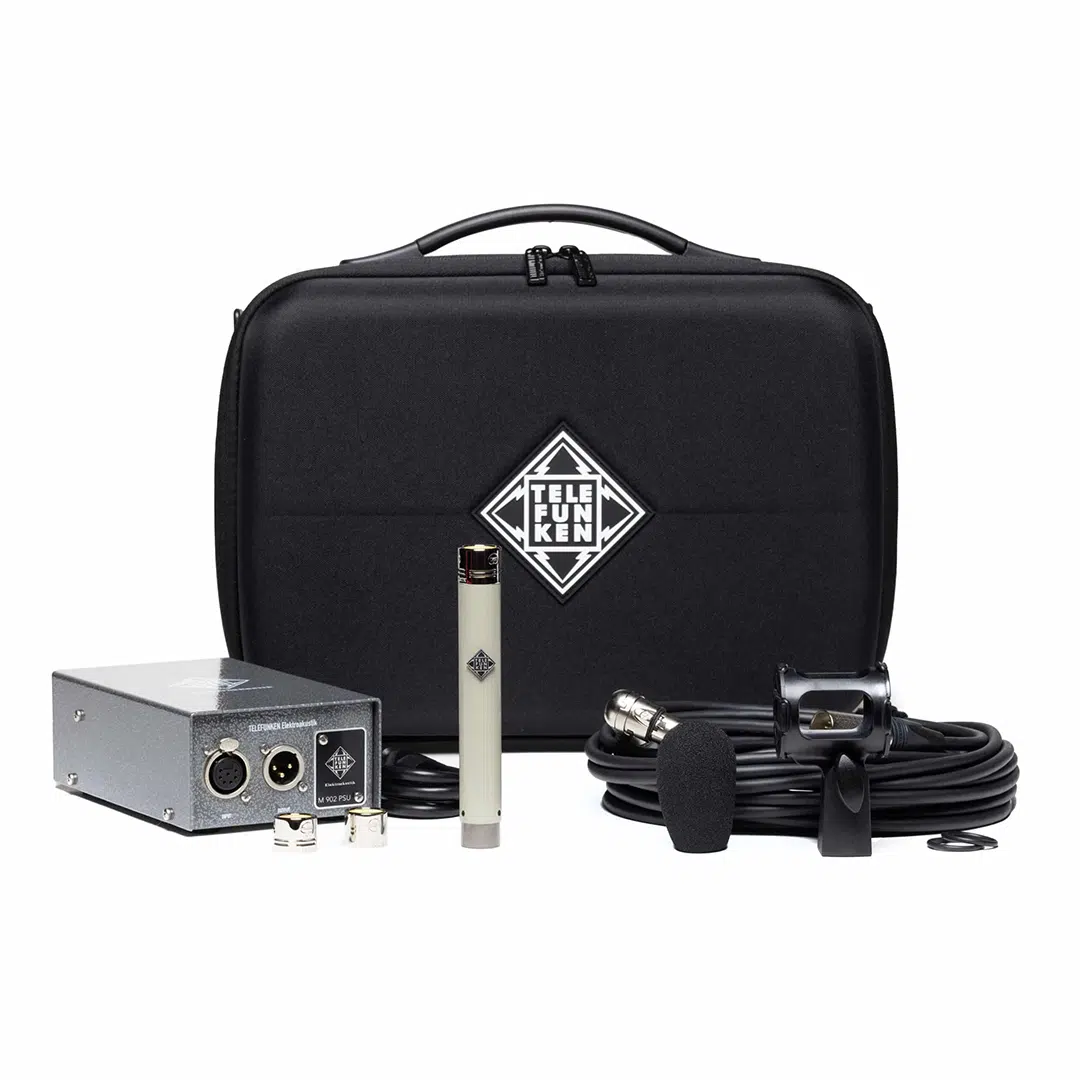

  • Included Accessories: M 260 Tube Microphone, TK60 Cardioid Capsule, TK61 Omni Capsule, TK62 Hypercardioid Capsule, M 902 Power Supply, M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m, M 761 Elastic Shock Mount, WS20 20mm Foam Windscreen, ZC60 Zipper Case
