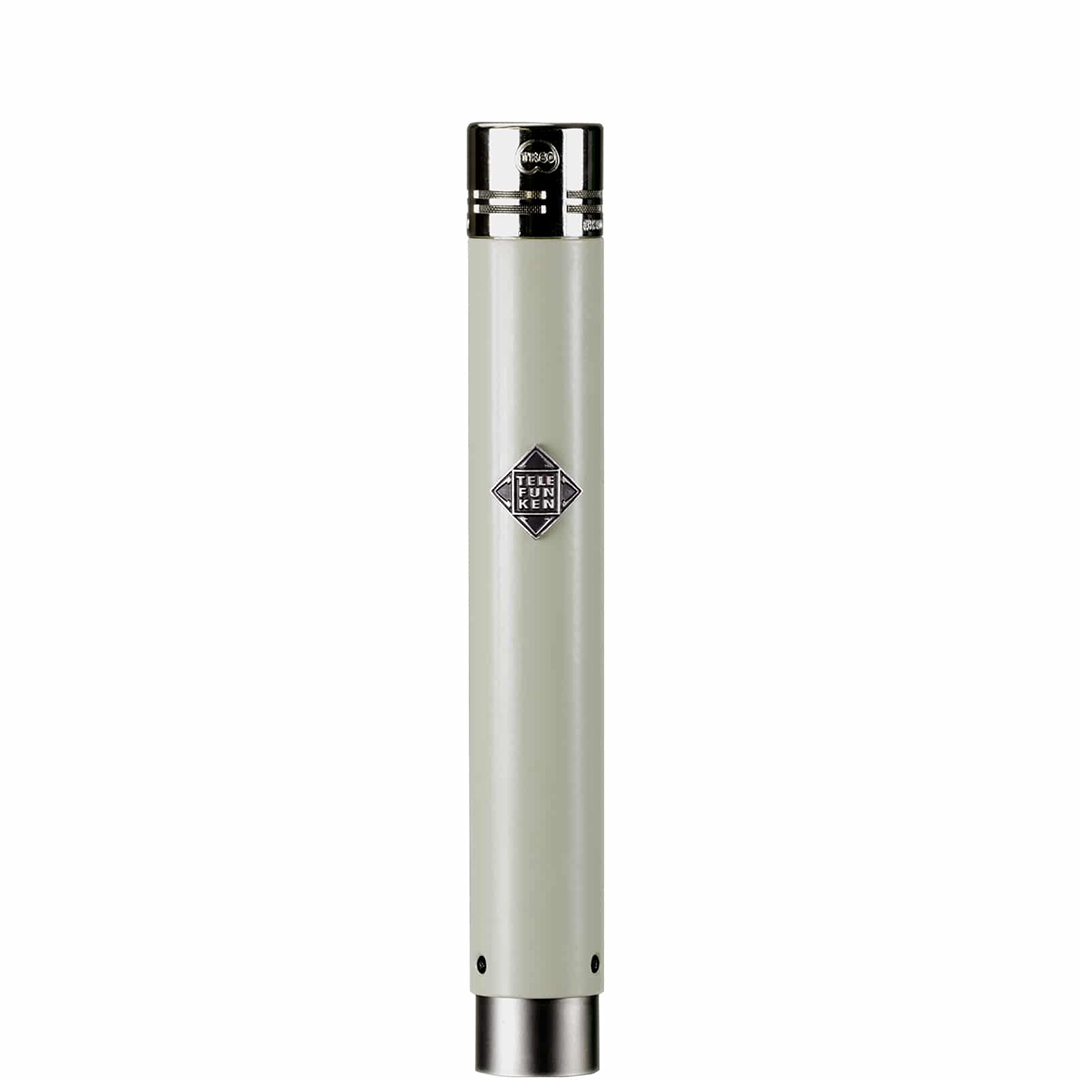

Telefunken ELA M 260 Cardioid

The Telefunken ELA M 260 is one of the few small diaphragm tube microphones in production today, combining a vintage-inspired NOS Philips 5840W vacuum tube circuit with a hand-assembled USA body and the transient accuracy and focused pickup of an edge-terminated small diaphragm cardioid. The TK60 Cardioid capsule pairs with a custom American-made Telefunken Elektroakustik T60 output transformer to produce a flattering tonal character and open top end that complements acoustic instruments — strings, brass, woodwind, and percussion — without the clinical edge that many condensers can introduce. The ELA M 260 Cardioid ships as a complete, ready-to-record system with a power supply, elastic shock mount, cable, and carrying case. For engineers and producers looking to add genuine tube character to small diaphragm recording without sacrificing precision or transient response, the ELA M 260 is a compelling and well-resolved choice.

Key Features

  • Vintage-inspired NOS Philips 5840W vacuum tube amplifier circuit
  • TK60 Edge Terminated Small Diaphragm Cardioid capsule
  • Custom U.S.-made Telefunken Elektroakustik T60 output transformer
  • Flattering tone and open top end complements most acoustic instruments
  • 135 dB maximum SPL with 11 dBA self noise
  • Designed and hand-assembled in the USA
  • Recommended for acoustic guitar, violin, mandolin, brass, woodwind, and drum overheads

Specifications

  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK60 — Edge Terminated Small Diaphragm, Thread-on
  • Tube: NOS Philips 5840W
  • Transformer: Telefunken Elektroakustik T60
  • Sensitivity: 16.5 mV/Pa, ±1 dB
  • THD at 1 kHz at 1 Pa (Amplifier): <0.15%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • S/N Ratio: 83 dBA
  • Self Noise (Amplifier): 11 dBA
  • Dimensions: 5.51″ L × 0.79″ Dia.
  • Weight: 0.26 lbs

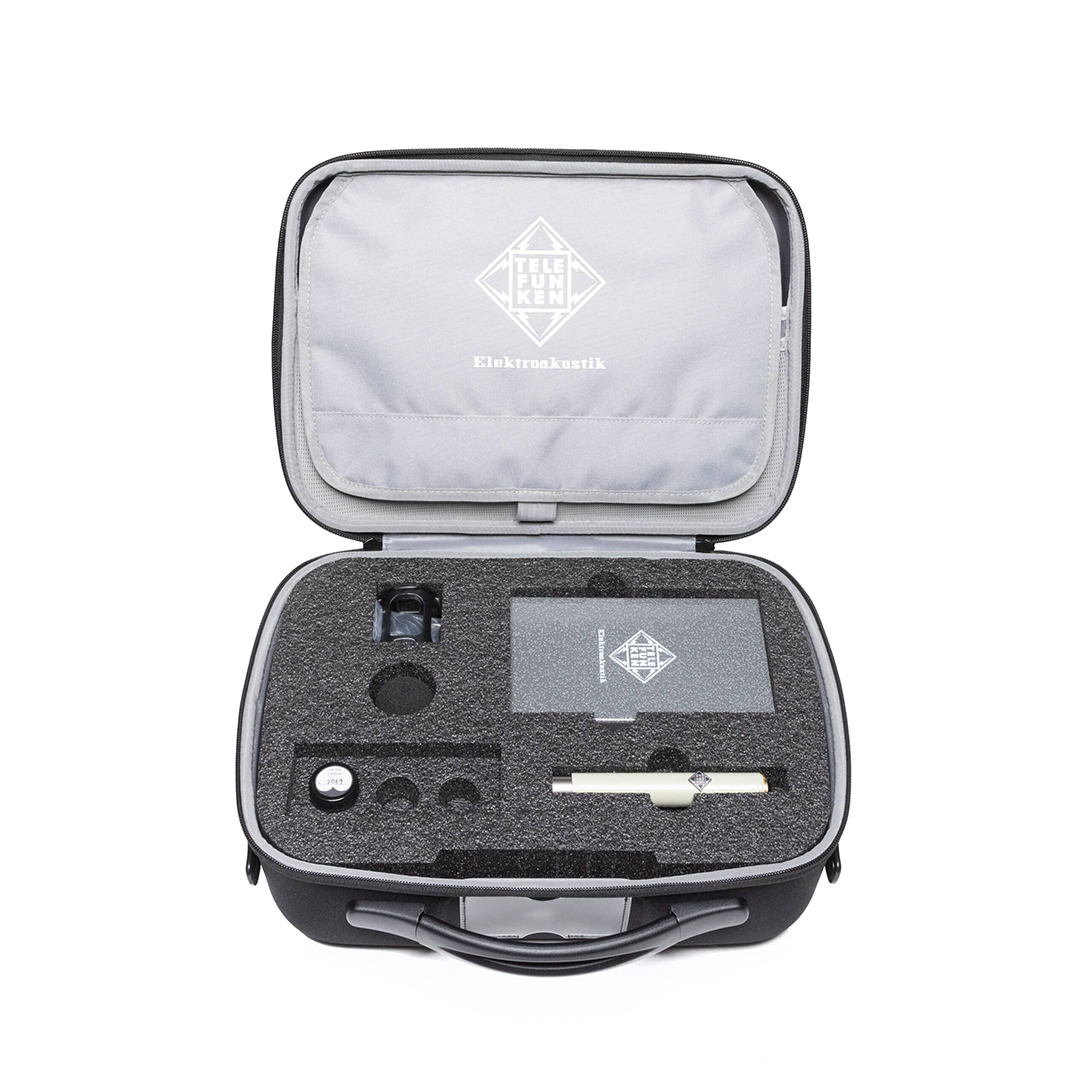

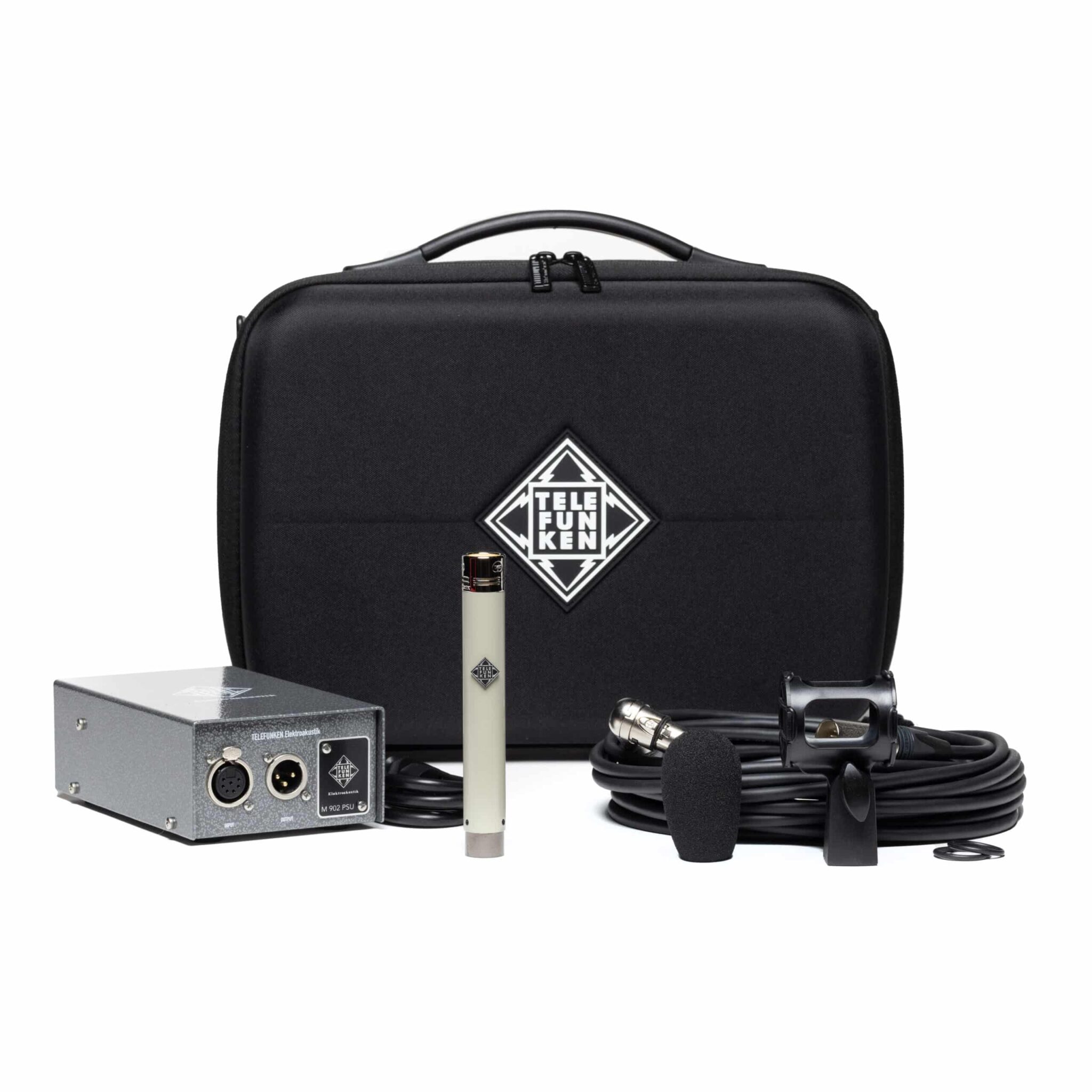

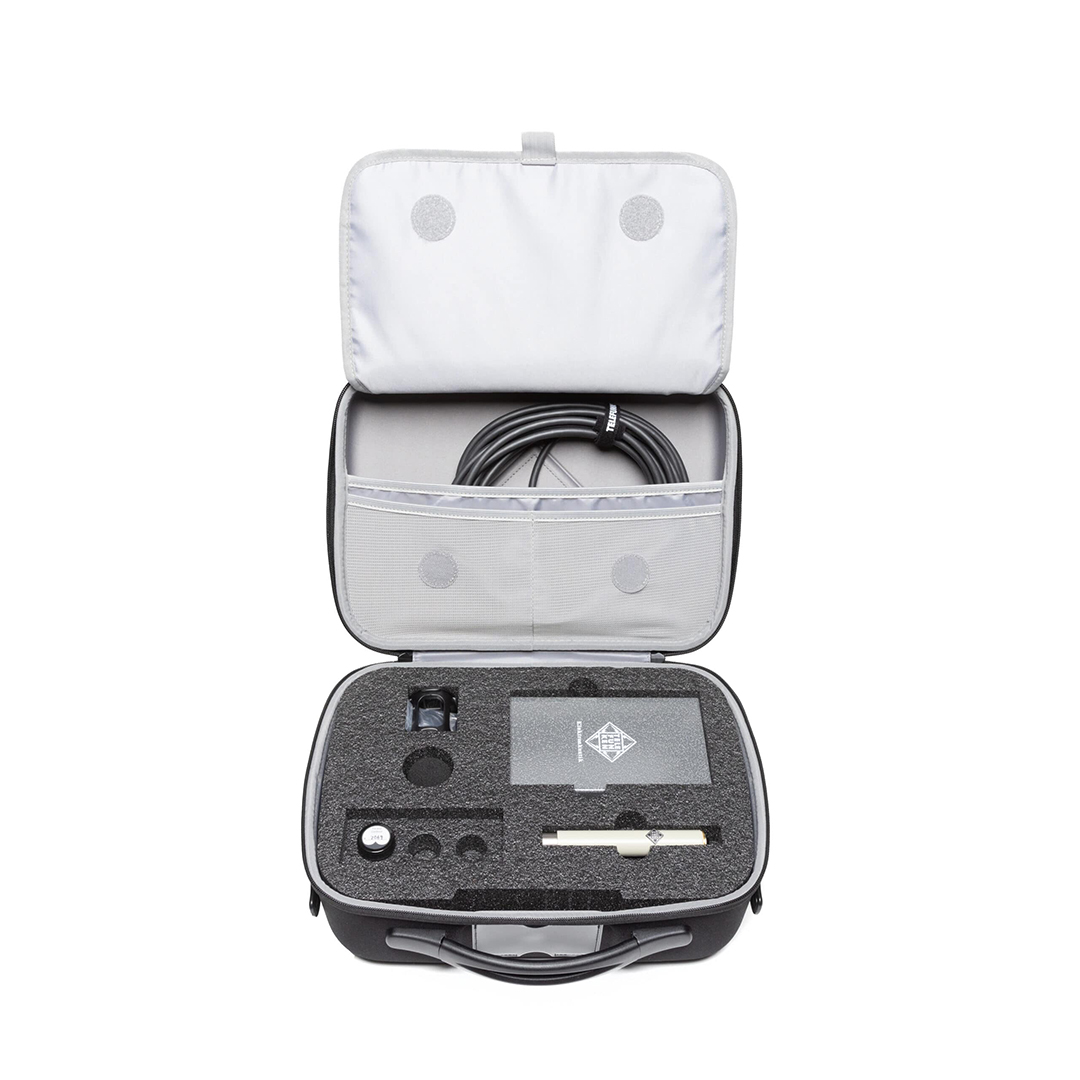

  • Included Accessories: M 260 Tube Microphone, TK60 Cardioid Capsule, M 902 Power Supply, M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m, M 761 Elastic Shock Mount, WS20 20mm Foam Windscreen, ZC60 Zipper Case
