TELEFUNKEN M60 STEREO SET

The M60 is a microphone designed for capturing acoustic and percussive instruments with impressive clarity and subtle tonality. Hand-assembled in the USA using premium components, it features a true class-A discrete circuit paired with an American-made transformer. The M60’s combination of punchy tone, extended frequency response, and interchangeable capsules makes it a reliable choice for capturing the dynamic and detailed qualities of acoustic and percussive instruments in various recording and live sound scenarios.

Key Features

• Sound Character: The M60 is known for its punchy tone with extended high-frequency clarity and low-frequency definition. This makes it well-suited for capturing the nuances of acoustic and percussive instruments.
• Circuit Topology: The microphone utilizes an ultra-clean, true class-A discrete circuit. This circuit design contributes to the M60’s ability to capture a wide frequency range, providing a life-like representation of various sound sources.
• Transducer Type: The M60 features a high-headroom, low-noise phantom-powered FET amplifier. This type of transducer helps in achieving a fast transient response and an extended frequency range.
• Interchangeable Capsules: The microphone is equipped with thread-on TK6x Series capsules that allow for easy interchangeability. These capsules provide Cardioid, Hypercardioid, and Omni polar patterns, giving the user flexibility in adjusting the microphone’s pickup pattern according to the recording environment.
• Versatility: With its versatile characteristics, the M60 is suitable for a range of applications, including capturing acoustic guitar, drums, percussion, and live sound. Its ability to handle various sources with clarity makes it a versatile tool for both studio and stage use.
• Craftsmanship: Designed and hand-assembled in the USA, the M60 reflects a commitment to craftsmanship and quality. The use of premium components and attention to detail in assembly contribute to the microphone’s performance.

Recommended Applications:

• Acoustic Guitar
• Drums
• Percussion
• Live Sound

“

• Type: FET Condenser
• Polar Pattern: Cardioid, Omnidirectional, Hypercardioid
• Frequency Range: 20 Hz – 20 kHz, ±3 dB
• Power Source: +48V Phantom Power
• Capsule: TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
• Transformer: TELEFUNKEN Elektroakustik T61CT
• Sensitivity: 8.6 mV/Pa, ±1 dB
• THD at 1kHZ at 1Pa (Amplifier): < 0.01%
• Output Impedance: 120 Ω
• Maximum SPL (for 1% THD): > 130 dB
• S/N Ratio: 89 dBA
• Self Noise (Amplifier): 5 dBA
• Dimensions: 140 mm L x 20 mm Dia
• Weight: 110 g

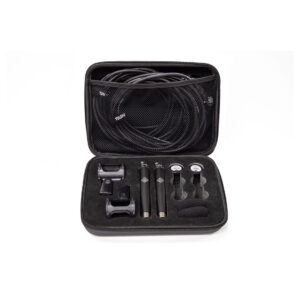

• Included Accessories: Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case
