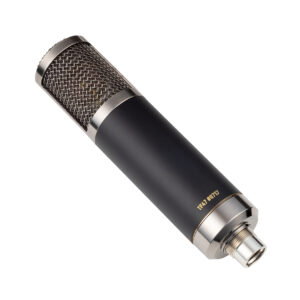

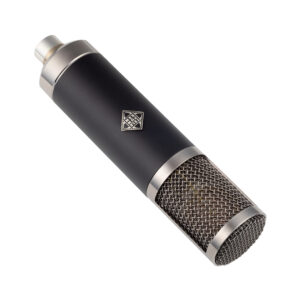

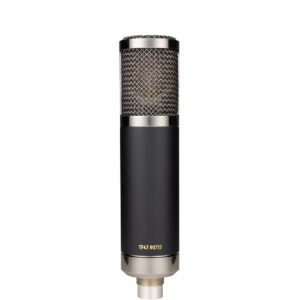

TELEFUNKEN TF47 STEREO SET

The TELEFUNKEN Elektroakustik TF47 is a modern microphone designed to capture the “German” sound, inspired by legendary microphones such as the U47 and M49. It combines a contemporary design with classic components to deliver a warm, punchy sound ideal for various recording applications. The TF47 is a versatile and valuable tool for professional audio production.

Key Features

  • Sound Character: The TF47 is crafted to provide a modern interpretation of the “German” sound. It features a full low end and forward midrange, reminiscent of the U47, making it well-suited for adding depth and presence to various sources.
  • Capsule Design: At the heart of the TF47 is an all-brass K47-style capsule. This capsule design is a key factor in achieving the microphone’s warm and punchy sound characteristics, drawing inspiration from the classic U47.
  • Vacuum Tube: The TF47 is equipped with a new old stock Philips/Raytheon 5840W vacuum tube. The use of this tube contributes to the microphone’s sonic profile, providing a smooth and detailed top end.
  • Transformer: The microphone features a custom-made historically accurate BV8 output transformer. The BV8 transformer is known for its association with the U47 and plays a crucial role in shaping the microphone’s sound, delivering warmth and a certain authority to the audio signal.
  • Versatile Applications: The TF47 is versatile and suitable for a range of applications, including recording vocals, piano, drums, trombone, bass, and cello. Its characteristics make it a valuable tool for capturing a wide range of instruments with clarity and warmth.
  • Craftsmanship: The TF47 reflects TELEFUNKEN Elektroakustik’s commitment to craftsmanship and quality. Designed and hand-assembled in the USA, the microphone combines modern manufacturing techniques with the sonic characteristics inspired by classic microphones.

Recommended Applications

  • Vocals
  • Piano
  • Drums
  • Trombone
  • Bass
  • Cello
  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Figure-8
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK47 Center Terminated Large Diaphragm
  • Tube: NOS Philips/Raytheon 5840W
  • Transformer: TELEFUNKEN Elektroakustik BV8
  • Sensitivity: 22 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 125 dB
  • S/N Ratio: 84 dBA
  • Self Noise (Amplifier): 10 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 710 g

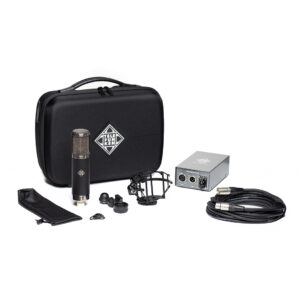

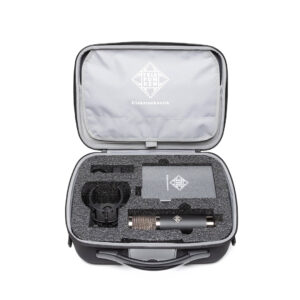

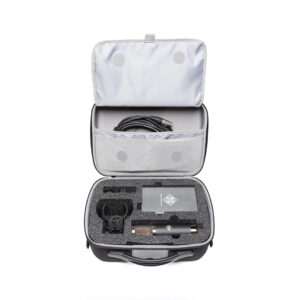

  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
