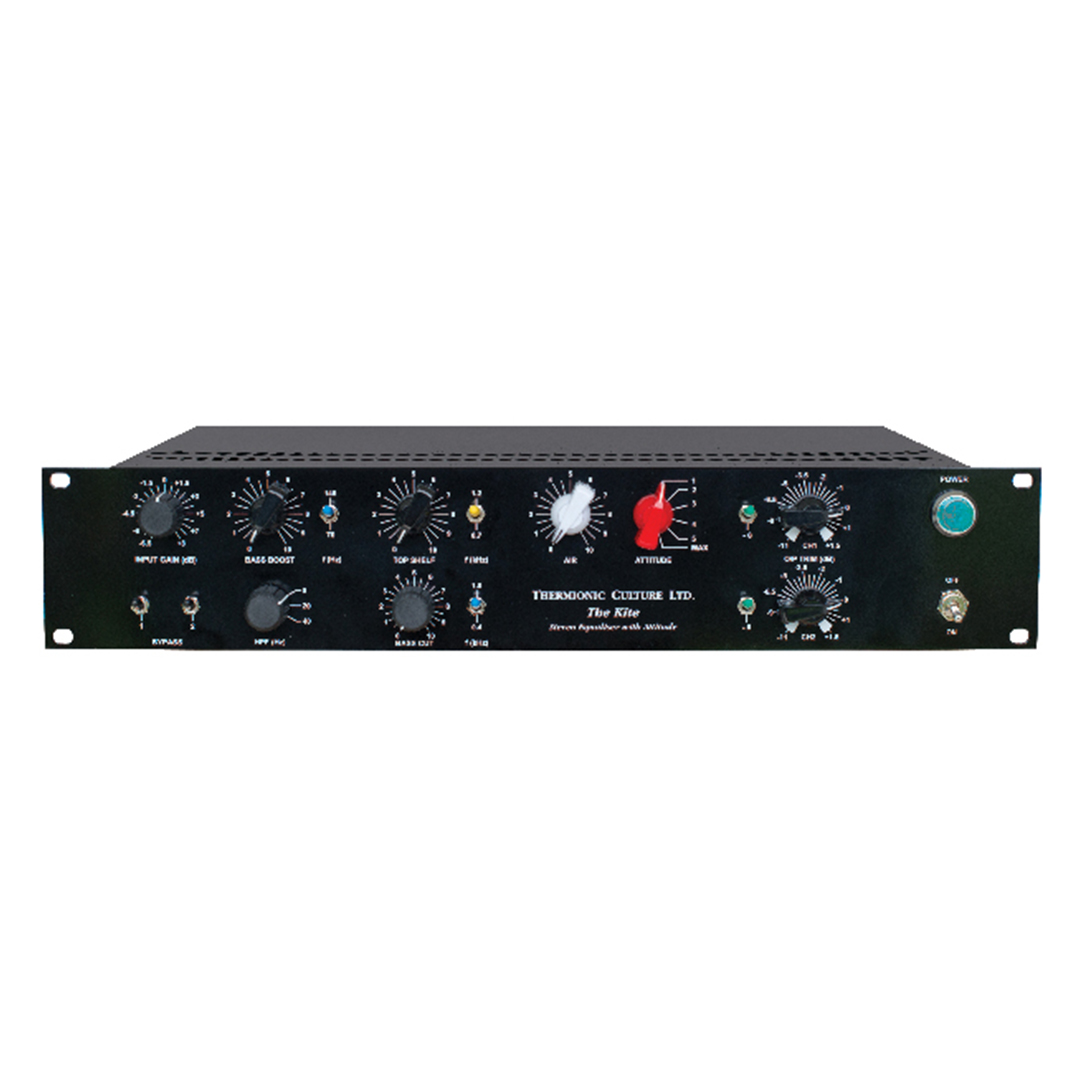

Thermionic Culture Kite All-Valve Stereo Equalizer with Attitude

The Thermionic Culture Kite is an all-valve stereo equalizer that brings the Attitude harmonic distortion control and tonal character of the Fat Bustard summing mixer to a dedicated two-channel EQ format. All controls operate over both stereo channels simultaneously, with the exception of the independent Output Trim controls—which include –6dB switches—allowing fine level matching between channels. The EQ section covers HPF, Bass Boost and Cut, Top Shelf, and AIR, with Bass Boost and Bass Cut each offering two selectable frequencies that can be used simultaneously to create a mid-cut effect. The AIR control enhances the very top of the frequency range with the clear yet warm character unique to all-valve designs. The Attitude switch adds 2nd harmonic content at the output stage, the same harmonic character that defines Thermionic Culture’s signature sound. A transformer balanced version is available to order.

Key Features

• HPF (high pass filter) — operates at 20Hz and 40Hz; 12dB/oct slope; removes unwanted low-frequency content
• Bass Boost — 2 selectable operating frequencies; continuous control over the amount of boost
• Bass Cut — 2 selectable operating frequencies; independent of Bass Boost; can be used simultaneously with Bass Boost at different frequencies to create a mid-cut effect
• Top Shelf — broad mid/top lift with a presence control character; 2 selectable frequencies
• AIR control — boosts the high-frequency range with a clear yet warm quality only achievable in all-valve designs; no harshness found in solid-state equivalents
• Attitude switch — adds 2nd harmonic content; all-valve harmonic distortion applied to the stereo output; same characteristic Attitude found in the Fat Bustard
• Independent Output Trim per channel — fine level control per channel; –6dB switches; all other controls affect both stereo channels equally
• All controls indented — for easy recall across sessions

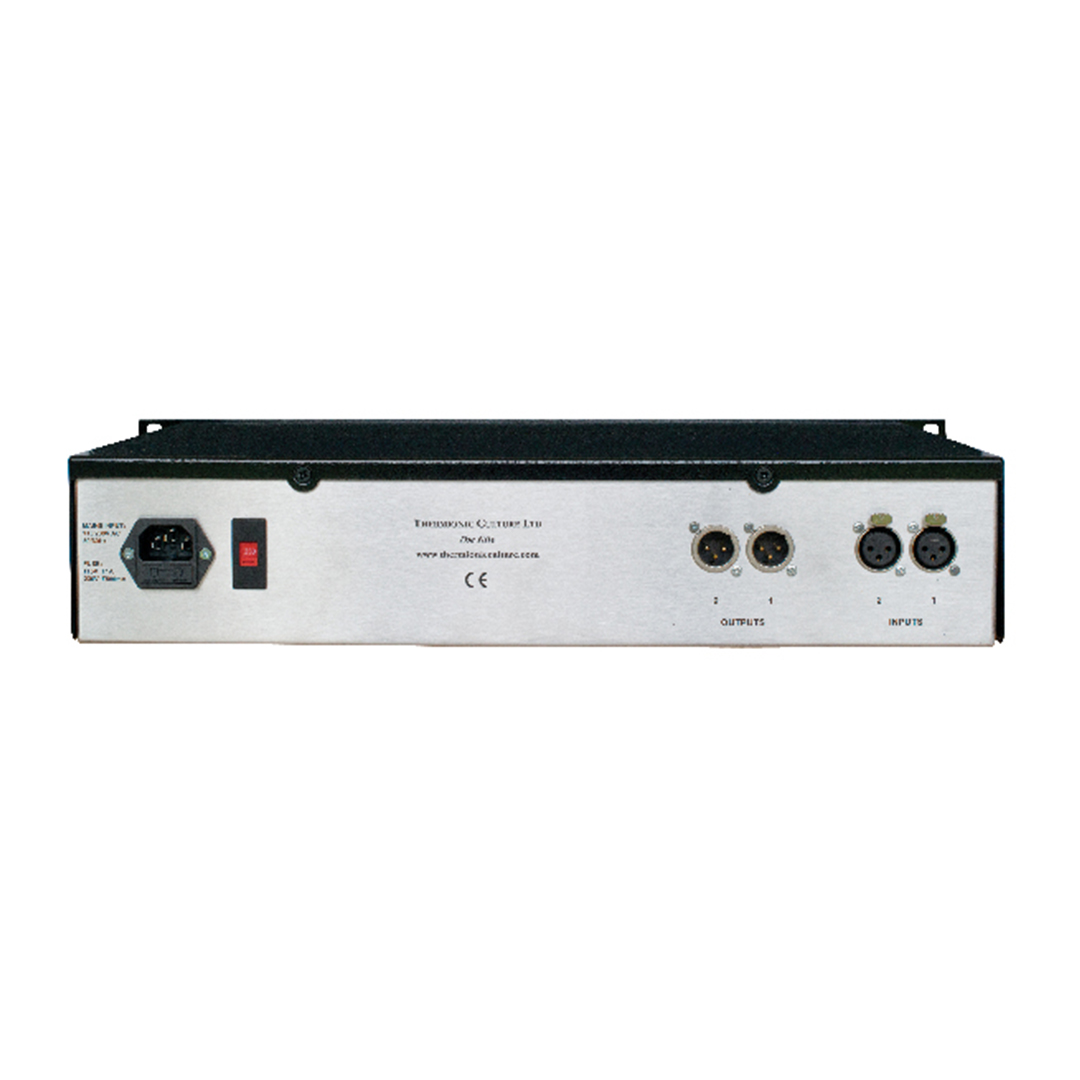

• XLR connectors; semi-floating inputs; unbalanced outputs — transformer balanced version available to order

Specifications

• Channels: Stereo (2); all controls linked except Output Trim
• HPF: 20Hz; 40Hz; 12dB/oct
• Bass Boost: 2 selectable frequencies; continuous
• Bass Cut: 2 selectable frequencies; continuous; independent of boost
• Top Shelf: Broad mid/top lift; 2 selectable frequencies
• AIR: High-frequency clarity (continuous)
• Attitude: Switched; 2nd harmonic (all-valve)
• Output Trim: Independent per channel; –6dB switch per channel
• Controls: Indented throughout
• Connectors: XLR; semi-floating inputs; unbalanced outputs
• Optional: Transformer balanced version (to order)
• Construction: Handcrafted in England
