TK Audio TK-lizer 500

Three baxandall bands with low Q.

• High and low bands selectable between shelf or peak.
• High pass filter with 6 frequencies.
• All controls stepped for easy recall.
• M/S circuit.
• Electronically balanced for a clean path.

The TK-lizer 500 features all the power of TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world. The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has its own level control with a range from infinity to +6dB. Using the built-in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode, you can also adjust the stereo width using the level controls.

• Power requirement: +190mA / -80mA (extended over two slots)
• Frequency response: 20Hz to 50kHz +/-0.2dB
• THD @ +4dBu less than 0.0006%
• THD+N @ +26dBu is less than 0.001%
• Signal to noise ratio: 95dB
• Cross talk: -89dB
• Input impedance: 24kohm
• Output impedance: 50ohm
• Max input level: +26dBu
• Max output level: +27dBu
• Q~0.5

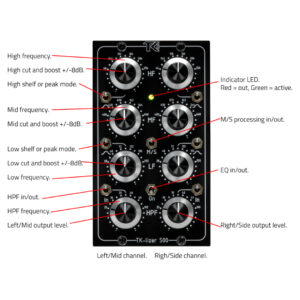

Features

• Low band:
  • Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
  • Boost/cut: +/-8dB
  • Peak or Shelf
• Mid Band:
  • Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
  • Boost/cut: +/-8dB
• High Band:
  • Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
  • Boost/cut: +/-8dB
  • Peak or Shelf
• High Pass Filter:
  • Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
  • In/Out
• Level: Infinity to +6dB (Unity gain at 12’o lock)
• EQ in/out. (LED red for out, green for in)
• M/S in/out

Specifications and components may be changed or updated without further notice.
