TK Audio Transceiver 2

Insert your unbalanced gear such as guitar pedals and old echo FX into your DAW or console via the Transceiver 2. Use it as an active DI-box with up to +20dB of gain, allowing you to plug your favorite instrument into your collection of vintage gear. The Transceiver 2 serves as a re-amping tool and a universal insert station on stage, connecting balanced gear between your instrument and amp. The blend function for the inserts and all controls are stepped for easy recall.

Features

• Insert your unbalanced gear such as guitar pedals and old echo FX into your DAW or console
• Active DI-box with up to +20dB of gain
• A re-amping tool
• Universal insert station on stage, connecting balanced gear between your instrument and amp
• Blend function for the inserts
• All controls stepped for easy recall

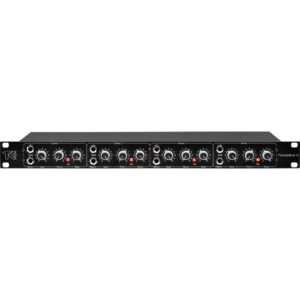

The Transceiver 2 is a universal insert station both on stage and in the studio. It is a four-channel insert station designed to convert balanced signals to unbalanced and back again without losing any signal quality. Each channel has a send level, a return gain control, a return polarity switch, and a blend control. With the new added blend function, you can choose how much of the inserted effect you want to blend in. The Transceiver 2 is a transformerless balanced design for the best possible signal handling, flat frequency response, and low harmonic distortion + noise. The balanced output has a high driving capability to drive input transformers, and the unbalanced send also has a high driving capability.

• Max balanced input: +27dBu
• Max unbalanced send level: +21dBu
• Max return input level: +21dB
• Return gain: 0-20dB
• Return input impedance: 1M ohm
• Max balanced output: +27dBu

Transceiver Version History

• Transceiver. Release December 2012
• Transceiver 2. Released October 2022

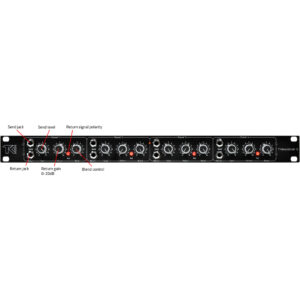

Details

• Send: TRS jack
• Send level: 0 to full (in 41 steps)
• Return: TRS jack
• Return gain: 0 to 20dB (in 41 steps)
• Polarity: flips the polarity of the return signal
• Blend control: from dry to wet (in 41 steps)
• Regulated, internal power supply with a toroidal transformer
• Selectable between 115 and 230V
• Power consumption: 12VA

Specifications and components may be changed or updated without further notice.
